ABB 3HAC046163-001 Migration-Ready Reduction Gear IRB6700

Overview

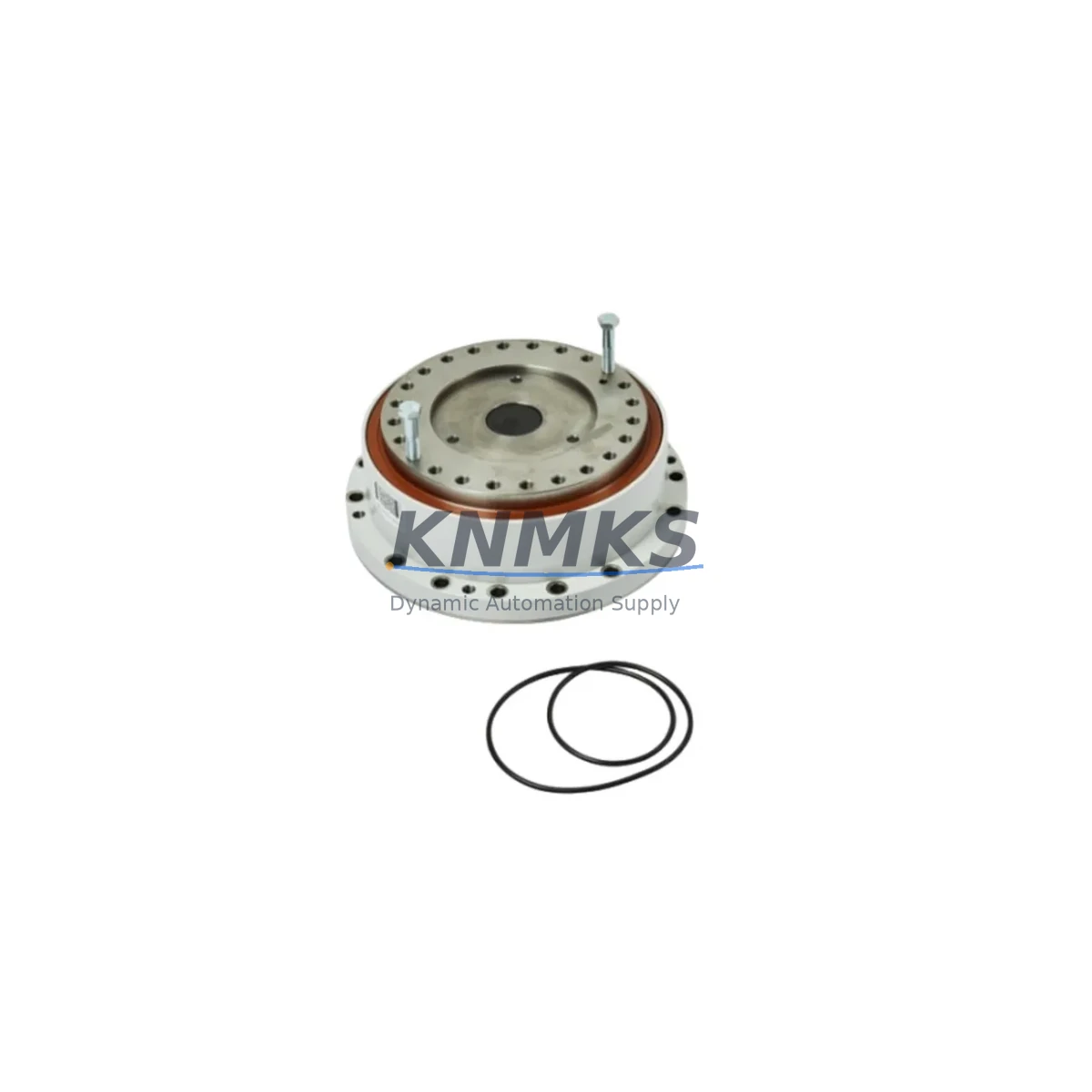

ABB 3HAC046163-001 Migration-Ready Reduction Gear for Legacy IRB6700 Control Systems

The ABB 3HAC046163-001 is a precision RV-320ES reduction gear (i=201) engineered for the IRB6700 series industrial robot platform. As legacy IRB6700 installations approach end-of-service milestones and original spare parts become increasingly difficult to source, the 3HAC046163-001 serves as a verified, migration-ready replacement that supports direct mechanical and electrical integration into existing robot arms without requiring structural modification to the control cabinet or drive system.

For maintenance engineers managing aging robot fleets, the primary challenge during a reduction gear replacement is not the mechanical swap itself — it is the downstream verification chain: confirming that the new gear ratio matches the axis calibration stored in the IRC5 controller, that the encoder feedback loop remains intact through the SMB (Serial Measurement Board), and that the robot’s mastering data is preserved or correctly re-established after installation. The 3HAC046163-001 is dimensionally and kinematically identical to the original factory-fitted unit, which means axis 1 or axis 2 replacement workflows can proceed without reprogramming the IRC5 motion parameters from scratch.

Each unit shipped from our inventory undergoes pre-shipment functional testing, including gear mesh inspection, backlash measurement, and seal integrity verification. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and premature wear under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRB6700 reduction gear retrofit begins well before the maintenance window opens. Engineers should pull the robot’s axis calibration file from the IRC5 controller and back up the RAPID program and system parameters to a USB or network share. This protects the existing motion logic and allows rapid restoration if the replacement introduces any unexpected axis offset.

The IRC5 controller cabinet typically houses the drive modules (DSQC661 or DSQC662 axis computer boards), the SMB unit, and the main computer (DSQC1000). None of these components require replacement during a standard reduction gear swap, but the SMB board’s resolver signal should be verified with a multimeter before and after installation to confirm the feedback chain is intact. If the resolver wiring harness shows signs of insulation degradation — common in high-cycle environments — it is advisable to replace the harness concurrently to avoid a second unplanned shutdown.

For sites running multiple IRB6700 units on a shared FlexController or coordinated cell, the axis mastering procedure for the repaired robot must be completed and verified before the robot is returned to the production sequence. Use the ABB FlexPendant calibration routine with the correct mastering pin for the relevant axis. If the robot is part of a MultiMove configuration, the cell coordinator program (typically managed through RobotStudio) should be re-validated after mastering to confirm TCP accuracy across all coordinated axes.

In control cabinets where space is constrained, engineers should also inspect the condition of the 3HAC044841-002 motor unit and the 3HNA006146-001 associated drive components during the same maintenance window. Replacing the reduction gear while the robot is already offline is an efficient opportunity to assess adjacent wear items and avoid a repeat shutdown within the same service cycle. Similarly, the SIB-01 safety interface board should be checked for firmware currency if the site is running a mixed-generation safety architecture.

For sites migrating from older IRB6600 or IRB6650 platforms to the IRB6700 series, the reduction gear specification change is one of several compatibility checkpoints. The IRB6700 uses a different gear ratio profile on certain axes compared to its predecessors, which means RAPID motion programs written for the older platform will require path re-validation even if the physical cell layout is unchanged. Coordinate with your ABB system integrator or use RobotStudio offline simulation to validate cycle times and path accuracy before live commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime during a reduction gear replacement on an IRB6700 requires a structured pre-work checklist and a clearly defined restoration sequence. The following approach has been validated across multiple industrial retrofit projects:

Before shutdown: Back up IRC5 system parameters, RAPID modules, and the current mastering data. Confirm that the replacement 3HAC046163-001 unit is on-site and has passed incoming inspection. Prepare the mastering pin, torque wrench set, and FlexPendant. Notify upstream and downstream production cells of the planned maintenance window.

During replacement: Follow the ABB IRB6700 product manual disassembly sequence for the relevant axis. Apply correct torque values to all fasteners — under-torquing is a common cause of premature gear failure in high-load applications. Do not reuse old sealing compounds; apply fresh sealant to mating surfaces as specified. Reconnect the resolver harness and SMB connector before closing the arm housing.

After installation: Perform full axis mastering using the FlexPendant calibration routine. Run a slow-speed dry cycle (10–20% speed) to verify smooth motion and absence of abnormal noise. Gradually increase to production speed over 3–5 cycles. Confirm TCP accuracy with a reference point check before releasing the robot to production.

By staging the replacement during a scheduled maintenance window rather than responding reactively to a gear failure, sites typically reduce total downtime from 8–16 hours (emergency response) to 3–5 hours (planned replacement). Pre-shipment tested units with verified gear mesh and backlash specifications further reduce the risk of a second intervention within the confirmed support period.

Retrofit Support FAQ

Q: Is the 3HAC046163-001 a direct drop-in replacement for the original IRB6700 reduction gear?
A: Yes. The 3HAC046163-001 is dimensionally and kinematically identical to the OEM-fitted unit. No modification to the robot arm structure, IRC5 controller parameters, or SMB wiring is required. Full axis mastering is required after installation, which is standard procedure for any reduction gear replacement on the IRB6700 platform.

Q: What commissioning steps are required after installation?
A: After mechanical installation and resolver reconnection, perform full axis mastering via the FlexPendant using the correct calibration pin for the relevant axis. Run a slow-speed dry cycle to verify motion quality, then validate TCP accuracy before returning the robot to production. If the robot is part of a MultiMove cell, re-validate the coordinated motion sequence in RobotStudio.

Q: Does the unit ship with pre-shipment testing documentation?
A: Yes. Each 3HAC046163-001 unit undergoes gear mesh inspection, backlash measurement, and seal integrity verification before dispatch. Testing records are available upon request. All units are covered by a support terms confirmed by quotation against manufacturing defects under normal operating conditions.

Q: What is the lead time and stock availability?
A: Units are availability confirmed by RFQ and available for immediate dispatch. For volume orders or scheduled maintenance programs requiring multiple units, contact our sales team to confirm allocation and arrange consolidated shipment to minimize per-unit logistics cost.
