ABB 3HAC045484-006 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC045484-006 Maintenance-Proven Spare Part for Factory Uptime

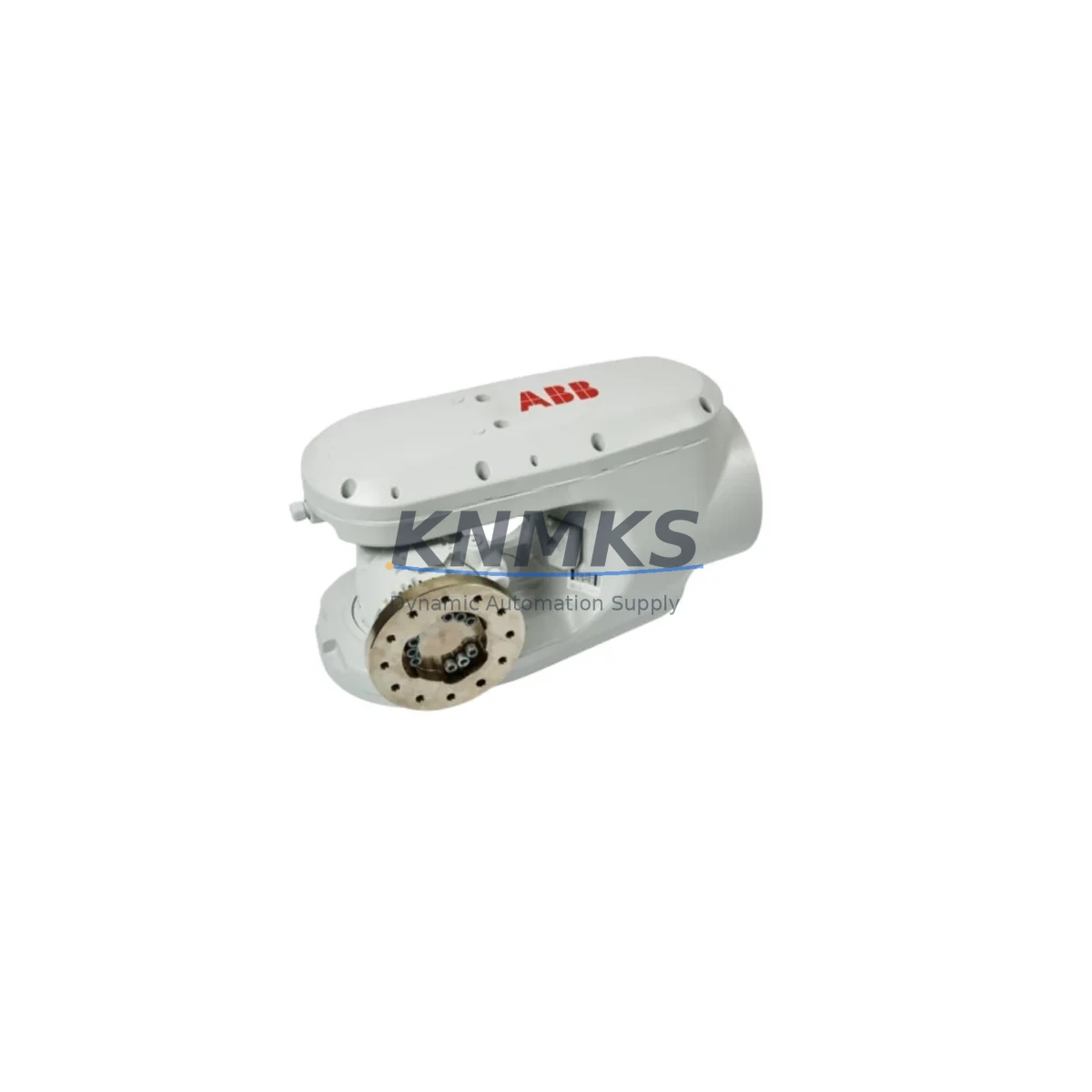

The ABB 3HAC045484-006 is an original OEM wrist assembly designed for the IRB6700 series industrial robot, covering Axis 5 and Axis 6 articulation. In high-throughput manufacturing environments — automotive body shops, heavy fabrication lines, foundry automation, and palletizing cells — the wrist assembly is one of the highest-wear mechanical subassemblies on the robot arm. Proactive spare parts stocking of the 3HAC045484-006 is a proven strategy to eliminate unplanned downtime and protect production continuity.

This unit is sourced as an original ABB spare, inspected and pre-shipment tested before dispatch, and backed by a support terms confirmed by quotation. Global logistics support ensures rapid delivery to maintenance teams across Asia, Europe, the Middle East, and the Americas.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the 3HAC045484-006 wrist assembly on an IRB6700, the scope of inspection should extend beyond the wrist unit itself. A wrist failure event — whether caused by collision, overload, lubrication breakdown, or seal degradation — typically stresses adjacent components in the same kinematic chain and electrical circuit.

During the same maintenance window, engineers should inspect and consider stocking the following associated components:

• ABB 3HAC044513-001 (Axis 5/6 Motor Unit) — The servo motor driving Axis 5 and Axis 6 is directly coupled to the wrist gearbox. If the wrist assembly has experienced a collision or overload event, the motor shaft and encoder should be verified for runout and signal integrity before returning to production.
• ABB 3HAC026510-001 (Wrist Gearbox / Gear Unit) — The internal gear unit within the wrist assembly is a wear item in high-cycle applications. Stocking a gearbox spare alongside the wrist assembly reduces second-event downtime risk.
• ABB 3HAC14550-2 (SMB Battery Unit) — The Serial Measurement Board battery maintains axis position data during power-off. A wrist replacement procedure requires robot re-mastering; this is an ideal time to replace the SMB battery if it is approaching its service interval.
• ABB IRC5 Controller Servo Drive Modules — After a mechanical overload event at the wrist, the corresponding servo drive axis card in the IRC5 controller cabinet should be checked for fault logs and drive health. Drive modules for Axis 5/6 are a recommended cabinet spare for IRB6700 installations.
• Wrist Harness / Signal Cable Assembly (3HAC series) — The signal and power harness routed through the upper arm and wrist is subject to flex fatigue in high-cycle applications. Inspect the harness for chafing, connector wear, and insulation integrity during any wrist replacement.
• ABB DSQC series I/O Modules — If the robot is integrated with a safety PLC or fieldbus I/O system, verify that the I/O modules communicating with the robot controller have not logged communication faults during the downtime event. DSQC651 and DSQC652 digital I/O modules are common cabinet spares for IRB6700 cells.

A structured cabinet inspection during the wrist replacement window — covering servo drives, I/O modules, harness condition, and SMB battery — converts a reactive repair into a proactive maintenance event and significantly reduces the probability of a second unplanned stoppage within the same production quarter.

Site Replacement Workflow

Replacing the 3HAC045484-006 wrist assembly on an IRB6700 follows the standard ABB mechanical replacement procedure outlined in the IRB6700 Product Manual (document 3HAC044266-001). The key steps for maintenance teams are:

• Pre-work: Place the robot in a safe maintenance position (calibration position recommended). Isolate energy — electrical, pneumatic, and hydraulic — per site LOTO procedures. Confirm the IRC5 controller is in manual mode and motors are off.
• Removal: Disconnect the wrist harness connectors at the upper arm junction. Remove the wrist assembly retaining bolts per the torque sequence in the product manual. Support the wrist assembly weight during removal to prevent damage to the harness.
• Inspection: Inspect the mating flange surface on the upper arm for damage. Check the harness routing channel for wear. Verify the new 3HAC045484-006 unit matches the revision level required for the robot serial number range.
• Installation: Install the new wrist assembly using the specified torque values. Reconnect the harness. Apply fresh grease to the gear interfaces per ABB lubrication specifications.
• Re-mastering: Perform axis mastering for Axis 5 and Axis 6 using the ABB FlexPendant calibration routine. Verify mastering offsets are within tolerance before returning the robot to automatic mode.
• Functional test: Run a slow-speed test cycle through the full working envelope before resuming production speed. Log the replacement in the robot maintenance record.

Using an original OEM 3HAC045484-006 spare eliminates compatibility risk, ensures the mastering offsets align with factory calibration data, and maintains the robot’s rated payload and reach specifications without modification.

Spare Parts Support FAQ

Q1: Is the 3HAC045484-006 compatible with all IRB6700 payload variants?
The 3HAC045484-006 wrist assembly is designed for the IRB6700 platform. Compatibility across specific payload variants (150 kg through 500 kg) and reach configurations should be confirmed against the robot serial number and the ABB spare parts catalog for the specific robot revision. Contact our team with your robot serial number for confirmation before ordering.

Q2: What is included in the support terms confirmed by quotation?
All units shipped from KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from collision, incorrect installation, or operation outside the robot’s rated specifications.

Q3: How do you verify the unit before shipment?
Each 3HAC045484-006 unit undergoes a pre-shipment inspection covering dimensional checks, seal integrity, gear backlash verification, and visual inspection for transport damage. A test report is available upon request for critical production applications.

Q4: Can you support long-term or blanket purchase orders for IRB6700 spare parts?
Yes. KNMKS supports annual maintenance contracts, blanket purchase orders, and consignment stock arrangements for customers with multiple IRB6700 installations. Long-term supply agreements help maintenance teams maintain recommended spare parts inventory levels and reduce emergency procurement lead times. Contact [email protected] to discuss your requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HAC045484-006
IRC5 Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry
