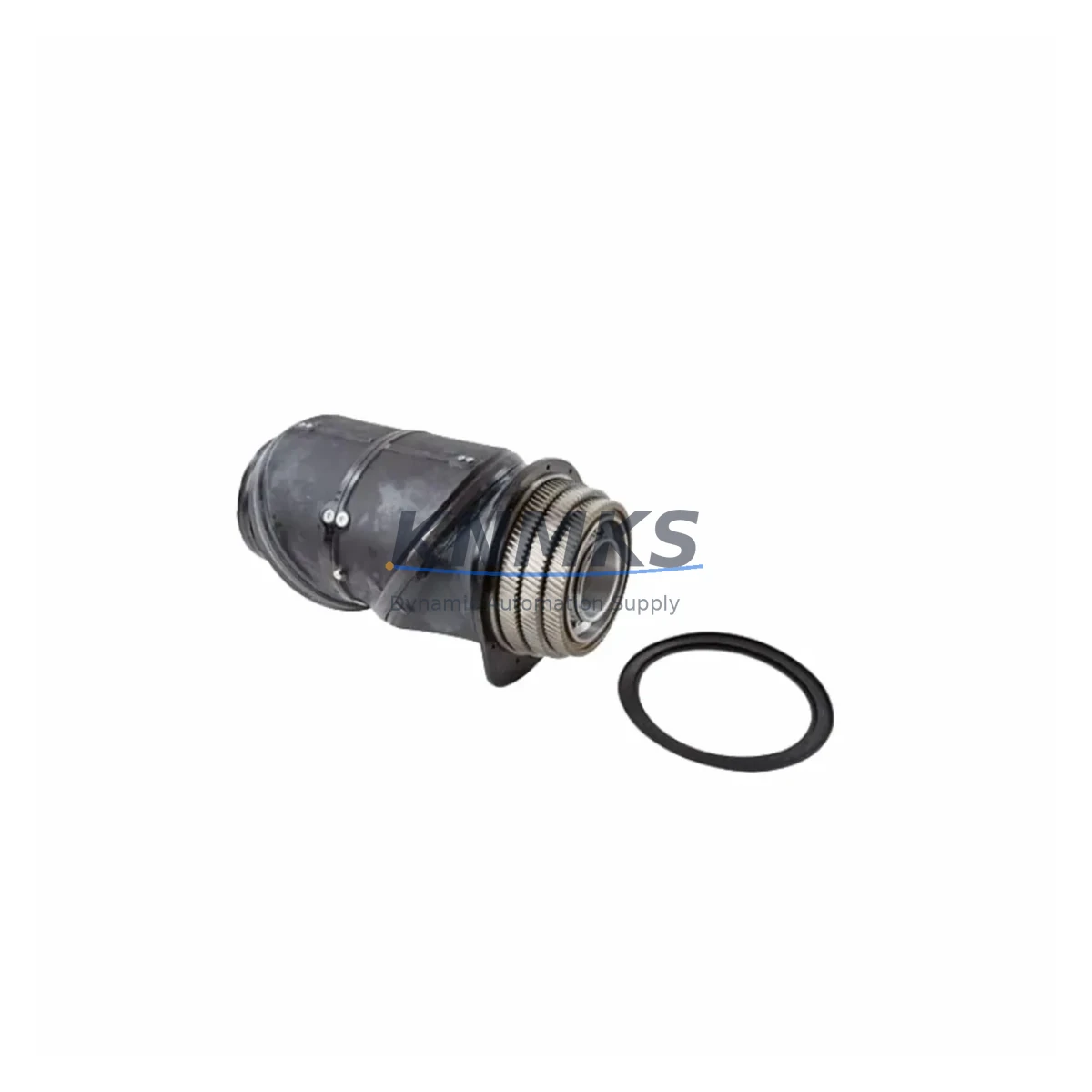

ABB 3HAC043090-001 Migration-Ready Hollow Wrist IRB4600

Overview

ABB 3HAC043090-001 Migration-Ready Hollow Wrist for Legacy IRB4600 Control Systems

The ABB 3HAC043090-001 hollow wrist unit is a precision-engineered mechanical replacement designed for IRB4600 and IRB7600 series industrial robots operating in legacy automation environments. As ABB progressively phases out older wrist assemblies — including the 3HAC057543-003 and 3HNM13622-1 — facilities running long-cycle production lines face increasing pressure to source compatible drop-in replacements without triggering full robot requalification. The 3HAC043090-001 addresses this directly: it maintains the original mounting geometry, axis-3 flange interface, and cable routing path through the hollow wrist bore, enabling a controlled retrofit without reprogramming the robot’s kinematic model.

For maintenance engineers managing IRB4600-45/2.05 or IRB4600-60/2.05 cells, the hollow wrist bore is critical for routing welding wire, pneumatic lines, or sensor cables through the wrist without external conduit. When the original 3HAC14040-1 wrist housing shows wear — typically evidenced by axis-6 backlash, grease contamination at the wrist seal, or abnormal vibration signatures during TCP verification — replacement with the 3HAC043090-001 restores original dynamic performance without requiring recalibration of the IRC5 controller’s axis configuration file.

Before commencing the wrist replacement, engineers should verify the IRC5 controller firmware version (minimum RobotWare 5.14 or 6.x) to confirm compatibility with the axis-6 resolver signal chain. The DSQC 661 or DSQC 679 axis computer boards within the IRC5 cabinet must be inspected for any pending SMB (Serial Measurement Board) battery alarms, as an SMB reset is required after mechanical disassembly to re-establish the resolver reference position. Failure to perform the SMB calibration sequence post-installation will result in axis-6 position errors and potential SafeMove zone violations.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful wrist retrofit on an IRB4600 cell requires coordinated planning across mechanical, electrical, and software domains. On the mechanical side, the replacement 3HAC043090-001 unit ships with the axis-6 gear assembly pre-loaded; however, the existing wrist harness — typically the 3HAC044075-001 dress pack cable assembly — must be inspected for insulation fatigue before reinstallation through the hollow bore. If the dress pack shows cracking at the wrist entry point, concurrent replacement prevents a secondary unplanned outage within the confirmed support period.

On the electrical side, the DSQC 661 axis computer and the SMB unit (3HAC14550-1 or equivalent) must be confirmed operational before the wrist swap begins. A degraded SMB battery will prevent successful resolver calibration after reassembly, extending downtime unnecessarily. Similarly, the 24VDC brake release circuit — fed from the IRC5 drive module — should be verified with a multimeter before axis-6 is manually rotated during disassembly.

For cells integrating a FlexPendant (3HAC028357-001) and SafeMove safety module, the axis-6 working range and speed supervision zones must be re-validated after the wrist replacement. SafeMove configuration files stored on the IRC5 RAPID program memory are not affected by the mechanical swap, but a supervised test run at reduced speed (10% override) is mandatory before returning the cell to full production speed. If the robot is part of a MultiMove coordinated motion group, the coordinated motion parameters in the system configuration file (SYS.CFG) should be reviewed to confirm axis-6 offset values remain within tolerance.

Facilities running IRB7600 variants alongside IRB4600 cells should note that while the 3HAC043090-001 is dimensionally compatible with select IRB7600 wrist configurations, the axis-6 gear ratio differs between the two robot families. Confirm the exact robot serial number and mechanical unit designation in RobotStudio or the IRC5 system parameters before ordering. The 3HAC057543-003 — the direct predecessor on IRB7600-150/3.5 installations — shares the same hollow bore geometry but uses a different torque rating on the axis-6 output flange.

Downtime Control During System Migration

Minimizing unplanned downtime during a wrist replacement on a live production line requires pre-staging all replacement components before the maintenance window opens. The 3HAC043090-001 unit, the axis-6 brake release tool, the SMB calibration cable, and the FlexPendant should all be physically present at the robot cell before the IRC5 controller is powered down. A pre-written RAPID test routine — executing a slow-speed axis-6 sweep from -180° to +180° — should be loaded and ready for immediate execution after the SMB calibration sequence completes.

To protect the existing RAPID program logic, a full system backup (including RAPID modules, system parameters, and EIO configuration) must be performed via the FlexPendant backup function before any mechanical work begins. This backup preserves the tool data, work object definitions, and any conveyor tracking or vision system offsets that would otherwise require manual re-entry after a controller reset. Store the backup on both the IRC5 internal memory and an external USB drive to ensure redundancy.

For cells with downstream PLC integration — for example, where the robot’s I/O signals are mapped to a Siemens S7-300 or Allen-Bradley ControlLogix via PROFIBUS-DP or EtherNet/IP — the PLC program should be placed in manual mode and the robot’s I/O handshake signals masked before the IRC5 is powered down. This prevents false fault signals from propagating to the line PLC and triggering upstream conveyor stops or safety interlocks during the maintenance window. After the wrist replacement and SMB calibration, restore the I/O mapping and perform a supervised cycle before releasing the cell to automatic production mode.

Retrofit Support FAQ

Q: Is the 3HAC043090-001 a direct drop-in replacement for the 3HAC057543-003 on IRB4600 installations?
A: Yes, for IRB4600 series robots the 3HAC043090-001 is a direct mechanical replacement for the 3HAC057543-003 and 3HNM13622-1. The mounting bolt pattern, hollow bore diameter, and axis-6 gear interface are identical. An SMB resolver calibration is required after installation, but no kinematic model changes are needed in the IRC5 system parameters.

Q: What pre-shipment testing is performed on the 3HAC043090-001?
A: Each unit undergoes a full mechanical inspection including gear mesh verification, seal integrity check, and hollow bore clearance measurement before dispatch. Units are shipped in OEM-equivalent protective packaging with a test report. The support terms confirmed by quotation cover manufacturing defects and premature wear under normal operating conditions.

Q: Can this wrist unit be installed without ABB-certified service personnel?
A: The mechanical installation can be performed by qualified in-house maintenance engineers familiar with IRB4600 disassembly procedures. However, the SMB calibration sequence and SafeMove re-validation require access to the FlexPendant and RobotStudio, and should be performed by personnel with IRC5 commissioning experience. KNMKS can provide remote commissioning guidance during the calibration phase.

Q: What is the lead time and stock availability?
A: The 3HAC043090-001 is held availability confirmed by RFQ for immediate dispatch. Standard lead time for in-stock units is 3–7 business days depending on destination. For urgent requirements, expedited shipping is available. Contact [email protected] or +86 18359268345 to confirm current stock levels and arrange priority dispatch.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IRB46003HAC043090-001 IRB76003HAC057543-0033HAC14040-1 3HNM13622-1
IRC5 Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB IRB46003HAC043090-001 IRB76003HAC057543-0033HAC14040-1 3HNM13622-1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
