ABB 3HAC038404-003 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC038404-003 Maintenance-Proven Spare Part for Factory Uptime

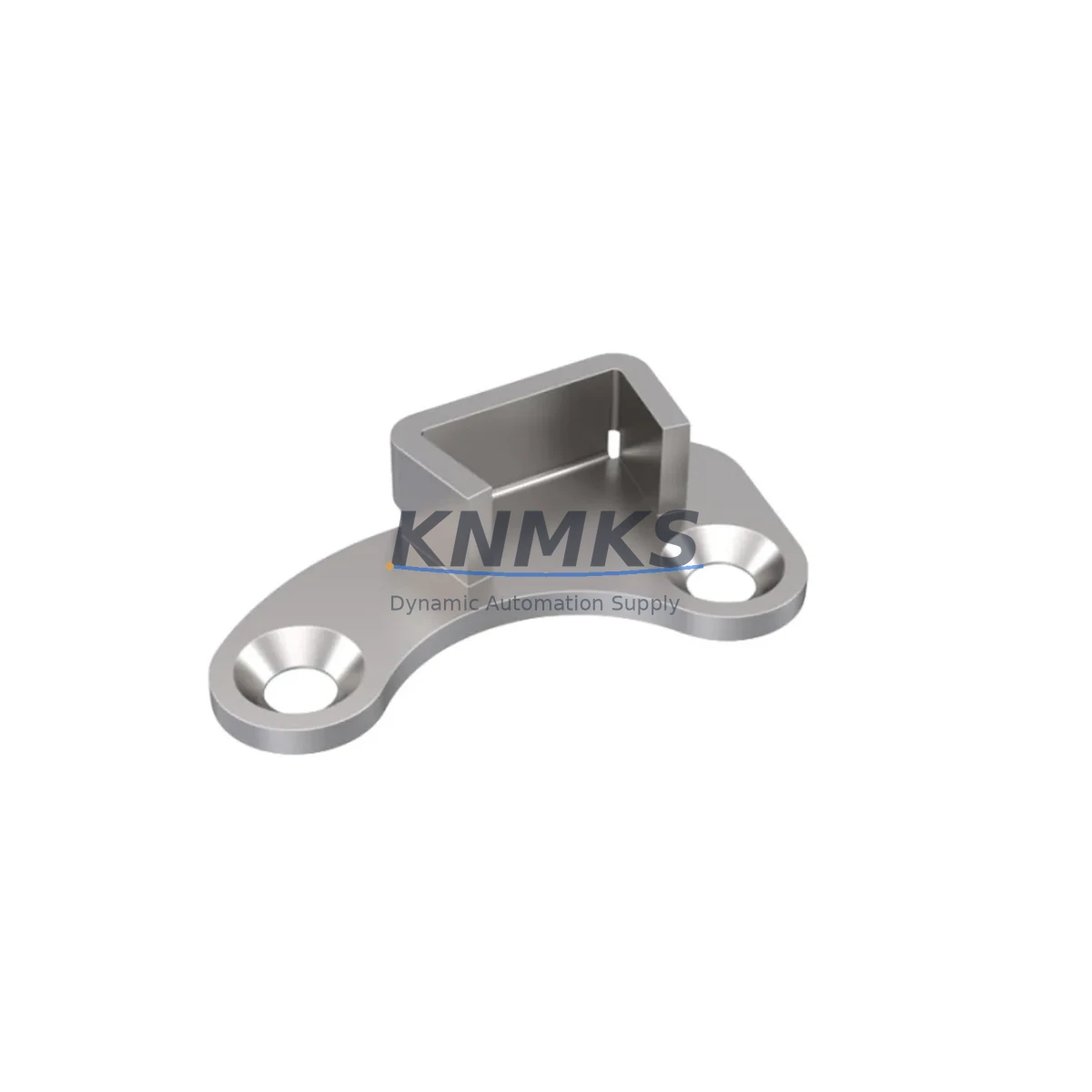

The ABB 3HAC038404-003 is an original axis mechanical stop designed for the IRB 760 industrial robot series — one of ABB’s high-payload palletizing platforms widely deployed in automotive, food & beverage, and heavy manufacturing environments. As a precision-machined mechanical limit component, the 3HAC038404-003 defines the physical travel boundary for specific robot axes, playing a critical role in both operational safety and positional repeatability. When this component wears, fractures, or is displaced during a collision event, the robot’s axis may exceed its programmed envelope, triggering safety faults, emergency stops, or — in worst cases — structural damage to the robot arm or surrounding tooling.

For maintenance engineers managing IRB 760 installations, keeping a verified OEM replacement of the 3HAC038404-003 in the local spare parts cabinet is a standard practice in any mature predictive maintenance program. Downtime caused by a missing mechanical stop can extend from hours to days if the part must be sourced reactively. Stocking this component alongside related consumables and structural spares ensures that axis-limit faults can be resolved within a single maintenance shift, restoring production continuity without waiting on international freight.

This listing covers the ABB part number 3HAC038404-003, cross-referenced against IRB 760 build variants including configurations associated with 3HAC057544-006, 3HAC058992-003, 3HAC058991-005, and 3HAC024776-001. All units are sourced from verified supply channels, inspected upon receipt, and tested before dispatch. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3HAC038404-003 mechanical stop is rarely an isolated task. In practice, a collision event or axis-limit fault that damages this component often warrants a broader inspection of the robot’s joint assembly and associated control infrastructure. Maintenance engineers should treat this replacement as a trigger for a structured inspection cycle rather than a single-part swap.

Begin with the axis motor and gearbox on the affected joint. ABB IRB 760 axis drives — including the servo motor units associated with the SMB (Serial Measurement Board) — should be checked for abnormal vibration signatures or encoder drift that may have contributed to the overtravel event. The SMB itself, which manages axis position feedback, should be verified for correct calibration after any mechanical stop replacement, as positional reference data may have shifted during the fault condition.

Next, inspect the robot controller cabinet. For IRB 760 systems running on ABB IRC5 controllers, verify the drive module status and check for latched axis fault codes in the FlexPendant or RobotStudio event log. The IRC5 drive units — particularly the axis computer and drive system boards — should show no thermal warnings or communication errors following the mechanical event. If the robot was subjected to a hard stop collision, the controller’s 24VDC power supply and I/O modules should also be checked for voltage stability, as transient spikes during emergency stops can stress power distribution components.

For facilities running multiple IRB 760 units in a palletizing cell, it is advisable to inspect the teach pendant cable and connector integrity at the same time, as cable strain near the robot base is a common secondary failure point after collision events. Additionally, review the condition of the axis brake resistor and any external safety relay modules connected to the robot’s safety circuit — these components absorb energy during emergency stops and may show degraded performance after repeated events.

From a spare parts inventory perspective, procurement engineers supporting IRB 760 fleets should maintain buffer stock of the 3HAC038404-003 alongside complementary consumables: axis grease cartridges for the gearbox lubrication schedule, cable harness assemblies for the lower arm, and SMB battery packs for position memory retention during power-off periods. Grouping these items into a single annual maintenance kit reduces procurement lead time and simplifies the annual overhaul workflow.

Site Replacement Workflow

When replacing the ABB 3HAC038404-003 on an IRB 760 robot, follow a structured site workflow to minimize downtime and ensure system compatibility is maintained throughout the process.

Step 1 — Fault Isolation: Confirm the axis mechanical stop as the failed component by reviewing the robot controller fault log. Identify the specific axis affected and verify that no secondary structural damage has occurred to the robot arm casting or joint housing.

Step 2 — Safe Shutdown: Place the robot in manual mode, engage the axis brakes, and isolate the controller cabinet from mains power. Follow ABB’s lockout/tagout procedure for the IRB 760 before accessing the joint assembly.

Step 3 — Component Removal: Remove the damaged 3HAC038404-003 using the fastener torque specifications listed in the ABB IRB 760 product manual. Document the installation orientation before removal to ensure correct reinstallation of the replacement unit.

Step 4 — Inspection Window: Use the open access window to inspect the axis joint for debris, metal shavings, or grease contamination. Clean the mounting surface and verify that the axis hard stop bracket and surrounding casting are undamaged.

Step 5 — Installation: Install the new 3HAC038404-003 to the specified torque value. Verify alignment against the axis travel limit defined in the robot’s configuration parameters.

Step 6 — Calibration and Test: Restore power, perform an axis calibration routine via the FlexPendant, and run a slow-speed test cycle to confirm correct axis travel boundaries before returning the robot to production speed.

This workflow is compatible with both direct OEM replacement and cross-reference substitution using the associated SKUs listed above. No firmware changes are required for a like-for-like mechanical stop replacement on the IRB 760 platform.

Spare Parts Support FAQ

Q1: Is the 3HAC038404-003 compatible with all IRB 760 variants?
The 3HAC038404-003 is the primary axis mechanical stop for the IRB 760 series. Compatibility should be confirmed against your specific robot serial number and build configuration. Cross-reference SKUs 3HAC057544-006, 3HAC058992-003, 3HAC058991-005, and 3HAC024776-001 cover the major IRB 760 build variants. Contact our technical team with your robot serial number for confirmation before ordering if you are uncertain.

Q2: What is included in the support terms confirmed by quotation?
All units ship with a support terms confirmed by quotation from the date of dispatch, covering manufacturing defects and functional failures under normal operating conditions. The support terms does not cover damage resulting from incorrect installation, collision events, or use outside the specified operating environment. Support requests are processed with priority turnaround to minimize production impact.

Q3: How do you verify the part before shipment?
Each 3HAC038404-003 unit undergoes dimensional inspection and functional verification before dispatch. Parts are packaged in impact-protected, ESD-safe materials to prevent transit damage. A test report is available upon request for quality-critical procurement processes.

Q4: Can you support long-term or repeat supply for fleet maintenance programs?
Yes. We support scheduled procurement programs for facilities managing multiple IRB 760 robots or multi-brand automation fleets. Long-term supply agreements, consignment stock arrangements, and annual maintenance kit bundling are available. Contact our sales team to discuss volume pricing and lead time commitments tailored to your maintenance calendar.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IRB7603HAC057544-006 IRB7603HAC058992-003 3HAC038404-003 IRB7602-33HAC058991-005 3HAC024776-001
IRC5 Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB IRB7603HAC057544-006 IRB7603HAC058992-003 3HAC038404-003 IRB7602-33HAC058991-005 3HAC024776-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
