ABB 3HAC037638-002 Migration-Ready Balancing Device IRB7600

Overview

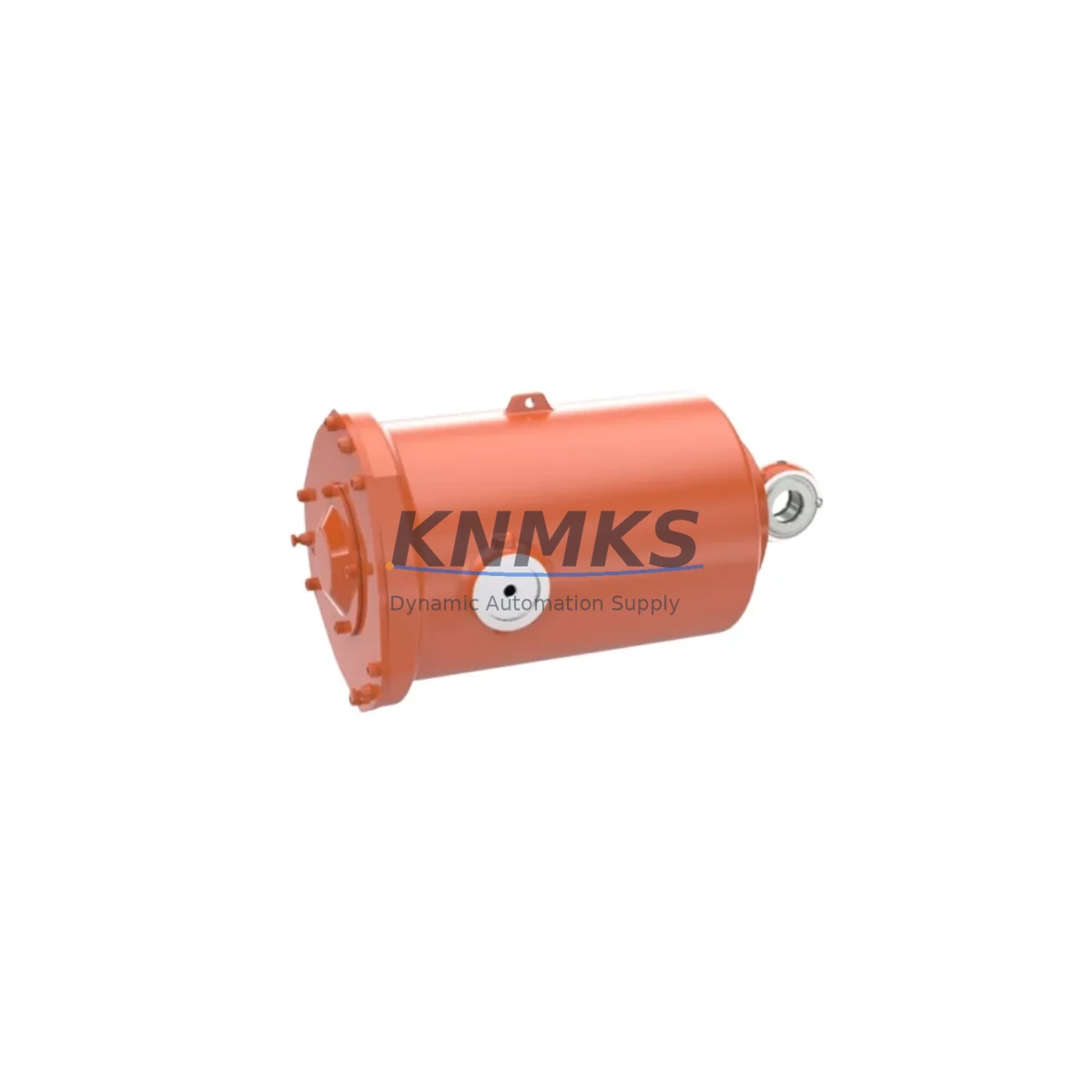

ABB 3HAC037638-002 Migration-Ready Balancing Device for Legacy IRB7600 Control Systems

The ABB 3HAC037638-002 is a migration-ready balancing device engineered for the IRB7600 heavy-duty industrial robot series. As ABB progressively phases out earlier mechanical assemblies, maintenance engineers and system integrators managing legacy robot cells face increasing pressure to source verified replacement components that maintain full mechanical and functional compatibility. The 3HAC037638-002 is a direct structural replacement for the discontinued 3HAC051384-003 and 3HAC048319-001 balancing units, offering a validated upgrade path without requiring modifications to the robot base frame, axis-1 drive train, or existing cable routing.

For facilities operating IRB7600 variants — including the IRB7600-150/3.5, IRB7600-325/3.1, IRB7600-400/2.55, and IRB7600-500/2.55 — the balancing device is a critical mechanical component that counteracts gravitational torque on axis 2, directly affecting robot repeatability, servo load distribution, and long-term gearbox wear. When the original balancing cylinder shows signs of nitrogen pressure loss, seal degradation, or mechanical fatigue, timely replacement with a compatible unit is essential to prevent unplanned downtime and protect the IRC5 controller’s servo drive modules from overload conditions.

Before initiating a balancing device swap, engineers should confirm the robot’s current software version in RobotStudio or the FlexPendant teach pendant, verify that the SMB (Serial Measurement Board) calibration data is backed up, and document the current axis-2 calibration offset. The replacement procedure requires the robot to be placed in a mechanically safe position, with the IRC5 main computer powered down and the axis-2 brake released under controlled conditions using the appropriate brake release tool. Incorrect installation sequence or failure to re-calibrate after replacement will result in path accuracy deviations and may trigger fault codes on the IRC5 drive unit.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRB7600 balancing device retrofit requires coordinated planning across mechanical, electrical, and software domains. The balancing unit does not operate in isolation — its condition directly influences the load profile seen by the axis-2 servo motor and the corresponding drive module within the IRC5 controller cabinet. When planning the replacement, engineers should simultaneously audit the condition of the axis-2 gearbox (3HAC040869-001 or equivalent), the axis-2 motor (3HAC17484-1), and the associated motor cable harness to avoid repeat interventions within a short maintenance window.

For robot cells where the IRC5 controller is also approaching end-of-life, this balancing device replacement is an ideal trigger point to evaluate a broader system modernization. The IRC5 main computer (DSQC1000 or DSQC679) should be checked for firmware currency, and the SMB unit (3HAC14550-1) should be inspected for battery backup integrity to ensure calibration data is preserved through the power cycle. If the robot is integrated into a production line via DeviceNet or PROFIBUS, the fieldbus adapter module (DSQC378B or DSQC667) configuration should be documented before any power interruption to avoid communication parameter loss on restart.

In control cabinet environments where space is constrained, the physical dimensions of the 3HAC037638-002 should be confirmed against the available installation envelope before scheduling the maintenance window. The balancing device connects to the robot lower arm via a clevis-pin assembly; the pin, retaining clips, and associated seals should be replaced as a matter of course during any balancing unit swap to prevent premature wear on the new assembly. Where the robot is part of a multi-robot cell managed by a central PLC — such as an ABB AC500 safety controller or a Siemens S7-300 with PROFIBUS master — the robot’s safe-stop signal chain should be verified to remain intact throughout the mechanical intervention.

Downtime Control During System Migration

Minimizing production downtime during a balancing device replacement on an IRB7600 requires a structured pre-maintenance protocol. Before the maintenance window opens, the replacement 3HAC037638-002 unit should be on-site and pressure-verified, all tooling (including the axis-2 brake release tool and calibration reference fixture) should be staged, and the robot program should be backed up to both the IRC5 controller’s internal memory and an external USB or network path via RobotStudio.

The axis-2 calibration procedure following balancing device installation is the most time-sensitive step. Using the FlexPendant, engineers should navigate to the calibration menu, select fine calibration for axis 2, and use the calibration pendulum or reference mark method as specified in the IRB7600 product manual. Failure to complete this step before returning the robot to automatic mode will result in path deviations that may cause product damage or fixture collision in tight-tolerance applications.

For facilities with a hot-standby robot or a spare IRB7600 unit, a swap-and-calibrate approach — where the replacement robot is pre-calibrated offline and swapped into the cell — can reduce in-cell downtime to under two hours. For single-robot cells without this option, a well-prepared team with all components staged can typically complete the balancing device replacement and recalibration within a four-to-six hour window, including functional test cycles and sign-off on path accuracy verification.

All units supplied by KNMKS undergo pre-shipment pressure testing and dimensional inspection. Stock availability is confirmed at time of order, and standard lead time for in-stock units is 3–7 business days internationally. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and seal integrity.

Retrofit Support FAQ

Q: Is the 3HAC037638-002 a direct drop-in replacement for 3HAC051384-003 and 3HAC048319-001?
A: Yes. The 3HAC037638-002 is mechanically and functionally compatible with both discontinued part numbers on the IRB7600 series. No frame modifications or adapter brackets are required. Axis-2 fine calibration is required after installation as standard procedure.

Q: Does the unit require re-calibration after installation, and what tools are needed?
A: Yes. Axis-2 fine calibration is mandatory after any balancing device replacement. You will need the FlexPendant, the IRB7600 calibration reference fixture, and access to RobotStudio for backup and verification. The calibration procedure is documented in the IRB7600 product manual (3HAC022033-001).

Q: Has this unit been tested before shipment?
A: Yes. Every 3HAC037638-002 unit supplied by KNMKS is pressure-tested and seal-verified prior to shipment. Units are inspected for dimensional conformance and packaged to prevent transit damage. A support terms confirmed by quotation is included covering manufacturing defects and seal integrity from date of delivery.

Q: What is the typical lead time and is stock available?
A: Stock availability is confirmed at time of order. Standard international lead time for in-stock units is 3–7 business days. For urgent requirements, expedited shipping options are available. Contact [email protected] or +86 18359268345 to confirm current inventory and arrange dispatch.
