ABB 3HAC034865-003 Maintenance-Ready Spare for IRC5 Automation

Overview

ABB 3HAC034865-003 Maintenance-Ready Spare for IRC5 Automation

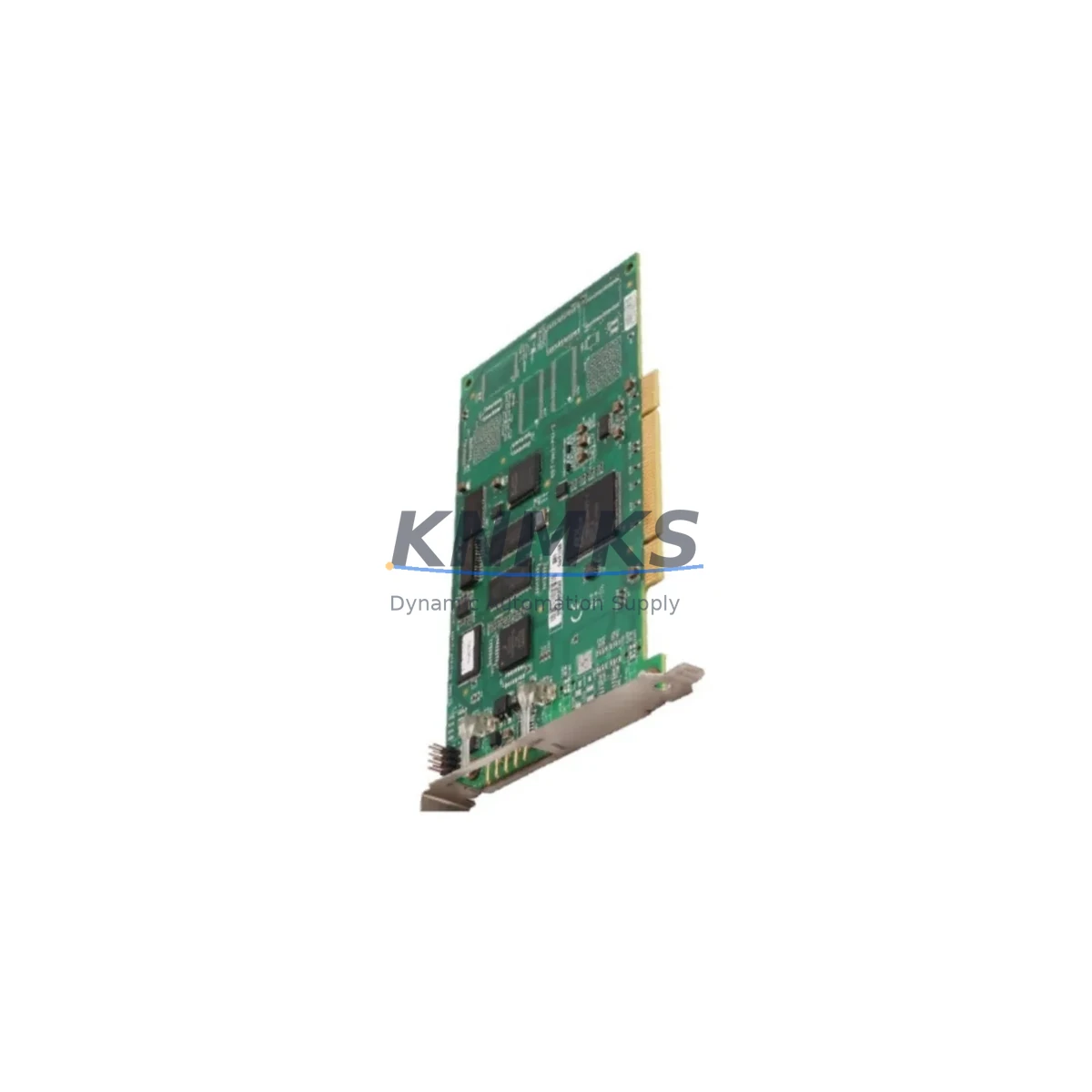

The ABB 3HAC034865-003 is an original Ethernet Communication Adapter engineered for the IRC5 robot controller platform, widely deployed across IRB 6640 series industrial robots in automotive, metal fabrication, foundry, and heavy-duty manufacturing environments. As a critical communication interface between the IRC5 controller and plant-level Ethernet networks, this module governs real-time data exchange, remote diagnostics, and supervisory control integration. When this adapter fails or degrades, the entire robot cell loses network visibility — triggering unplanned downtime that can cascade across production lines. Maintaining a verified spare of the 3HAC034865-003 in your local parts inventory is a proven strategy for minimizing mean time to repair (MTTR) and protecting factory uptime.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3HAC034865-003 Ethernet Communication Adapter is rarely an isolated task. In a well-structured IRC5 maintenance workflow, the adapter swap is the trigger for a broader cabinet inspection. Maintenance engineers should simultaneously verify the condition of the IRC5 Main Computer Unit (3HAC025338-001), which hosts the robot’s core processing and communicates directly with the Ethernet adapter over the internal backplane. A degraded main computer can cause intermittent adapter faults that are misdiagnosed as adapter failures.

The IRC5 Drive Module power supply and its associated 24 VDC distribution rail should be load-tested during the same maintenance window. Voltage fluctuations on the 24 VDC bus are a leading cause of premature communication module failure. Inspect the DSQC 662 I/O module and any connected DSQC 652 digital I/O boards for loose terminal connections, as these share the same cabinet environment and are subject to the same vibration and thermal cycling stresses.

For robots integrated into PROFINET or EtherNet/IP networks, the DSQC 688 fieldbus adapter should be checked for firmware version compatibility whenever the Ethernet adapter is replaced. Mismatched firmware between the communication adapter and the fieldbus module can cause silent data loss that only manifests under high-cycle production loads. Additionally, inspect the IRC5 teach pendant cable (3HAC031683-001) and its connector at the controller cabinet — a damaged FlexPendant cable can introduce ground loops that corrupt Ethernet communication signals.

Cabinet-level inspection should also cover the IRC5 panel board and its status LEDs, the main circuit breaker, and any installed signal isolation modules between the robot controller and external PLC or SCADA systems. Fuse integrity on the 24 VDC branch circuits must be confirmed before powering up after an adapter replacement. Documenting all findings in a maintenance log supports support requests and provides traceability for future fault analysis.

Site Replacement Workflow

Before removing the 3HAC034865-003, perform a full backup of the IRC5 system using the FlexPendant or RobotStudio. Record the current IP address, subnet mask, gateway, and any static ARP entries configured for the adapter. Power down the IRC5 controller via the main switch and wait for the capacitor discharge cycle to complete (minimum 5 minutes) before opening the cabinet.

Remove the defective adapter by releasing the module latch and sliding it clear of the backplane connector. Inspect the backplane socket for bent pins or corrosion before inserting the replacement 3HAC034865-003. Seat the module firmly until the latch engages. Restore power and confirm the adapter’s link LED illuminates within 30 seconds of boot. Re-enter the network configuration parameters and perform a ping test from the plant network to verify connectivity before resuming robot operation.

This replacement procedure is compatible with IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted Controller variants. No RobotWare license transfer is required for a like-for-like adapter replacement. The 3HAC034865-003 is a direct drop-in replacement for earlier revisions, eliminating the need for software reconfiguration in most installations and significantly reducing the time from fault detection to production resumption.

Spare Parts Support FAQ

Q1: Is the 3HAC034865-003 compatible with all IRC5 controller variants?
The 3HAC034865-003 is designed for the IRC5 platform and is compatible with IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted Controllers used with IRB 6640, IRB 6650, and IRB 6660 series robots. For installations using older IRC5 revisions, confirm the backplane connector revision before ordering. Our technical team can assist with compatibility verification based on your controller serial number.

Q2: How is the spare part tested before shipment?
Every 3HAC034865-003 unit is powered-on tested and subjected to Ethernet link negotiation verification prior to packaging. Units that fail to establish a stable 100 Mbps link or show elevated error rates are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: What is the recommended inventory strategy for this adapter?
For production facilities operating more than three IRC5 robot cells, we recommend maintaining a minimum of one 3HAC034865-003 on-site as a hot spare. For facilities with 10 or more IRC5 controllers, a two-unit buffer is advisable given the typical 4–8 week OEM lead time for new production units. Spare parts stored in a dry, ESD-safe environment retain full functionality for 5+ years.

Q4: What support terms and long-term supply commitment applies to this part?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. We maintain ongoing stock of the 3HAC034865-003 and its compatible cross-references to support long-term maintenance programs. For annual blanket orders or multi-site procurement agreements, contact our sales team for volume pricing and guaranteed allocation.
