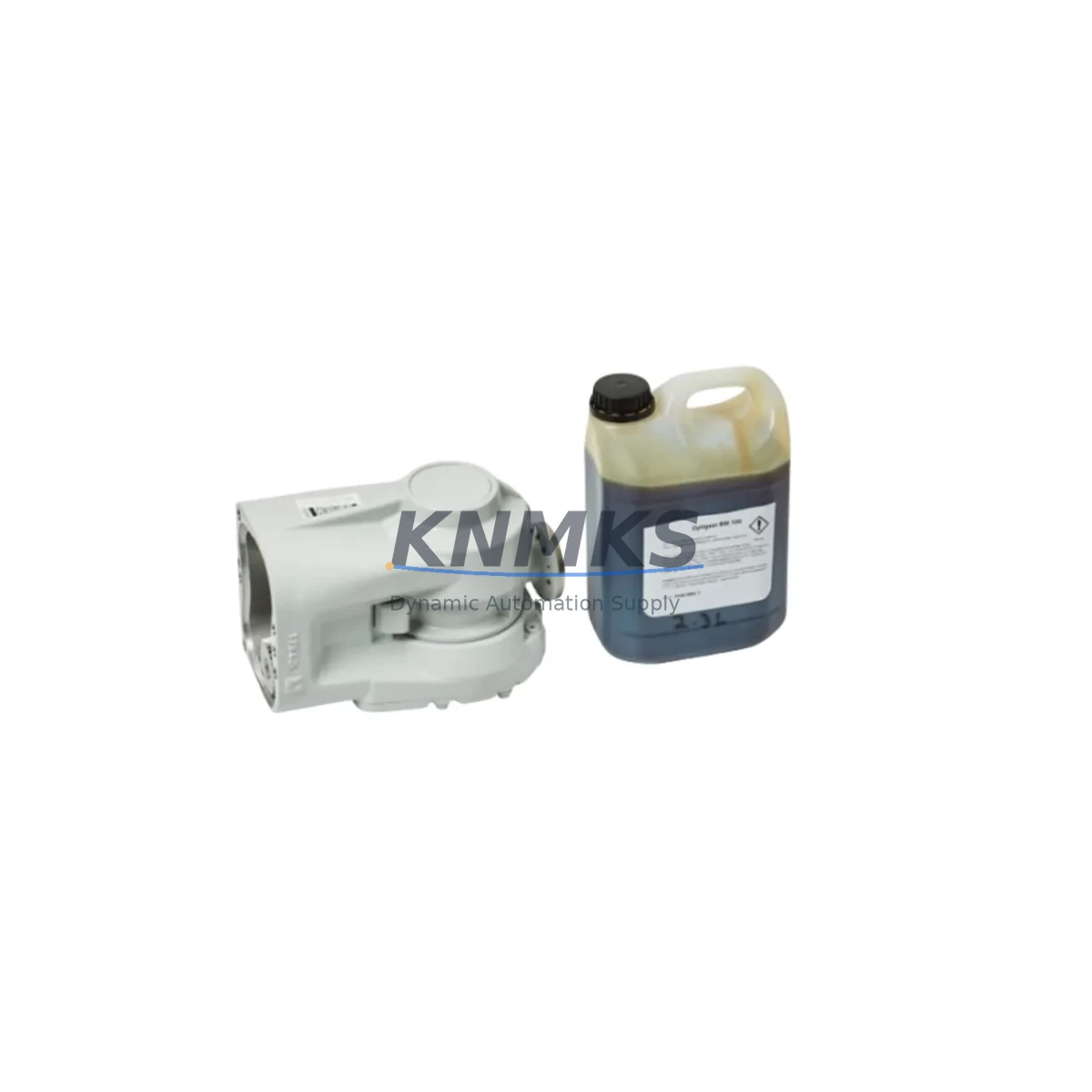

ABB 3HAC034720-001 Fail-Safe Robot Wrist Unit

Overview

ABB 3HAC034720-001 Fail-Safe Robot Wrist Unit: Fault Protection and Critical Industrial Reliability

The ABB 3HAC034720-001 is a precision-engineered robot wrist assembly designed for the ABB IRB2400 and ABB IRB4400 industrial robot series. In continuous production environments — from automotive body shops and metal fabrication lines to chemical processing and heavy-duty palletizing cells — the wrist unit is the mechanical and electrical junction point most exposed to cyclic stress, vibration, and contamination. A failure here does not merely slow production; it triggers unplanned downtime, safety interlock activation, and costly re-qualification of the robot cell.

KNMKS supplies the 3HAC034720-001 as a fully tested, OEM-specification replacement unit, backed by a support terms confirmed by quotation and pre-shipment functional verification. Every unit is inspected for mechanical integrity, wiring harness continuity, and encoder interface compatibility before dispatch — ensuring that field installation proceeds without the diagnostic uncertainty that plagues untested aftermarket parts.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 3HAC034720-001 wrist unit does not operate in isolation. Its long-term reliability in demanding industrial environments depends on the integrity of the surrounding control architecture. In a properly configured ABB IRB2400 or IRB4400 robot cell, the wrist assembly interfaces directly with the ABB DSQC562 axis computer board, which manages motion interpolation and safety monitoring for axes 4 through 6. Signal degradation at the wrist — caused by connector corrosion, harness chafing, or resolver drift — will propagate upstream and trigger fault codes on the ABB IRC5 controller, potentially halting the entire cell.

To protect against cascading failures, field engineers should treat the wrist replacement as part of a broader cabinet health review. The ABB DSQC604 power supply unit within the IRC5 cabinet should be verified for stable 24 VDC output, as voltage ripple exceeding specification accelerates encoder signal errors and can cause spurious axis faults that mimic mechanical wrist failure. Similarly, the ABB 3HAC025562-001 SMB (Serial Measurement Board) should be inspected for firmware currency and battery backup integrity — a depleted SMB battery causes resolver calibration loss on power cycle, which is frequently misdiagnosed as a wrist unit defect.

In high-EMI environments such as resistance welding cells or plasma cutting stations, the ABB 3HAC14550-2 cable harness assembly connecting the wrist to the upper arm should be checked for shield continuity. Broken cable shields allow radiated interference to corrupt resolver signals, producing axis position errors that appear as wrist unit faults. Where surge events from large motor drives or capacitor banks are present on the facility power bus, installing an ABB OVR surge protection device at the IRC5 cabinet input protects the entire drive and control chain — including the sensitive encoder circuits within the wrist assembly — from transient overvoltage damage.

For cells operating in dusty foundry environments or humid coastal facilities, periodic inspection of the wrist unit’s IP54 seals and the ABB 3HAC17484-1 wrist cover gasket set is recommended to prevent ingress-related bearing and harness degradation between planned maintenance intervals.

Critical Industrial Safety Applications

The ABB 3HAC034720-001 wrist unit is deployed across a broad spectrum of safety-critical and continuous-process industrial environments where unplanned robot downtime carries significant operational and safety consequences.

In automotive body-in-white welding lines, IRB2400 robots equipped with this wrist unit perform spot welding and seam tracking at cycle times under 30 seconds. A wrist failure in this context stops the entire transfer line, triggering production loss that can exceed tens of thousands of dollars per hour. Having a verified, in-stock replacement unit available on-site is a standard risk mitigation practice for Tier 1 automotive suppliers.

In petrochemical and refinery facilities, IRB4400 robots are used for valve manipulation, pipe inspection, and hazardous material handling in zones where human entry requires full PPE and permit-to-work procedures. Robot downtime in these environments not only halts production but may require a full safety review before re-entry and restart. The 3HAC034720-001’s compatibility with ABB SafeMove2 safety-rated motion supervision ensures that the replacement unit maintains the certified safety function of the original installation without requiring re-validation of the safety integrity level.

In metal casting and foundry operations, robots face extreme thermal cycling, airborne particulate, and vibration from press and shakeout equipment. The wrist unit’s sealed bearing design and shielded harness provide the ingress and EMI resistance necessary for reliable operation in these conditions. Foundry operators typically maintain a minimum of two spare wrist units per robot model in their critical spare parts inventory to ensure same-shift replacement capability.

In port and logistics automation, IRB4400 robots handle heavy container components and palletized cargo in outdoor or semi-outdoor environments subject to humidity, salt air, and temperature extremes. The 3HAC034720-001’s rated operating envelope and corrosion-resistant housing make it suitable for these demanding deployment conditions.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover for the 3HAC034720-001?
A: The support terms covers all manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. This includes mechanical integrity of the wrist housing and bearing assembly, wiring harness continuity, and encoder interface functionality. Support requests are supported by KNMKS technical staff with direct replacement or repair at no additional cost.

Q: What pre-shipment testing is performed on each unit?
A: Every 3HAC034720-001 unit dispatched by KNMKS undergoes a structured inspection protocol covering mechanical run-in verification, full wiring harness continuity testing, encoder signal output verification, and visual inspection of seals and connectors. A test record is available on request for quality-critical installations.

Q: Is this unit compatible with both IRB2400 and IRB4400 robot variants?
A: Yes. The 3HAC034720-001 is the OEM-specified wrist assembly for all standard variants of the ABB IRB2400 and IRB4400 series. Compatibility with specific robot serial number ranges and software versions can be confirmed by KNMKS technical support prior to order placement.

Q: Can KNMKS guarantee long-term supply for ongoing maintenance programs?
A: KNMKS maintains a managed inventory of critical ABB IRB2400 and IRB4400 spare parts, including the 3HAC034720-001, to support customers with multi-year maintenance contracts and planned replacement programs. Customers with recurring demand are encouraged to contact our sales team to discuss reserved stock arrangements and volume pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IRB24003HAC034720-001-3HAB8270-1-3HAB3736-2-IRB4400-3HAC1135-1-44003HAB3736-1
IRC5 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB IRB24003HAC034720-001-3HAB8270-1-3HAB3736-2-IRB4400-3HAC1135-1-44003HAB3736-1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
