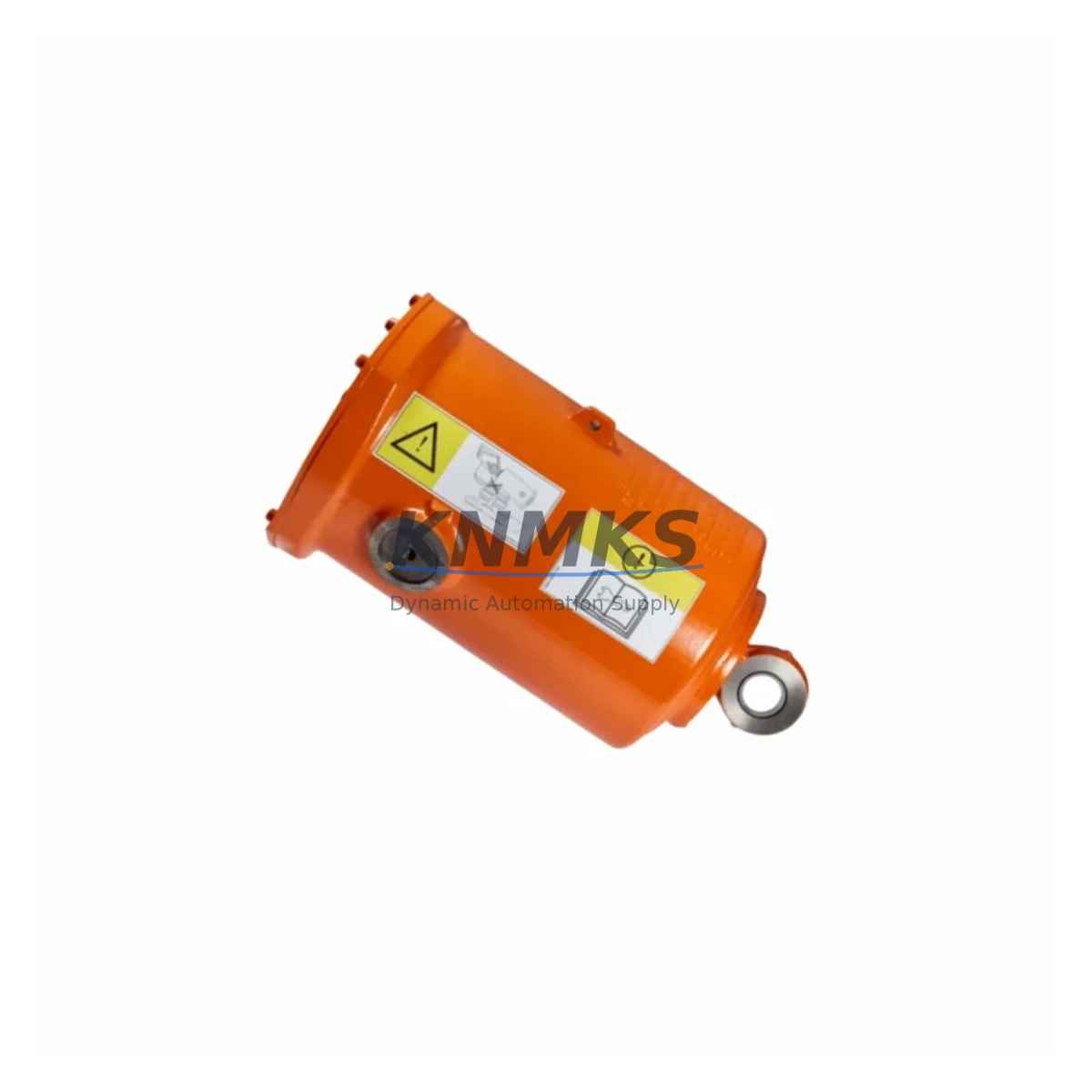

ABB 3HAC032124-003 Fail-Safe Spring Balancing Unit

Overview

ABB 3HAC032124-003 Fail-Safe Spring Balancing Unit: Fault Protection and Critical Industrial Reliability

The ABB 3HAC032124-003 is a precision-engineered Spring Balancing Unit designed for the ABB IRB 6640 industrial robot series — one of the most widely deployed heavy-payload manipulators in automotive, metal fabrication, foundry, and continuous manufacturing environments. This component plays a structurally critical role in the robot’s axis-2 balancing mechanism, counteracting gravitational torque on the lower arm to maintain controlled, repeatable motion under full load. In safety-critical automation cells where unplanned downtime or uncontrolled arm movement carries serious operational and personnel risk, the integrity of this unit is non-negotiable.

Every 3HAC032124-003 unit supplied by KNMKS undergoes pre-shipment functional inspection and load verification to confirm spring tension integrity, housing seal condition, and mechanical travel within ABB OEM specification. This is not a cosmetic check — it is a structured test protocol designed to catch fatigue-related degradation, corrosion-induced binding, and seal failures that would otherwise manifest as axis drift, abnormal torque loading on the ABB 3HAC14057-1 axis-2 gearbox, or sudden loss of arm position control. All units are covered by a support terms confirmed by quotation from date of shipment.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully integrated IRB 6640 workcell, the mechanical reliability of the 3HAC032124-003 spring balancing unit is only one layer of a broader fault-protection architecture. The robot controller — typically an ABB IRC5 Cabinet — manages axis torque limits, E-stop logic, and safe-speed monitoring through its integrated safety module. When the spring balancing unit is functioning correctly, the IRC5’s axis-2 current draw remains within normal bounds; a degraded or failed spring unit forces the drive to compensate with excess current, which can trigger drive fault codes and, in severe cases, thermal shutdown of the ABB DSQC661 axis computer board.

Within the control cabinet, the ABB DSQC663 drive unit and associated DSQC609 power supply unit must maintain stable DC bus voltage to support consistent torque delivery across all six axes. Voltage sag or ripple on the DC bus — often caused by aging capacitors in the power supply or inadequate cabinet ventilation — can interact with a mechanically stressed balancing unit to produce intermittent axis faults that are difficult to diagnose. Maintaining the 3HAC032124-003 in good condition reduces the diagnostic noise introduced by mechanical compensation loads, making electrical fault isolation more reliable.

For cells operating in high-vibration environments such as press-tending or die-casting extraction, the ABB 3HAC026253-001 axis-2 motor and its associated encoder cable assembly should be inspected concurrently with any spring balancing unit replacement. Vibration-induced connector fretting on encoder cables is a known co-failure mode in high-cycle IRB 6640 applications, and addressing both components during a planned maintenance window avoids a second unplanned outage within weeks of the first.

Critical Industrial Safety Applications

The ABB IRB 6640 platform — and by extension the 3HAC032124-003 spring balancing unit — is deployed across some of the most demanding continuous-production environments in heavy industry. In automotive body-in-white lines, the robot operates at high duty cycles with consistent payload, where any axis-2 mechanical degradation translates directly into weld-point positional error and downstream quality escapes. In foundry and metal casting facilities, the combination of radiant heat, airborne metal particulate, and floor vibration accelerates wear on mechanical components; the sealed housing of the 3HAC032124-003 provides a meaningful service-life advantage over non-OEM alternatives in these conditions.

In petrochemical and process plant maintenance applications, IRB 6640 robots are used for valve manipulation, pipe inspection, and heavy component handling in areas where personnel access is restricted due to hazardous atmosphere classification. In these contexts, an uncontrolled arm movement caused by a failed balancing unit is not merely a production event — it is a safety incident. Scheduled replacement of the spring balancing unit based on cycle count or calendar interval, rather than waiting for failure, is consistent with the functional safety maintenance requirements of IEC 61508 and ISO 10218-1.

In port and heavy logistics automation, where IRB 6640 robots handle container components and structural steel, the gravitational load on axis 2 is near the rated maximum for extended periods. This operating profile places the highest mechanical stress on the spring balancing unit and makes pre-emptive replacement — supported by in-stock availability from KNMKS — the operationally sound choice over reactive maintenance.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover for the 3HAC032124-003?
A: The support terms covers manufacturing defects, premature spring fatigue failure, and seal integrity failures under normal operating conditions for the ABB IRB 6640 platform. It does not cover damage resulting from incorrect installation, operation outside ABB-specified load parameters, or physical impact. KNMKS provides replacement or credit resolution within the confirmed support period — contact [email protected] to initiate a claim.

Q: What pre-shipment testing is performed before dispatch?
A: Each unit undergoes spring tension load verification to confirm force output within OEM tolerance, mechanical travel inspection to check for binding or deformation, and visual seal inspection for housing integrity. Units that do not pass all checks are not dispatched. Test records are retained and available on request for quality-critical procurement processes.

Q: Is the 3HAC032124-003 compatible with all IRB 6640 variants?
A: The 3HAC032124-003 is the standard axis-2 spring balancing unit for the IRB 6640 family, but payload variant and robot serial number should be confirmed before ordering, as ABB has issued revision changes across the production run. KNMKS can provide cross-reference verification based on your robot serial number — contact us before ordering if you are uncertain.

Q: Can KNMKS support long-term or scheduled spare parts supply for this component?
A: Yes. KNMKS maintains stock of the 3HAC032124-003 and can support scheduled procurement programs for maintenance teams operating multiple IRB 6640 robots. For volume requirements, planned maintenance contracts, or multi-site supply agreements, contact [email protected] or call +86 18359268345 to discuss terms.
