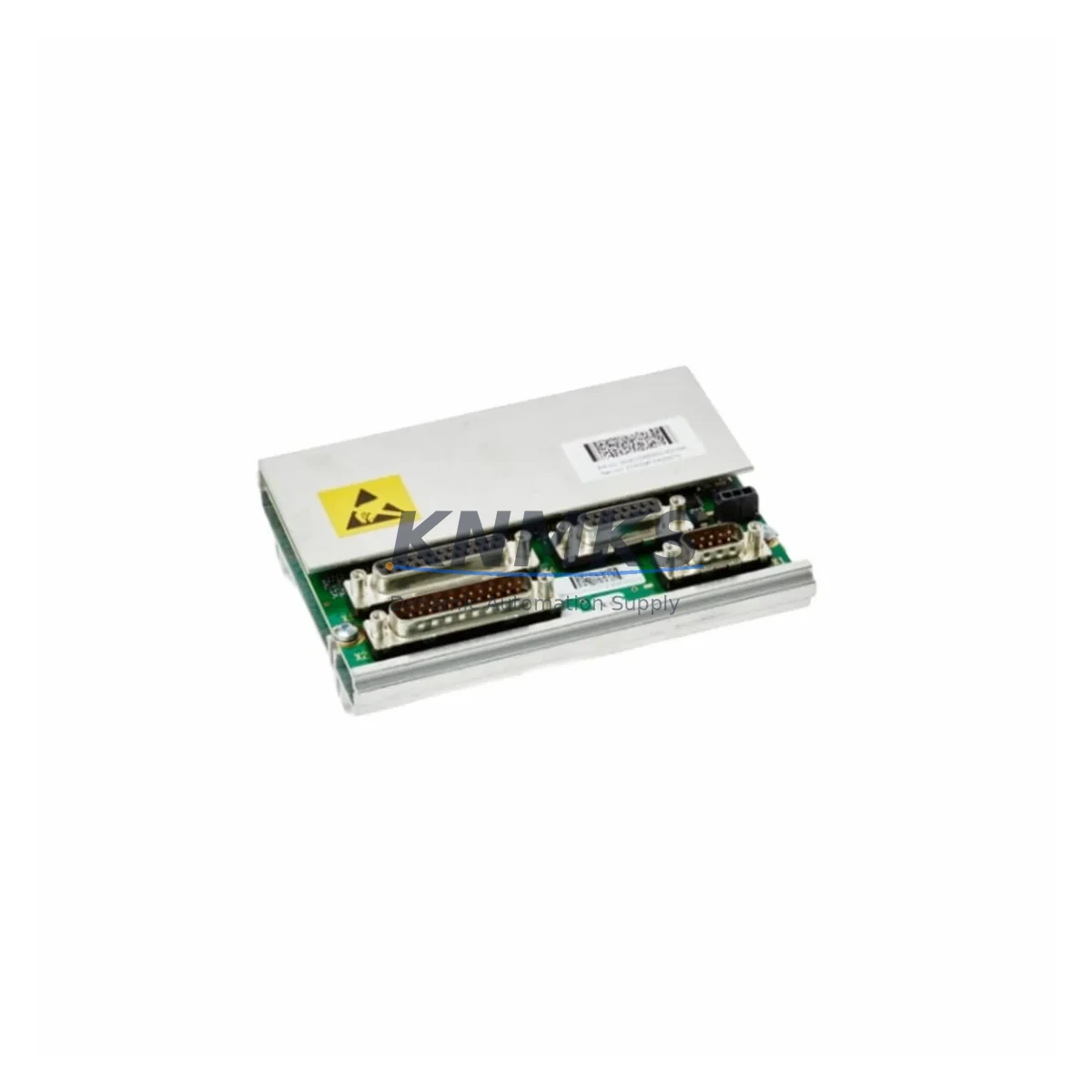

ABB 3HAC031851-001 Migration-Ready SMB for Legacy IRC5

Overview

ABB 3HAC031851-001 Migration-Ready SMB for Legacy IRC5 Systems

The ABB 3HAC031851-001 Serial Measurement Board (SMB) is a migration-ready replacement module engineered for legacy IRC5 robot controller systems. As ABB progressively phases out older SMB variants such as the 3HAC14550-2, maintenance engineers and automation integrators face increasing pressure to source verified, drop-in compatible replacements that preserve existing program logic, wiring configurations, and communication links without requiring full controller overhauls. The 3HAC031851-001 addresses this challenge directly — offering a tested, support terms-backed solution that minimizes retrofit complexity and unplanned downtime across a wide range of IRC5-based robotic installations.

Whether you are managing a single robot cell or coordinating a multi-axis production line upgrade, the 3HAC031851-001 SMB is designed to integrate seamlessly into existing IRC5 controller cabinets. Its compatibility with the IRC5 backplane architecture means that installation teams can proceed with confidence, knowing that axis measurement data, resolver signal routing, and encoder feedback loops will function as expected from the first power-on cycle.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SMB retrofit within an IRC5 controller environment requires careful pre-installation planning across several interdependent subsystems. Before removing the legacy 3HAC14550-2, maintenance teams should document the current axis calibration offsets stored in the SMB battery-backed memory. These values — typically accessed via RobotStudio or the FlexPendant teach pendant — must be recorded and re-entered after the 3HAC031851-001 is installed, as the new board initializes with factory-default calibration data.

Power supply capacity within the IRC5 controller cabinet should be verified prior to module swap. The DSQC 661 or DSQC 662 power distribution unit supplies regulated voltage to the SMB and adjacent modules; confirm that available headroom on the 24 VDC rail is sufficient and that no upstream fuse or circuit breaker is operating near its rated limit. If the controller also houses an additional DSQC 378 I/O expansion board or a DSQC 652 digital I/O module, their power draw must be factored into the total cabinet load calculation.

Terminal wiring on the SMB connector harness should be inspected for corrosion, pin back-out, or insulation fatigue — particularly in installations that have been in service for more than five years. The SMB harness routes resolver signals from each robot axis motor to the measurement board; any intermittent connection at this interface will produce axis position errors or fault codes (e.g., 50024 or 50025 series) that can be misdiagnosed as encoder failures rather than wiring issues.

For systems that include a DSQC 1000 main computer or an older DSQC 639 computer board, confirm that the installed RobotWare firmware version is compatible with the 3HAC031851-001 before proceeding. In multi-robot installations coordinated through a DSQC 688 fieldbus adapter or an IRC5 Panel Mounted Controller (PMC), the SMB replacement should be scheduled during a planned maintenance window to avoid disrupting coordinated motion sequences or safety-rated stop functions.

If the retrofit scope extends to communication protocol migration — for example, transitioning from DeviceNet to PROFINET or EtherNet/IP — the SMB replacement can be performed concurrently with fieldbus adapter upgrades, reducing total cabinet downtime. In such cases, the DSQC 688 or equivalent communication module should be staged and pre-configured before the controller is taken offline.

Downtime Control During System Migration

Minimizing unplanned downtime during an SMB replacement in an IRC5 system begins with a structured pre-swap checklist executed while the robot is still operational. Capture a full system backup via RobotStudio — including program modules, configuration files, I/O signal mappings, and safety controller parameters — before any hardware is disturbed. This backup serves as the recovery baseline if commissioning reveals unexpected behavior after the 3HAC031851-001 is installed.

The physical swap itself is straightforward: power down the IRC5 controller following the correct shutdown sequence, discharge any residual capacitor voltage on the drive system, and remove the legacy SMB from its card slot. The 3HAC031851-001 installs in the same position using the existing mounting hardware and connector harness. No bracket modifications or cable extensions are required in standard IRC5 single-cabinet configurations.

After power-up, the FlexPendant will prompt for a revolution counter update on each axis. This is a mandatory step — skipping it will result in incorrect joint position references and potential collision risk during the first motion command. Perform the revolution counter update axis by axis, following the calibration marks on each robot joint. Once complete, run a slow-speed verification cycle of the existing program to confirm that all motion paths, tool center point (TCP) offsets, and work object references are intact.

For production environments where even a brief interruption carries significant cost, consider pre-staging the 3HAC031851-001 as a tested spare held in the maintenance store. Each unit shipped from our facility undergoes functional verification prior to dispatch, and the support terms confirmed by quotation cover both component failure and early-life defects. Having a pre-tested board on the shelf reduces mean time to repair (MTTR) from days to hours in the event of an unplanned SMB failure.

Retrofit Support FAQ

Q1: Is the 3HAC031851-001 a direct replacement for the 3HAC14550-2 without any wiring modifications?
Yes. The 3HAC031851-001 uses the same connector interface and card slot form factor as the 3HAC14550-2 within IRC5 controller cabinets. The existing SMB harness can be reused without modification. The only post-installation steps required are a revolution counter update and axis calibration verification via the FlexPendant.

Q2: What RobotWare versions are compatible with the 3HAC031851-001?
The 3HAC031851-001 is compatible with RobotWare 5.x and 6.x releases used in IRC5 systems. We recommend verifying the exact firmware build version installed on your DSQC 1000 or DSQC 639 main computer before installation. If you are unsure of your current RobotWare version, it can be confirmed via the FlexPendant under Control Panel > System Info.

Q3: Does each unit undergo testing before shipment, and what does the support terms cover?
Yes. Every 3HAC031851-001 unit is functionally tested prior to dispatch. The support terms confirmed by quotation cover manufacturing defects and component failures under normal operating conditions. Units are shipped with protective anti-static packaging and include a test report upon request. Expedited shipping options are available for urgent maintenance requirements.

Q4: Can the 3HAC031851-001 be used in IRC5 Compact or Panel Mounted Controller (PMC) variants?
Compatibility with IRC5 Compact and PMC variants depends on the specific cabinet revision and backplane configuration. We recommend confirming your controller model and cabinet revision number before ordering. Our technical team can assist with compatibility verification — contact us with your controller serial number and current SMB part number for a definitive assessment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

leisPHG-10-2 IRC5 3HAC14550-2 SMB 3HAC031851-001
IRC5 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB leisPHG-10-2 IRC5 3HAC14550-2 SMB 3HAC031851-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
