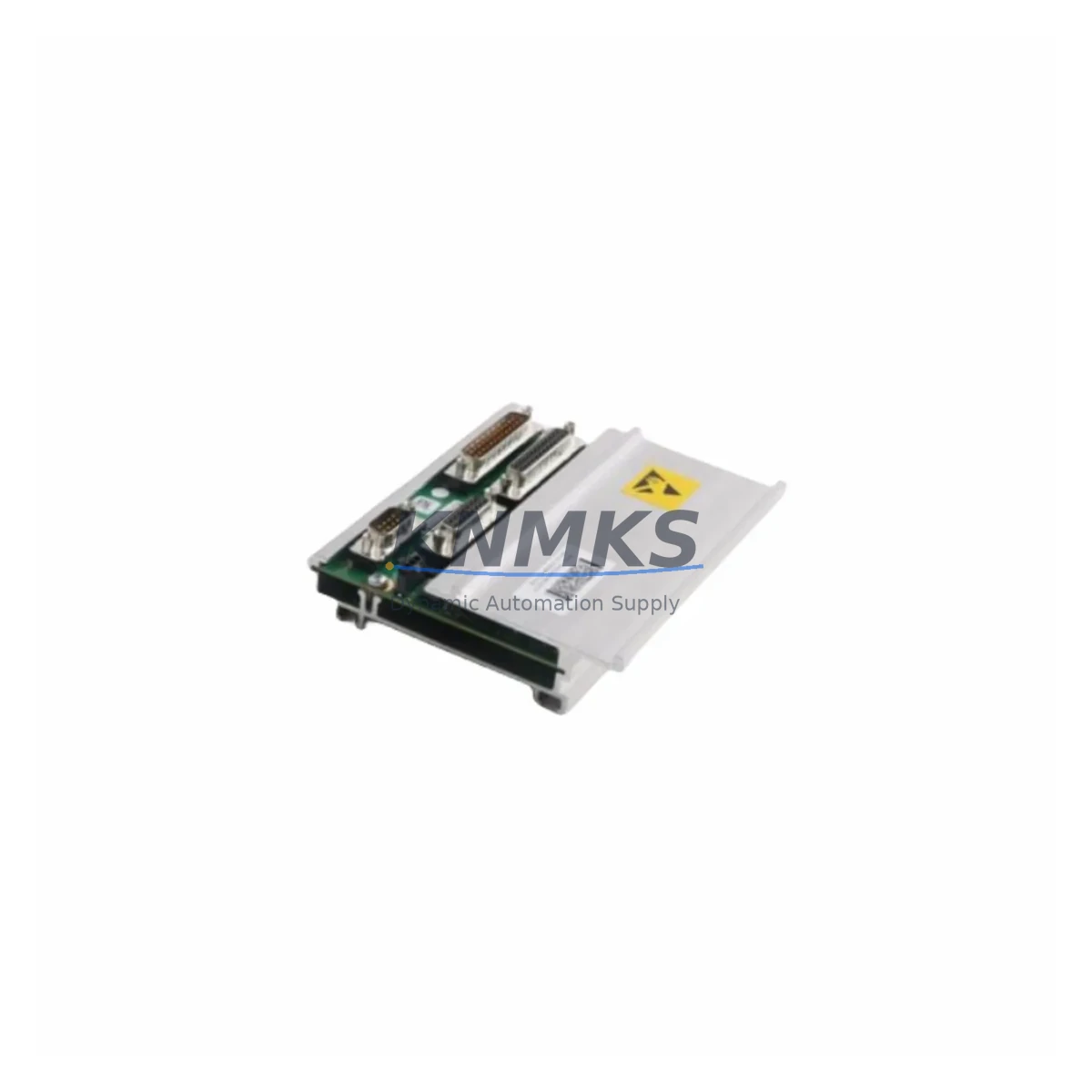

ABB 3HAC029236-002 Interbus Board for Legacy IRC5 Control

Overview

ABB 3HAC029236-002 Interbus Board for Legacy IRC5 Control System Migration

The ABB 3HAC029236-002 is a factory-specification Interbus fieldbus communication board designed for the IRC5 robot controller platform. As legacy IRC5 installations approach end-of-support cycles and original spare parts become increasingly scarce, this board serves as a critical migration-ready replacement for facilities operating IRB4600 and IRB6640 robot arms in continuous production environments. Whether you are restoring a failed communication link, upgrading a degraded fieldbus node, or executing a planned retrofit of an aging control cabinet, the 3HAC029236-002 provides a verified drop-in solution that preserves existing program logic and minimises unplanned downtime.

Before committing to installation, engineers should confirm several key parameters in the existing IRC5 cabinet. The Interbus master controller on the PLC or DCS side must support the same Interbus protocol revision as the board. Terminal wiring on the Interbus ring — typically a 9-pin D-sub connector carrying the RS-485 differential signal — must be inspected for continuity and shielding integrity, as degraded cabling is a common root cause of communication faults that are incorrectly attributed to the board itself. The backplane slot assignment within the IRC5 drive module must match the address configured in RobotWare, and any changes to slot position require a corresponding update in the system parameters file before the controller is restarted.

Power budget within the IRC5 cabinet should also be verified. The 3HAC029236-002 draws its supply from the internal 24 VDC rail shared with other option boards such as the ABB 3HAC026254-001 DeviceNet board or the DSQC 652 digital I/O board. If the cabinet is already populated with multiple option boards, confirm that the 24 VDC PSU — often the ABB 3HAC025338-001 power supply unit — has sufficient headroom before adding or replacing communication boards. Overloading the internal rail can cause intermittent faults that are difficult to diagnose in the field.

Firmware compatibility is another migration checkpoint. RobotWare versions prior to 5.14 may require a software option key update when a new Interbus board is introduced. Retrieve the current RobotWare version from the FlexPendant teach pendant before the board swap, and confirm with the system integrator whether a firmware update is required. In most IRC5 M2004 and M2000A cabinets, the board is recognised automatically after a warm restart, but cabinets running older bootloader versions may require a cold start sequence to complete enumeration.

HMI screens configured in the RAPID program or in an external SCADA system that reference Interbus I/O addresses will continue to function without modification, provided the new board is installed in the same slot and the Interbus node address is preserved. If the original board was configured with a non-default node address, record this value from the system parameters before removal. The ABB DSQC 378B Interbus slave board, if present elsewhere in the fieldbus ring, must also be checked for address conflicts after the master board replacement.

Installation space inside the IRC5 cabinet is standardised across the M2004 generation, and the 3HAC029236-002 occupies a single option board slot on the main computer unit. No mechanical modification is required. The board ships with the original ABB connector and retaining hardware. Pre-shipment functional testing is performed on every unit prior to dispatch, covering Interbus ring initialisation, data exchange verification, and 24 VDC power consumption measurement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRC5 Interbus retrofit begins with a structured audit of the existing control cabinet before any hardware is removed. Document the current wiring layout of the Interbus ring, including the sequence of slave nodes, their addresses, and the cable routing between the IRC5 cabinet and the field devices. In many legacy installations, the Interbus ring also passes through remote I/O stations or signal conditioning modules mounted in adjacent panels, and these must remain powered and addressed correctly throughout the board replacement procedure.

The ABB DSQC 651 analogue I/O board and DSQC 652 digital I/O board are commonly installed alongside the Interbus communication board in the same IRC5 cabinet. These boards share the internal backplane and the 24 VDC supply rail. During the retrofit, confirm that removing and reseating the 3HAC029236-002 does not disturb the adjacent board connectors, as partial seating of a neighbouring I/O board can introduce intermittent faults after the cabinet is closed.

If the retrofit is part of a broader control system upgrade that includes replacing the IRC5 cabinet itself, consider whether the new cabinet will use the same Interbus topology or migrate to a different fieldbus such as PROFIBUS or EtherNet/IP. In that scenario, the 3HAC029236-002 serves as a bridge solution — maintaining Interbus communication with legacy field devices while the new control infrastructure is commissioned in parallel. This parallel-run approach is the most effective method for controlling downtime in continuous production environments.

For facilities that also operate older IRC5 cabinets with the ABB 3HAC028470-001 Interbus slave board, the replacement of the master board on the robot controller side must be coordinated with a review of the slave board firmware. Mismatched firmware versions between master and slave boards can cause ring initialisation failures that are not immediately obvious during bench testing but appear under production load conditions. Confirm firmware versions on both boards before closing the cabinet and returning the line to service.

Programming cable access is also a consideration during retrofit planning. If the RobotWare system parameters need to be updated after the board replacement, a service PC connected via the IRC5 service port or via the FlexPendant is required. Ensure that the ABB DSQC 679 FlexPendant or an equivalent teach pendant is available on-site during commissioning, as remote parameter changes are not supported on standard IRC5 configurations without additional software options.

Downtime Control During System Migration

Minimising production downtime during an IRC5 Interbus board replacement requires preparation that begins before the maintenance window opens. The most effective approach is to pre-configure the replacement board off-line, verify its physical condition, and stage all tools, connectors, and documentation at the cabinet before the line is stopped.

The original RAPID program and system parameters should be backed up to a USB drive via the FlexPendant before the cabinet is powered down. This backup takes less than five minutes and provides a complete restore point if the new board requires a system parameter update that introduces an unexpected configuration conflict. In most straightforward replacements, the backup is not needed, but having it available eliminates the risk of extended downtime caused by a configuration error during commissioning.

Power-down sequence for the IRC5 cabinet follows the standard ABB procedure: disable the Interbus master on the PLC side first to prevent ring fault alarms from propagating to the SCADA system, then perform a controlled shutdown of the IRC5 controller via the FlexPendant, and finally isolate the cabinet from the mains supply before opening the door. This sequence protects both the replacement board and the existing field devices from transient voltages during the swap.

After the new 3HAC029236-002 is seated and the cabinet is powered up, allow the IRC5 controller to complete its full boot sequence before enabling the Interbus master on the PLC side. The ring initialisation process typically completes within 30 seconds of the controller reaching the ready state. Monitor the Interbus status LEDs on the board and confirm that the ring is closed and all slave nodes are enumerated before releasing the robot to automatic mode. A structured commissioning checklist covering these steps reduces the average board replacement time to under two hours in a well-prepared maintenance environment.

Retrofit Support FAQ

Q: Is the ABB 3HAC029236-002 a direct drop-in replacement for the original board in my IRC5 cabinet?
A: Yes. The 3HAC029236-002 is a factory-specification board that installs in the same option slot and uses the same Interbus connector as the original. No mechanical modification is required. Record the existing node address and slot assignment from the system parameters before removal to ensure a seamless swap.

Q: Does the replacement board require a new RobotWare option key?
A: In most IRC5 M2004 installations running RobotWare 5.14 or later, the board is recognised automatically after a warm restart without a new option key. Cabinets running earlier RobotWare versions may require an option key update. Confirm the current RobotWare version from the FlexPendant before the replacement and contact your ABB system integrator if an option key update is needed.

Q: Has the board been tested before shipment?
A: Yes. Every unit undergoes pre-shipment functional testing covering Interbus ring initialisation, data exchange verification, and 24 VDC power consumption measurement. A test report is available on request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: What is the typical lead time and do you hold stock?
A: Stock is maintained in Xiamen for immediate dispatch. Standard international shipping lead time is 3–7 business days depending on destination. Express options are available for urgent maintenance requirements. Contact [email protected] or +86 18359268345 to confirm current stock availability before placing an order.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IRB46003HAC029236-002/09 3HAC028470-001 IRB66403HAC028470-001
IRC5 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB IRB46003HAC029236-002/09 3HAC028470-001 IRB66403HAC028470-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
