ABB 3HAC029030-004 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC029030-004 Maintenance-Proven Spare Part for Factory Uptime

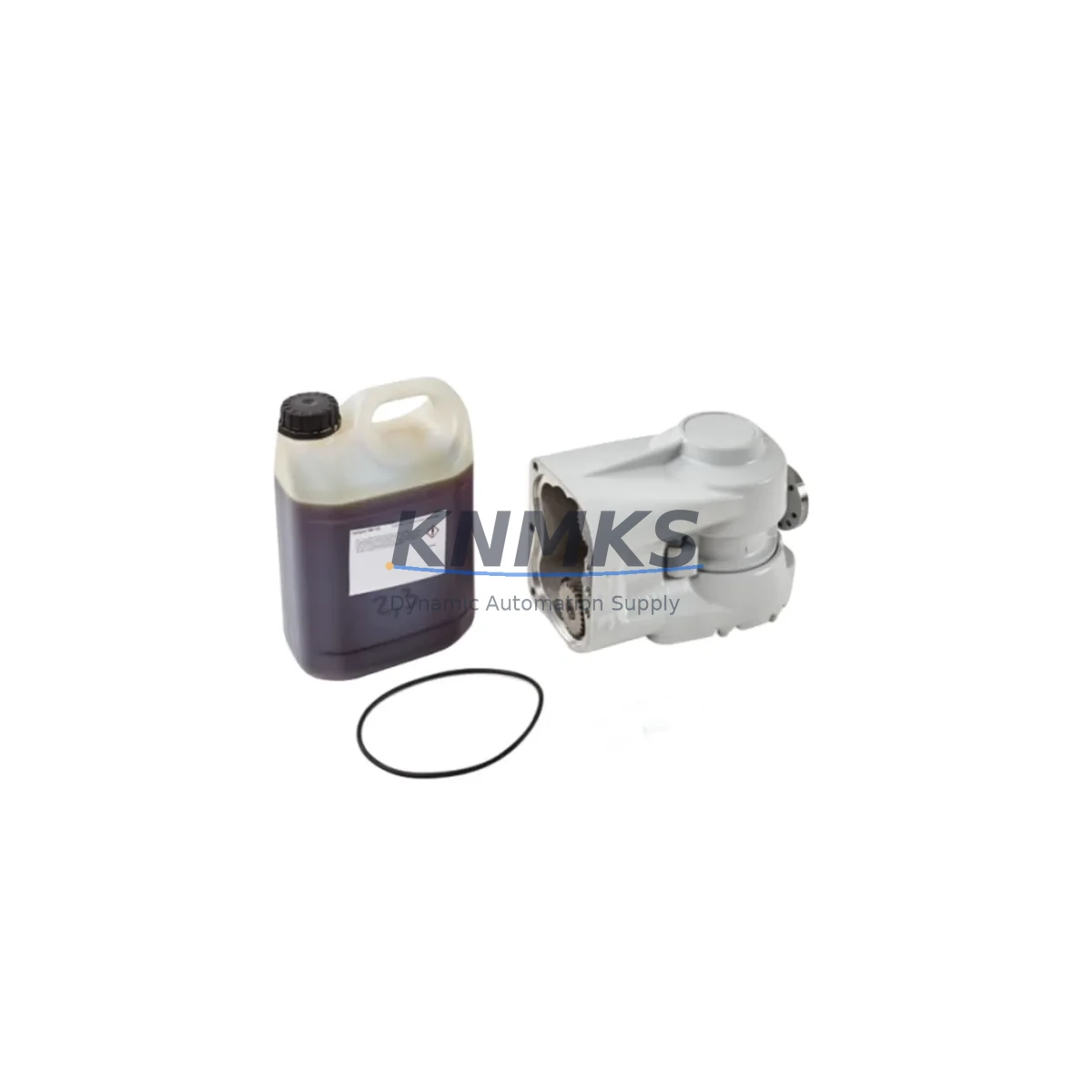

The ABB 3HAC029030-004 is an original wrist unit assembly designed for the IRB4600 series industrial robot, one of ABB’s most widely deployed six-axis articulated arms in automotive, general manufacturing, and heavy-duty material handling applications. As a precision-machined mechanical interface between the robot’s forearm and end-of-arm tooling, the wrist unit directly governs path accuracy, payload repeatability, and TCP (Tool Center Point) stability. When this component degrades — through bearing wear, seal failure, or mechanical impact — the consequences extend beyond positional drift: cycle times increase, product quality suffers, and unplanned downtime cascades across the production line.

Sourced as an OEM-grade original spare, the 3HAC029030-004 is manufactured to ABB’s factory tolerances and is fully compatible with the IRB4600-20/2.50, IRB4600-40/2.55, and IRB4600-45/2.05 variants. Each unit shipped by KNMKS undergoes pre-dispatch inspection covering dimensional integrity, gear mesh condition, and seal completeness, and is backed by a support terms confirmed by quotation from date of delivery. For maintenance engineers managing aging IRB4600 fleets, stocking this part eliminates the most common cause of extended robot downtime in wrist-axis failures.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A wrist unit replacement on the IRB4600 is rarely an isolated event. Experienced maintenance engineers treat it as a trigger for a broader axis-4-through-6 inspection. When replacing the 3HAC029030-004, the following components and systems should be evaluated concurrently to prevent repeat failures and maximize the value of the planned downtime window.

The ABB 3HAC026253-001 motor unit (axis 5) and 3HAC026254-001 motor unit (axis 6) share the same mechanical environment as the wrist assembly. Bearing wear in the wrist often correlates with increased load on these motors; inspect encoder feedback and current draw before returning the robot to production. Similarly, the 3HAC14550-2 SMB (Serial Measurement Board) — which handles resolver signals for axes 4–6 — should be checked for connector corrosion and signal integrity, as wrist mechanical events can induce vibration-related connector fatigue.

On the controller side, verify the ABB DSQC661 drive unit (or DSQC662 for dual-axis configurations) for fault history related to axes 4–6 overcurrent or position error alarms. These alarms frequently precede wrist unit failure and may indicate that the drive has been operating under stress. The IRC5 controller backplane and its internal 24 VDC power supply rail should also be inspected — a degraded power supply can cause intermittent axis faults that mimic mechanical issues and delay correct diagnosis.

For sites running the IRB4600 in paint, foundry, or wash-down environments, inspect the axis 4–6 cable harness (3HAC031683-001) for jacket cracking, chafing at the wrist entry point, and connector pin corrosion. Cable harness failures are the second most common cause of wrist-area downtime after bearing wear. Replacing the harness during the same maintenance window avoids a second robot stoppage within weeks.

Finally, confirm that the FlexPendant (DSQC679) and the IRC5 teach pendant cable are functional before recommissioning. TCP re-calibration after wrist replacement requires a reliable HMI connection; a faulty pendant cable can extend the recommissioning process significantly and introduce calibration errors that affect downstream product quality.

Site Replacement Workflow

Replacing the 3HAC029030-004 on an in-service IRB4600 follows a structured sequence to minimize downtime and ensure system compatibility:

1. Pre-Replacement Verification: Confirm the replacement unit’s part number against the robot’s nameplate and ABB spare parts catalog. Cross-reference the robot’s serial number with ABB’s compatibility matrix to confirm the correct wrist variant (standard vs. Foundry/Wash). Verify that the IRC5 controller software version supports the installed axis configuration.

2. Safe Isolation: Place the robot in maintenance mode via the FlexPendant, engage the mechanical brake, and isolate the IRC5 controller from mains supply per LOTO (Lockout/Tagout) procedure. Confirm zero-energy state before accessing the wrist area.

3. Removal and Inspection: Remove the end-of-arm tooling and disconnect the axis 4–6 cable harness at the wrist entry connector. Unbolt the wrist unit from the forearm flange using the specified torque sequence. Inspect the forearm mating surface for fretting corrosion or thread damage before installing the replacement unit.

4. Installation and Torque: Install the 3HAC029030-004 per ABB’s torque specification (refer to IRB4600 Product Manual, Chapter 4). Apply fresh grease to the gear interfaces per the lubrication schedule. Reconnect the cable harness and verify connector seating.

5. TCP Calibration and Recommissioning: Perform a full TCP re-calibration using the FlexPendant’s calibration routine. Run a slow-speed test cycle to verify path accuracy before returning to production speed. Log the replacement in the robot’s maintenance record and reset the PM counter in RobotStudio or the IRC5 service menu.

This workflow typically achieves a complete wrist replacement in 4–6 hours for a trained technician, compared to 2–3 days waiting for emergency OEM service — a direct reduction in production loss cost.

Spare Parts Support FAQ

Q1: Is the 3HAC029030-004 compatible with all IRB4600 variants?
The 3HAC029030-004 is compatible with the IRB4600-20/2.50, IRB4600-40/2.55, and IRB4600-45/2.05 variants. It is not interchangeable with the IRB4400 or IRB6600 wrist assemblies. Always verify the robot’s serial number and variant designation before ordering. KNMKS can assist with compatibility confirmation upon request.

Q2: What pre-shipment testing does KNMKS perform on this spare part?
Every 3HAC029030-004 unit undergoes a pre-dispatch inspection covering dimensional verification against OEM tolerances, gear mesh and backlash assessment, seal and O-ring completeness check, and visual inspection for transit damage. Units that do not pass inspection are not shipped. A support terms confirmed by quotation cover manufacturing defects and premature failure under normal operating conditions.

Q3: How should we manage long-term inventory for IRB4600 wrist units?
For facilities operating 3 or more IRB4600 robots, KNMKS recommends maintaining a minimum of one 3HAC029030-004 unit on-site as a critical spare. Given typical lead times for OEM channels (4–12 weeks), a local stock buffer eliminates the primary risk of extended downtime. For larger fleets or high-utilization environments (20+ hours/day), a two-unit buffer is advisable. KNMKS supports blanket order arrangements for volume buyers requiring guaranteed stock allocation.

Q4: Can this part be used to replace an older wrist unit on a legacy IRB4600 with an S4C+ controller?
The 3HAC029030-004 wrist unit is a mechanical assembly and is mechanically compatible with IRB4600 robots regardless of whether they are controlled by the legacy S4C+ or the current IRC5 platform. However, if migrating from S4C+ to IRC5 as part of a broader controller upgrade, the axis calibration data and resolver offsets must be re-established in the new controller. KNMKS can provide guidance on migration-compatible spare combinations upon inquiry.
