ABB 3HAC028837-009 Fail-Safe Axis 3 Gearbox for IRB2600

Overview

ABB 3HAC028837-009 Fail-Safe Axis 3 Gearbox for IRB2600: Fault Protection and Critical Industrial Reliability

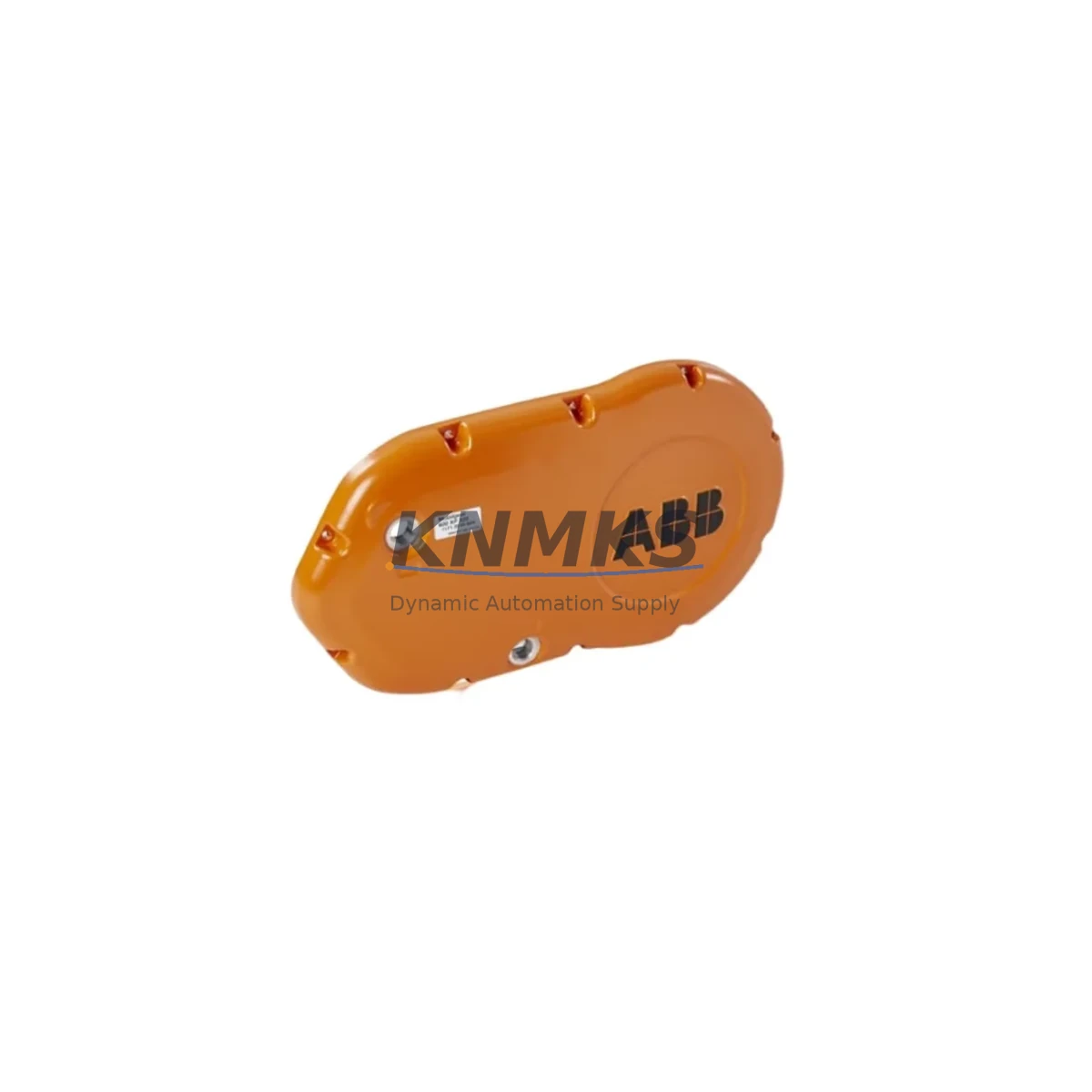

The ABB 3HAC028837-009 is a precision-engineered Axis 3 gearbox designed specifically for the ABB IRB2600 industrial robot series. In continuous production environments where unplanned downtime carries severe operational and financial consequences, this gearbox delivers the mechanical integrity and fail-safe performance that safety-critical automation demands. Whether deployed in automotive body welding lines, heavy-duty palletizing cells, or high-cycle arc welding stations, the 3HAC028837-009 is engineered to sustain reliable torque transmission under demanding load cycles, elevated ambient temperatures, and high-vibration conditions without compromising positional accuracy or control loop stability.

Axis 3 is a structurally critical joint in the IRB2600 kinematic chain. Gearbox degradation at this axis directly impacts path repeatability, TCP accuracy, and the integrity of the robot’s safety-rated motion envelope. A worn or failed Axis 3 gearbox can trigger protective stops, generate abnormal joint torque feedback, and in worst cases cause uncontrolled arm movement — all of which represent unacceptable risks in safety-interlock-dependent workcells. The 3HAC028837-009 is manufactured to ABB’s OEM tolerances, ensuring that replacement does not introduce backlash deviation, signal drift in the resolver feedback loop, or mechanical resonance that could destabilize the servo drive response.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable Axis 3 gearbox performance is inseparable from the health of the broader robot control architecture. In a well-protected IRB2600 workcell, the ABB IRC5 Controller manages servo drive commands and safety-rated motion supervision for all six axes simultaneously. The ABB DSQC662 Drive Unit delivers precisely regulated power to the Axis 3 servo motor; any voltage instability or ripple at this stage accelerates gearbox wear through irregular torque delivery. Upstream, the ABB DSQC661 Power Supply Unit conditions incoming cabinet power, protecting against surges and transients that could corrupt drive parameters or trigger nuisance protective stops.

In high-EMI environments such as arc welding cells, the ABB DSQC679 Teach Pendant and associated communication harnesses must maintain signal integrity to prevent false axis fault codes that can be misdiagnosed as mechanical gearbox failure. Equally, the ABB SMB (Serial Measurement Board) DSQC633 provides resolver signal conditioning for all axes — a degraded SMB can produce axis position errors that mimic gearbox backlash, making accurate fault isolation essential before any mechanical replacement. For workcells with safety-rated collaborative zones, the ABB SafeMove2 Safety Module enforces speed and position limits that depend directly on accurate Axis 3 feedback; a correctly installed 3HAC028837-009 ensures SafeMove2 supervision remains valid and audit-compliant.

Critical Industrial Safety Applications

The ABB 3HAC028837-009 Axis 3 Gearbox supports mission-critical automation across a broad range of heavy industrial sectors. In automotive manufacturing, IRB2600 robots perform continuous spot welding, material handling, and press-tending operations where a single axis failure halts an entire production line. The 3HAC028837-009 enables rapid like-for-like replacement without recalibration delays, restoring full production capacity with minimal intervention.

In petrochemical and refinery facilities, robots operating in classified hazardous zones require mechanical components that maintain positional integrity under thermal cycling and chemical exposure. Gearbox failure in these environments is not merely a productivity issue — it is a process safety event. In steel and metallurgical plants, IRB2600 robots handle ladle pouring assistance, billet transfer, and furnace door operations in extreme radiant heat environments. The sealed, OEM-spec construction of the 3HAC028837-009 resists lubricant degradation and seal failure under these conditions.

Port and logistics automation relies on high-cycle palletizing and container handling robots operating around the clock. Axis 3 gearbox wear in these applications manifests as progressive path deviation, increasing cycle time variance, and ultimately protective stop faults. Proactive replacement with a pre-tested 3HAC028837-009 eliminates unplanned downtime during peak throughput windows. In water treatment and utilities, robots performing valve actuation and pipe inspection in humid, corrosive environments benefit from the sealed mechanical design that prevents moisture ingress into the gearbox cavity.

Safety and Quality FAQ

Q1: Does the 3HAC028837-009 come with a support terms, and what does it cover?
Yes. Every ABB 3HAC028837-009 supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects, dimensional non-conformance, and premature mechanical failure under normal operating conditions. Support requests are supported with direct technical assistance and priority replacement dispatch.

Q2: Is pre-shipment testing performed on each unit?
Yes. Each unit undergoes a 100% pre-shipment functional and dimensional inspection before dispatch. This includes verification of gear mesh quality, backlash measurement, and seal integrity — ensuring the unit arrives ready for installation without additional incoming inspection burden on your maintenance team.

Q3: Is the 3HAC028837-009 compatible with all IRB2600 variants, and does it replace 3HAC028837-004?
The 3HAC028837-009 is the current OEM part number for the IRB2600 Axis 3 gearbox and is a direct replacement for the earlier 3HAC028837-004 revision. It is compatible across all IRB2600 payload and reach variants. Always verify your robot’s serial number and axis configuration against ABB’s parts documentation before installation.

Q4: Can KNMKS support long-term spare parts supply for IRB2600 maintenance programs?
Yes. KNMKS maintains dedicated stock of critical IRB2600 mechanical components including Axis 3, Axis 1, and Axis 2 gearboxes to support planned maintenance intervals, spare parts programs, and emergency breakdown response. Long-term supply agreements and multi-unit orders are available — contact our team to discuss your maintenance schedule and volume requirements.
