ABB 3HAC028810-001 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC028810-001 Maintenance-Proven Spare Part for Factory Uptime

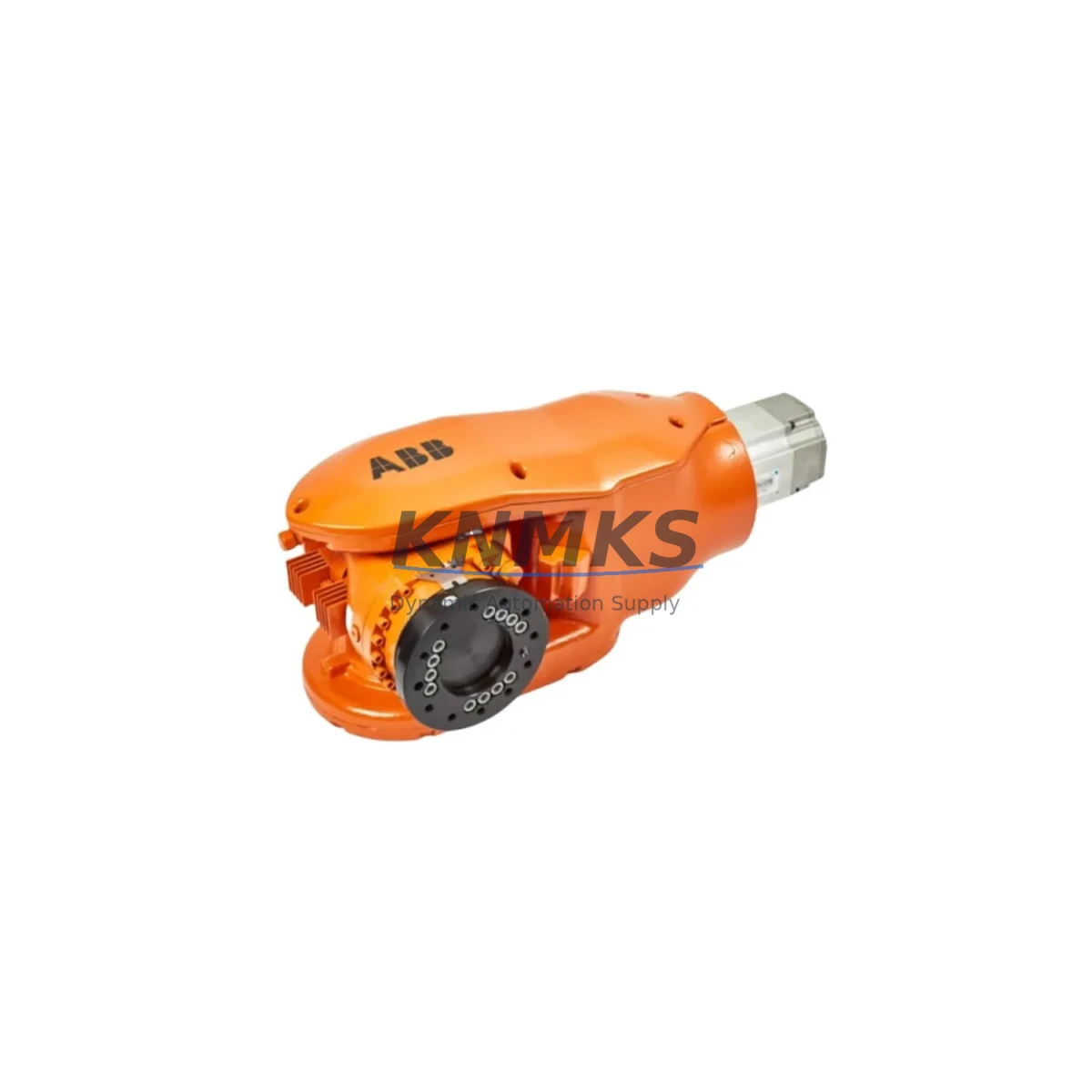

The ABB 3HAC028810-001 is an original OEM wrist PT assembly engineered for the IRB6660 heavy-duty industrial robot series. Designed for high-payload arc welding, press tending, and material handling applications, this wrist assembly is a critical mechanical interface between the robot arm and end-of-arm tooling. When this component fails or shows signs of wear, production lines halt — making rapid, verified replacement the top priority for maintenance and reliability engineers.

KNMKS stocks the 3HAC028810-001 as a ready-to-ship spare, pre-shipment tested and supplied with a support terms confirmed by quotation. Each unit is sourced through verified supply channels to ensure OEM-grade quality, dimensional accuracy, and full compatibility with the IRB6660 robot platform. Whether you are responding to an unplanned breakdown or building a preventive maintenance inventory, this part ships globally with full documentation support.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3HAC028810-001 wrist assembly on an IRB6660 robot is rarely an isolated task. A thorough maintenance engineer will use this replacement event as an opportunity to inspect and validate the surrounding mechanical and electrical subsystems to prevent secondary failures and extend the robot’s service life.

During wrist assembly replacement, it is standard practice to inspect the ABB 3HAC026679-005 axis drive unit, which interfaces directly with the wrist and is subject to the same load cycles. Worn or misaligned drive components can accelerate wrist wear and cause premature failure of the new assembly. Simultaneously, the IRB6660 servo motor cables routed through the upper arm should be checked for insulation fatigue, connector corrosion, and chafing — particularly in foundry or high-temperature environments.

The ABB DSQC series I/O modules connected to the robot controller (typically IRC5) should be verified for signal integrity, especially if the robot has been experiencing intermittent axis faults prior to the wrist failure. A faulty I/O channel can mask mechanical issues or generate false alarms that complicate fault isolation. Alongside this, the IRC5 controller power supply unit should be load-tested to confirm stable voltage delivery to all axis drives — voltage sag under load is a common but overlooked contributor to wrist and axis drive failures in aging robot cells.

For robots operating in press tending or foundry environments, the robot protective sleeve and dress package (cable management harness) should be replaced or inspected at the same interval as the wrist assembly. Damaged dress packages allow coolant, scale, and debris to contaminate the wrist joint, significantly reducing service life. Finally, the ABB FlexPendant (IRC5 HMI) should be used to run a full axis calibration and backlash check after installation to confirm the new wrist assembly is correctly seated and the robot’s TCP (Tool Center Point) is within specification.

Site Replacement Workflow

The 3HAC028810-001 is a direct OEM replacement for the IRB6660 wrist PT assembly. No mechanical adaptation or custom machining is required. The replacement workflow follows ABB’s standard wrist exchange procedure as documented in the IRB6660 Product Manual:

1. Isolation & Lockout: De-energize the IRC5 controller, engage mechanical brakes, and apply LOTO (Lockout/Tagout) to the robot cell. Confirm zero-energy state before accessing the wrist area.

2. End-of-Arm Tooling Removal: Disconnect and safely support the EOAT (gripper, welding torch, or press tool). Document TCP offsets before removal.

3. Wrist Disassembly: Follow ABB torque specifications for all fasteners. Inspect the mating surfaces on the upper arm for wear, scoring, or contamination. Clean thoroughly before installing the new assembly.

4. New Assembly Installation: Install the 3HAC028810-001 using calibrated torque tools. Apply specified lubricants to all grease points per the ABB maintenance schedule. Reconnect all motor and resolver cables, verifying connector seating and locking.

5. Calibration & Verification: Power up the IRC5 controller and run the ABB axis calibration routine via FlexPendant. Perform a slow-speed test cycle before returning the robot to production speed. Verify TCP accuracy against the pre-removal baseline.

6. Documentation: Record the replacement in the robot’s maintenance log, including part number, serial number, installation date, and technician ID. Update the spare parts inventory system to trigger reorder of a replacement 3HAC028810-001 for the maintenance buffer stock.

Spare Parts Support FAQ

Q1: Is the 3HAC028810-001 compatible with all IRB6660 variants?
The 3HAC028810-001 is designed for the IRB6660 series, which includes the 100/3.3, 130/3.1, and 205/1.9 payload/reach configurations. Compatibility should be confirmed against the robot’s serial number and product manual revision. KNMKS technical support can assist with compatibility verification prior to order.

Q2: What is the support terms coverage and what does it include?
All 3HAC028810-001 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and OEM-grade performance. Each unit undergoes pre-shipment dimensional and functional testing. Support requests are supported with full documentation and replacement logistics.

Q3: How quickly can this part be shipped, and do you support emergency orders?
The 3HAC028810-001 is held availability confirmed by RFQ and ships within 1–3 business days under standard lead times. For emergency breakdown situations, KNMKS offers expedited processing. Contact [email protected] or call +86 18359268345 to confirm stock availability and arrange priority dispatch.

Q4: Can KNMKS support long-term supply agreements for IRB6660 spare parts?
Yes. KNMKS supports blanket purchase orders and long-term supply agreements for maintenance-critical ABB spare parts including the 3HAC028810-001 and related IRB6660 components. This is particularly valuable for facilities operating multiple IRB6660 robots or managing multi-year maintenance contracts where supply continuity and price stability are essential procurement objectives.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IRB6660 3HAC028810-001 IRB66603HAC026679-005 3HAC026679-005
IRC5 Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB IRB6660 3HAC028810-001 IRB66603HAC026679-005 3HAC026679-005
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
