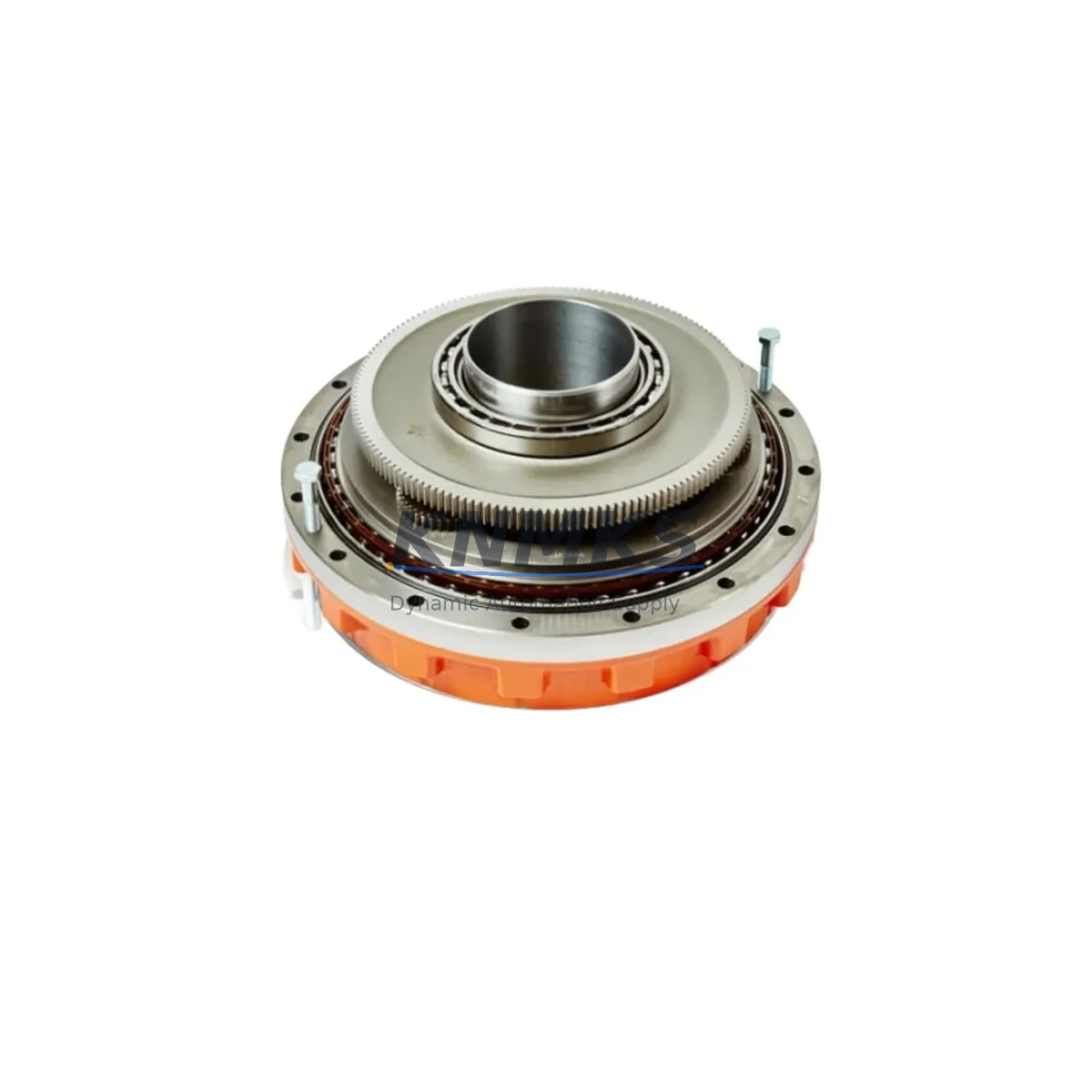

ABB 3HAC026114-005 Fail-Safe Axis-1 Reducer for IRB 6600

Overview

ABB 3HAC026114-005 Fail-Safe Axis-1 Reducer for IRB 6600: Fault Protection and Critical Industrial Field Reliability

The ABB 3HAC026114-005 is a precision-engineered Axis-1 reducer designed for the ABB IRB 6600 and IRB 6650 heavy-duty industrial robot series. In continuous production environments — from automotive body shops and petrochemical handling lines to port crane automation and metallurgical casting cells — the mechanical integrity of the robot’s primary rotational axis is a direct determinant of uptime. A degraded or failed Axis-1 reducer does not merely slow production; it triggers unplanned shutdowns, safety interlock activations, and costly re-qualification cycles. The 3HAC026114-005 is engineered to eliminate that risk.

This reducer operates at the foundation of the IRB 6600’s kinematic chain, transmitting torque from the drive motor to the robot base rotation axis under full payload conditions. Its fail-safe mechanical design ensures that even under overload, vibration, or thermal stress, the reducer maintains positional accuracy and does not generate runaway motion — a critical requirement in safety-rated robot cells operating under ISO 10218 or IEC 62061 functional safety frameworks.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Replacing the 3HAC026114-005 is rarely an isolated mechanical task. In a properly maintained IRB 6600 robot cell, the Axis-1 reducer replacement is coordinated with a broader inspection and protection strategy across the robot’s drive and control architecture. The ABB DSQC 661 axis computer board governs the motion control signals that command Axis-1 torque output; a worn reducer that causes positional feedback errors will generate fault codes at the DSQC 661 level, making it essential to verify drive board health alongside the mechanical replacement.

Similarly, the ABB 3HAC025338-001 Axis-1 motor — the drive source paired with this reducer — should be inspected for bearing wear and encoder integrity during any reducer service interval. Replacing the reducer without verifying motor condition risks premature re-failure. The ABB 3HAC026253-001 motor cable assembly for Axis-1 should also be checked for insulation degradation, particularly in high-temperature or high-vibration foundry and press-shop environments where cable flex fatigue accelerates.

At the control cabinet level, the ABB DSQC 604 power supply unit provides regulated DC power to the robot controller’s drive modules. Voltage instability or ripple from a degraded DSQC 604 can cause erratic axis behavior that mimics mechanical reducer wear — making power supply verification a standard step in any Axis-1 fault diagnosis. The ABB 3HAC044168-001 SMB (Serial Measurement Board) handles resolver signal processing for all axes; a faulty SMB can generate false position errors on Axis-1 that are incorrectly attributed to the reducer. Confirming SMB integrity before and after reducer replacement prevents misdiagnosis and repeat callouts.

For robot cells operating in dusty, humid, or chemically aggressive environments — common in water treatment automation, mining conveyor systems, and port handling — the ABB 3HAC028357-001 robot dress pack and cable management assembly provides the environmental sealing that protects both the new reducer and the surrounding drive components from contamination-induced degradation.

Critical Industrial Safety Applications

The ABB IRB 6600 platform, and by extension the 3HAC026114-005 Axis-1 reducer, is deployed across the most demanding continuous-process and safety-critical industrial environments globally.

In petrochemical and refinery automation, IRB 6600 robots handle drum filling, valve actuation, and hazardous material transfer in Zone 2 classified areas. Axis-1 reducer failure in these environments does not merely halt production — it can compromise the physical positioning of the robot arm relative to process equipment, triggering emergency shutdown systems and requiring full safety re-validation before restart. The 3HAC026114-005’s mechanical fail-safe design ensures that reducer degradation does not produce uncontrolled motion that could breach containment.

In automotive and heavy manufacturing press shops, IRB 6600 robots perform high-cycle stamping part transfer and spot welding operations under continuous three-shift production schedules. Axis-1 reducer wear in this context manifests as positional drift, increased cycle time, and ultimately weld quality deviation — all of which trigger quality holds and line stoppages. Proactive replacement with a pre-tested 3HAC026114-005 during planned maintenance windows eliminates unplanned downtime risk.

In mining and mineral processing facilities, robots equipped with IRB 6600 platforms handle ore sampling, explosive device placement, and conveyor maintenance in high-dust, high-vibration environments. The mechanical robustness of the Axis-1 reducer is directly linked to the robot’s ability to maintain safe working positions relative to moving machinery and personnel exclusion zones.

In port and logistics automation, IRB 6600 robots perform container handling, palletizing, and heavy load transfer in outdoor or semi-outdoor environments subject to salt air, temperature cycling, and continuous operation. Axis-1 reducer reliability in these applications directly determines crane and conveyor system availability, with downtime costs measured in vessel turnaround delays.

In metallurgical and foundry environments — including aluminum die casting, steel billet handling, and furnace tending — the IRB 6600 operates in ambient temperatures and radiant heat conditions that accelerate lubricant degradation in the reducer. Scheduled replacement with a verified 3HAC026114-005 unit, supported by a support terms confirmed by quotation and pre-shipment functional test, is the standard risk mitigation approach for foundry robot maintenance teams.

Safety and Quality FAQ

Q1: What support terms coverage applies to the ABB 3HAC026114-005?
Every 3HAC026114-005 unit supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Support requests are supported with direct technical assistance and replacement dispatch to minimize field downtime.

Q2: What pre-shipment testing is performed on this reducer?
Each unit undergoes a 100% pre-shipment inspection protocol including dimensional verification, rotational torque check, backlash measurement, and visual inspection for surface defects or seal integrity issues. Units that do not meet OEM specification tolerances are quarantined and not dispatched. A test record is available upon request.

Q3: Is the 3HAC026114-005 compatible with all IRB 6600 and IRB 6650 variants?
The 3HAC026114-005 is the OEM-specified Axis-1 reducer for the ABB IRB 6600 and IRB 6650 robot family. Compatibility should be confirmed against the robot’s serial number and mechanical revision level. KNMKS technical support can assist with cross-referencing your robot’s configuration data to confirm fitment before order placement.

Q4: What is the long-term supply availability for this part?
KNMKS maintains stock of the 3HAC026114-005 to support 12–36 month spare parts planning horizons for maintenance teams managing multiple IRB 6600 units. For customers with fleet maintenance contracts or scheduled turnaround programs, volume reservation and forward stocking arrangements are available. Contact our team to discuss your site’s specific spare parts strategy.
