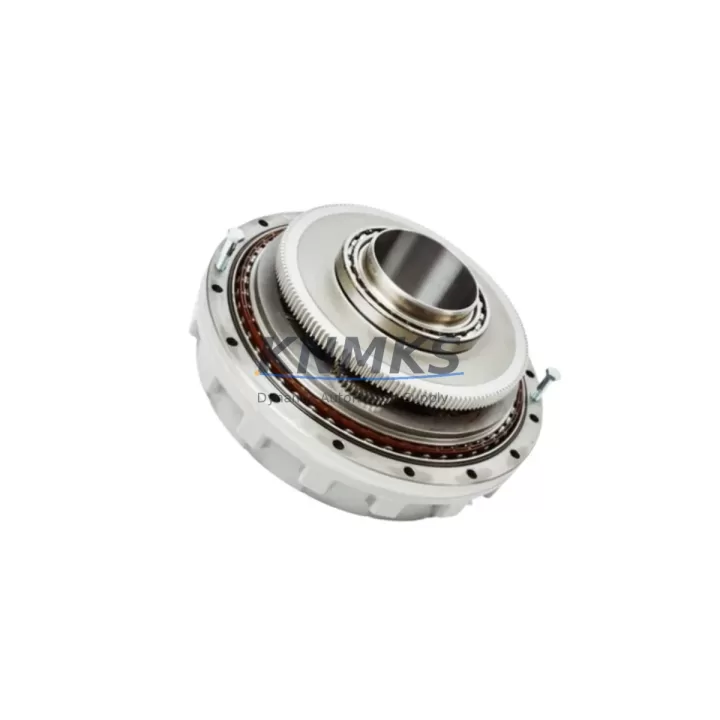

ABB 3HAC024777-001 Migration-Ready Axis 6 Reducer

Overview

ABB 3HAC024777-001 Migration-Ready Axis 6 Reducer: Legacy System Retrofit & Compatibility Upgrade

The ABB 3HAC024777-001 is a precision-engineered Axis 6 joint reducer designed for direct integration into ABB IRB-series industrial robots operating under the IRC5 control platform. As legacy robotic cells face increasing obsolescence pressure, this reducer serves as a critical migration-ready spare part for facilities managing IRB460, IRB760, and IRB7600 installations that can no longer source OEM components through standard channels. Whether you are executing a planned maintenance cycle, responding to an unplanned joint failure, or undertaking a broader control system modernization, the 3HAC024777-001 provides a verified drop-in replacement path that preserves existing program logic, wiring topology, and mechanical envelope.

For automation engineers managing aging robot fleets, the reducer’s compatibility with the IRC5 controller’s motion parameter library eliminates the need to recalibrate axis mastering from scratch. The mechanical interface dimensions match the original ABB specification, meaning the mounting flange, output shaft geometry, and gear ratio are retained — a key requirement when the downstream tooling, end-effector, or fixture has been built around the original axis performance envelope. This is particularly relevant in palletizing and press-tending applications where IRB460 and IRB7600 units are still in active production service despite being discontinued from ABB’s current catalog.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful Axis 6 reducer replacement on an IRB-series robot requires coordinated planning across mechanical, electrical, and software domains. Before removing the failed or worn reducer, engineers should back up the current robot configuration using the IRC5 FlexPendant or RobotStudio, capturing the active RAPID program, tool data, work object definitions, and system parameters. This backup protects against data loss during the SMB disconnect that is required when accessing the wrist assembly.

On the mechanical side, confirm that the robot is in a safe, gravity-compensated posture before disassembly. The Axis 6 wrist module on IRB7600 variants carries significant inertia, and improper support during reducer removal can damage the output flange or the downstream tooling. Once the 3HAC024777-001 is seated and torqued to ABB specification, reconnect the SMB cable and verify that the resolver signal is recognized by the IRC5 drive module before powering the axis.

For facilities running multi-robot cells, the IRC5 controller’s axis configuration file (MOC.cfg) should be reviewed to confirm that the axis 6 gear ratio parameter matches the replacement reducer. In cases where the original reducer was a non-standard ratio variant, this parameter must be updated before executing the fine calibration routine. The calibration pin method remains the recommended approach for IRB460 and IRB760 axis 6 mastering.

Concurrent component review is strongly advised during any reducer replacement. The SMB battery (3HAC044075-001) should be inspected and replaced if it is approaching its service interval, as a depleted battery will cause resolver position loss on the next power cycle. The axis 6 brake (integrated within the motor assembly, referenced under 3HAC025338-001 motor unit) should also be tested for holding torque before returning the robot to production. If the installation includes a process cable package routed through the upper arm, verify that the cable management bracket and strain relief are intact after reassembly. For cells using DeviceNet or PROFIBUS I/O modules connected to the IRC5 I/O unit (such as the DSQC652 or DSQC651), confirm that the fieldbus node address and baud rate settings are preserved in the controller configuration after any firmware update performed during the maintenance window.

Downtime Control During System Migration

Minimizing production downtime during an Axis 6 reducer replacement requires pre-staging all components before the maintenance window opens. The 3HAC024777-001 should be inspected and verified against the robot’s serial number and axis configuration before the robot is taken offline. Having the replacement reducer, SMB battery, calibration pin set, and torque wrench pre-positioned at the robot reduces the active downtime window to the mechanical swap and calibration sequence — typically 4 to 8 hours for a trained ABB-certified technician on an IRB7600 platform.

To protect the original program logic, use RobotStudio’s backup and restore function to create a full system snapshot. This snapshot includes all RAPID modules, system parameters, safety configuration, and I/O signal mappings. If the IRC5 controller is running a safety-rated configuration (SafeMove), the safety configuration file must be re-validated after any axis mastering change. Coordinate with the safety officer and document the re-validation in the site’s change management log.

For facilities that cannot afford a full production stop, consider a phased approach: perform the mechanical replacement during a scheduled weekend shutdown, execute the fine calibration and program verification during the first production shift under supervised operation, and return to full autonomous production after a 4-hour monitored run. This approach reduces the risk of undetected calibration errors propagating into the production process.

Retrofit Support FAQ

Q: Is the 3HAC024777-001 a direct replacement for all IRB7600 variants?
A: The 3HAC024777-001 is compatible with the majority of IRB7600 Axis 6 configurations, but the specific variant (IRB7600-150/3.5, IRB7600-500/2.55, etc.) should be confirmed against the robot’s serial number plate and the ABB spare parts catalog before ordering. Contact our technical team with your robot serial number for confirmation.

Q: Do I need to re-master the robot after replacing the Axis 6 reducer?
A: Yes. Axis 6 fine calibration is required after any reducer replacement. The calibration pin method is recommended. If the SMB battery was also replaced, all six axes must be re-mastered. Ensure RobotWare is at the correct version before executing the calibration routine.

Q: What is the lead time and stock availability?
A: The 3HAC024777-001 is held availability confirmed by RFQ for immediate dispatch. Standard lead time is 3–7 business days for international shipments. Express options are available for critical downtime situations. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: Is pre-shipment testing performed on this reducer?
A: Yes. Each unit undergoes outgoing inspection including dimensional verification and packaging integrity check before dispatch. Units sourced from verified supply channels are cross-referenced against ABB part number documentation to confirm authenticity and specification compliance.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HAC024777-001
IRC5 Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB 3HAC024777-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
