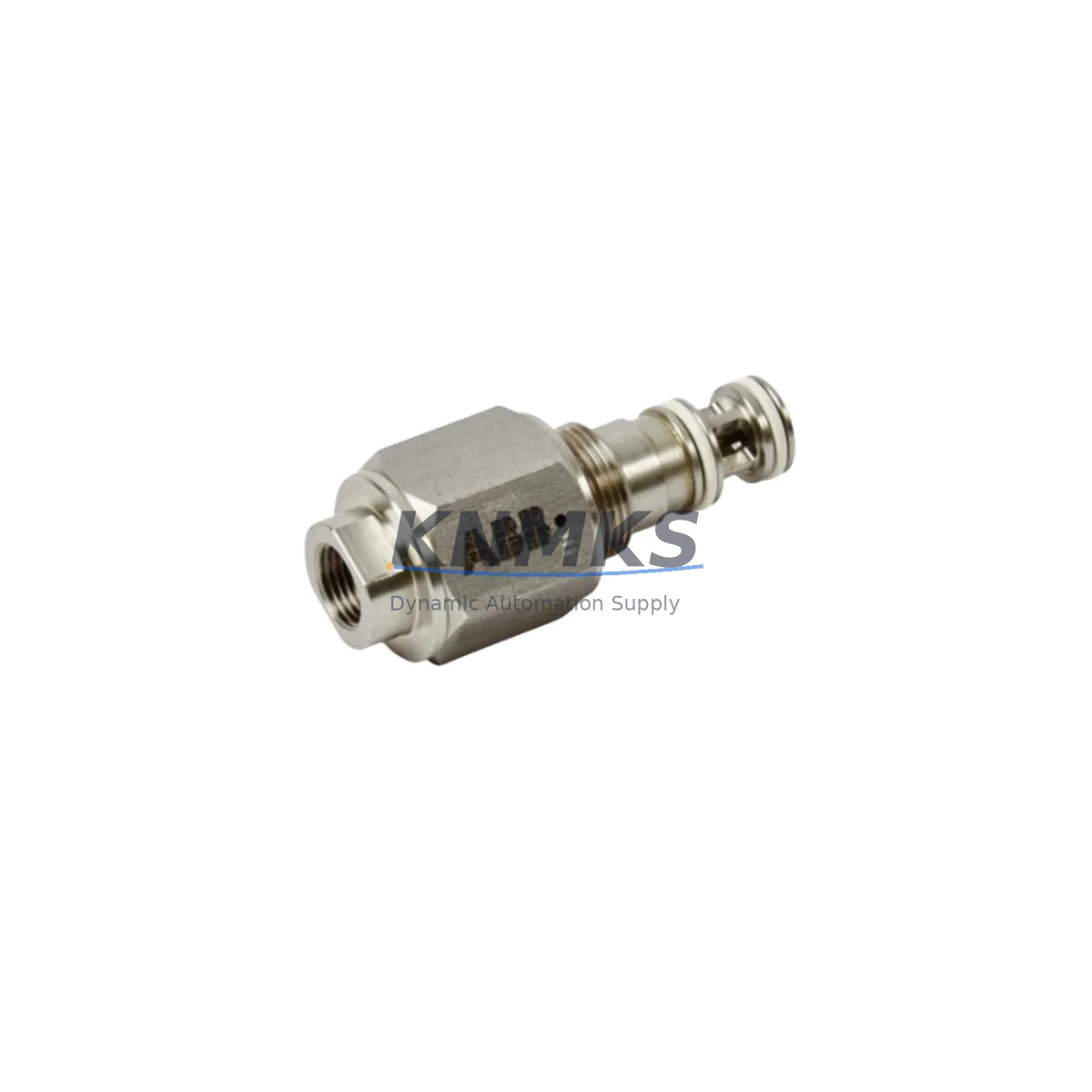

ABB 3HAC024775-006 Fail-Safe Directional Control Valve

Overview

ABB 3HAC024775-006 Fail-Safe Directional Control Valve: Fault Protection and Critical Industrial Field Reliability

The ABB 3HAC024775-006 is a precision-engineered fail-safe directional control valve designed for the ABB IRB660 palletizing robot series and compatible heavy-duty industrial automation platforms. In continuous production environments where unplanned downtime carries severe operational and financial consequences, this valve serves as a critical line of defense within the pneumatic control circuit. Its fail-safe architecture ensures that in the event of power loss, signal interruption, or control system fault, the valve defaults to a predetermined safe position — preventing uncontrolled actuator movement, protecting downstream mechanical components, and maintaining personnel safety in hazardous zones.

Engineered to ABB’s stringent robotics-grade specifications, the 3HAC024775-006 delivers consistent directional switching performance under the demanding conditions typical of palletizing, press-tending, and heavy-payload transfer applications. Its robust internal sealing and precision-machined spool mechanism resist the effects of hydraulic fluid contamination, pressure transients, and thermal cycling — all common stressors in high-cycle industrial environments. The valve’s compact form factor and standardized port configuration allow direct replacement within existing IRB660 control cabinet assemblies without modification to manifold blocks or pneumatic tubing layouts.

In facilities operating under high electromagnetic interference — such as those with large variable frequency drives, arc welding stations, or high-current bus systems — the 3HAC024775-006’s shielded solenoid coil design minimizes susceptibility to induced voltage and signal noise. This is particularly important in integrated safety circuits where spurious valve actuation could trigger emergency stops or, worse, mask a genuine fault condition. When paired with ABB’s DSQC safety controller modules and 3HAC026254-001 servo drive units, the valve forms part of a coherent, validated safety architecture that meets the requirements of SIL-rated interlock systems.

For control cabinet protection, the 3HAC024775-006 is typically installed alongside ABB 3HAC044168-001 power supply units that provide regulated, surge-suppressed DC power to the solenoid coil — eliminating voltage spike damage that is a leading cause of premature valve failure in industrial settings. Cabinet thermal management is further supported by integrating ABB IRB660 cooling fan assemblies (3HAC025562-001), which maintain ambient temperatures within the valve’s rated operating range even during peak-load summer production cycles. On the communications side, ABB DSQC 663 fieldbus adapter modules enable real-time valve status monitoring via PROFIBUS or DeviceNet, allowing maintenance teams to detect coil resistance drift or response time degradation before a fault escalates to a production stop.

In dusty, humid, or chemically aggressive environments — such as food processing lines, cement plants, or coastal port facilities — the valve’s IP-rated enclosure and corrosion-resistant body materials provide reliable long-term sealing integrity. Facilities in petrochemical refining, power generation, mining, and water treatment that rely on ABB IRB660 robots for continuous material handling operations depend on the 3HAC024775-006 to maintain pneumatic circuit integrity across multi-shift, year-round production schedules. Its compatibility with ABB 3HAC020812-001 wrist assembly units and 3HAC025999-001 axis computer boards ensures that the pneumatic and electronic control layers remain synchronized, reducing the risk of positional error, missed cycles, or interlock trips caused by valve timing mismatches.

Every 3HAC024775-006 unit supplied by KNMKS undergoes pre-shipment functional testing including coil continuity verification, switching response timing, and leak-down pressure hold testing. Units are shipped in anti-static, moisture-barrier packaging with full traceability documentation. Stock is maintained across regional distribution hubs to support urgent spare parts requirements with short lead times — critical for facilities operating without redundant robot cells. All units are covered by a support terms confirmed by quotation from the date of shipment, with technical support available for installation verification and compatibility confirmation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust IRB660 control cabinet protection strategy centers on validated component compatibility and layered fault prevention. The ABB 3HAC024775-006 directional control valve anchors the pneumatic safety layer, but its reliability depends on the integrity of surrounding systems. Regulated power delivery from ABB 3HAC044168-001 power supply units ensures the solenoid coil receives clean, surge-suppressed DC voltage — eliminating the coil burnout and erratic switching behavior caused by unregulated or noisy power rails common in heavy industrial environments.

Cabinet thermal stability is maintained through ABB IRB660 cooling fan assemblies (3HAC025562-001), which prevent the thermal derating of solenoid coil resistance and valve response characteristics during sustained high-duty-cycle operation. Real-time diagnostics are enabled by ABB DSQC 663 fieldbus adapter modules, which surface valve status data to the plant DCS or SCADA system — allowing predictive maintenance teams to schedule valve inspection before coil degradation causes an unplanned stop. The DSQC safety controller provides the interlock logic layer that validates valve position feedback before authorizing robot motion, ensuring that a valve fault is caught at the control level rather than manifesting as a mechanical incident. Together with ABB 3HAC025999-001 axis computer boards, this architecture creates a closed-loop safety system where pneumatic, electronic, and software layers reinforce each other’s fault detection capabilities.

Critical Industrial Safety Applications

The ABB 3HAC024775-006 directional control valve is deployed across a wide range of safety-critical industrial environments where pneumatic circuit reliability is non-negotiable:

• Petrochemical & Refining: IRB660 robots handling drum palletizing and barrel transfer in ATEX-adjacent zones rely on fail-safe valve behavior to prevent uncontrolled actuator movement during emergency shutdowns.
• Power Generation: Continuous-operation facilities use the valve within robot-assisted fuel handling and ash removal systems, where a valve fault could interrupt critical material flow and trigger plant-level alarms.
• Mining & Mineral Processing: High-dust, high-vibration environments demand the valve’s robust sealing and EMI-shielded coil to maintain reliable switching through extended production campaigns without manual intervention.
• Water & Wastewater Treatment: Automated chemical dosing and sludge handling robots depend on precise directional control to prevent over-dosing incidents and protect downstream process equipment.
• Metallurgy & Steel: High-temperature, high-vibration casting and rolling mill environments test the valve’s thermal stability and mechanical durability across multi-shift operations.
• Port & Logistics: High-throughput palletizing lines at port facilities operate around the clock; the 3HAC024775-006’s fail-safe return mechanism ensures safe robot parking during power interruptions without manual reset requirements.
• Continuous Manufacturing: Food, beverage, and consumer goods lines with zero-tolerance for contamination benefit from the valve’s sealed construction and predictable fault behavior within validated safety circuits.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB 3HAC024775-006?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, coil failure under normal operating conditions, and sealing integrity. KNMKS provides technical support for support requests including remote diagnosis and expedited replacement dispatch to minimize production downtime.

Q2: What pre-shipment testing does each unit undergo?
Every 3HAC024775-006 is tested for solenoid coil continuity and resistance within ABB specification, directional switching response timing under rated voltage, and leak-down pressure hold to verify internal seal integrity. Test records are available upon request and units are shipped with traceability documentation.

Q3: Is the 3HAC024775-006 compatible with all IRB660 variants and control cabinet generations?
The 3HAC024775-006 is designed for the ABB IRB660 series and uses a standardized port and manifold interface for direct replacement. Compatibility with specific IRB660 sub-variants or retrofit applications should be confirmed against the robot’s pneumatic circuit diagram. KNMKS technical support can assist with compatibility verification prior to order.

Q4: What is the long-term supply availability for this part?
KNMKS maintains dedicated stock of the 3HAC024775-006 across regional distribution hubs to support both planned maintenance schedules and urgent breakdown requirements. For facilities managing long-lifecycle IRB660 installations, KNMKS offers consignment stock agreements and advance procurement planning to eliminate lead-time risk from OEM supply constraints.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HAC024775-006
IRC5 Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB 3HAC024775-006
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
