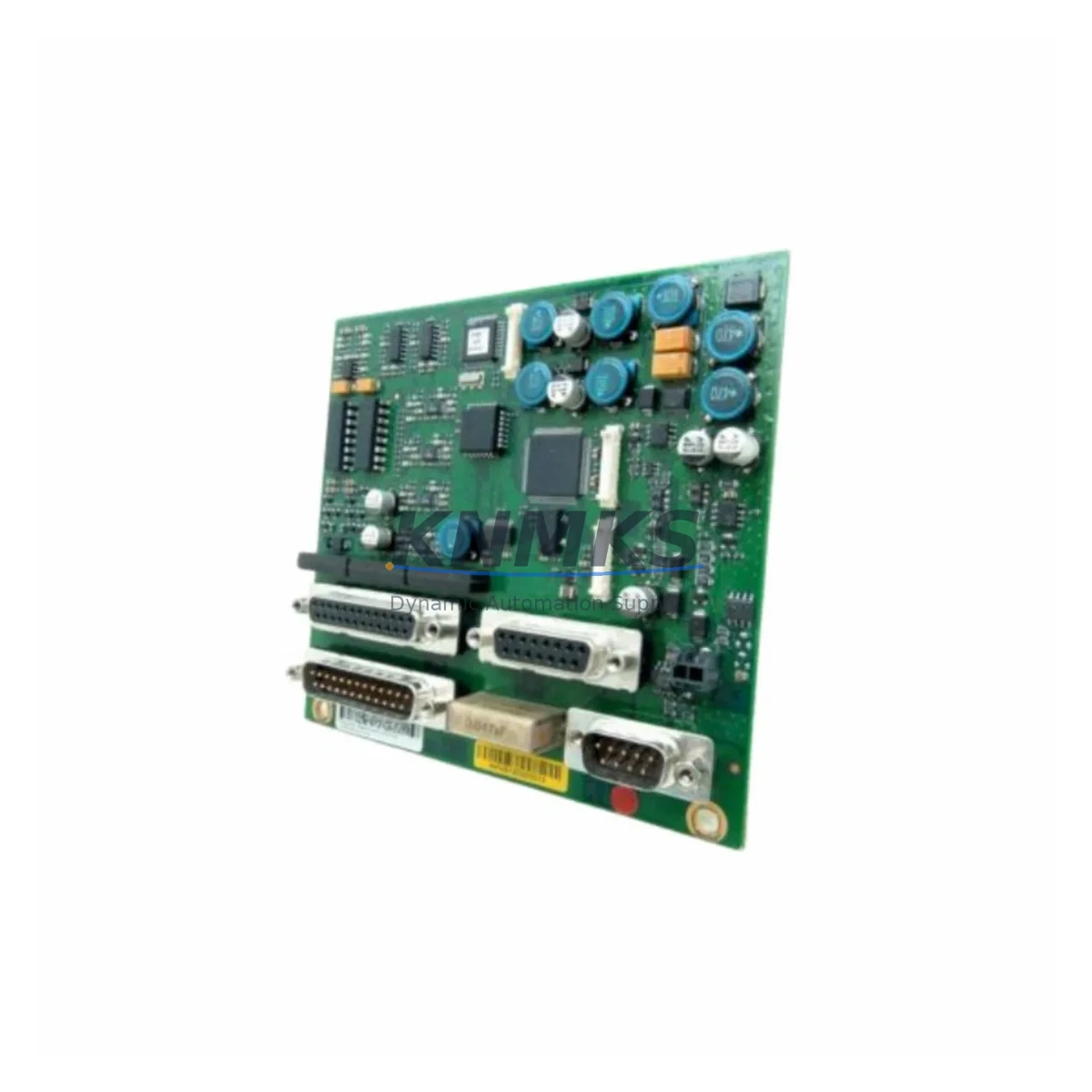

ABB 3HAC021905-001 Fail-Safe Serial Measurement Unit

Overview

ABB 3HAC021905-001 Fail-Safe Serial Measurement Unit: Fault Protection and Critical Industrial Field Reliability

The ABB 3HAC021905-001 is a precision-engineered Serial Measurement Unit (SMU/SMB) designed for ABB IRC5 robot controllers and IRB series manipulators. In continuous production environments where unplanned downtime carries severe operational and safety consequences, this unit serves as the authoritative resolver interface between the robot’s axis motors and the IRC5 controller’s motion control chain. Its fail-safe architecture ensures that encoder signal integrity is maintained even under high electromagnetic interference, power fluctuation, and mechanical vibration — conditions routinely encountered in arc welding cells, press-tending lines, foundry automation, and heavy-duty palletizing systems.

Signal drift and measurement loss at the serial measurement board level are among the most disruptive fault modes in robotic automation. The 3HAC021905-001 addresses this directly through its robust differential signal processing design, which rejects common-mode noise from adjacent variable frequency drives, servo amplifiers, and high-current bus bars. In cabinet environments where the ABB DSQC661 drive unit and DSQC662 axis computer are operating in close proximity, maintaining clean resolver feedback is non-negotiable for safe, repeatable motion. The 3HAC021905-001 provides exactly that — a stable, verified measurement path that the IRC5 motion controller can trust cycle after cycle.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable robot operation depends not only on the serial measurement unit itself, but on the integrity of the entire IRC5 control cabinet ecosystem. The 3HAC021905-001 operates within a tightly coupled architecture where any weak link — whether in power supply stability, axis drive performance, or communication bus integrity — can cascade into a measurement fault or emergency stop event.

In high-cycle production cells, the ABB DSQC604 power supply unit is the upstream foundation for stable SMB operation. Voltage ripple or transient sags from the DSQC604 directly affect the measurement unit’s signal acquisition accuracy. Pairing the 3HAC021905-001 with a verified, tested DSQC604 eliminates one of the most common root causes of intermittent SMB communication errors. Similarly, the ABB DSQC609 power distribution board governs how power is routed to individual axis boards and measurement circuits — a degraded DSQC609 can introduce ground loops that corrupt resolver feedback even when the SMB unit itself is fully functional.

On the motion control side, the ABB DSQC668 axis computer processes the serial measurement data delivered by the 3HAC021905-001 and translates it into real-time position commands. When the measurement unit is replaced or serviced, it is best practice to simultaneously verify the DSQC668’s firmware revision and calibration state to ensure full compatibility. In multi-axis configurations — particularly on IRB 6640 and IRB 7600 platforms — the ABB 3HAC025338-001 SMB cable harness connecting the measurement unit to the manipulator’s resolver chain must also be inspected for insulation integrity and connector seating, as cable degradation is a frequent source of intermittent axis faults that are incorrectly attributed to the SMB unit itself.

For cabinet-level surge and transient protection, integrating ABB OVR surge protective devices on the incoming power rail upstream of the IRC5 cabinet significantly reduces the risk of transient-induced damage to the measurement unit’s internal signal processing circuitry — a particularly important consideration in facilities with frequent lightning events or large motor switching loads on shared distribution panels.

Critical Industrial Safety Applications

The ABB 3HAC021905-001 is deployed across a wide range of safety-critical and continuous-process industrial environments where robot uptime is directly tied to production throughput and personnel safety.

In petrochemical and refinery automation, ABB IRC5-controlled robots perform inspection, valve actuation, and material handling in zones where uncontrolled motion due to a measurement fault could trigger emergency shutdowns or create hazardous conditions. The fail-safe resolver feedback provided by the 3HAC021905-001 ensures that the IRC5’s safety-rated motion supervision functions — including speed monitoring and axis range limiting — operate on verified position data at all times.

In power generation and electrical utility facilities, robots equipped with IRC5 controllers and this measurement unit are used for transformer maintenance, cable handling, and substation inspection tasks. The unit’s high EMI immunity is essential in these environments, where strong magnetic fields from high-voltage equipment can corrupt position signals in less robust measurement architectures.

In mining and mineral processing, where dust ingress, vibration, and temperature cycling are constant stressors, the 3HAC021905-001’s robust construction and pre-shipment functional verification provide the confidence needed for long-interval maintenance cycles. Operators in these environments cannot afford to discover a faulty replacement unit after installation — which is why every unit shipped by KNMKS undergoes full functional testing before dispatch.

In water treatment and municipal infrastructure automation, where robots operate in high-humidity, chemically aggressive environments, the measurement unit’s tolerance for elevated humidity and its sealed connector interfaces support reliable long-term operation without frequent intervention.

In steel, aluminum, and metals processing — foundry automation, press lines, and continuous casting — the combination of high ambient temperatures, heavy vibration, and intense electromagnetic interference from induction furnaces and large servo presses makes the 3HAC021905-001’s noise-immune differential signal architecture a critical reliability asset. Unplanned robot downtime in these environments typically halts entire production lines, making fast spare parts availability and verified replacement units essential to maintenance strategy.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the ABB 3HAC021905-001?
Every 3HAC021905-001 unit supplied by KNMKS carries a support terms confirmed by quotation covering functional failure under normal operating conditions. This support terms applies from the date of shipment and covers defects in the unit’s measurement and signal processing functions. Support requests are supported with direct technical assistance and replacement dispatch to minimize field downtime.

Q2: Is pre-shipment functional testing performed on each unit?
Yes. Each ABB 3HAC021905-001 undergoes a full functional verification test prior to shipment. This includes signal acquisition validation, communication bus integrity check, and connector interface inspection. Units that do not pass testing are not dispatched. This process ensures that the replacement unit performs correctly from the moment it is installed in the IRC5 cabinet.

Q3: Is this unit compatible with all IRC5 controller variants and IRB manipulator models?
The 3HAC021905-001 is compatible with the full range of ABB IRC5 controller variants — including Single Cabinet, Dual Cabinet, Compact, and Panel Mounted configurations — and supports IRB series manipulators including the IRB 1600, IRB 2400, IRB 4400, IRB 6600, IRB 6640, and IRB 7600. For specific compatibility confirmation on non-standard configurations or older IRC5 revisions, contact our technical team before ordering.

Q4: Can long-term spare parts supply be arranged for maintenance programs?
Yes. KNMKS maintains ongoing inventory of the ABB 3HAC021905-001 and supports both single-unit replacement orders and multi-unit spare parts programs for maintenance contracts and planned shutdown schedules. For facilities operating multiple IRC5 robots, we recommend holding at least one verified spare unit on-site to eliminate lead time risk during unplanned failures. Contact our team to discuss volume pricing, consignment stock arrangements, or scheduled supply agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HAC021905-001
IRC5 Series

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB 3HAC021905-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
