ABB 3HAC021541-001 Fail-Safe Axis Reducer Industrial Control

Overview

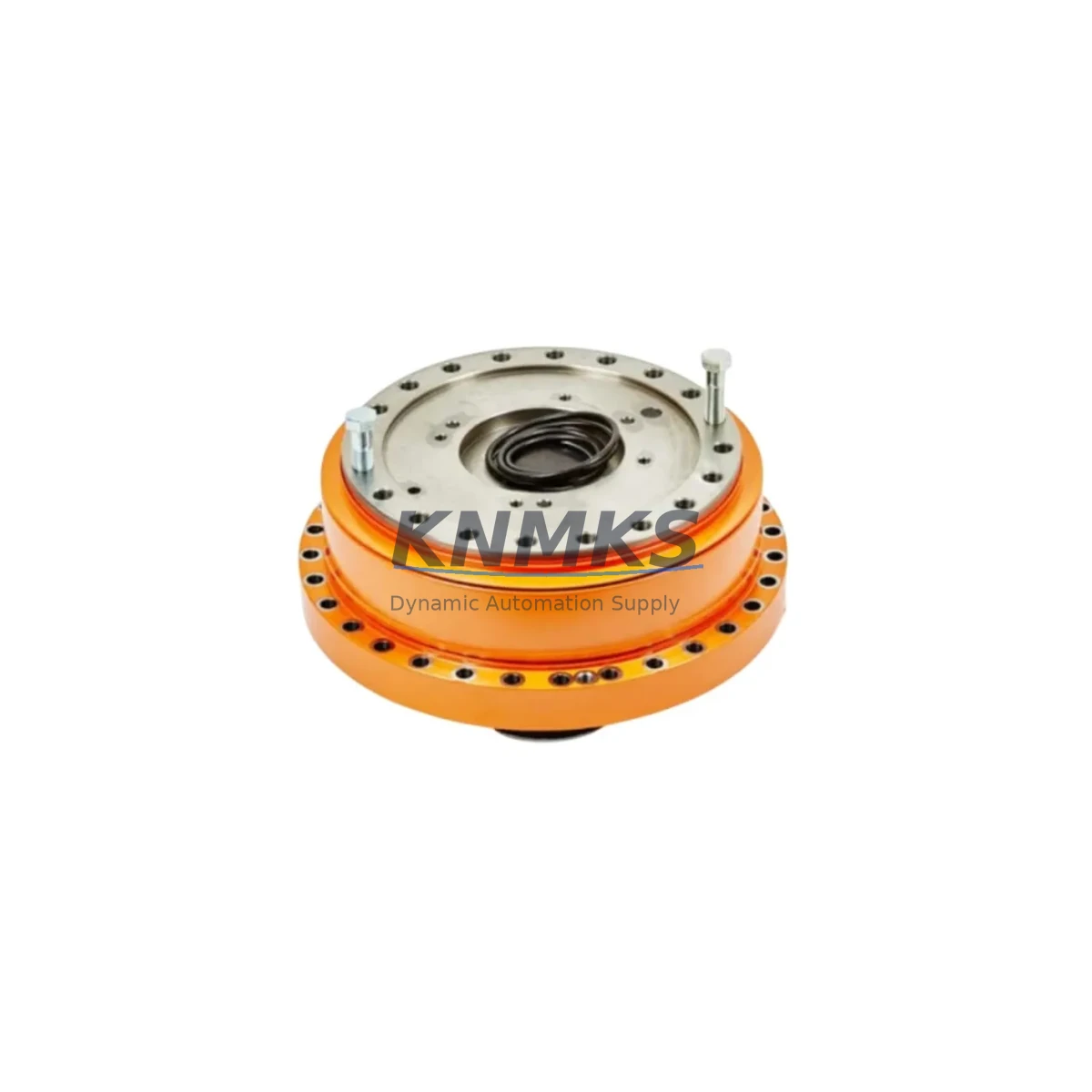

ABB 3HAC021541-001 Fail-Safe Axis Reducer for Industrial Control Reliability

The ABB 3HAC021541-001 is a precision-engineered axis reducer gearbox designed for ABB IRB series industrial robots operating in safety-critical and continuous-production environments. Built to OEM specifications in Germany, this component delivers the mechanical accuracy, torque stability, and fail-safe performance demanded by petrochemical plants, power generation facilities, metal processing lines, and automated manufacturing cells where unplanned downtime is not an option.

In high-cycle robotic applications, axis reducer degradation is one of the leading causes of positional drift, servo overload, and unscheduled maintenance shutdowns. The 3HAC021541-001 addresses these failure modes through its precision-ground gear geometry, sealed lubrication system, and rigid housing construction — all of which contribute to sustained backlash control and repeatable positioning accuracy across extended service intervals. Whether your IRB robot is handling heavy payloads in a foundry, performing precision welding in an automotive body shop, or managing material transfer in a dusty cement plant, this reducer maintains axis integrity under thermal cycling, vibration, and mechanical shock.

Compatibility with the ABB IRC5 controller and associated servo drive modules ensures seamless integration into existing robot cells without requiring firmware reconfiguration or mechanical adaptation. When paired with the ABB DSQC 661 main computer board and ABB DSQC 652 digital I/O unit, the complete control architecture maintains synchronized axis feedback, reducing the risk of communication anomalies between the motion controller and the mechanical drive train. For applications where axis load monitoring is critical, the reducer works in conjunction with the ABB DSQC 1000 safety controller to enforce torque envelope limits and trigger protective stops before mechanical overload occurs.

In control cabinet environments subject to high electromagnetic interference — common in arc welding cells, induction heating stations, and variable-frequency drive installations — the mechanical stability of the 3HAC021541-001 prevents the positional errors that can cascade into servo fault alarms and production halts. Supplementing the robot cell with a Phoenix Contact QUINT-PS/1AC/24DC/10 power supply ensures clean, regulated DC power to the IRC5 drive system, eliminating voltage sag events that can corrupt axis position data during high-torque acceleration phases. For surge protection at the cabinet entry point, an ABB OVR T2 40-275 P TS surge protective device provides the transient voltage clamping necessary to protect sensitive encoder circuits and servo amplifiers from grid-borne impulses.

Every ABB 3HAC021541-001 unit supplied by KNMKS undergoes pre-shipment functional inspection covering dimensional verification, rotational resistance check, and seal integrity assessment. Units are shipped in OEM-grade protective packaging with desiccant to prevent moisture ingress during transit — a critical consideration for components destined for humid coastal facilities or cold-chain logistics routes. Stock is maintained across multiple regional warehouses to support urgent maintenance requirements and minimize robot downtime windows.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable robot axis reducer is only as dependable as the control architecture surrounding it. In safety-critical robot cells, the ABB 3HAC021541-001 performs best when the broader cabinet infrastructure is engineered for fault tolerance. The ABB DSQC 652 digital I/O unit provides the discrete signal interface between the IRC5 controller and field devices, ensuring that axis enable signals, emergency stop chains, and safety interlock feedback are processed without latency or signal corruption.

For power quality, the Phoenix Contact QUINT-PS/1AC/24DC/10 DIN-rail power supply delivers regulated 24 VDC with active power boost capability, protecting the IRC5 drive system from the voltage dips that occur during simultaneous multi-axis acceleration. Cabinet thermal management is addressed through proper ventilation design and, where ambient temperatures exceed 35°C, supplemental cooling units — preventing the thermal derating that reduces servo drive output and accelerates bearing wear in the axis reducer itself.

Surge protection at the AC input using an ABB OVR T2 40-275 P TS type 2 SPD, combined with a Weidmüller VPU I 1+1 255V/25kA signal line protector on encoder and fieldbus cables, creates a layered transient protection strategy that shields both the mechanical drive components and the electronic control modules from grid disturbances common in heavy industrial facilities. Communication integrity between the IRC5 controller and upstream SCADA or PLC systems is maintained through shielded Ethernet or DeviceNet cabling, reducing the risk of motion command errors that could result in axis overtravel or collision events.

Critical Industrial Safety Applications

The ABB 3HAC021541-001 axis reducer supports fail-safe robotic operation across a broad range of hazardous and demanding industrial sectors:

• Petrochemical & Refinery: Robot arms handling valve actuation, pipe inspection, and hazardous material transfer in ATEX-classified zones require axis components with zero tolerance for positional drift. The 3HAC021541-001 maintains mechanical accuracy in high-temperature, chemically aggressive atmospheres.
• Power Generation: In turbine maintenance and fuel handling automation, robot axis reliability directly impacts plant safety. Sealed lubrication and vibration-resistant construction prevent unplanned maintenance interventions during critical outage windows.
• Mining & Mineral Processing: Dusty, high-vibration environments in ore handling and crushing plant automation demand IP67-rated mechanical components. The reducer’s sealed housing prevents abrasive particle ingress that causes premature gear wear.
• Water & Wastewater Treatment: Robots performing chemical dosing, pipe inspection, and sludge handling in humid, corrosive environments benefit from the moisture-resistant sealing of this axis reducer.
• Metallurgy & Steel: High-temperature foundry and rolling mill environments subject robot axes to extreme thermal cycling. The 3HAC021541-001’s thermal stability ensures consistent backlash performance across wide temperature ranges.
• Port & Marine Logistics: Salt-laden, high-humidity coastal environments accelerate corrosion in unprotected mechanical components. OEM-sealed construction and desiccant-packed shipping protect the reducer from environmental degradation during storage and installation.
• Continuous Manufacturing: Automotive body welding, electronics assembly, and food processing lines running 24/7 depend on axis reducer longevity to avoid production interruptions. The 3HAC021541-001 supports extended mean time between maintenance (MTBM) in high-cycle applications.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB 3HAC021541-001?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and component failures under normal operating conditions. KNMKS provides replacement or repair support within the confirmed support period, with expedited processing available for critical production environments.

Q2: What pre-shipment testing is performed on each unit?
Every 3HAC021541-001 undergoes a pre-shipment inspection protocol including dimensional verification against OEM tolerances, rotational resistance measurement to confirm gear mesh integrity, and seal integrity assessment to ensure lubrication containment. Units failing any inspection criterion are quarantined and not dispatched.

Q3: Is the 3HAC021541-001 compatible with all ABB IRC5 robot configurations?
The 3HAC021541-001 is designed for specific axis positions within the ABB IRB 6600, IRB 6650, and IRB 7600 series. Compatibility depends on the robot variant, axis number, and payload rating. KNMKS technical support can verify compatibility against your robot serial number and axis BOM before order confirmation.

Q4: Can KNMKS support long-term spare parts supply for this component?
Yes. KNMKS maintains multi-region stock of the 3HAC021541-001 and related ABB robot spare parts to support planned maintenance programs, emergency replacements, and long-term service contracts. For facilities managing fleets of ABB IRB robots, we offer scheduled supply agreements to ensure component availability aligns with your preventive maintenance calendar.
