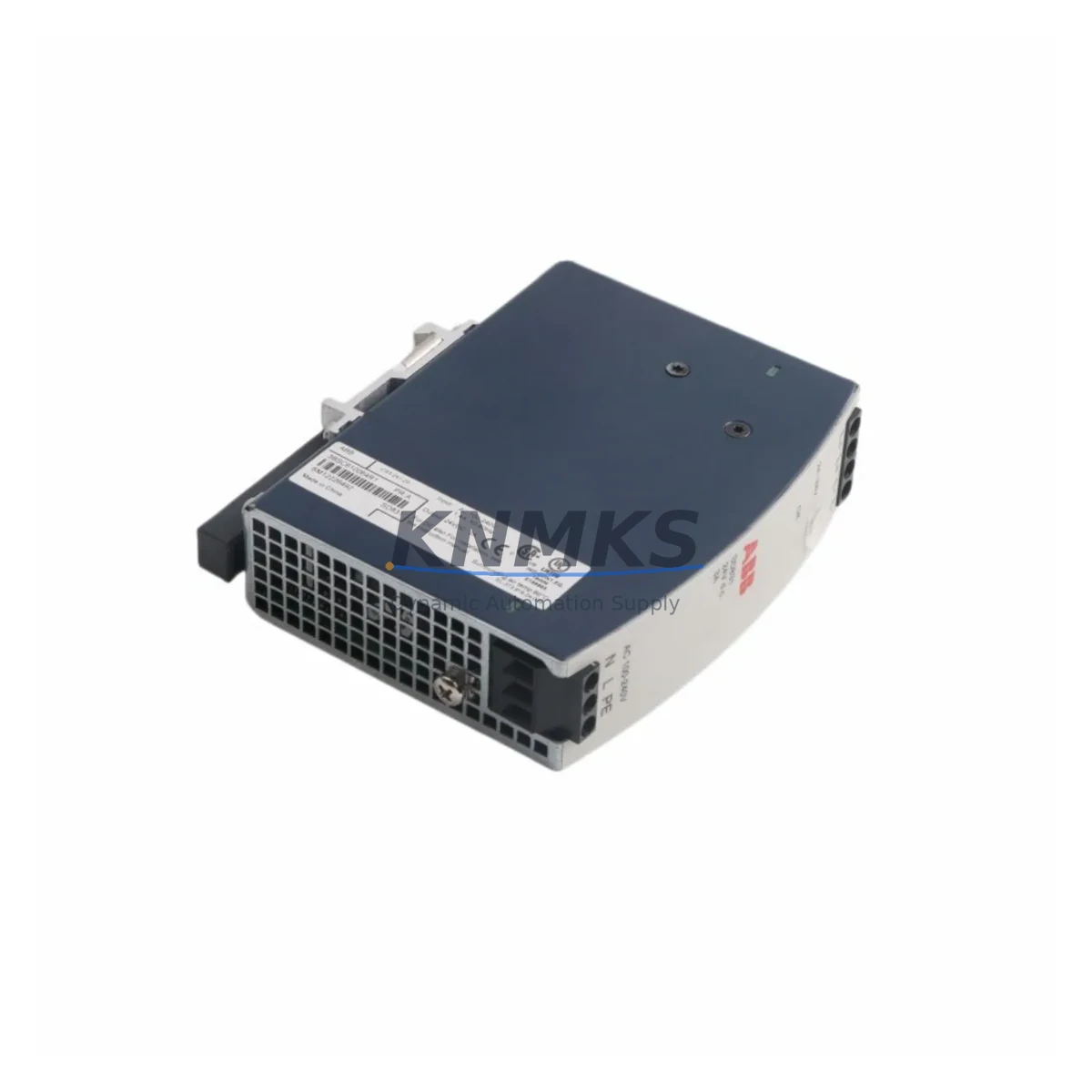

ABB 3BSC610064R1 SD831 Fail-Safe DCS Power Supply

Overview

ABB 3BSC610064R1 SD831 Fail-Safe DCS Power Supply: Fault Protection and Critical Industrial Field Reliability

The ABB 3BSC610064R1 SD831 is a dedicated fail-safe DC power supply module engineered for the ABB AC800M Distributed Control System and S800 I/O series. Designed to sustain uninterrupted power delivery in the most demanding industrial environments, the SD831 addresses the core vulnerabilities that cause unplanned shutdowns, control loop interruptions, and safety interlock failures in continuous process industries.

In high-stakes control cabinets where power quality directly determines process safety, the SD831 provides regulated, surge-protected DC output with built-in EMI filtering. Its architecture is optimized to suppress voltage transients, eliminate ripple-induced signal drift, and maintain stable bus voltage under fluctuating load conditions — all critical requirements in petrochemical, power generation, metallurgical, and water treatment facilities where a single power anomaly can cascade into a full process trip.

The module is rated for continuous operation in environments characterized by high electromagnetic interference, airborne particulates, humidity, and thermal cycling. Its robust housing and conformal-coated PCB assembly ensure long-term reliability in coastal, mining, and heavy industrial installations where standard power supplies fail prematurely. The SD831 is a direct replacement for legacy ABB DCS power infrastructure, enabling brownfield modernization without requiring controller or I/O rack redesign.

Within a properly configured AC800M control cabinet, the SD831 works in coordination with the ABB PM866 processor module and TB820 ModuleBus Optical Interface to maintain deterministic control loop execution even during upstream power disturbances. When paired with the ABB SD832 redundant power supply module, the system achieves hot-standby power redundancy — a mandatory requirement in SIL-rated safety instrumented systems and critical interlock loops. The ABB CI854 PROFIBUS DP Interface and AI810 Analog Input Module downstream of the SD831 benefit directly from its clean, regulated output, reducing analog signal noise and preventing spurious field device trips caused by power rail instability.

For cabinet-level surge protection, the SD831 is commonly deployed alongside ABB SACE surge protective devices at the incoming AC feed, creating a layered defense against lightning-induced transients and grid switching surges. This multi-layer protection strategy is standard practice in port crane control systems, offshore platform automation, and substation secondary control panels where external surge events are frequent and potentially destructive.

The SD831’s thermal management design supports operation across a wide ambient temperature range, making it suitable for outdoor enclosures and non-air-conditioned machine rooms in tropical and desert climates. Its low-profile form factor integrates directly into the standard ABB S800 I/O rail system without additional mounting hardware, reducing installation time during both new builds and spare-part replacements.

Every unit shipped by KNMKS undergoes pre-delivery functional testing covering output voltage accuracy, load regulation, ripple measurement, and surge withstand verification. This ensures that field engineers receive a module that performs to ABB factory specification from the moment of installation — eliminating the commissioning delays and safety risks associated with untested or refurbished components.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable AC800M control cabinet is built on layered protection — and the SD831 sits at the heart of that strategy. At the incoming AC supply level, ABB SACE surge protective devices clamp transient overvoltages before they reach the power supply input. The SD831 then delivers clean, regulated DC to the controller backplane, where the ABB PM866 processor module executes control logic without interruption from power rail noise or micro-interruptions.

For systems requiring continuous availability — such as emergency shutdown (ESD) panels, burner management systems, or compressor anti-surge controllers — the SD831 is paired with the ABB SD832 in a redundant power configuration. This eliminates the power supply as a single point of failure, a requirement under IEC 61511 for SIL 2 and SIL 3 safety loops. Field I/O modules including the ABB AI810 Analog Input and DI810 Digital Input receive stable, noise-free power, preventing the signal drift and false trip conditions that plague installations with inadequate power infrastructure. Communication integrity is maintained through the ABB CI854 PROFIBUS DP Interface, which relies on stable DC supply to sustain fieldbus timing and prevent communication timeouts that can trigger unplanned process shutdowns.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous cracking, distillation, and compressor control applications, the SD831 sustains DCS power integrity across multi-cabinet marshalling rooms. Its surge protection prevents control loop dropout during electrical storms or grid switching events common in large industrial complexes.

Power Generation and Substation Control: Turbine governor systems and substation secondary control panels demand zero-tolerance power quality. The SD831’s regulated output and EMI filtering prevent spurious relay operations and false alarms in protection relay panels operating alongside high-voltage switching equipment.

Mining and Mineral Processing: Conveyor interlocks, crusher control, and ventilation safety systems in underground and open-pit mines operate in extreme dust, vibration, and temperature conditions. The SD831’s conformal-coated design and wide thermal operating range ensure sustained reliability without derating.

Water and Wastewater Treatment: SCADA-integrated pump station and dosing control systems require uninterrupted DCS power to maintain regulatory compliance and prevent overflow events. The SD831 supports 24/7 continuous operation in high-humidity pump house environments.

Metallurgy and Steel Production: Electric arc furnace control, rolling mill automation, and ladle handling systems generate severe electromagnetic interference. The SD831’s EMI-hardened design maintains stable power delivery in close proximity to high-current switching loads and induction heating equipment.

Port and Marine Automation: Ship-to-shore crane control systems and vessel automation panels face salt-laden air, vibration, and wide temperature swings. The SD831’s robust construction and corrosion-resistant design support long service intervals in maritime environments.

Safety and Quality FAQ

Q1: What support terms does the ABB 3BSC610064R1 SD831 carry?
Every SD831 unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and output specification deviations. Support requests are processed with priority to minimize field downtime.

Q2: What pre-shipment testing is performed on each unit?
Each SD831 undergoes a structured functional test protocol before dispatch: output voltage accuracy verification, load regulation test across the full rated current range, output ripple measurement, and surge withstand verification. Test records are available upon request for quality-critical installations.

Q3: Is the SD831 compatible with existing AC800M and S800 I/O installations?
Yes. The 3BSC610064R1 SD831 is a direct form-fit-function replacement for the original ABB SD831 power supply. It installs on the standard S800 I/O rail without modification to the controller rack, I/O modules, or field wiring. No firmware update or reconfiguration is required.

Q4: Can KNMKS support long-term and emergency spare part supply for the SD831?
KNMKS maintains standing inventory of the SD831 and related AC800M power and controller modules to support both planned maintenance schedules and emergency breakdown replacements. Same-day dispatch is available for in-stock units, with global shipping to petrochemical, power, mining, and manufacturing sites. Contact our technical sales team to confirm availability and lead time for your specific project requirements.
