ABB 3BHL000986P3016 Maintenance-Proven Spare for Factory Uptime

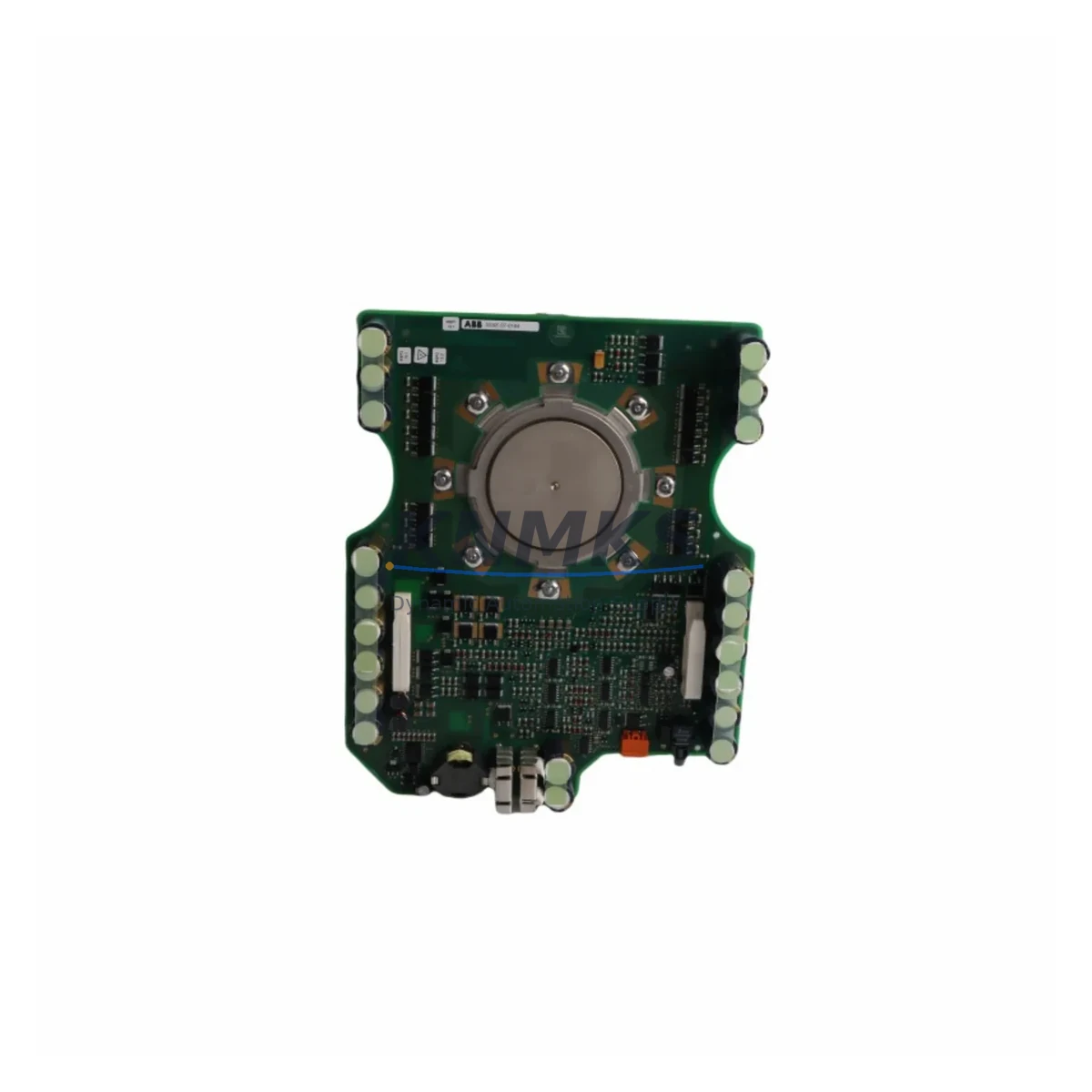

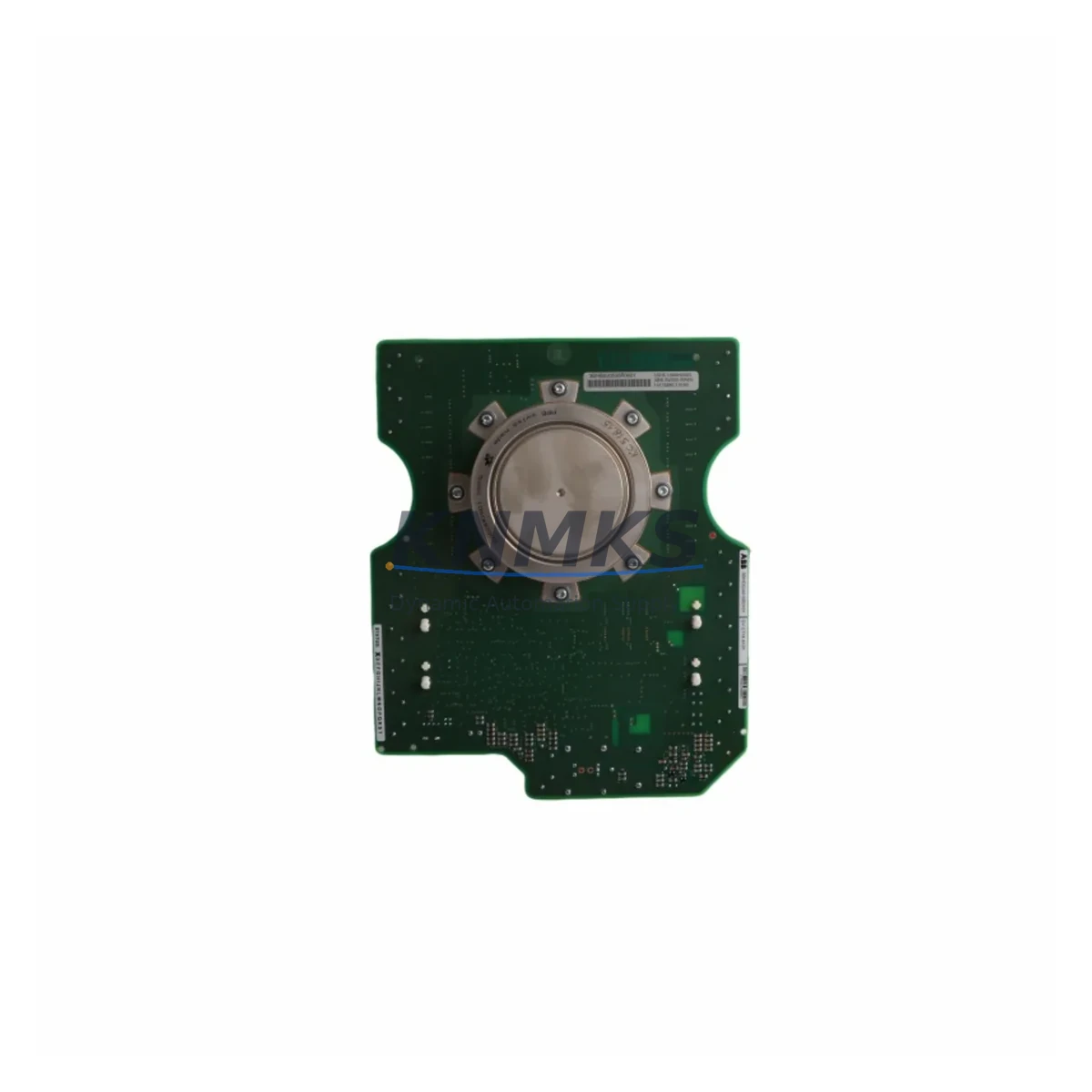

The ABB 3BHL000986P3016 (also identified as 5STP1752H0002) is an original Integrated Gate-Commutated Thyristor (IGCT) module engineered for medium-voltage drive systems within ABB’s 5STP series. For maintenance engineers and spare parts procurement teams managing continuous production lines, this component represents a critical safeguard against unplanned downtime. Whether you are conducting scheduled annual overhauls, responding to an emergency fault condition, or building a strategic spare parts inventory for aging drive cabinets, the 3BHL000986P3016 is a direct, verified replacement that restores full system functionality without requiring firmware reconfiguration or hardware adaptation.

IGCT modules are among the highest-stress components in any medium-voltage drive system. They handle high-frequency switching of substantial power loads, and their failure mode is typically abrupt — resulting in immediate drive trip, loss of motor control, and production stoppage. Procurement engineers responsible for capital equipment uptime know that holding at least one verified spare of the 3BHL000986P3016 in the local storeroom is not optional; it is a fundamental element of any serious maintenance strategy for facilities running ABB ACS 6000, PCS 6000, or equivalent 5STP-based drive platforms.

Every unit shipped from KNMKS undergoes pre-shipment functional verification, is packaged in anti-static ESD-safe materials, and is covered by a support terms confirmed by quotation from the date of delivery. Long-term supply continuity is supported for customers managing multi-year maintenance contracts or fleet-wide drive programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3BHL000986P3016 IGCT module is rarely an isolated task. In a properly managed maintenance workflow, the replacement of this power semiconductor should trigger a broader inspection of the surrounding drive cabinet and electrical circuit. Maintenance engineers should simultaneously verify the condition of the gate unit driver board associated with the IGCT — in ABB 5STP-based systems, the gate driver is a separate PCB assembly that interfaces directly with the IGCT gate terminal, and a degraded driver can cause premature failure of a newly installed module.

The DC link capacitor bank should be inspected for capacitance drift and ESR increase, as capacitor aging is a common root cause of IGCT overstress. The snubber circuit components — including snubber capacitors and resistors — should be checked for thermal damage or open-circuit conditions. The cooling system, whether water-cooled or forced-air, must be confirmed to be operating within specification before the new IGCT is energized; thermal runaway from inadequate cooling is a leading cause of repeat IGCT failures in the field.

On the control and signal side, the fiber optic communication links between the drive control unit and the IGCT gate driver should be inspected for connector contamination or cable damage. In ABB ACS 6000 and PCS 6000 architectures, these fiber links carry the firing pulses that control IGCT switching, and any signal degradation will manifest as erratic drive behavior or nuisance trips after the power module is replaced. The I/O interface cards and the main control board (often an APBU or RDCU module in ABB terminology) should be checked for fault logs that may indicate pre-existing control-side issues.

For facilities managing multiple drive cabinets, it is also advisable to inspect the incoming line fuses and the DC bus protection fuses at the time of IGCT replacement. A blown or weakened fuse that was not identified as the root cause of the original fault can result in immediate re-failure of the new module. Similarly, the surge protection components on the AC input side — including MOV-based overvoltage suppressors — should be verified to be within specification.

Procurement teams building a comprehensive spare parts kit for 5STP-based drive systems should consider stocking, alongside the 3BHL000986P3016, the corresponding gate driver board, a set of DC link capacitors rated for the specific drive voltage class, fiber optic patch cables in the lengths used in the cabinet, and a spare RDCU or equivalent drive control module. This approach ensures that when a drive fault occurs, the maintenance team has everything needed to restore operation within a single maintenance window rather than waiting for multiple sequential deliveries.

Site Replacement Workflow

Before beginning replacement of the 3BHL000986P3016, the drive must be fully de-energized and the DC link capacitors must be confirmed discharged using a calibrated high-voltage meter — residual DC bus voltage in medium-voltage drives can remain hazardous for several minutes after power-off. Follow the site-specific lockout/tagout (LOTO) procedure and confirm zero energy state before opening the drive cabinet.

Remove the faulty IGCT module by releasing the press-pack clamping mechanism according to the ABB 5STP series service manual. Inspect the contact surfaces on both the anode and cathode heat sinks for pitting, arcing marks, or contamination. Clean contact surfaces with isopropyl alcohol and lint-free wipes before installing the new 3BHL000986P3016. Apply the specified clamping torque using a calibrated torque wrench — under- or over-torquing the press-pack assembly is a common installation error that leads to increased contact resistance and premature thermal failure.

Reconnect the gate driver cable and fiber optic links, ensuring connectors are fully seated and latched. Before re-energizing, perform an insulation resistance test on the power circuit and verify gate driver supply voltages are within specification. Power up the drive in a controlled sequence per the ABB commissioning procedure, monitor for fault codes during the first energization, and confirm normal operation under no-load conditions before returning the drive to production service.

This replacement workflow is compatible with both direct like-for-like substitution of the 3BHL000986P3016 and with scenarios where the original module has been discontinued or is being upgraded within the same 5STP mechanical envelope. KNMKS verifies compatibility prior to shipment and can provide technical documentation to support the site replacement process upon request.

Spare Parts Support FAQ

Q1: Is the 3BHL000986P3016 a direct replacement for the 5STP1752H0002, and will it work without reconfiguration?
Yes. The part number 3BHL000986P3016 and the designation 5STP1752H0002 refer to the same ABB IGCT module. It is a direct, plug-compatible replacement for ABB ACS 6000, PCS 6000, and other 5STP-series drive platforms. No firmware changes or hardware modifications are required for a like-for-like swap.

Q2: What testing is performed before shipment, and what does the support terms confirmed by quotation cover?
Every 3BHL000986P3016 unit is functionally verified before dispatch. The support terms confirmed by quotation cover defects in materials and workmanship under normal operating conditions. Units that fail within the confirmed support period due to manufacturing defects are replaced or refunded. Support requests resulting from installation errors, overvoltage events, or inadequate cooling are evaluated on a case-by-case basis.

Q3: How should we manage inventory for this part in a multi-drive facility?
For facilities operating two or more 5STP-based drive systems, KNMKS recommends holding a minimum of one 3BHL000986P3016 per drive cabinet as a local hot spare. For critical production lines where drive downtime directly impacts output, a two-unit buffer is advisable. KNMKS supports blanket purchase orders and scheduled delivery programs to help procurement teams maintain optimal stock levels without excessive capital tied up in inventory.

Q4: Can KNMKS supply this part on a long-term basis for legacy drive systems?
Yes. KNMKS maintains sourcing relationships that support long-term supply of the 3BHL000986P3016 for customers managing legacy ABB drive installations. If your facility is operating older 5STP-based systems that are no longer covered by OEM support contracts, KNMKS can provide a supply continuity agreement to ensure you have access to verified spare parts for the duration of your equipment’s operational life.
