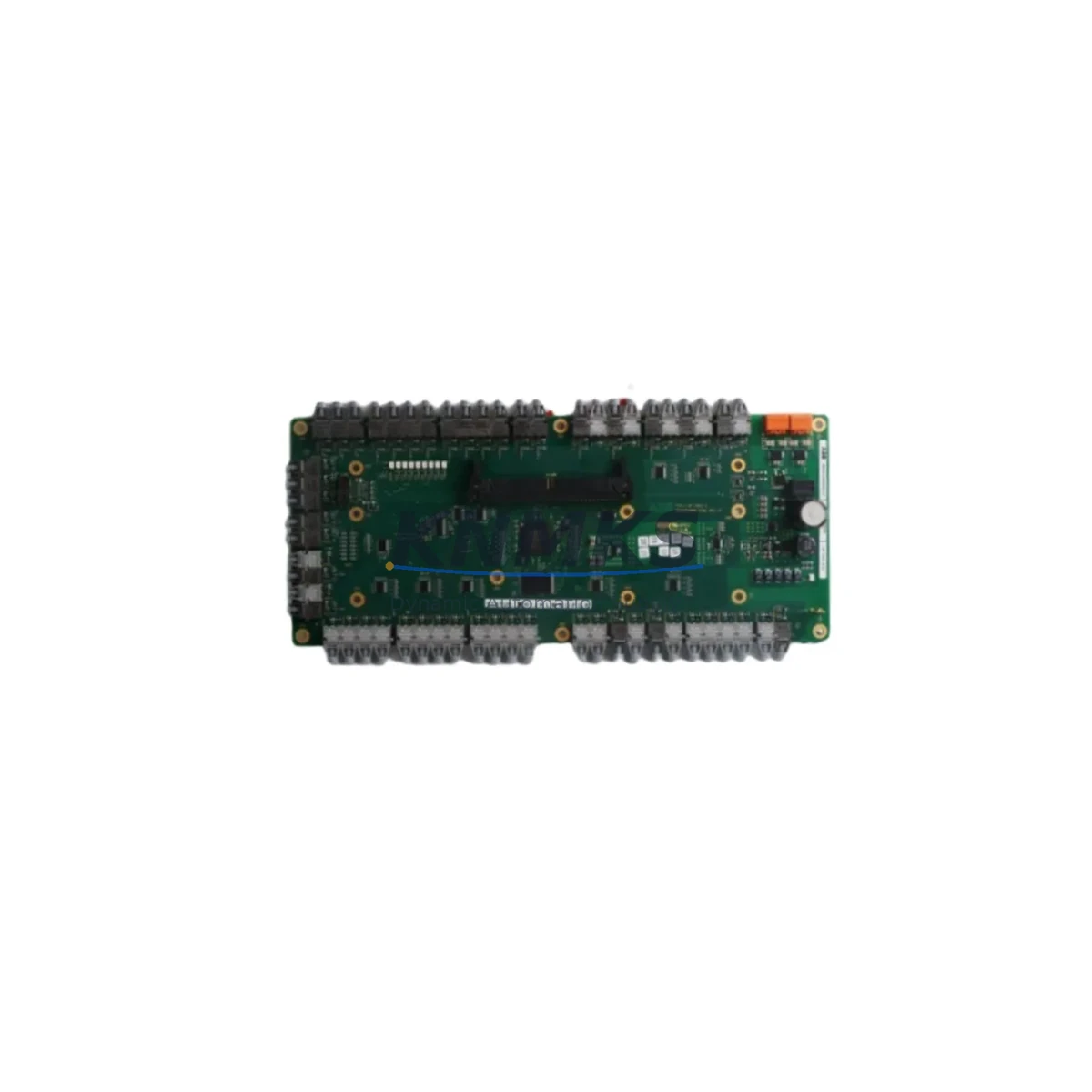

ABB 3BHE041626R0101 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3BHE041626R0101 Maintenance-Proven Spare Part for Factory Uptime

The ABB 3BHE041626R0101, also referenced as PD D405 A101, is an original drive control module designed for the ABB ACS800 series variable frequency drive platform. This module serves as the central control intelligence of the ACS800 drive, managing pulse-width modulation, motor control algorithms, fieldbus communication, and I/O signal processing. For maintenance engineers responsible for continuous production lines, having a verified spare of this module on the shelf is a fundamental element of any serious uptime strategy.

In high-demand industrial environments — including pulp and paper, metals processing, marine propulsion, oil and gas, and heavy manufacturing — the ACS800 drive is frequently deployed in critical motor control applications. When the 3BHE041626R0101 control board fails, the result is an immediate drive fault and motor shutdown. Without a pre-qualified replacement on hand, recovery time can extend from hours to days depending on logistics. Stocking this module as a certified spare eliminates that exposure.

Each unit supplied by KNMKS is sourced from verified OEM channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation. We maintain long-term inventory of this reference to support both emergency replacement and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3BHE041626R0101 control module in an ACS800 drive, a thorough site inspection of the surrounding electrical system is essential to prevent repeat failures and ensure a clean restart. Maintenance engineers should treat this replacement as an opportunity to audit the full drive cabinet.

Begin with the drive’s internal power supply unit (PSU), which provides the 24 VDC logic rail that feeds the control board. A degraded PSU can cause intermittent resets or corrupt parameter memory — symptoms that are often misdiagnosed as control board failure. If the PSU has not been replaced within the last three to five years, consider scheduling it alongside the control module swap.

Next, inspect the DDCS fiber optic cables connecting the control module to the inverter unit (AINT or AINT board). Cracked or contaminated fiber connectors are a common source of communication faults in ACS800 systems and should be cleaned or replaced as part of the maintenance window. The AINT board itself — the inverter control interface — should also be checked for signs of thermal stress or capacitor aging.

Review the fieldbus adapter installed in the drive’s option slot. Common adapters such as the RPBA-01 (PROFIBUS-DP) or RDNA-01 (DeviceNet) are subject to firmware compatibility requirements with the control board. Confirm that the adapter firmware version is aligned with the replacement module before commissioning. If the site uses PROFINET or EtherNet/IP, verify the corresponding adapter (RETA-01 or REAI-01) is also in serviceable condition.

On the I/O side, inspect the RAIO-01 analog I/O extension module and RDIO-01 digital I/O module if installed. Loose terminal connections or signal drift on analog inputs can cause erratic speed references or torque limit faults after a control board replacement. Tighten all terminal screws and verify signal levels with a calibrated meter before restart.

Finally, check the drive’s main contactor, input fuses, and EMC filter capacitors. These components are often overlooked during control-level maintenance but can introduce voltage transients that stress the new control board. Replacing the 3BHE041626R0101 in a cabinet with aging fuses or a failing contactor risks premature failure of the new module.

Site Replacement Workflow

Step 1 — Preparation: Download and save the existing drive parameter set using DriveWindow or DriveStudio before powering down. Record all application macros, speed references, torque limits, and fieldbus node addresses. This backup is critical — the replacement control board ships without application parameters.

Step 2 — Safe Isolation: Follow LOTO (Lockout/Tagout) procedures. Confirm that the DC bus has fully discharged (typically 5 minutes after main power removal) before opening the drive cabinet. Use a calibrated voltmeter to verify zero voltage on the DC bus terminals.

Step 3 — Module Removal: Disconnect the DDCS fiber optic cables, fieldbus adapter ribbon cable, and all I/O connectors from the existing 3BHE041626R0101. Note the orientation and labeling of each connector before removal. Remove the module from its mounting rail.

Step 4 — Installation: Seat the replacement 3BHE041626R0101 onto the mounting rail and reconnect all cables in reverse order. Ensure fiber optic connectors are fully seated and latched. Verify that the fieldbus adapter is firmly engaged in its option slot.

Step 5 — Parameter Restore and Commissioning: Power up the drive and restore the saved parameter set via DriveWindow or DriveStudio. Verify all I/O signals, fieldbus communication, and motor control parameters before releasing the drive to production. Perform a no-load test run before full load commissioning.

This workflow minimizes downtime, preserves system compatibility, and ensures the replacement module is commissioned to the same specification as the original — maintaining full compatibility with the existing ACS800 installation without requiring drive reconfiguration.

Spare Parts Support FAQ

Q1: Is the 3BHE041626R0101 compatible with all ACS800 drive variants?
The PD D405 A101 control module is designed for the ACS800 platform. Compatibility depends on the specific drive type code and firmware revision. We recommend confirming your drive’s type code (e.g., ACS800-01, ACS800-04, ACS800-07) and existing control board firmware version before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: What does the support terms confirmed by quotation cover?
The support terms covers manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the module’s rated environmental specifications. All support requests are handled directly by KNMKS with priority turnaround.

Q3: How is the module tested before shipment?
Each 3BHE041626R0101 unit undergoes pre-shipment functional verification, including power-on self-test, communication interface check, and I/O signal validation. Units that do not pass testing are not dispatched. A test report is available upon request for critical applications.

Q4: Can KNMKS support long-term supply for annual maintenance programs?
Yes. KNMKS maintains dedicated inventory of the 3BHE041626R0101 and other ACS800 series spare parts to support annual maintenance contracts, multi-site spare parts programs, and emergency buffer stock arrangements. Contact our team to discuss volume pricing, reserved stock agreements, and scheduled delivery programs aligned with your planned maintenance calendar.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

PD D405 A101 3BHE041626R0101
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB PD D405 A101 3BHE041626R0101
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
