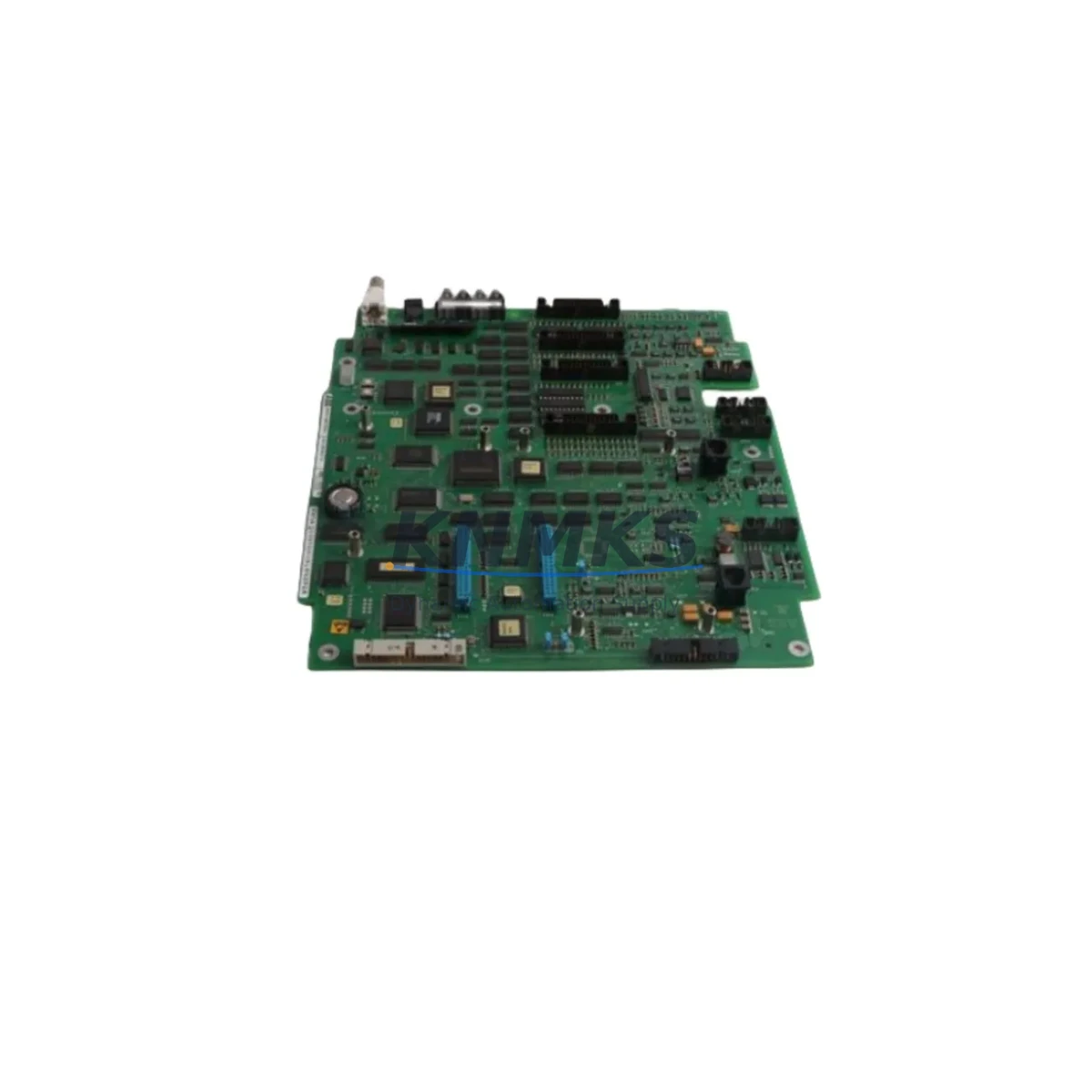

ABB 3BHE037649R0101 Fail-Safe Gate Drive Control Board

Overview

ABB 3BHE037649R0101 Fail-Safe Gate Drive Control Board: Fault Protection and Critical Industrial Field Reliability

The ABB 3BHE037649R0101 is a precision-engineered gate drive control board designed for the ABB ACS800 series of industrial AC drives. Built to meet the demanding requirements of continuous production environments, this board serves as the critical interface between the drive’s control logic and its IGBT power stage — making its reliability directly tied to the safety and uptime of the entire drive system.

In high-stakes industrial applications — including petrochemical processing, power generation, mining conveyors, water treatment pumping stations, metallurgical rolling mills, port crane systems, and continuous manufacturing lines — an unexpected drive fault can trigger cascading shutdowns, process contamination, or personnel safety incidents. The 3BHE037649R0101 is engineered to minimize these risks through robust gate signal integrity, fault-tolerant design, and proven field performance across ABB ACS800 installations worldwide.

Each unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation — ensuring that replacement boards arrive ready for immediate installation without introducing additional risk into your control cabinet.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable ACS800 drive system depends on more than a single board — it requires a coordinated protection architecture across the entire control cabinet. The ABB 3BHE037649R0101 gate drive board operates in close coordination with the ABB AINT-02C optical interface board, which transmits fiber-optic gate signals between the control unit and the IGBT inverter bridge, eliminating ground loop interference and ensuring signal fidelity even in high-EMI environments.

On the power supply side, the ABB APOW-01C power supply board provides regulated auxiliary voltages to the gate drive circuitry. Any instability in this supply — caused by mains fluctuation, inrush events, or cabinet-level surges — can directly compromise gate timing and trigger nuisance trips. Pairing the 3BHE037649R0101 with a verified APOW-01C ensures the gate drive stage receives clean, stable power under all load conditions.

For drives operating in environments with significant harmonic distortion or voltage sag — common in heavy industrial facilities with large motor loads — the ABB RDCU-02C drive control unit provides the supervisory logic that interprets fault signals from the gate drive board and executes safe shutdown sequences. Ensuring this control unit is functioning correctly is essential to realizing the full fault-protection capability of the 3BHE037649R0101.

In cabinet installations where thermal management is critical, the ABB RETA-01 Ethernet adapter module or equivalent fieldbus communication boards allow remote monitoring of drive status, enabling maintenance teams to detect thermal warnings, communication anomalies, or gate drive fault codes before they escalate to unplanned downtime. Complementing this, ABB ACS800 DC bus capacitor assemblies should be inspected and replaced on schedule — capacitor degradation is a leading cause of DC bus voltage ripple that stresses gate drive components and shortens board service life.

Together, these components form a layered control cabinet protection strategy: clean power delivery, isolated signal transmission, supervisory fault logic, remote diagnostics, and a fail-safe gate drive stage anchored by the 3BHE037649R0101.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where motor drives control compressors, pumps, and agitators in hazardous zones, an uncontrolled drive trip can cause pressure excursions or process upsets. The 3BHE037649R0101’s fault-detection architecture — including desaturation protection and overcurrent signaling — ensures that fault conditions are identified and safely annunciated rather than resulting in destructive IGBT failures that could take a drive offline for weeks.

Mining & Mineral Processing: Conveyor drives, ball mill drives, and hoist systems in mining operations face extreme vibration, dust ingress, and wide ambient temperature swings. The ACS800 gate drive board’s industrial-grade construction provides the mechanical and thermal resilience required to maintain reliable gate switching under these conditions, reducing the risk of nuisance trips that halt production and require costly manual resets in remote locations.

Water & Wastewater Treatment: Pumping stations and aeration blower drives in water treatment facilities operate continuously, often unattended. A gate drive failure in this context can mean loss of flow control, potential overflow events, or regulatory non-compliance. Stocking a verified replacement 3BHE037649R0101 as a critical spare ensures that mean time to repair (MTTR) is measured in hours, not days.

Metallurgy & Rolling Mills: High-power ACS800 drives in rolling mill applications are subject to intense electromagnetic interference from large transformer banks and bus bars. The isolated gate drive design of the 3BHE037649R0101 provides the EMI immunity necessary to maintain precise motor control during heavy rolling passes, preventing speed deviations that could damage product quality or mechanical equipment.

Port Cranes & Marine Applications: Variable frequency drives in port crane hoisting and slewing systems must respond instantly to control commands while tolerating the vibration and humidity of marine environments. The 3BHE037649R0101’s robust construction supports reliable operation in these demanding conditions, where a drive fault during a lift cycle presents both operational and safety consequences.

Power Generation & Utilities: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and cooling water pumps — ACS800 drives with properly functioning gate drive boards contribute to plant efficiency and grid stability. Preventive replacement of aging gate drive boards during scheduled outages, using pre-tested units like the 3BHE037649R0101, is a proven strategy for reducing forced outage risk.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB 3BHE037649R0101?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each board undergoes pre-shipment functional testing to verify gate drive output integrity before dispatch. In the event of a support terms claim, we provide replacement or repair support to minimize your downtime.

Q2: How is the 3BHE037649R0101 tested before shipment?
Every unit is subjected to pre-shipment functional verification, including power-on testing and gate signal output checks. This process ensures that boards arrive at your facility in confirmed working condition, eliminating the risk of installing a defective spare during a critical maintenance window.

Q3: Is the 3BHE037649R0101 compatible with all ACS800 variants?
The 3BHE037649R0101 is designed for use within the ABB ACS800 drive series. Compatibility depends on the specific ACS800 frame size and hardware revision. We recommend confirming your drive’s existing gate drive board part number against the 3BHE037649R0101 before installation. Our technical team can assist with compatibility verification based on your drive’s nameplate data.

Q4: Can you support long-term or repeat supply of this board?
Yes. We maintain stock of the ABB 3BHE037649R0101 and can support scheduled spare parts programs for facilities operating multiple ACS800 drives. Long-term supply agreements — covering 12 to 36 months of forward inventory — are available for customers requiring guaranteed availability for critical production assets. Contact our sales team to discuss volume and scheduling requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE037649R0101
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB 3BHE037649R0101
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
