ABB 3BHE036130R0101 GDC806B Gate Drive Card ACS6000 Spare: Maintenance-Proven Spare Part for Factory Uptime

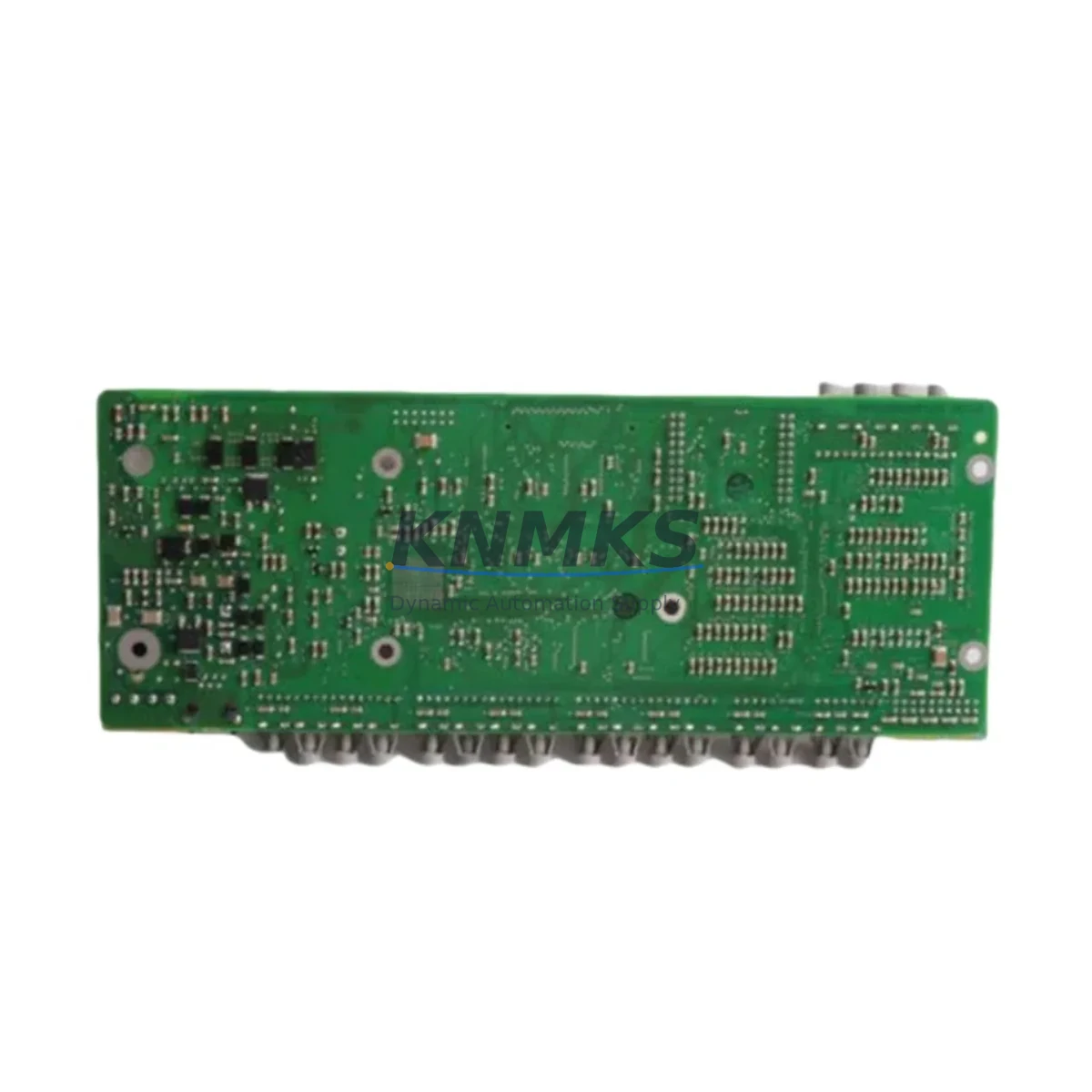

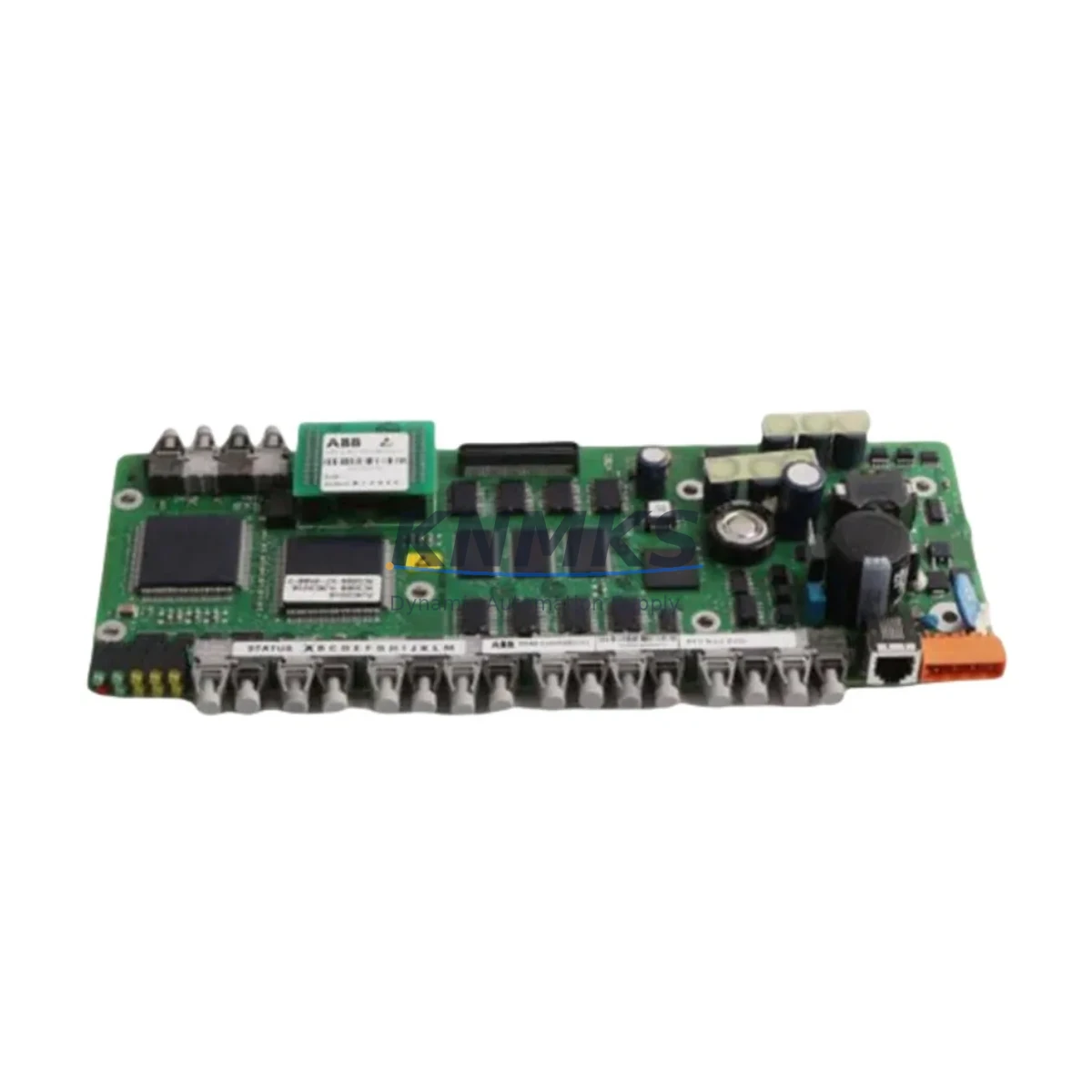

The ABB 3BHE036130R0101 GDC806B is the original Gate Drive Control Card designed for the ACS6000 medium-voltage drive series. This board governs the IGCT gate firing signals that control power conversion in high-power MV drive cabinets operating across cement, mining, oil & gas, pulp & paper, and marine propulsion applications. Holding a verified stock of this card is a non-negotiable element of any serious MV drive maintenance program — a failed gate drive board can halt an entire production line within seconds, and lead times for new OEM procurement can stretch from 8 to 26 weeks.

Our inventory of the GDC806B is sourced from decommissioned or surplus ACS6000 cabinets, fully inspected, function-tested on dedicated ACS6000 test rigs, and shipped with a support terms confirmed by quotation. Each unit is packed in anti-static ESD shielding with foam-lined export cartons to protect the sensitive gate drive circuitry during international freight.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a fault on the 3BHE036130R0101 GDC806B — typically surfaced through ACS6000 fault codes F-0121 (Gate Drive Fault) or F-0122 (IGCT Overcurrent) — the replacement workflow must extend beyond the gate drive card itself. A thorough site inspection should simultaneously verify the condition of the AMC800 (3BHE009681R0101) main control board, which coordinates gate firing commands via fiber optic links to the GDC806B. A degraded fiber optic cable or dirty SFP connector between these two boards is a common root cause of intermittent gate drive faults that are misdiagnosed as GDC806B failures.

The NAMC-11 (3AFE68784930) network adapter and communication module should also be inspected during any ACS6000 cabinet intervention — communication dropouts between the drive and the DCS/SCADA layer can mask underlying gate drive issues or trigger nuisance trips. Similarly, the APBU-44C (3AFE68517486) branching unit, which distributes fiber optic signals to multiple IGCT gate units, should be checked for cracked ferrules or contaminated connectors.

On the power supply side, the ACS6000 internal 24 VDC LVPS (Low Voltage Power Supply) module feeds the GDC806B logic circuits. A marginal LVPS output — even within ±5% of nominal — can cause erratic gate firing behavior that mimics a faulty GDC806B. Always measure LVPS output under load before condemning the gate drive card. The SDCS-POW-4 (3ADT220090R0001) or equivalent ACS6000 auxiliary power board should be on the spare parts shelf alongside the GDC806B.

For sites running ACS6000 drives in parallel or multi-drive configurations, the RDCO-03 (3AFE64527073) DDCS communication option board and associated fiber ring topology should be audited. A single broken fiber segment in the DDCS ring can cause cascading gate drive faults across multiple drives. Maintenance teams should also keep a stock of IGCT gate units (5SHY35L4510 or equivalent) — the GDC806B drives these devices directly, and a shorted IGCT can damage the gate drive card on the next power-up attempt.

Finally, cabinet-level inspection should include the main contactor and pre-charge circuit, input fuses (typically NH-type or HRC fuses rated for the MV input), and the cabinet door interlocks. A pre-charge resistor failure or a blown input fuse can create voltage transients that stress the GDC806B beyond its design limits during restart sequences.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the ACS6000 cabinet following the site LOTO procedure. Verify DC bus discharge (typically >5 minutes after main contactor opens) using a calibrated HV probe before opening the power cell door. The GDC806B is located in the IGCT gate unit assembly within the power cell.

Step 2 — Fault Code Documentation: Before removing the card, record all active and historical fault codes from the ACS6000 CDP control panel or via DriveWindow Light. This log is essential for root cause analysis and support requests.

Step 3 — Fiber Optic Disconnection: Label and photograph all fiber optic connections to the GDC806B before removal. Fiber optic connectors on ACS6000 gate drive boards are keyed but can be forced incorrectly — always use the correct extraction tool and cap open connectors immediately to prevent contamination.

Step 4 — Board Swap: Remove the faulty 3BHE036130R0101 GDC806B by releasing the board retaining clips and sliding it out of the gate unit assembly. Install the replacement board, reconnect fiber optic links in the documented sequence, and verify all connectors are fully seated.

Step 5 — Power-Up & Commissioning Check: Re-energize the cabinet and monitor the ACS6000 startup sequence via the CDP panel. Confirm no gate drive faults appear during the pre-charge and ready state. Run a no-load test before reconnecting the motor load. Document the replacement in the site maintenance log with the new board serial number and support terms start date.

Compatibility Note: The GDC806B (3BHE036130R0101) is specific to the ACS6000 platform. It is not interchangeable with gate drive boards from the ACS1000, ACS5000, or ACS800 series. Always verify the drive firmware version compatibility before installation — ABB service bulletin SB-ACS6000-GDC-001 provides the firmware-to-hardware compatibility matrix.

Spare Parts Support FAQ

Q1: Is the 3BHE036130R0101 GDC806B compatible with all ACS6000 variants?
The GDC806B is designed for the ACS6000 medium-voltage drive platform across its standard voltage range (3.0 kV to 6.9 kV). Compatibility with specific ACS6000 cabinet configurations (single-line, multi-drive, or marine variants) should be confirmed against the drive’s nameplate data and the ABB hardware compatibility matrix. Our technical team can assist with compatibility verification before shipment at no charge.

Q2: What testing is performed before shipment?
Each GDC806B unit undergoes a multi-stage inspection: visual inspection for physical damage, component-level checks on gate drive output circuits, functional test on an ACS6000 test rig to verify IGCT firing signal integrity, and final ESD packaging. A test report is available upon request and ships with the unit. The support terms confirmed by quotation cover functional failure under normal operating conditions from the date of receipt.

Q3: How should we manage long-term spare parts inventory for ACS6000 drives?
For sites operating 3 or more ACS6000 drives, we recommend maintaining a minimum of 1 GDC806B per drive type in on-site stock, supplemented by a blanket stock agreement for annual replenishment. Critical companion spares include the AMC800 control board, APBU-44C branching unit, and LVPS module. A rolling 3-year spare parts plan aligned with ABB’s ACS6000 end-of-life roadmap will minimize procurement risk as OEM availability tightens.

Q4: What is the lead time and can you support emergency orders?
The 3BHE036130R0101 GDC806B is held availability confirmed by RFQ and ships within 2–5 business days under standard orders. For emergency breakdown situations, we offer priority dispatch with same-day or next-day shipping via DHL Express or FedEx Priority to most global destinations. Contact our team directly at admin@knmks.com or +86 18359268345 to confirm stock availability and arrange emergency logistics.
