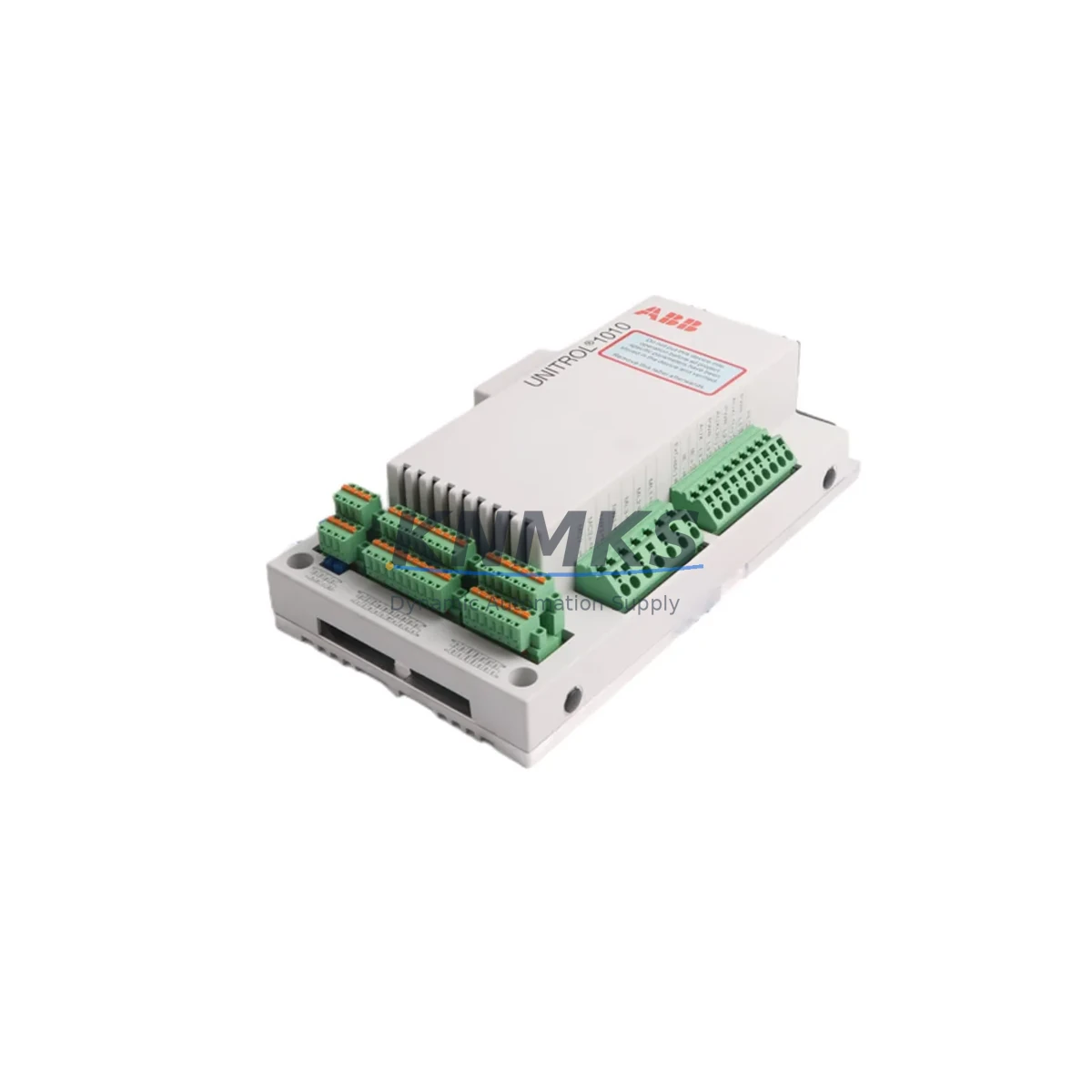

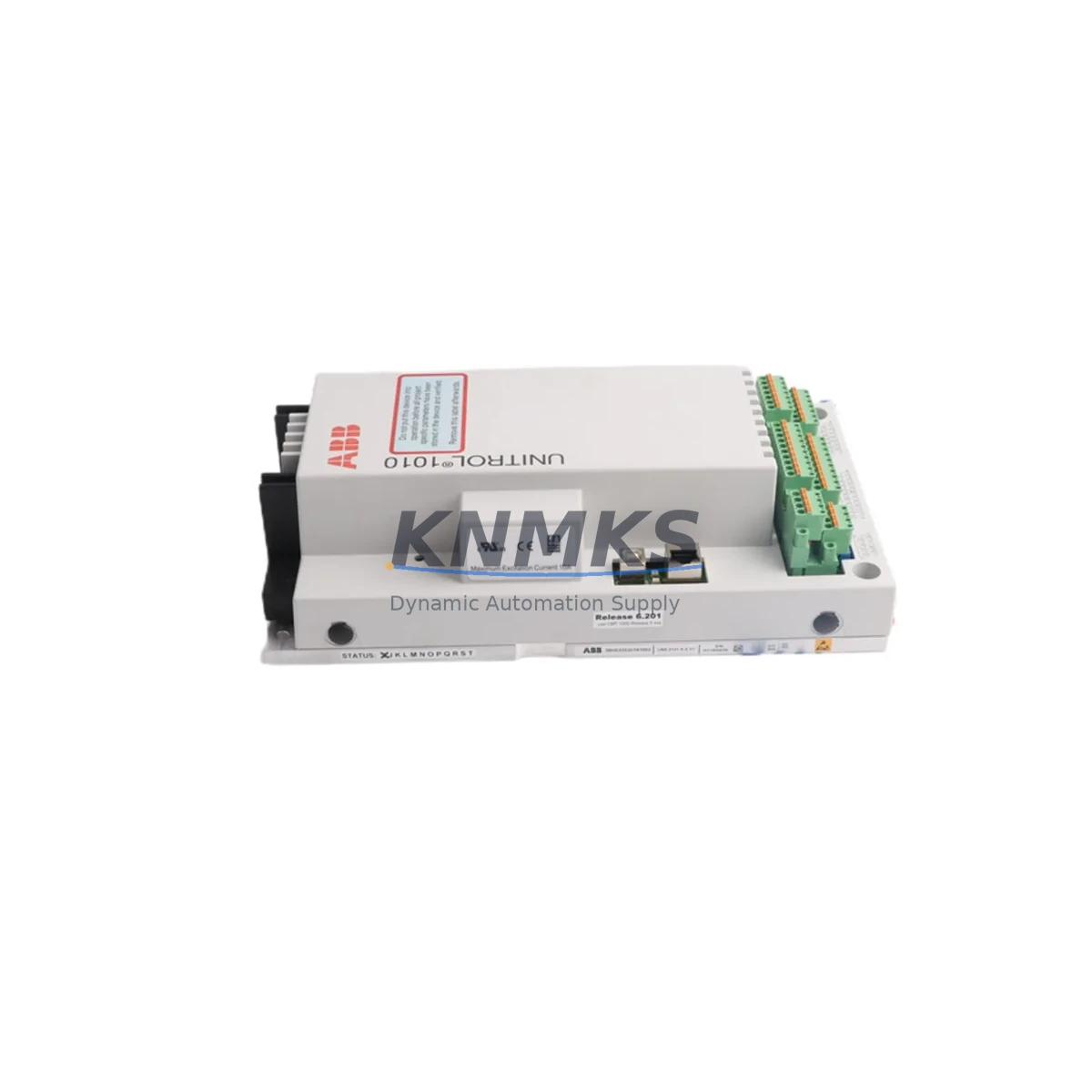

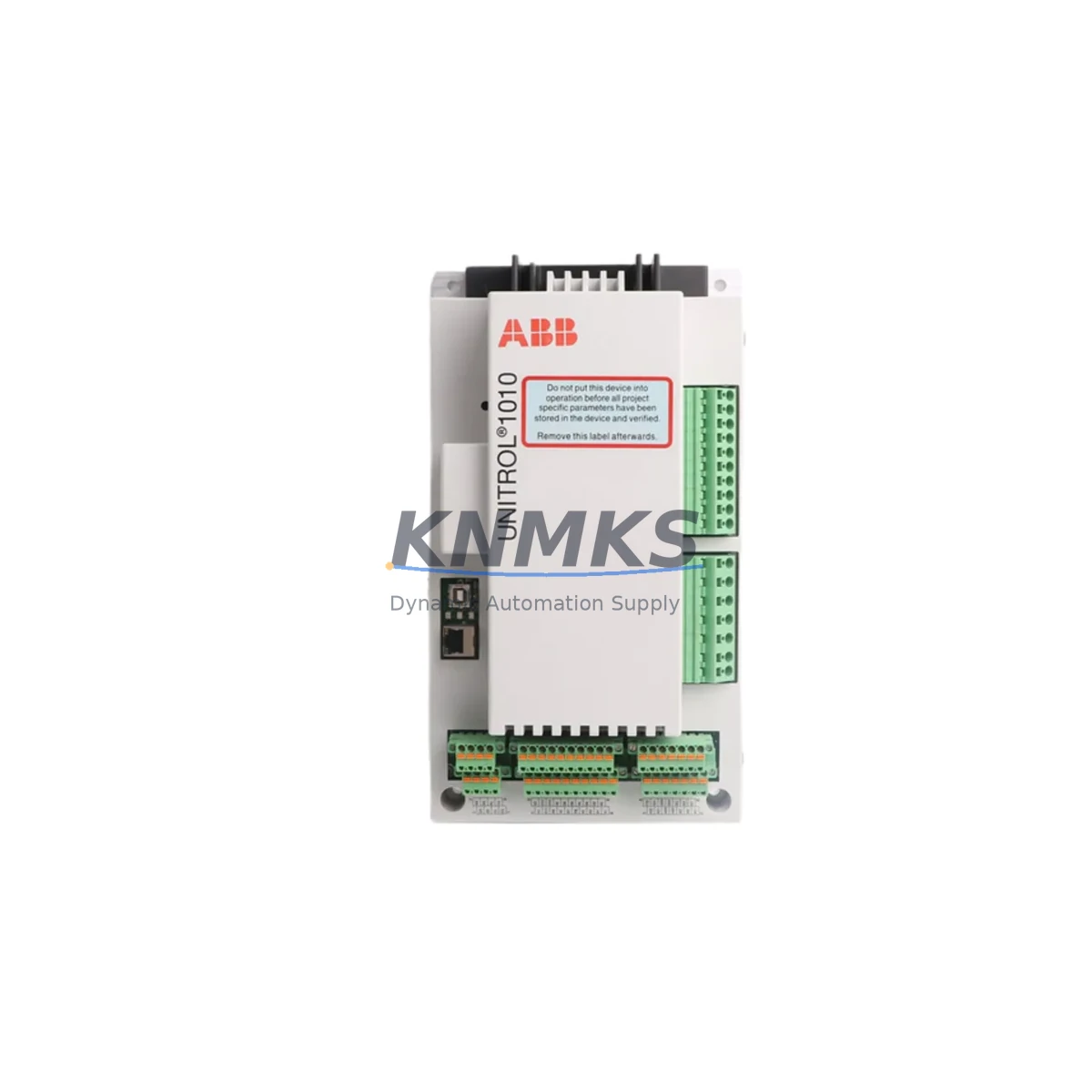

ABB 3BHE035301R1002 Fail-Safe AVR Excitation Control

Overview

ABB 3BHE035301R1002 Fail-Safe AVR Excitation Control: Fault Protection and Critical Industrial Reliability

The ABB 3BHE035301R1002 (model designation UNS0121A-Z) is a precision-engineered Automatic Voltage Regulator (AVR) excitation control module designed for continuous, fail-safe operation in demanding industrial power generation and drive systems. Built to ABB’s rigorous engineering standards, this module governs generator excitation current with high-accuracy closed-loop regulation, ensuring stable voltage output even under fluctuating load conditions, grid disturbances, and harsh environmental stressors. It is a critical component in power plant control cabinets, large synchronous motor drives, and industrial generator protection systems where unplanned downtime carries severe operational and safety consequences.

In high-stakes environments — including petrochemical facilities, metallurgical plants, offshore platforms, and continuous process manufacturing — the 3BHE035301R1002 delivers the signal integrity and fault-tolerance required to maintain generator stability across the full load spectrum. Its architecture is optimized to suppress signal drift, resist electromagnetic interference, and respond to transient voltage excursions without triggering nuisance trips or control loop instability.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable excitation control does not operate in isolation — it depends on a coordinated protection architecture within the generator control cabinet. The ABB 3BHE035301R1002 is typically deployed alongside complementary ABB UNITROL system components to form a complete, fault-tolerant excitation chain.

In high-power generator panels, the ABB UNITROL 5000 excitation controller serves as the supervisory platform, with the 3BHE035301R1002 functioning as the dedicated AVR regulation card within the control rack. Upstream power quality is maintained by coordinating with ABB UNS0881A thyristor bridge modules, which convert the AVR’s reference signal into precise DC excitation current for the field winding. To protect the excitation circuit from voltage spikes and grid-side transients, ABB RC snubber networks and surge protection devices (SPDs) are installed at the thyristor bridge input — preventing reverse voltage damage and ensuring the AVR card receives clean, stable feedback signals.

In cabinets operating near variable-frequency drives or large contactors, electromagnetic interference is a persistent threat to signal integrity. The 3BHE035301R1002’s internal EMI filtering is reinforced by proper cabinet shielding practices and, where required, by ABB EMC filter modules installed on the power supply rails. Cabinet thermal management is equally critical: the ABB UNS0880A cooling and monitoring board provides real-time temperature supervision, triggering controlled load reduction before thermal thresholds are breached — protecting the AVR module and associated power electronics from heat-induced degradation.

For communication integrity in distributed control architectures, the excitation system interfaces with the plant DCS or SCADA via ABB AC800M controller modules, which relay generator status, AVR setpoints, and alarm conditions across the control network. This integrated approach — spanning regulation, power conversion, surge protection, thermal monitoring, and supervisory communication — ensures that the 3BHE035301R1002 operates within a fully protected, fail-safe control environment.

Critical Industrial Safety Applications

The ABB 3BHE035301R1002 is deployed across a broad range of critical industrial sectors where generator stability and excitation control reliability are non-negotiable safety requirements.

In petrochemical and refinery facilities, continuous process units depend on captive power generation for compressor drives, pump motors, and safety interlock systems. AVR instability in these environments can cascade into process upsets, emergency shutdowns, or hazardous material release events. The 3BHE035301R1002’s fast transient response and stable closed-loop regulation prevent voltage excursions that could trip critical motor loads or compromise safety instrumented system (SIS) power supplies.

In thermal and hydroelectric power plants, the module governs excitation for large synchronous generators connected to the grid. Precise reactive power control — enabled by accurate AVR regulation — is essential for grid stability compliance and for preventing generator pole-slip events during load swings or grid fault recovery sequences.

In mining and mineral processing operations, where large synchronous motors drive ball mills, crushers, and hoisting equipment, the 3BHE035301R1002 maintains excitation stability under heavy cyclic loading, preventing voltage dips that could cause motor stall or contactor dropout across the facility’s distribution network.

In water treatment and pumping stations, the module supports reliable generator operation for standby and prime power systems, ensuring that critical pumping infrastructure remains operational during grid outages or utility supply disturbances.

In metallurgical plants and steel mills, where arc furnaces and rolling mill drives impose severe voltage fluctuations on the local power system, the AVR module’s high-bandwidth regulation loop actively compensates for rapid load changes, maintaining generator terminal voltage within acceptable limits and protecting downstream control equipment from power quality degradation.

In port and marine applications, including shipboard power management systems and shore power installations, the 3BHE035301R1002 provides the excitation stability required for parallel generator operation, load sharing, and safe transfer between power sources in safety-critical marine electrical systems.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB 3BHE035301R1002?
The support terms confirmed by quotation cover all manufacturing defects and functional failures arising under normal operating conditions from the date of shipment. This includes component-level failures, firmware integrity issues, and any performance deviation from the module’s rated specifications. Support requests are supported by our technical team with replacement dispatch or repair service as applicable.

Q2: What pre-shipment testing is performed on each unit?
Every ABB 3BHE035301R1002 unit undergoes full functional verification prior to dispatch, including power-on self-test, signal input/output calibration check, communication interface validation, and a burn-in cycle to screen for early-life component failures. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request.

Q3: Is the 3BHE035301R1002 compatible with existing ABB UNITROL excitation systems?
Yes. The 3BHE035301R1002 (UNS0121A-Z) is designed as a direct replacement card within the ABB UNITROL excitation system rack. It is compatible with UNITROL 5000 and related platform configurations. For installations with modified firmware or non-standard rack configurations, our technical team can advise on compatibility verification procedures before installation.

Q4: Can long-term supply and replacement support be arranged for this module?
Yes. We maintain forward buffer stock of the ABB 3BHE035301R1002 to support planned maintenance cycles, emergency replacements, and long-term service agreements. For facilities requiring guaranteed availability over a 12–36 month horizon, we offer reserved stock arrangements with priority dispatch commitments. Contact our sales team to discuss supply continuity options tailored to your maintenance schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE035301R1002

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 3BHE035301R1002
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
