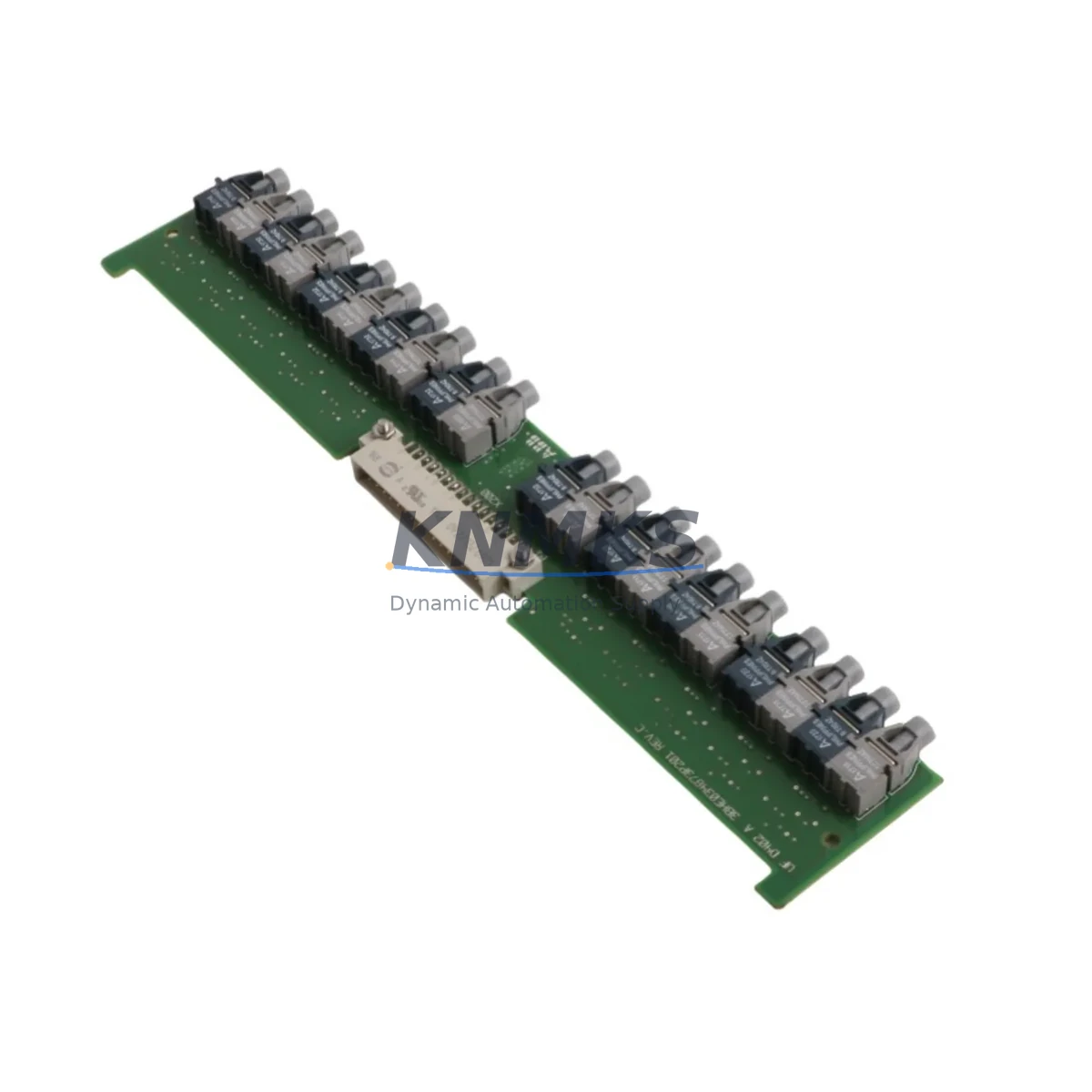

ABB 3BHE034872R0101 UFD402A101 Migration-Ready Drive Control Board

Overview

ABB 3BHE034872R0101 UFD402A101 Migration-Ready Drive Control Board for Legacy Control Systems

The ABB 3BHE034872R0101 UFD402A101 (UFD402A101) is a migration-ready drive control board engineered for direct replacement and retrofit integration within ABB ACS-series variable frequency drive platforms. Designed to address the growing demand for spare parts in aging industrial automation infrastructure, this board provides a reliable, pre-tested solution for facilities managing legacy ACS800, ACS600, and compatible drive cabinets that are no longer supported under active ABB production cycles.

As industrial plants extend the operational life of their existing drive systems — often by 10 to 20 years beyond original design intent — the availability of verified replacement boards becomes a critical factor in minimizing unplanned downtime. The 3BHE034872R0101 UFD402A101 addresses this need directly, offering a functionally equivalent substitute for the original OEM board with no firmware re-flashing required in standard replacement scenarios.

Each unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial use conditions. Stock is maintained to support both emergency breakdown orders and planned maintenance schedules, with global shipping available to manufacturing sites across Asia, Europe, and the Americas.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 3BHE034872R0101 UFD402A101 within an active production environment requires careful pre-planning to avoid extended downtime and configuration loss. The following considerations apply to most ACS800-based retrofit scenarios.

Power Supply Verification: Before installing the replacement board, confirm that the drive’s internal 24 VDC auxiliary power supply — typically sourced from the APBU-44C or APBU-12C pulse encoder interface unit — is within specification. An undersized or degraded power supply can cause the new control board to fault immediately after installation, masking the true root cause of the original failure.

Backplane and Slot Compatibility: The UFD402A101 occupies a dedicated slot on the ACS800 control section backplane. When retrofitting older frame sizes, verify that the backplane connector is free of corrosion or mechanical damage. In multi-drive cabinet configurations using the NDBU-95C or NDBU-12C branching units for DDCS communication, confirm that the fiber optic connections to the control board slot are intact and that channel addresses are correctly assigned before powering up.

I/O Module Address Mapping: If the drive system includes RAIO-01 analog I/O extension modules or RDIO-01 digital I/O modules mounted in the option slots, verify that the I/O channel addresses are correctly mapped in the drive parameters after board replacement. Address conflicts between the new control board and existing option modules are a common source of post-replacement faults that can delay recommissioning.

Program Logic and Parameter Backup: Prior to removing the failed board, use ABB DriveWindow Light or the CDP control panel to export the full parameter set. This backup is essential for restoring motor control settings, PID loop configurations, speed reference scaling, and fault response logic after the new board is installed. In systems where the drive communicates with a Siemens S7 or Allen-Bradley ControlLogix PLC via Profibus or DeviceNet, confirm that the communication adapter — such as the RPBA-01 Profibus adapter or RDNA-01 DeviceNet adapter — is re-initialized correctly after the control board swap.

HMI Screen and Alarm Mapping: In facilities using ABB Panel Builder or third-party SCADA systems for drive monitoring, verify that HMI alarm tags and drive status registers are correctly mapped after replacement. Control board substitution can reset internal fault counters and status word bit assignments, which may cause false alarms or missed fault indications on the operator interface until the parameter set is fully restored.

Commissioning Sequence: After physical installation, follow the standard ACS800 commissioning sequence: restore parameters from backup, run the motor identification routine if motor data has changed, verify analog and digital I/O signal levels, confirm DDCS communication link status, and perform a no-load test run before returning the drive to full production load.

Downtime Control During System Migration

Unplanned drive failures in continuous process industries — including pulp and paper, cement, mining, and water treatment — can result in production losses that far exceed the cost of the replacement board itself. A structured approach to control board replacement minimizes exposure to extended downtime and reduces the risk of secondary damage to connected equipment.

Pre-Staged Replacement Strategy: Maintaining a pre-tested spare 3BHE034872R0101 UFD402A101 board on-site eliminates the lead time variable from the recovery equation. For critical drives controlling compressors, conveyors, or pumps, a staged spare held in the maintenance store — verified against the installed firmware version — allows same-shift replacement without waiting for emergency freight.

Parameter Continuity: The single most effective measure for reducing recommissioning time is a current parameter backup stored off the drive. Facilities that maintain a parameter archive — updated after every drive configuration change — can restore full drive functionality within 30 to 60 minutes of board replacement, compared to 4 to 8 hours for drives requiring full recommissioning from scratch.

Protecting Original Program Logic: In drives integrated with PLC-based sequence control, coordinate the board replacement with the PLC programmer to ensure that the drive’s run/stop command source, speed reference input, and fault acknowledgment logic are verified before the drive is returned to automatic mode. Bypassing this step risks uncontrolled drive starts or speed reference errors that can damage downstream mechanical equipment.

Field Continuity During Replacement: Where process continuity is critical, consider whether a bypass contactor arrangement can maintain field-side output during the board swap. In multi-drive systems using the NDBU branching unit, it may be possible to isolate the affected drive from the DDCS ring without interrupting communication to other drives in the network, preserving partial production capability during the repair window.

Retrofit Support FAQ

Q1: Is the ABB 3BHE034872R0101 UFD402A101 a direct replacement for the original board without firmware modification?
In standard like-for-like replacement scenarios within the ACS800 platform, the UFD402A101 is a direct functional substitute. No firmware re-flashing is required provided the drive’s existing firmware version is compatible with the UFD402A101 hardware revision. Confirm the drive firmware version from the CDP panel or DriveWindow before ordering if your installation uses a non-standard firmware build.

Q2: What pre-shipment testing is performed on each unit?
Every 3BHE034872R0101 UFD402A101 board undergoes a functional power-on test prior to dispatch. Testing verifies board initialization, basic I/O response, and communication interface integrity. A test report is available upon request for quality-critical procurement processes.

Q3: Can this board be used in ACS600 drives as well as ACS800 systems?
The UFD402A101 is primarily specified for ACS800 applications. Compatibility with ACS600 variants depends on the specific drive frame and control section configuration. Contact our technical team with your drive nameplate data and existing board part number to confirm cross-compatibility before ordering.

Q4: What is the support terms coverage and what does it include?
All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and operational failures under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental contamination. Support requests are processed with priority turnaround to minimize production impact.
