ABB 3BHE032285R0102 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3BHE032285R0102 Maintenance-Proven Spare Part for Factory Uptime

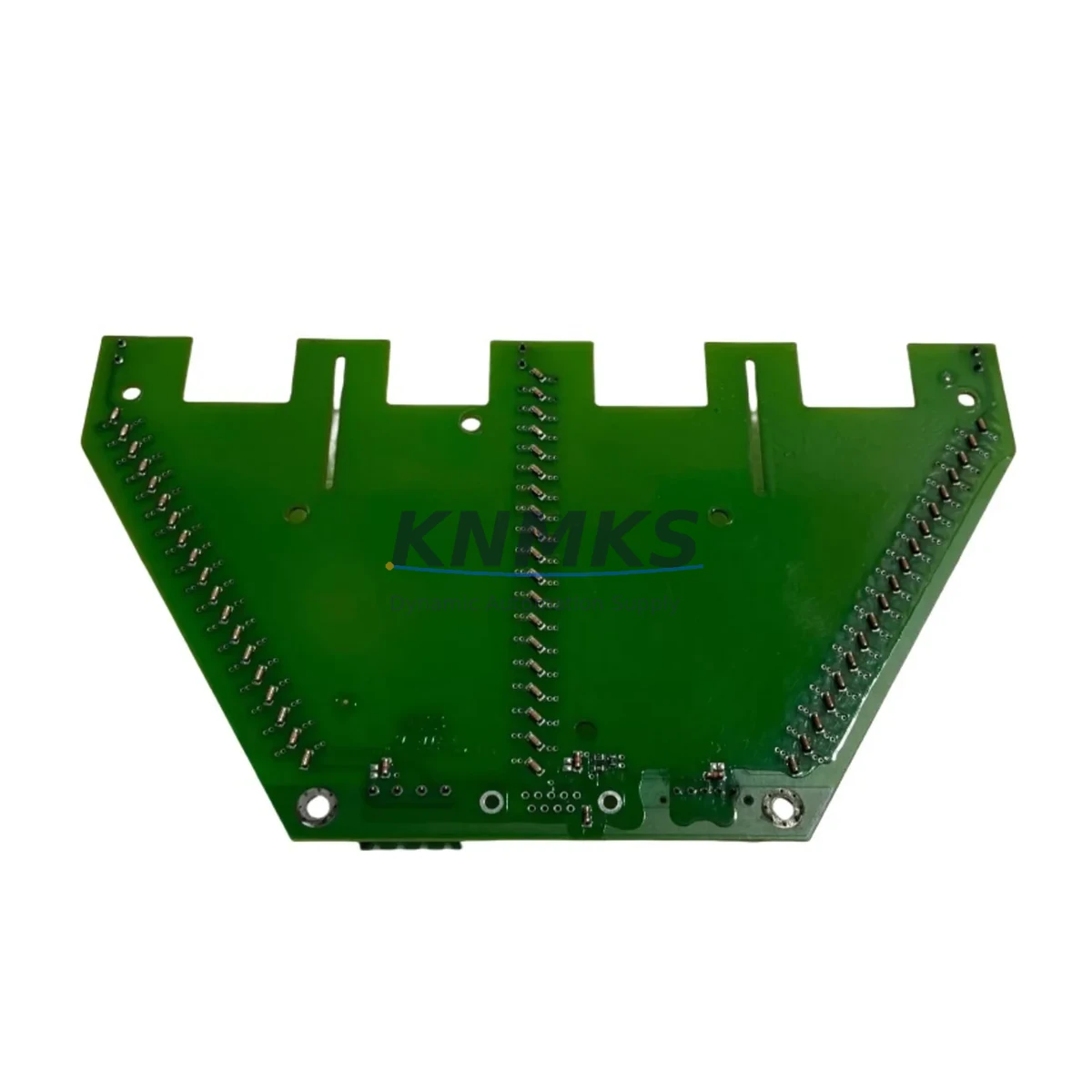

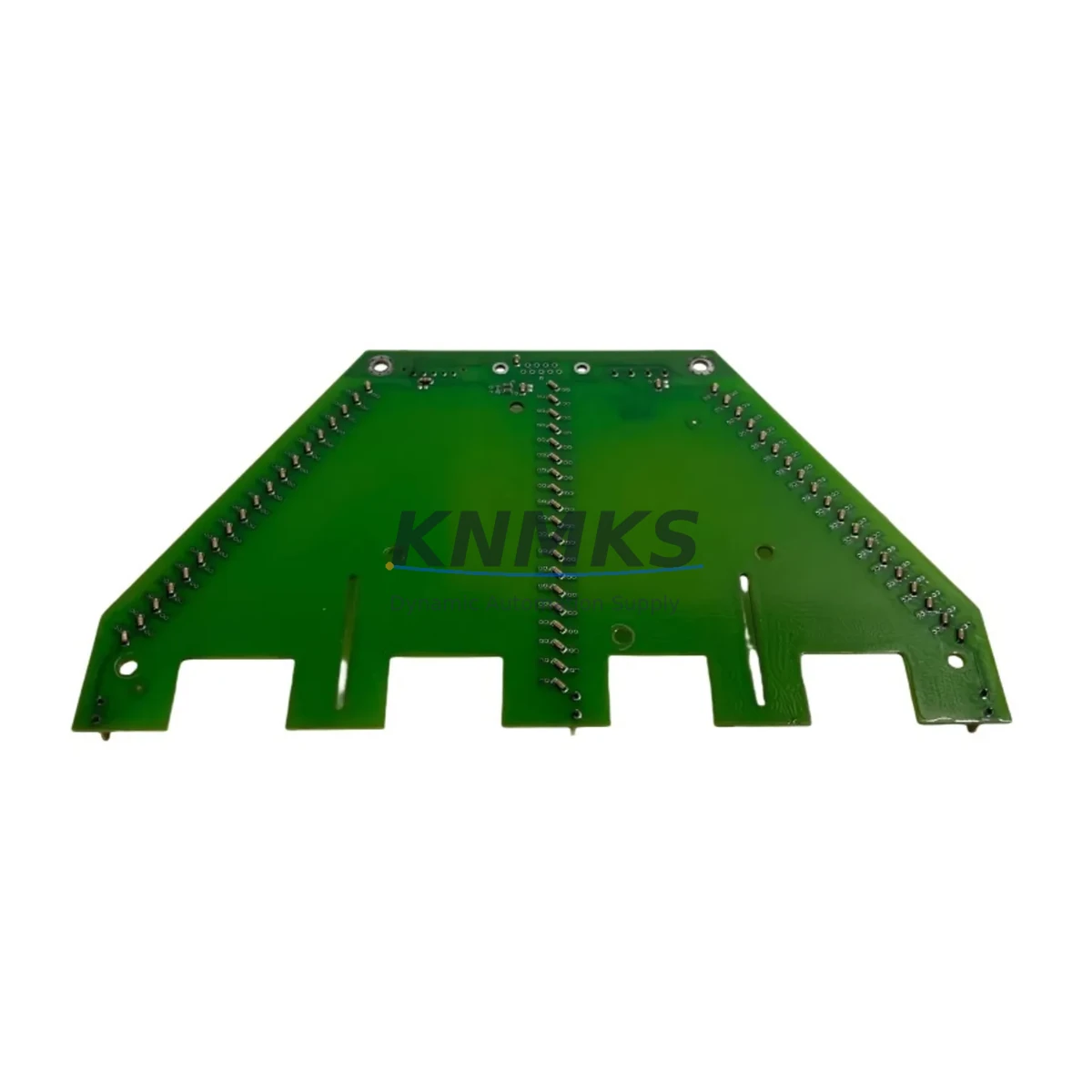

The ABB 3BHE032285R0102 (XVC772 A102) is an original HVD (High Voltage Drive) control board engineered for continuous-duty industrial automation environments. Manufactured in Germany to ABB’s exacting quality standards, this board serves as the primary control and signal-processing interface within ABB ACS/DCS high-voltage drive cabinets. For maintenance engineers managing aging drive systems, sourcing a verified original spare — rather than a counterfeit or refurbished substitute — is the single most effective measure to prevent unplanned downtime and protect capital equipment.

KNMKS maintains ready stock of the 3BHE032285R0102 to support emergency replacement, scheduled annual overhaul, and strategic spare-parts inventory programs. Every unit is individually inspected, function-tested, and shipped with full traceability documentation. A support terms confirmed by quotation cover all units against manufacturing defects and premature failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 3BHE032285R0102 control board fails or shows early degradation symptoms — such as intermittent drive trips, loss of speed reference signal, or unexplained fault codes on the HMI panel — the root cause is rarely isolated to the board alone. Experienced maintenance engineers know that a thorough cabinet inspection must accompany any control board replacement to prevent repeat failures and ensure the drive returns to full operational health.

Begin by verifying the 24 VDC auxiliary power supply feeding the XVC772 control section. A sagging or noisy DC rail is a common hidden cause of control board stress and premature failure. Next, inspect the fiber-optic communication links between the control board and the IGBT gate driver boards — dirty or damaged fiber connectors cause intermittent communication faults that are frequently misdiagnosed as control board failures. Check the I/O terminal blocks and signal wiring for loose connections, corrosion, or insulation breakdown, particularly on analog speed reference and digital enable inputs.

The drive’s cooling system deserves equal attention: clogged air filters, worn fan bearings, and blocked heat-sink fins all elevate cabinet temperature and accelerate electronic component aging. Inspect the main DC bus capacitor bank for bulging or electrolyte leakage — capacitor degradation often precedes control board failure in high-cycle applications. Review the protection relay settings and fuse ratings in the incoming supply circuit; an incorrectly rated fuse or a relay with drifted trip thresholds can expose the control board to transient overvoltage events.

For sites running ABB ACS or DCS drives in parallel or multi-drive configurations, also verify the fieldbus communication module (e.g., PROFIBUS, Modbus, or PROFINET adapter) seated on the control board’s option slot — a loose or corroded module connector is a frequent source of intermittent communication alarms. Finally, confirm that the drive’s parameter backup has been saved to the control panel or a PC tool before removing the old board, so that all tuned parameters can be restored to the replacement 3BHE032285R0102 without re-commissioning from scratch.

A proactive spare-parts kit for the XVC772 platform should include: the 3BHE032285R0102 control board, the corresponding IGBT gate driver board, a set of DC bus capacitors, the auxiliary 24 VDC power supply module, fiber-optic patch cables, and a spare fieldbus adapter card. Holding these components on-site reduces mean time to repair (MTTR) from days to hours and protects production continuity.

Site Replacement Workflow

Step 1 — Safety Isolation: Follow your site’s lockout/tagout (LOTO) procedure. Isolate the drive from the main supply, verify zero voltage on the DC bus with a calibrated meter, and allow the bus capacitors to fully discharge (minimum 5 minutes after isolation, or per the drive’s discharge indicator).

Step 2 — Parameter Backup: Before removing the existing control board, use the ABB drive control panel or DriveStudio / Drive Composer PC tool to save a full parameter backup. This ensures all application-specific tuning, motor data, and protection settings are preserved for restoration on the replacement board.

Step 3 — Board Removal: Disconnect all fiber-optic cables, I/O connectors, and the fieldbus adapter from the existing 3BHE032285R0102. Note the cable routing and connector positions with photographs before disconnection. Remove the board from the backplane using the appropriate extraction tool — avoid flexing the PCB.

Step 4 — Compatibility Verification: Confirm the replacement 3BHE032285R0102 XVC772 A102 suffix matches the removed board. Check the firmware version label; if a firmware update is required, perform it before installation using the ABB firmware update procedure.

Step 5 — Installation and Reconnection: Seat the new board firmly on the backplane, reconnect all fiber-optic links (clean connectors with IPA wipes before mating), reattach I/O wiring and the fieldbus adapter. Verify all connectors are fully latched.

Step 6 — Parameter Restore and Commissioning Check: Power up the control section only (if the drive supports staged power-up). Restore the parameter backup. Verify drive identification, motor data, and protection settings. Run a no-load test before reconnecting the mechanical load.

Step 7 — Return to Service: Perform a supervised run at reduced load, monitor drive temperature, output current, and communication status for the first 30 minutes of operation. Log the replacement in the site maintenance record.

This workflow applies equally to emergency breakdown replacements and planned annual overhaul scenarios. For legacy XVC772 platforms where the original board is no longer available through OEM channels, the 3BHE032285R0102 sourced from KNMKS provides a direct, back-to-back compatible replacement that requires no hardware modification and maintains full system compatibility.

Spare Parts Support FAQ

Q1: Is the 3BHE032285R0102 compatible with all XVC772 drive variants?
The 3BHE032285R0102 XVC772 A102 is designed for the XVC772 control platform used across ABB’s ACS and DCS high-voltage drive families. Compatibility depends on the specific drive model and firmware revision. KNMKS recommends providing your full drive nameplate data (model, serial number, and existing board suffix) when ordering to confirm exact compatibility before shipment.

Q2: How does KNMKS verify the board before shipment?
Every 3BHE032285R0102 unit undergoes a pre-shipment inspection covering visual examination, PCB integrity check, and functional power-up test. Units are packed in anti-static ESD bags with foam cushioning and shipped with a test report. The support terms confirmed by quotation cover defects identified under normal operating conditions from the date of shipment.

Q3: What is the recommended inventory strategy for this board?
For facilities operating two or more ABB HV drives on the XVC772 platform, KNMKS recommends holding a minimum of one 3BHE032285R0102 on-site as a cold standby spare. Given that OEM lead times for this board can extend to 16–26 weeks when production allocation is constrained, on-site stock is the only reliable strategy for achieving same-day or next-day drive recovery after a control board failure.

Q4: Can KNMKS support long-term supply for multi-site maintenance programs?
Yes. KNMKS operates regional stock warehouses and can support blanket-order agreements for customers managing multi-site or multi-drive maintenance programs. Long-term supply contracts include priority allocation, fixed pricing, and guaranteed stock reservation. Contact admin@knmks.com or +86 18359268345 to discuss your program requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE032285R0102 XVC772 A102

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB 3BHE032285R0102 XVC772 A102
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
