ABB 3BHE027867R0101 GDD852 A101 Maintenance-Proven Spare Part for Factory Uptime

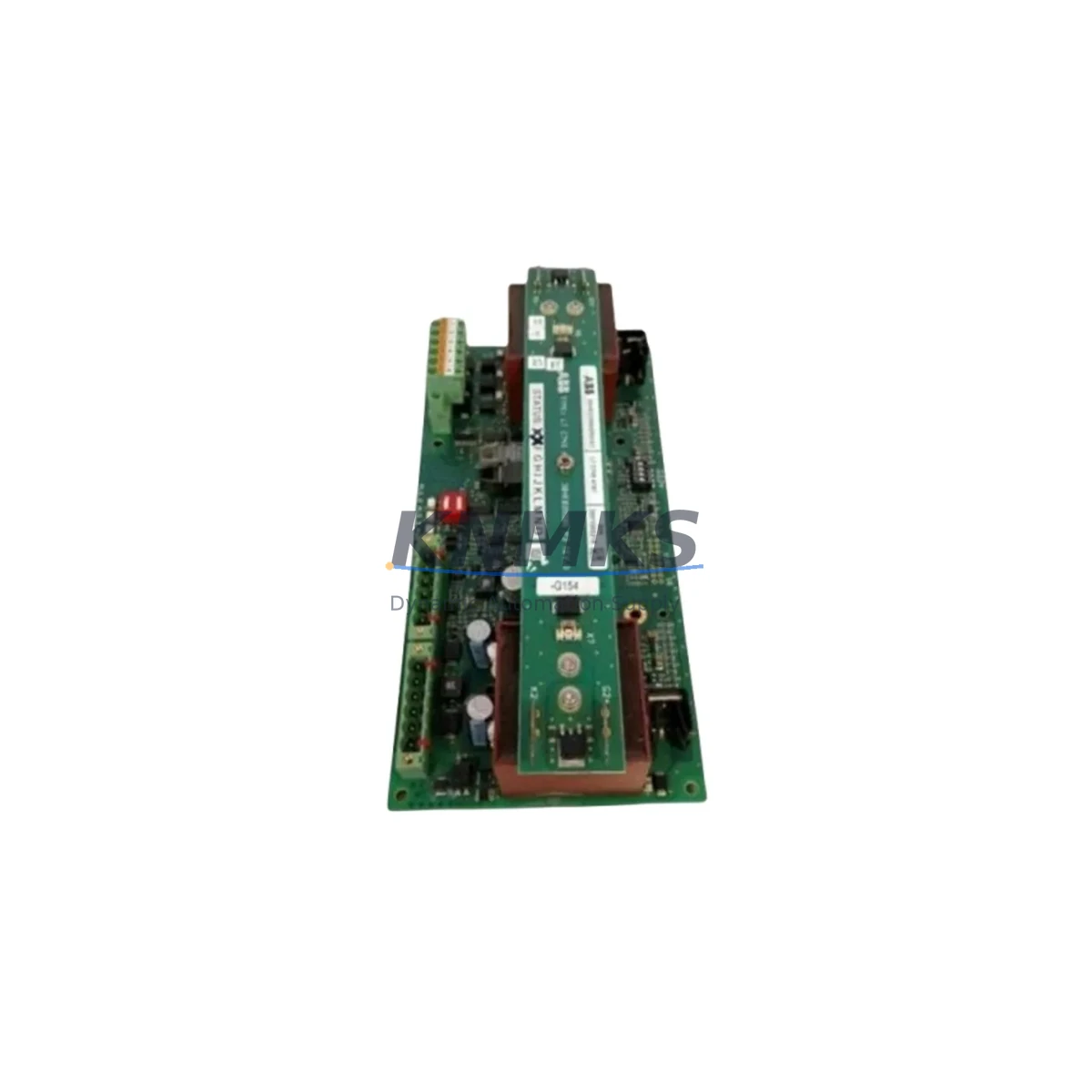

The ABB 3BHE027867R0101, board designation GDD852 A101, is a gate drive circuit board designed for ABB ACS series medium-voltage drives and AC800M-based drive control platforms. In industrial facilities where variable-speed drives govern critical motor loads — compressors, pumps, fans, extruders, and hoisting equipment — the gate drive board is the component that translates control-level firing commands into precise IGBT switching signals. A failed or degraded gate drive board results in immediate drive trip, uncontrolled motor coast-down, and unplanned production stoppage. Maintaining a verified spare of the 3BHE027867R0101 in your site inventory is one of the most cost-effective insurance policies available to a maintenance team managing high-availability drive systems.

KNMKS supplies the ABB 3BHE027867R0101 GDD852 A101 as an original-grade spare part, sourced from verified industrial channels, individually inspected, and subjected to pre-shipment functional testing before dispatch. Every unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Long-term supply continuity is supported for customers managing multi-site fleets or annual maintenance contracts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a gate drive board fault is diagnosed in an ABB ACS drive, the replacement procedure extends beyond the board itself. A thorough site maintenance plan should treat the 3BHE027867R0101 replacement as the trigger for a broader cabinet inspection. Before powering the drive back up, maintenance engineers should verify the condition of the drive’s power supply module — typically an APBU or AINT-series auxiliary power board — since a failing auxiliary supply is a common root cause of gate drive board damage through voltage transients or supply ripple. The DC bus capacitor bank condition should also be assessed; degraded capacitors can re-stress a newly installed gate drive board within weeks of replacement.

On the signal side, the fiber optic cables connecting the gate drive board to the IGBT phase modules are a frequent wear item in high-cycle drive applications. ABB NBOC or AFOC-series fiber optic interface cables should be inspected for bend radius violations, connector contamination, and optical power margin before the replacement board is commissioned. Similarly, the IOEC I/O extension modules connected to the drive control bus should be checked for alarm history and communication fault logs — a degraded IOEC module can generate spurious gate inhibit signals that mimic gate drive board failure.

For drives integrated into an AC800M control architecture, the CI858 or CI857 communication interface module linking the drive to the DCS should be verified for firmware compatibility with the drive’s current software version. HMI panels — typically ABB CP600 or Panel 800 series — should be checked to confirm that drive status displays and fault acknowledgement screens remain functional after the board swap. In cabinet configurations where multiple drives share a common DC bus, the bus bar connections and fuse protection on adjacent drive units should be inspected as part of the same maintenance window to prevent cascade faults.

Procurement engineers managing spare parts budgets for ACS drive fleets should consider holding at minimum one 3BHE027867R0101 per three to five installed drives of the same frame type, with replenishment triggered immediately upon consumption. For critical single-drive applications — such as main compressor drives or kiln drives — a dedicated on-site spare is strongly recommended. KNMKS supports blanket order arrangements and scheduled replenishment programs to help maintenance teams maintain inventory coverage without capital overcommitment.

Site Replacement Workflow

Replacing the ABB 3BHE027867R0101 GDD852 A101 in the field follows a structured sequence designed to minimize drive downtime and protect the integrity of the surrounding system. The recommended workflow is as follows:

1. Fault Confirmation: Before ordering or installing a replacement board, confirm the fault via the drive’s diagnostic panel or AC800M fault log. Gate drive faults (typically fault codes in the GDF or GDU range on ACS drives) should be cross-referenced against the drive’s event history to distinguish a hard board failure from a transient protection trip caused by an upstream supply issue.

2. Safe Isolation: Follow the drive manufacturer’s lockout/tagout procedure. Verify DC bus discharge to below 50 V using a calibrated meter before opening the drive cabinet. Gate drive boards carry residual charge risk even after main contactor opening.

3. Board Removal and Documentation: Photograph all connector positions and cable routing before disconnection. Label fiber optic cables by channel. Note the board’s firmware label or revision marking for compatibility verification against the replacement unit.

4. Replacement Installation: Install the 3BHE027867R0101 GDD852 A101 replacement, reconnect all connectors in documented sequence, and verify fiber optic seating. Do not apply power until all connectors are confirmed seated and the cabinet door is secured.

5. Commissioning Verification: Power up the drive in local control mode. Verify gate drive status indicators, check for residual fault codes, and perform a no-load motor run before returning the drive to process control. Log the replacement in the site maintenance record with the new board’s serial number and installation date.

This workflow typically achieves drive restoration within two to four hours for a prepared maintenance team with the spare board on site, compared to three to ten days when waiting for emergency procurement — reinforcing the value of proactive spare parts inventory management.

Spare Parts Support FAQ

Q1: Is the 3BHE027867R0101 a direct drop-in replacement for all ACS drive frames using the GDD852 A101 designation?
The 3BHE027867R0101 GDD852 A101 is a direct replacement within the same drive frame type and hardware revision. Before installation, verify the drive’s hardware revision label and confirm that the replacement board’s revision marking matches or is approved as a successor revision per ABB’s service documentation. KNMKS can assist with revision compatibility checks prior to order confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every 3BHE027867R0101 supplied by KNMKS undergoes visual inspection for physical damage, connector integrity check, and functional power-on verification. Units that do not pass inspection are quarantined and not dispatched. Test records are available upon request for quality-critical procurement processes.

Q3: What does the support terms confirmed by quotation cover, and how is a support terms claim processed?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the drive’s rated parameters. To initiate a support terms claim, contact KNMKS at [email protected] with the order reference, installation date, and a description of the failure mode. Return shipping and replacement dispatch are coordinated within five business days of claim receipt.

Q4: Can KNMKS support long-term or multi-unit supply for maintenance contracts?
Yes. KNMKS supports blanket purchase orders, scheduled delivery programs, and multi-site supply agreements for the 3BHE027867R0101 and related ABB ACS drive spare parts. Customers managing fleets of ten or more drives are encouraged to contact the sales team to discuss inventory planning, lead time guarantees, and volume pricing. Contact: [email protected] | +86 18359268345.
