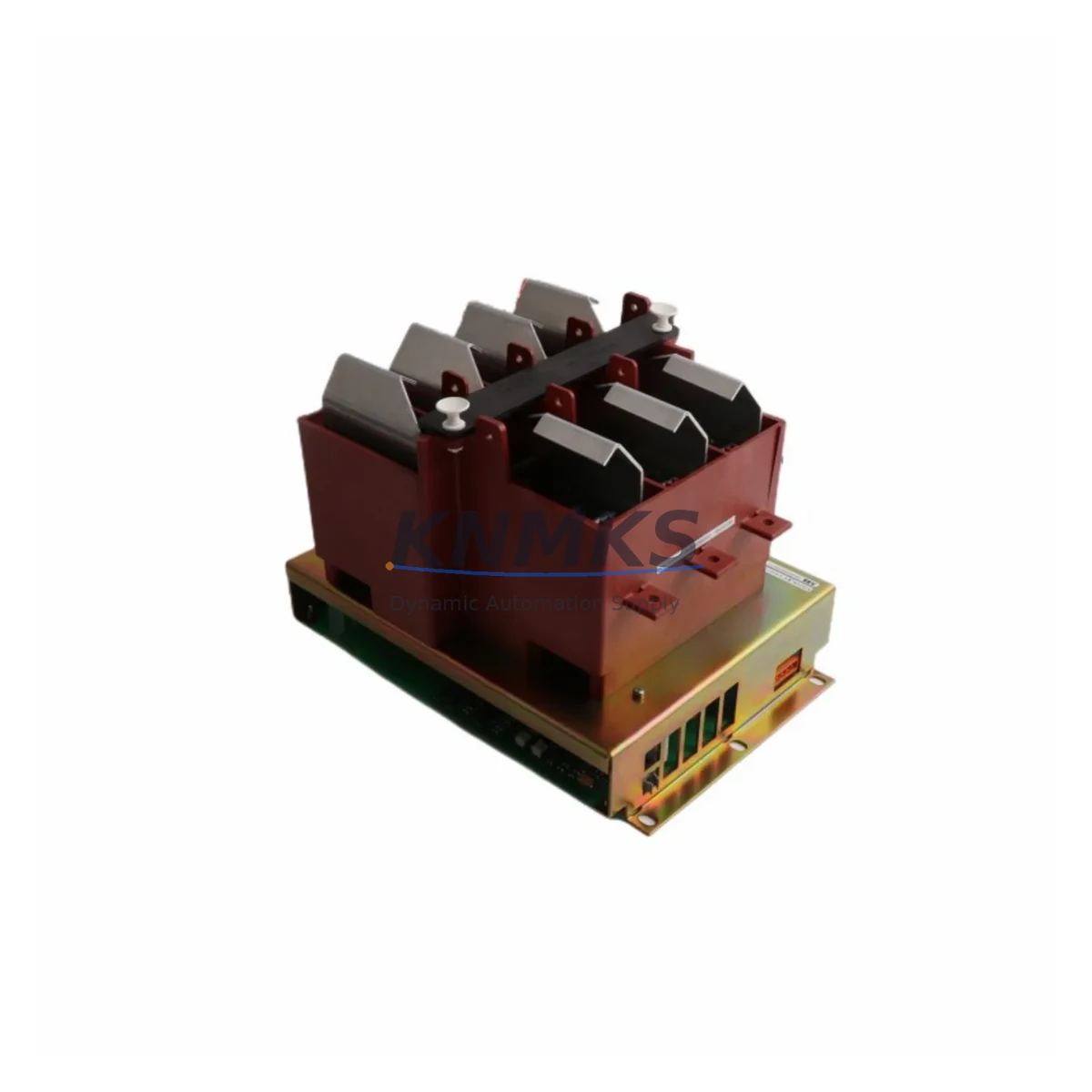

ABB 3BHB004661R0101 KUC711AE Migration-Ready Gate Unit for Legacy Control Systems

Overview

ABB 3BHB004661R0101 KUC711AE Migration-Ready Gate Unit for Legacy Control Systems

The ABB 3BHB004661R0101 KUC711AE is a gate unit module designed for IGCT-based medium-voltage drive systems and AC800M-controlled automation platforms. As legacy ABB drive cabinets reach end-of-support cycles, the KUC711AE serves as a verified drop-in replacement for discontinued gate driver boards, enabling plant engineers to extend operational life without full drive replacement. This module manages gate pulse generation and IGCT firing sequences, making it a critical component in retrofit projects where the original gate unit has failed or is no longer available through standard supply channels.

For facilities operating ABB ACS6000, ACS1000, or PEC (Power Electronics Controller) platforms, the 3BHB004661R0101 KUC711AE provides a direct upgrade path. Engineers undertaking a retrofit must verify DC bus voltage compatibility, confirm the backplane slot assignment within the drive’s power electronics rack, and validate that the existing IGCT thyristor stack is rated for the gate pulse parameters delivered by this unit. The module interfaces with the drive’s fiber-optic communication links, so fiber connector type and cable routing must be confirmed before installation.

During pre-installation planning, the following items require field verification: available slot depth in the power electronics cabinet, clearance for the module’s heat sink or cooling interface, and the firmware revision running on the AC800M controller. In systems where the AC800M PM865 or PM891 processor module manages drive sequencing, the gate unit firmware must be compatible with the controller’s application software version to avoid mismatch faults at startup. If the site runs ABB’s DriveWindow or DriveAP commissioning tools, a parameter backup of the existing drive configuration should be completed before the old gate unit is removed.

Wiring adaptation is straightforward for most retrofit scenarios. The KUC711AE uses standard ABB terminal block conventions consistent with other modules in the AC800M I/O family, including the AI810 analog input module and the DO810 digital output module. If the existing cabinet wiring was routed for an earlier gate unit revision, terminal mapping should be cross-referenced against the 3BHB004661R0101 hardware manual. In cases where the original wiring labels are missing or degraded, the site’s electrical drawings should be consulted before energizing the replacement module.

For systems that also require communication protocol migration—such as transitioning from PROFIBUS DP to PROFINET or Modbus RTU to EtherNet/IP—the gate unit replacement is typically performed in parallel with a communication module upgrade. The CI854 PROFIBUS master interface or CI873 PROFINET adapter, both compatible with the AC800M platform, can be installed in the same retrofit window to minimize total downtime. HMI screens tied to drive status signals should be reviewed after the gate unit swap to confirm that all process variable tags remain correctly mapped.

Inventory availability for the 3BHB004661R0101 KUC711AE is maintained from bonded warehouse stock. Each unit undergoes pre-shipment functional testing covering gate pulse output verification, fiber-optic link integrity, and power supply rail checks. Units are shipped with original or equivalent protective packaging to prevent ESD damage during transit. A support terms confirmed by quotation is included from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful gate unit retrofit begins with a complete audit of the existing drive cabinet. Before ordering the 3BHB004661R0101 KUC711AE, the site engineer should document the current module population: processor module (AC800M PM865 or PM891), I/O modules (AI810, AO810, DI810, DO810), and any installed communication adapters such as the CI854 PROFIBUS interface. This inventory confirms that the replacement gate unit will integrate without requiring additional hardware changes to the control rack.

Power supply capacity is a critical check. The drive’s internal SMPS (switched-mode power supply) must have sufficient headroom to support the KUC711AE alongside existing modules. If the cabinet already operates near its power budget, a parallel power supply module upgrade may be required. Terminal block wiring for the gate unit’s auxiliary power input should be verified against the site’s electrical drawings, and any corroded or undersized conductors should be replaced before the new module is installed.

For sites where the original IGCT thyristor stack is also being replaced, the gate unit and thyristor replacement should be coordinated as a single maintenance window. The KUC711AE’s gate pulse parameters are matched to ABB IGCT specifications, so mixing gate unit and thyristor revisions from different generations requires explicit compatibility confirmation from the drive’s technical documentation.

Downtime Control During System Migration

Minimizing unplanned downtime during a gate unit replacement requires preparation before the maintenance window opens. A full parameter export from the AC800M controller using DriveWindow should be completed and stored offline. If the site uses ABB’s 800xA distributed control system, the drive’s faceplates and alarm configurations should be exported as well, so HMI screens can be restored quickly after the swap.

The physical replacement of the KUC711AE is a hot-swap-capable operation in some drive configurations, but this must be confirmed in the specific drive’s hardware manual before attempting live removal. In most medium-voltage IGCT drive applications, a controlled shutdown sequence is required: ramp the drive to zero speed, open the main contactor, discharge the DC bus, and confirm zero voltage before accessing the power electronics rack. Following this sequence protects both the replacement module and the existing thyristor stack from surge damage.

After installation, the commissioning sequence should include a no-load test run to verify gate pulse timing before reconnecting the motor load. Any fault codes generated during the first startup should be logged and cross-referenced against the drive’s fault code library. With proper preparation, total downtime for a KUC711AE replacement in a well-documented system is typically achievable within a single planned maintenance shift.

Retrofit Support FAQ

Q: Is the 3BHB004661R0101 KUC711AE a direct replacement for earlier KUC711 revisions?
A: In most cases, yes. The KUC711AE is the current production revision and is backward-compatible with earlier KUC711 variants in ABB IGCT drive platforms. However, firmware version alignment with the AC800M controller should be confirmed before installation, as some early drive configurations may require a firmware update.

Q: What pre-shipment testing is performed on each unit?
A: Every 3BHB004661R0101 KUC711AE is tested for gate pulse output integrity, fiber-optic link continuity, and internal power supply rail voltages before shipment. Test records are available upon request.

Q: Can this gate unit be installed without a full drive shutdown?
A: Hot-swap capability depends on the specific drive model and firmware configuration. For most medium-voltage IGCT applications, a controlled shutdown and DC bus discharge are required. Consult the drive’s hardware manual and follow all site safety procedures before module removal.

Q: What support terms coverage is included?
A: A support terms confirmed by quotation from the date of shipment is provided, covering manufacturing defects and functional failures under normal operating conditions. Support requests are handled directly through our sales team.
