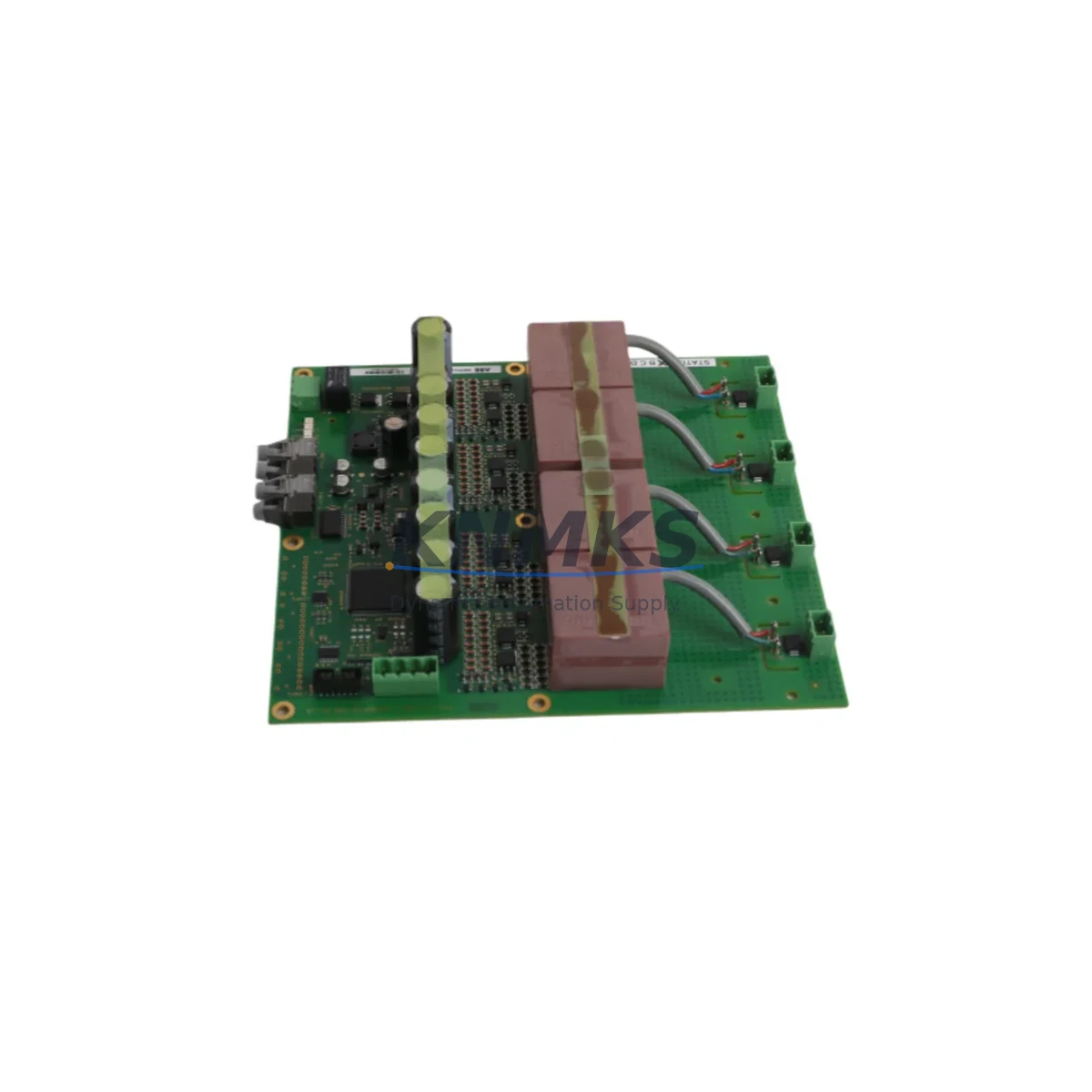

The ABB 3BHE024747R0101 is an original analog output module designed for the ACS800 series AC drive platform — one of ABB’s most widely deployed variable frequency drive families in heavy industrial environments. This module governs analog signal output from the drive control board, enabling precise process feedback to PLCs, DCS controllers, and SCADA systems. When this component degrades or fails, the result is immediate: loss of speed reference feedback, erratic process control, and unplanned production downtime. Maintaining a verified spare of the 3BHE024747R0101 in your site inventory is a proven strategy for rapid fault recovery and continuous factory operation.

For maintenance engineers managing ACS800 drive cabinets, the 3BHE024747R0101 is a critical link between the drive’s internal control logic and the plant-level automation layer. Its failure mode is often subtle — signal drift, intermittent output loss, or calibration offset — before complete failure. Proactive replacement during scheduled shutdowns, rather than reactive swap-out during emergency stops, significantly reduces mean time to repair (MTTR) and protects production throughput.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ABB 3BHE024747R0101 in an ACS800 drive cabinet, a thorough site inspection of adjacent components is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should simultaneously inspect the AINT board (ACS800 inverter control board) for firmware integrity and signal path continuity, as analog output faults are frequently linked to upstream control board degradation.

The APBU-44C or APBU-12C pulse encoder interface unit should be checked for signal isolation integrity, particularly in high-vibration environments. If the drive is connected to a DCS or PLC via fieldbus, verify the RDCO-03 or RDCO-04 DDCS communication module for correct parameter mapping and communication health — analog output errors can mask underlying fieldbus configuration faults.

Inspect the 24 VDC auxiliary power supply feeding the control board section; undervoltage or ripple on this rail is a common root cause of analog module instability. Terminal blocks and signal wiring on the analog output channel should be re-torqued and inspected for oxidation or loose terminations. For sites with older ACS800 cabinets, the AGPS power supply board should be evaluated for capacitor aging, as degraded internal power rails directly affect analog output accuracy.

Where the ACS800 drives a critical pump, compressor, or conveyor, consider stocking the AINT control board alongside the 3BHE024747R0101 as a paired spare set. This approach eliminates secondary diagnostic delays during emergency shutdowns and supports a sub-30-minute drive restoration target. For multi-drive installations, a single spare of the ACS800 I/O extension module (AIMA-01) can cover analog expansion needs across several drive units, reducing total spare inventory cost.

Site Replacement Workflow

Step 1 — Isolation: De-energize the ACS800 drive and follow LOTO (Lockout/Tagout) procedures. Allow the DC bus to fully discharge before opening the cabinet door.

Step 2 — Documentation: Photograph existing wiring, terminal assignments, and parameter settings. Export drive parameters via the ACS800 control panel (CDP312R or ACS-CP-C) or DriveWindow software before any hardware change.

Step 3 — Module Removal: Carefully disconnect the analog output wiring from the terminal block. Remove the 3BHE024747R0101 module from its board connector, noting orientation and seating depth.

Step 4 — Replacement Installation: Seat the new 3BHE024747R0101 firmly into the connector. Reconnect signal wiring per the original documentation. Verify terminal torque to manufacturer specification.

Step 5 — Commissioning: Re-energize the drive in local control mode. Verify analog output signal levels at the PLC/DCS input using a calibrated multimeter or loop calibrator. Confirm process feedback values match expected engineering units before returning to automatic control.

Step 6 — Documentation Update: Record the replacement in the site maintenance log, including part number, date, technician, and post-replacement test results. Update the spare parts inventory to trigger reorder of a replacement unit.

This workflow supports compatibility with legacy ACS800 installations without requiring firmware upgrades or parameter reconfiguration in most standard replacement scenarios. For sites migrating from older ACS600 platforms, confirm drive parameter set compatibility before commissioning.

Spare Parts Support FAQ

Q1: Is the 3BHE024747R0101 compatible with all ACS800 drive variants?
The 3BHE024747R0101 is designed for the ABB ACS800 series platform. Compatibility should be confirmed against the specific ACS800 drive type code and hardware revision. Our technical team can assist with cross-referencing your drive’s nameplate data to confirm fit before shipment.

Q2: What pre-shipment testing is performed on this module?
Each 3BHE024747R0101 unit undergoes functional verification and signal integrity testing prior to dispatch. This includes analog output channel validation and board-level inspection. A test report is available upon request for quality-critical procurement processes.

Q3: What is the support terms coverage and what does it include?
All units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support terms support includes replacement dispatch and technical assistance for installation-related queries.

Q4: Can long-term supply be arranged for multi-site or annual maintenance contracts?
Yes. For customers managing multiple ACS800 installations or requiring scheduled annual spare replenishment, long-term supply agreements can be arranged. Contact our sales team to discuss volume pricing, reserved stock allocation, and delivery scheduling aligned to your planned maintenance windows.
