ABB 3BHE024577R0101 PPC907BE Spare Part for Factory Uptime

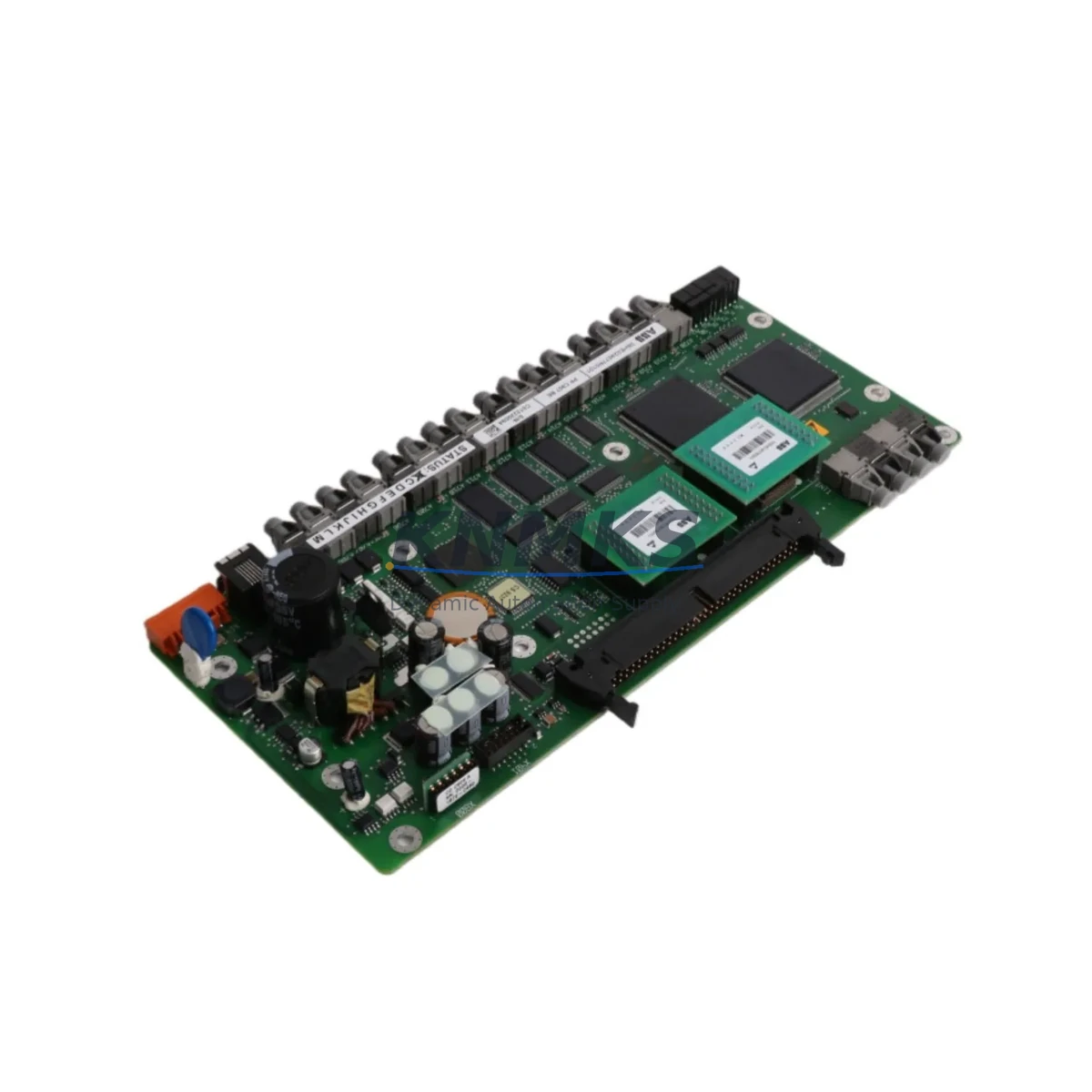

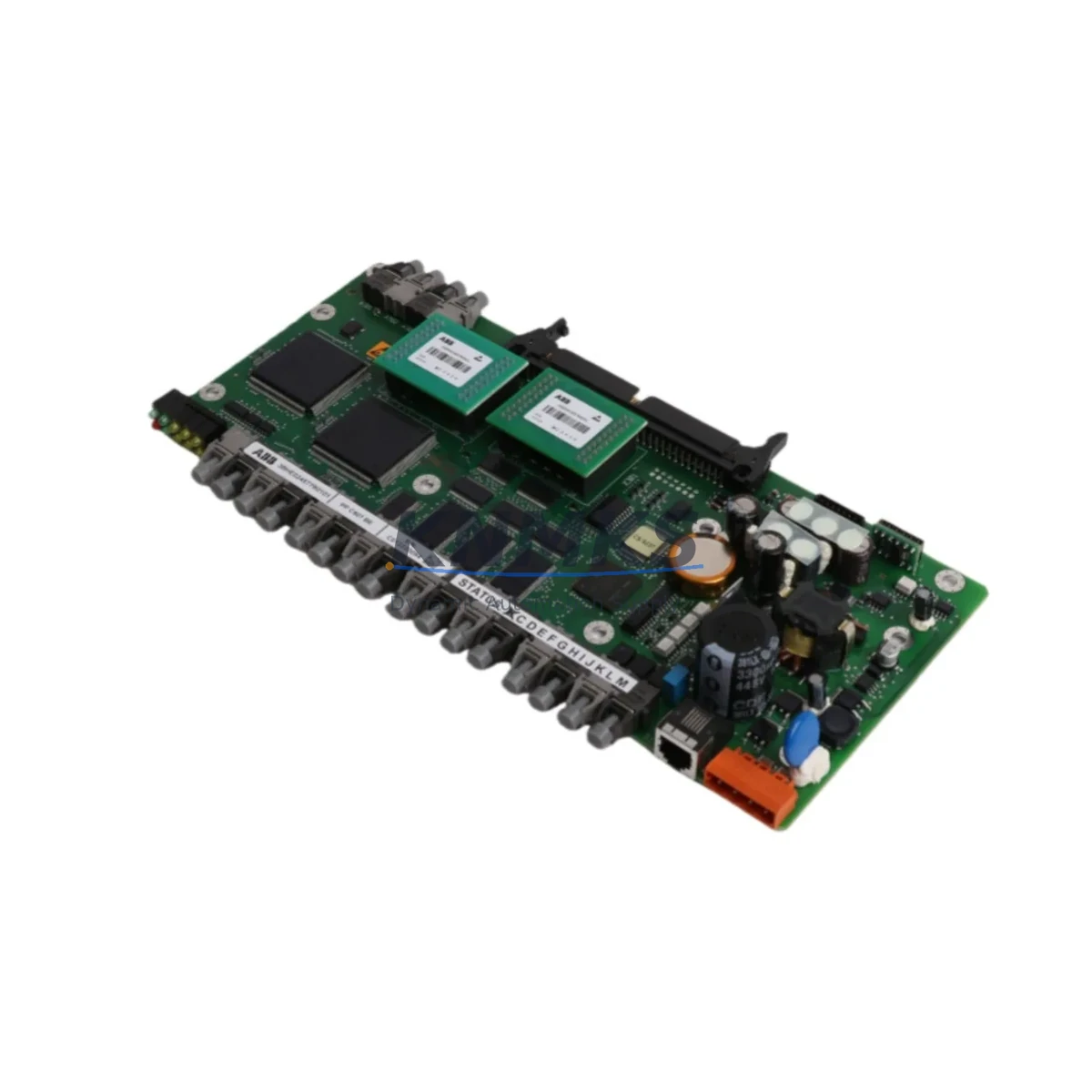

The ABB 3BHE024577R0101 PPC907BE is a Pulse-Pattern Controller (PPC) board engineered for ABB medium-voltage drive systems, specifically the ACS1000 and ACS6000 series. As the core firing-pattern generation unit within the drive’s control architecture, the PPC907BE governs IGCT or GTO switching sequences, directly determining motor torque accuracy, harmonic suppression, and drive stability under variable load conditions.

For maintenance engineers managing continuous production lines, cement kilns, compressor trains, or pump stations driven by ABB MV drives, an unplanned PPC board failure translates immediately into full drive shutdown. Stocking a verified 3BHE024577R0101 spare eliminates the multi-week lead time risk associated with factory-new procurement and restores operation within hours rather than days.

Every unit supplied by KNMKS is sourced from original ABB production, function-tested prior to shipment, and covered by a support terms confirmed by quotation. Packaging follows ESD-safe protocols with full traceability documentation to support your maintenance records and audit requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PPC907BE fault is logged — typically surfacing as drive trip codes related to firing-pulse errors, IGCT gate faults, or uncontrolled torque oscillation — the replacement workflow must extend beyond the board itself. A disciplined site inspection of the surrounding control architecture prevents repeat failures and confirms system integrity before restart.

Power supply integrity is the first checkpoint. The APBU-44C or equivalent gate-driver power supply feeding the IGCT branches should be measured for voltage stability; a degraded supply can stress the PPC board and cause premature failure of a replacement unit. Similarly, the AINT-02C or AINT-14C auxiliary interface boards that relay I/O signals between the PPC and the drive’s main control unit should be inspected for loose fiber-optic connectors and contamination on the optical ports.

Fiber-optic communication links between the PPC907BE and the RDCU-02C drive control unit are a common source of intermittent faults in aging ACS1000 installations. Inspect all POF (Plastic Optical Fiber) cables for bending radius violations, connector cleanliness, and signal attenuation. Replace any cables showing loss above the drive manufacturer’s threshold before commissioning the new PPC board.

On the I/O side, verify that the RAIO-01 analog I/O extension module and any RDIO-01 digital I/O modules in the control cabinet are free of corrosion on terminal blocks and that all 24 VDC logic supply rails are within tolerance. A marginal logic supply is frequently overlooked during emergency replacements and can cause erratic behavior in the newly installed controller.

For sites running the ACS6000 in a multi-drive configuration, the RDNA-01 DeviceNet adapter or RPBA-01 PROFIBUS adapter should be checked for communication health after the PPC swap, as drive topology changes can affect fieldbus node addressing. Confirm that the HMI panel — typically an ACS6000 CDP312R or equivalent operator panel — correctly reflects the new board’s firmware version and that parameter sets are restored from backup before enabling the drive.

Procurement engineers should treat the 3BHE024577R0101 as a critical-path spare: one unit on the shelf per drive system, with a replenishment trigger set at consumption. Given the 6–18 week factory lead time for new production, a stocked spare at KNMKS provides the fastest path to uptime recovery and eliminates spot-market risk during regional supply shortages.

Site Replacement Workflow

Step 1 — Safe Isolation: Follow ABB ACS1000/ACS6000 lockout-tagout procedure. Confirm DC bus discharge (typically >5 minutes after main contactor open) and verify zero voltage on the DC link capacitor bank before opening the control cabinet.

Step 2 — Document Current Configuration: Upload or photograph the existing PPC907BE board label, firmware sticker, and any jumper/DIP-switch settings. Back up drive parameters via the CDP panel or DriveWindow software before removal.

Step 3 — Board Removal: Disconnect fiber-optic cables first (label each port), then release the board retaining screws or backplane connector. Handle the replacement 3BHE024577R0101 with ESD wrist strap; avoid touching signal traces.

Step 4 — Installation and Firmware Check: Seat the new PPC907BE firmly into the backplane connector. Reconnect fiber-optic cables in the documented sequence. Power up the control section only and verify that the drive control unit recognizes the PPC board without fault codes. Confirm firmware compatibility — if a firmware update is required, apply it before enabling the power section.

Step 5 — Parameter Restore and Test Run: Restore the parameter backup. Run the drive at reduced load (10–25%) for a minimum of 15 minutes, monitoring for torque ripple, current asymmetry, or thermal alarms. Log the test results in the site maintenance record.

Step 6 — Return to Service and Spare Replenishment: Once the drive passes the test run, return to full production load. Immediately initiate a replenishment order for the consumed spare to maintain your minimum stock level.

Spare Parts Support FAQ

Q1: How do I confirm the 3BHE024577R0101 is compatible with my specific ACS1000 or ACS6000 drive revision?
Provide your drive serial number and software version (visible on the CDP panel or drive nameplate) when placing your order. KNMKS cross-references ABB revision matrices to confirm hardware and firmware compatibility before shipment. If a firmware update is required, we advise on the correct procedure.

Q2: What does the support terms confirmed by quotation cover, and what is the claim process?
The support terms covers manufacturing defects and functional failure under normal operating conditions for 12 months from the shipment date. To initiate a claim, contact admin@knmks.com with your order number, a description of the fault, and any drive fault codes observed. KNMKS will arrange return logistics and provide a replacement or repair within an agreed lead time.

Q3: Can KNMKS supply the PPC907BE on an ongoing basis for multi-site maintenance contracts?
Yes. KNMKS maintains standing inventory of high-demand ABB MV drive spare parts and can support blanket purchase orders, consignment stock arrangements, and scheduled annual replenishment programs. Contact our sales team to discuss volume pricing and long-term supply agreements.

Q4: Is the unit tested before shipment, and what documentation is included?
Every 3BHE024577R0101 PPC907BE unit undergoes functional verification prior to dispatch. Shipment includes a test confirmation label, ESD-safe packaging, and a packing list with traceability information. A certificate of conformity is available on request for sites requiring documented incoming inspection.
