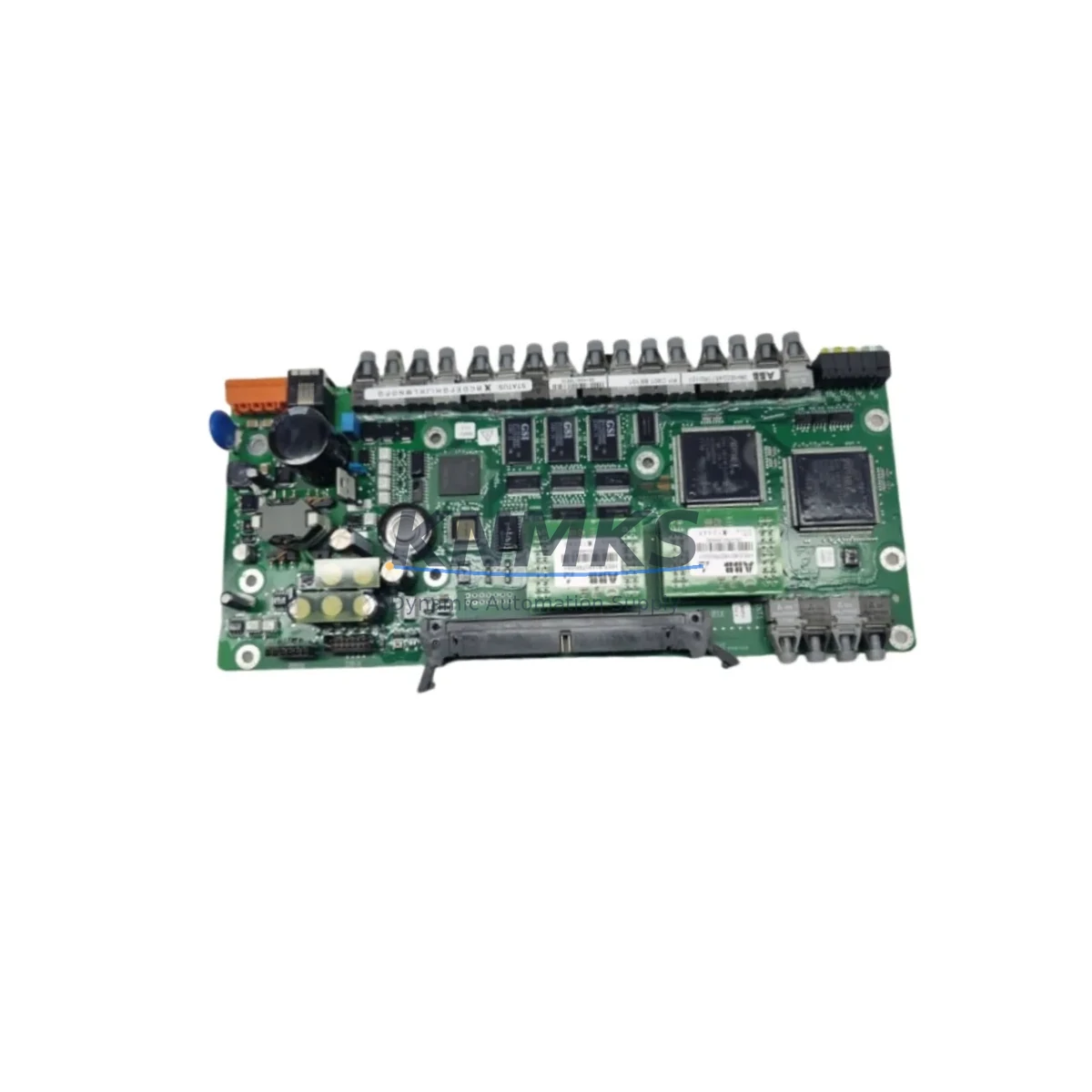

ABB 3BHE024577R0101 Migration-Ready Inverter Control Module for Legacy Control Systems

The ABB 3BHE024577R0101, also referenced as PPC907BE101, is a high-reliability inverter control module engineered for the ACS800 series medium-voltage drive platform. As ABB progressively phases out legacy ACS800 drive components, plant engineers and maintenance teams face increasing pressure to source verified replacement modules that maintain full compatibility with existing cabinet wiring, backplane interfaces, and DDCS fiber-optic communication links. This module serves as a direct migration-ready replacement, enabling facilities to extend the operational life of their ACS800 drive systems without committing to a full drive replacement or costly control system redesign.

Each 3BHE024577R0101 unit is sourced from verified supply channels, subjected to pre-shipment functional testing under simulated drive load conditions, and dispatched with a support terms confirmed by quotation covering component-level defects and operational failures. Stock is maintained across multiple regional warehouses to support emergency replacement timelines, with rapid global dispatch available for critical production environments.

When planning a retrofit around this module, engineers must verify the DDCS fiber-optic channel assignments on the existing RDCO-02C or RDCO-03C communication adapter boards, as channel mapping directly affects master-follower drive synchronization in multi-drive ACS800 configurations. The module’s backplane connector pinout is compatible with standard ACS800 R8i and R11i frame sizes, but installation teams should confirm the drive firmware version — particularly FLASH memory revision levels — before swapping the control board to avoid parameter set incompatibilities that can trigger fault codes F-0001 or F-0022 on first power-up.

Terminal wiring from the existing AINT-02C or AINT-11C interface boards typically carries over without modification, though teams working on older ACS800 installations with NAMC-11C or NAMC-03C control boards should cross-reference the I/O terminal mapping table in the ACS800 Firmware Manual (3AFE64527592) to confirm analog input scaling and digital output assignments remain consistent after the board swap. Where the original installation includes an NPBA-12 PROFIBUS adapter or NETA-21 remote monitoring tool, communication link re-initialization is required post-installation, and the drive’s node address and baud rate parameters must be re-entered via the CDP312R control panel or DriveWindow Light 2 software.

For facilities running ACS800 drives in tandem with ABB AC500 PLCs or Symphony Plus DCS controllers, the control module replacement workflow should include a full parameter backup using DriveWindow 2 prior to removal of the original board. This backup preserves motor model data, speed reference scaling, torque limit settings, and application macro configurations that would otherwise require full recommissioning. In multi-drive systems where the ACS800 operates alongside ACSM1 or ACS880 drives sharing a common DC bus, the replacement sequence must account for bus pre-charge timing and ensure the new control board’s firmware supports the existing bus voltage management logic.

Physical installation space within the ACS800 control cabinet should be confirmed before ordering, particularly in R5i and R6i frame configurations where auxiliary cooling fans and cable ducting may restrict access to the control board mounting slot. The 3BHE024577R0101 module dimensions conform to the standard ACS800 control board form factor, but technicians should verify that the existing mounting rail and locking clip assembly are undamaged before insertion. Torque specifications for the backplane connector retention screws should be observed to prevent intermittent contact faults during vibration-intensive applications such as pump, compressor, or crane drive installations.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the 3BHE024577R0101 requires a structured approach to component verification across the entire ACS800 drive cabinet. Before initiating the board swap, maintenance teams should audit the condition of the APOW-01C power supply board, which provides the +5V, +15V, and −15V rails to the control board. A degraded APOW-01C can cause erratic behavior in a newly installed control module and is frequently overlooked as a root cause during post-swap fault diagnosis. Similarly, the AINT-02C or AINT-11C interface board should be inspected for corrosion on the terminal strip connectors, particularly in installations exposed to high humidity or chemical vapor environments.

Where the ACS800 system includes an RDCO-02C DDCS communication adapter for master-follower synchronization, the fiber-optic cable routing should be documented before disassembly, as channel 1 and channel 2 assignments are not interchangeable and incorrect reconnection will prevent the follower drive from receiving speed reference signals from the master. In systems using an NPBA-12 PROFIBUS adapter, the GSD file version installed in the PLC engineering station (typically a Siemens S7-300 or ABB AC500) must be confirmed compatible with the drive’s firmware version to avoid cyclic data exchange errors after the control board replacement.

For facilities where the ACS800 drives are monitored via an NETA-21 remote monitoring tool or integrated into an ABB Ability™ Drive monitoring platform, the device registration and communication parameters stored in the NETA-21 will need to be refreshed after the board swap, as the new control board initializes with default communication settings. Teams should also verify that the CDP312R control panel — or its replacement, the ACS-AP-I assistant control panel — is compatible with the firmware version on the replacement board before relying on it for commissioning parameter entry.

Downtime Control During System Migration

Minimizing production downtime during an ACS800 control board replacement requires advance preparation that begins well before the maintenance window. The most critical step is a full parameter backup using DriveWindow 2 or DriveWindow Light 2, exported to a PC and stored in at least two locations. This backup file captures all motor model parameters, application macro settings, speed and torque reference scaling, fault history, and communication configuration — data that would require several hours of recommissioning to reconstruct manually if lost.

During the physical swap, the original control board should be removed with the drive fully de-energized and the DC bus discharged to below 50V as confirmed by a calibrated DC voltmeter — not assumed based on power-off time alone. The 3BHE024577R0101 replacement board should be handled with ESD precautions throughout, as the IGBT gate driver interface circuits on the control board are sensitive to electrostatic discharge. Once the new board is seated and the backplane connector is secured, the drive should be powered up in local control mode with the motor disconnected to verify that the control board initializes correctly and that no hardware fault codes are generated before reconnecting the load.

Parameter restoration from the DriveWindow backup should be performed before switching to remote or fieldbus control mode. After restoration, a no-load test run at low speed reference (5–10 Hz) confirms that the motor model data has been correctly applied and that the drive responds to speed reference changes without oscillation or fault trips. Only after a successful no-load test should the motor be reconnected and a loaded test run performed at incremental speed steps up to full operating speed. This staged commissioning approach typically limits total downtime to 2–4 hours for a straightforward board swap, compared to 8–16 hours for a full drive replacement.

Retrofit Support FAQ

Q: Is the 3BHE024577R0101 a direct drop-in replacement for the NAMC-11C control board in my ACS800?
A: The 3BHE024577R0101 (PPC907BE101) is designed as a compatible replacement for legacy ACS800 control boards including the NAMC-11C and NAMC-03C. However, firmware version compatibility must be verified before installation. We recommend confirming the drive’s existing firmware revision and comparing it against the replacement board’s supported firmware range. Our technical team can assist with compatibility verification prior to shipment.

Q: What pre-shipment testing is performed on each unit?
A: Every 3BHE024577R0101 unit undergoes functional load simulation testing, communication link verification across DDCS and fieldbus interfaces, and a parameter write/read test to confirm memory integrity. Units that do not pass all test criteria are not dispatched. A test report is available upon request for quality-critical applications.

Q: How do I handle PROFIBUS communication re-initialization after the board swap?
A: After installing the replacement control board, the NPBA-12 PROFIBUS adapter will require re-initialization. Power up the drive in local mode, navigate to the PROFIBUS parameter group (typically Group 51 in the ACS800 Standard Application Program), and re-enter the node address and baud rate settings. Cycle power to the NPBA-12 adapter after parameter entry. Verify cyclic data exchange with the PLC using the PROFIBUS diagnostic tool in your engineering software before returning the drive to automatic control.

Q: What support terms and stock availability can I expect?
A: The 3BHE024577R0101 is covered by a support terms confirmed by quotation from the date of dispatch, covering component-level defects and operational failures under normal operating conditions. Stock is maintained across multiple regional warehouses to support both planned maintenance schedules and emergency replacement requirements. Contact our sales team for current lead time and regional stock confirmation.
