ABB 3BHE023681R0101 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3BHE023681R0101 Maintenance-Proven Spare Part for Factory Uptime

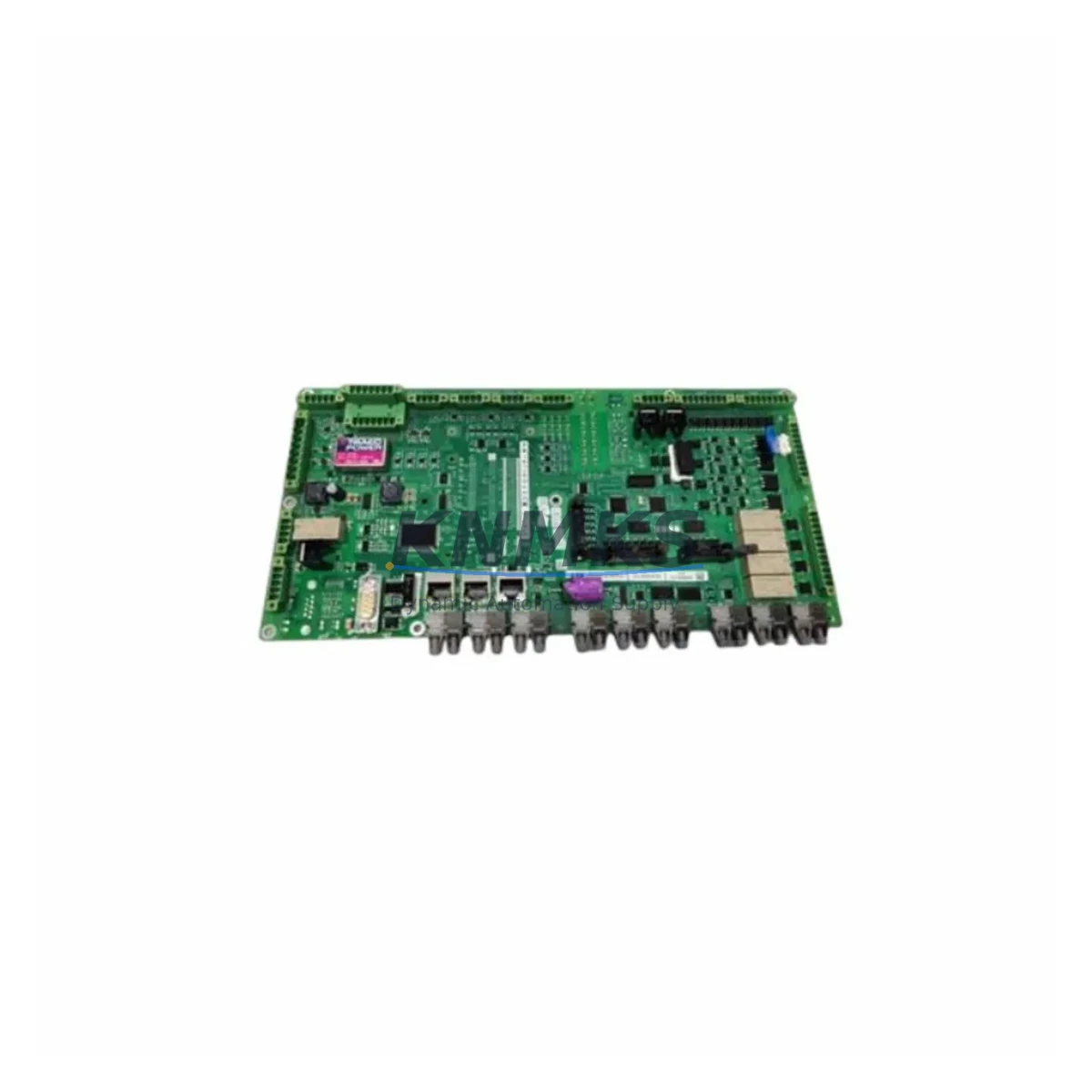

The ABB 3BHE023681R0101 (UCD224 A101) is a critical drive controller board used in ABB ACS6000 medium-voltage variable speed drives and AC800PEC control platforms. For maintenance engineers managing high-power drive systems in power generation, oil & gas, marine propulsion, and heavy process industries, this board represents a single point of failure that demands a pre-qualified spare on the shelf. Unplanned downtime caused by a failed UCD224 board can halt production lines, trip compressor trains, or disable propulsion systems — making rapid, verified replacement the only acceptable recovery path.

KNMKS stocks the 3BHE023681R0101 as a maintenance-ready spare: original ABB manufacture, pre-shipment tested, and backed by a support terms confirmed by quotation. Each unit is dispatched with full traceability documentation to support your maintenance records and audit requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 3BHE023681R0101 UCD224 board is flagged during routine drive diagnostics or triggers a fault shutdown, the replacement workflow extends beyond the board itself. A disciplined maintenance engineer will treat this event as a trigger for a broader cabinet inspection to prevent repeat failures and ensure the drive returns to full operational confidence.

Begin by verifying the integrity of the DDCS optical fiber cables connecting the UCD224 to the inverter and rectifier sections — degraded fiber links are a common root cause of intermittent UCD224 faults and will cause the replacement board to fault immediately if not addressed. Inspect the SDCS-CON-4 or equivalent converter control board in the same control rack, as shared power rail issues can stress multiple boards simultaneously.

Check the 24 VDC auxiliary power supply feeding the control electronics section of the ACS6000 cabinet. A sagging or noisy auxiliary supply is a frequent silent contributor to controller board failures. Verify fuse integrity on the control power distribution rail — blown or weakened control circuit fuses should be replaced as a matter of course during any board swap.

Inspect the I/O terminal blocks and signal wiring connected to the UCD224 for loose terminations, corrosion, or insulation breakdown, particularly in high-humidity or high-vibration environments. If the drive system interfaces with an AC800PEC controller via the DDCS backbone, verify the controller’s communication health and confirm that the replacement board firmware revision is compatible with the installed AC800PEC software version.

For drives integrated into DCS environments via PROFIBUS or Modbus RTU communication modules, confirm that the fieldbus adapter (e.g., RPBA-01 or RMBA-01) is seated correctly and that the communication parameters are retained after the board replacement. Finally, review the ACS6000 panel HMI for any latched fault history that may indicate pre-existing stress on the drive system prior to the UCD224 failure — clearing faults without root-cause analysis risks repeat failures within the next maintenance cycle.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Confirm MV supply is isolated and the DC bus is fully discharged before opening the ACS6000 cabinet. Verify zero-energy state with an approved voltage tester.

Step 2 — Documentation: Photograph the existing board orientation, optical fiber routing, and connector positions before disconnection. Record the existing firmware version from the drive HMI or nameplate if accessible.

Step 3 — Board Removal: Disconnect DDCS optical fiber connectors carefully — do not bend fiber below minimum bend radius. Remove the UCD224 board from the backplane using the extraction handles. Place the removed board in an ESD-safe bag for return or failure analysis.

Step 4 — Replacement Installation: Seat the 3BHE023681R0101 replacement board firmly into the backplane connector. Reconnect all optical fiber links in the correct sequence per the ACS6000 wiring diagram. Verify all connectors are fully engaged.

Step 5 — Parameter Verification: Power up the control section only. Confirm the drive recognizes the new board and that no immediate fault codes are generated. Verify drive parameters are intact — if parameters were stored on the AC800PEC or an external backup, restore them before full power-up.

Step 6 — Commissioning Check: Perform a no-load test run before returning the drive to full production load. Monitor drive diagnostics for the first 30 minutes of operation to confirm stable control loop behavior.

This workflow minimizes downtime, preserves system compatibility, and ensures the replacement is validated before the production line is returned to full capacity.

Spare Parts Support FAQ

Q1: Is the 3BHE023681R0101 an original ABB part or a third-party replacement?
The unit supplied by KNMKS is original ABB manufacture — not a clone or third-party equivalent. Each board is sourced through verified supply channels and undergoes pre-shipment functional testing before dispatch. A support terms confirmed by quotation is included with every unit.

Q2: How do I confirm compatibility with my specific ACS6000 drive revision?
The UCD224 A101 (3BHE023681R0101) is designed for the ABB ACS6000 medium-voltage drive platform and AC800PEC control system. To confirm compatibility with your specific drive revision and firmware version, provide your drive nameplate data and existing board revision to our technical team at admin@knmks.com before ordering. We will cross-reference against known compatible configurations.

Q3: What is your lead time and do you hold stock for emergency dispatch?
KNMKS maintains multi-region stock of the 3BHE023681R0101 to support emergency replacement scenarios. Standard dispatch is within 1–3 business days. For critical shutdowns, contact us directly at +86 18359268345 to confirm real-time stock availability and expedited shipping options.

Q4: Can I establish a long-term supply agreement for this part?
Yes. KNMKS supports long-term supply agreements and blanket purchase orders for maintenance-critical ABB spare parts including the 3BHE023681R0101. A standing stock arrangement ensures priority allocation, fixed pricing, and guaranteed availability for your scheduled outages and annual maintenance programs. Contact admin@knmks.com to discuss terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE023681R0101

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 3BHE023681R0101
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
