ABB 3BHE015541R0002 Migration-Ready Inverter Adaptor

Overview

ABB 3BHE015541R0002 Migration-Ready Inverter Adaptor: Legacy Drive System Upgrade & Retrofit Solution

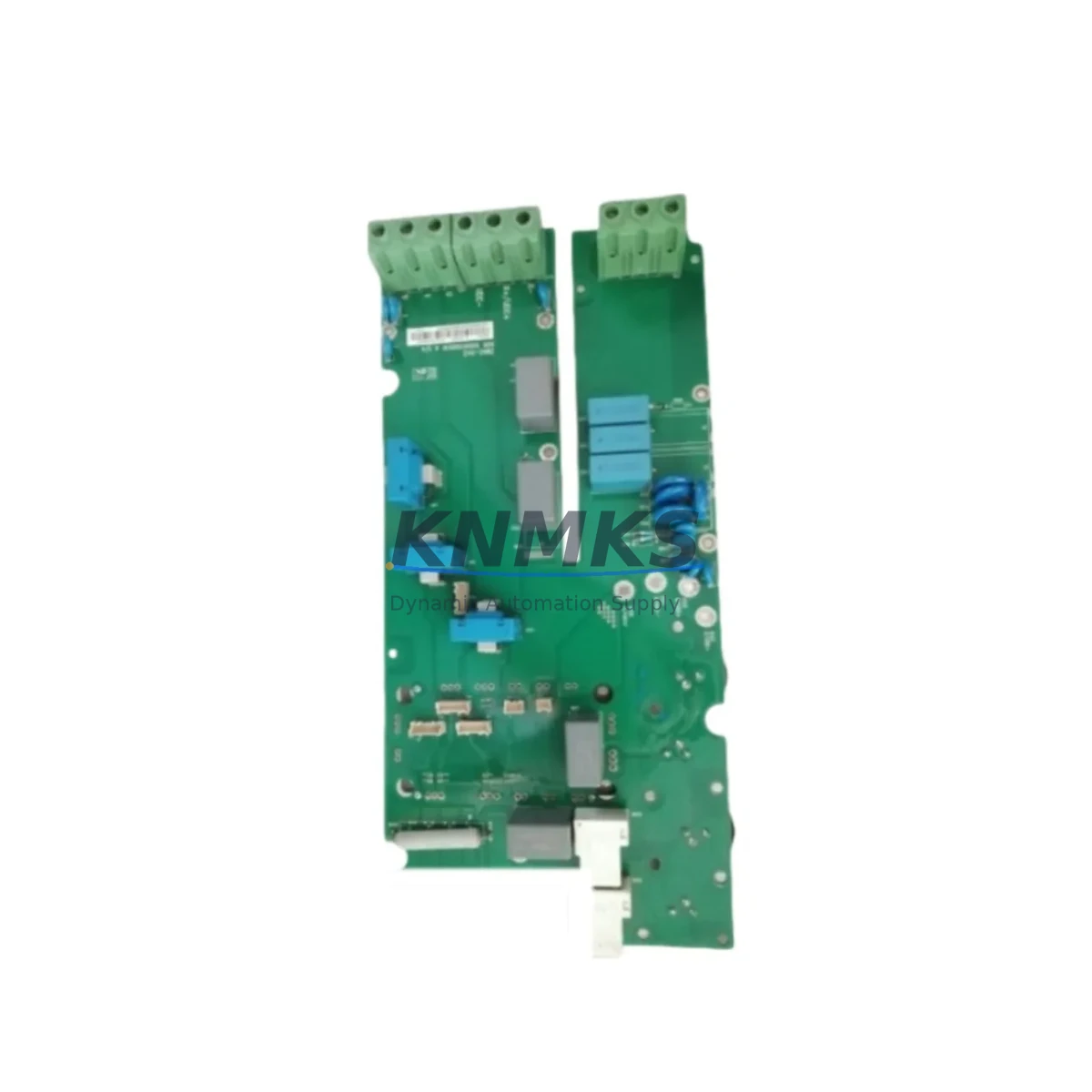

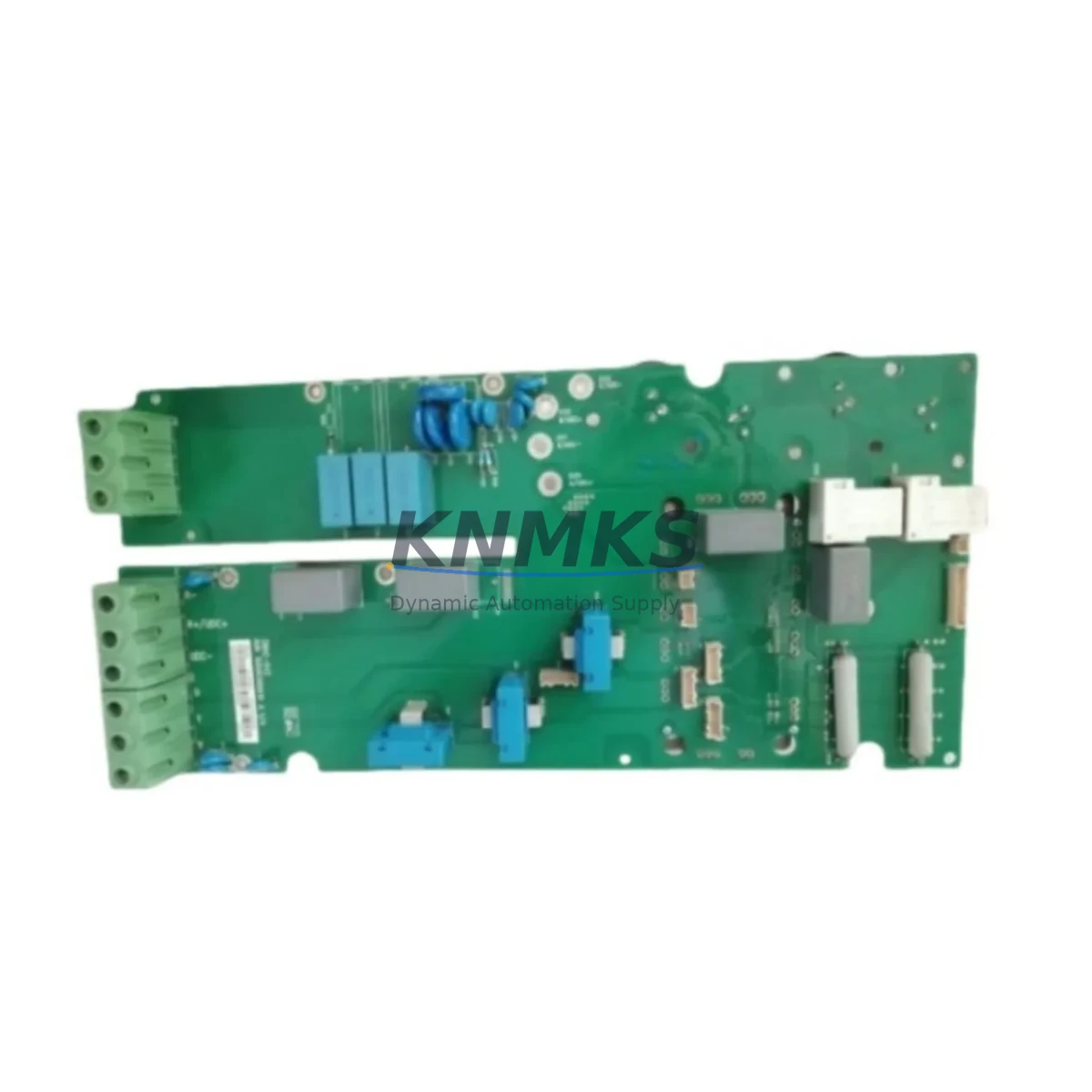

The ABB 3BHE015541R0002 is a migration-ready inverter adaptor board engineered for direct replacement and retrofit integration within ABB ACS and DCS drive platforms. As legacy drive systems approach end-of-life and OEM support windows close, the 3BHE015541R0002 provides a verified, drop-in compatible solution that preserves existing control architecture while enabling a controlled, low-risk transition to modernized drive operation. This board is sourced from authorized supply channels, fully tested prior to shipment, and backed by a support terms confirmed by quotation — making it a reliable choice for maintenance engineers managing critical production continuity.

Whether you are replacing a failed adaptor in an emergency shutdown scenario or executing a planned drive cabinet upgrade, the 3BHE015541R0002 is designed to minimize engineering rework. Its interface geometry, connector pinout, and signal routing are compatible with the original ACS/DCS backplane slot, allowing technicians to complete the swap without modifying existing wiring harnesses or drive enclosure mounting hardware. For sites running ABB ACS800 or ACS600 series drives, this board is a recognized replacement path that avoids the cost and lead time associated with full drive replacement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB 3BHE015541R0002 into an existing drive system requires a structured pre-installation review. Before removing the failed board, engineers should document the current drive parameter set using the ABB DriveWindow or DriveStudio software tool, or retrieve the parameter backup stored in the ACS800 control panel (such as the ACS-CP-C or CDP312R control panel). This ensures that motor control parameters, speed references, torque limits, and I/O configurations can be restored immediately after the board swap without requiring a full recommissioning cycle.

On the hardware side, confirm that the drive cabinet’s DC bus capacitors are fully discharged before handling the adaptor board — this is a mandatory safety step for all ACS and DCS series drive maintenance. Inspect the backplane connector on the drive chassis for pin damage or oxidation, particularly on sites with high ambient humidity or chemical exposure. If the drive is part of a multi-drive system using an NDBU-95C or NDBU-12C DDCS branching unit, verify that the fiber-optic channel assignment for this drive node remains unchanged after the board replacement, as channel mismatches will prevent the drive from responding to master controller commands.

For sites where the 3BHE015541R0002 is being installed as part of a broader control cabinet upgrade — for example, migrating from a legacy DCS800 thyristor drive to a modern ACS880 inverter platform — additional planning is required. The AINT-02C or AINT-14C inverter module interface boards, the APBU-44C pulse encoder interface, and the RDCO-03C DDCS communication adapter are commonly involved in such migration projects and should be reviewed for compatibility with the new drive platform before the cutover date. In parallel, the RMIO-11C motor control board and associated I/O terminal blocks should be mapped against the new drive’s I/O list to confirm signal-level compatibility and avoid analog scaling errors during the first test run.

Where the existing system includes an ABB AC500 or AC800M PLC as the supervisory controller, confirm that the drive’s fieldbus adapter — typically an FPBA-01 PROFIBUS adapter or FENA-21 Ethernet/IP adapter — is correctly configured for the new board’s node address and baud rate settings. Mismatched fieldbus parameters are a leading cause of extended commissioning delays during drive retrofit projects and should be validated in a bench test environment before the scheduled maintenance window.

Downtime Control During System Migration

Minimizing production downtime during an inverter adaptor board replacement requires advance preparation that begins well before the maintenance window opens. The most effective approach is to pre-stage the 3BHE015541R0002 on-site with a full parameter backup already loaded and verified against the drive’s current configuration. This allows the physical swap to proceed as a straightforward hardware exchange rather than a full recommissioning event, reducing the critical-path duration from several hours to under 30 minutes in most cases.

Where the drive controls a process-critical load — such as a main mill motor, compressor, pump, or conveyor — coordinate the replacement with the process control team to confirm that the DCS or SCADA system (for example, an ABB System 800xA or Freelance 2000 platform) has the drive in manual bypass or safe-state before isolation. If the drive is part of a redundant pair, switch the load to the standby drive before beginning work, and confirm that the standby drive’s control logic and speed reference are correctly matched to the process setpoint.

After installing the 3BHE015541R0002, perform a controlled no-load test run before reconnecting the motor load. Verify DC bus voltage, gate drive signal waveforms, and DDCS fiber-optic link status using the drive’s diagnostic panel or DriveWindow monitoring software. Restore the parameter backup and confirm that all fault history has been cleared. Only after a clean no-load test should the motor load be reconnected and the drive returned to automatic control from the supervisory system. This staged return-to-service protocol protects both the new board and the connected mechanical equipment from damage caused by undetected configuration errors.

Retrofit Support FAQ

Q1: Is the ABB 3BHE015541R0002 a direct replacement for the original inverter adaptor board in ACS800 and DCS800 drives?
Yes. The 3BHE015541R0002 is designed as a form-fit-function replacement for the original adaptor board in compatible ACS and DCS series drives. In most installations, the board can be swapped without modifying existing wiring, drive parameters, or enclosure hardware. We recommend confirming the drive firmware version and backplane connector condition before installation.

Q2: What pre-shipment testing is performed on the 3BHE015541R0002?
Each unit undergoes functional testing prior to dispatch, including gate signal output verification, power supply rail checks, and communication interface validation. Units are shipped with anti-static packaging and include a test record. All units are covered by a support terms confirmed by quotation against manufacturing defects and functional failure under normal operating conditions.

Q3: How do I confirm wiring and terminal compatibility before installation?
Refer to the ABB ACS800 Hardware Manual (3AFE64527592) or the DCS800 Hardware Manual (3ADW000379) for the backplane connector pinout and terminal assignment diagrams. Compare the connector layout of the 3BHE015541R0002 against the original board’s position in the drive chassis. If you require technical documentation support, contact our sales team before placing your order.

Q4: What is your stock availability and lead time for the 3BHE015541R0002?
We maintain regional warehouse stock of the 3BHE015541R0002 to support emergency replacement and planned maintenance schedules. Standard orders ship within 3–5 business days. For urgent requirements, expedited dispatch is available — contact us directly to confirm current inventory levels and delivery timeline for your location.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE015541R0002

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB 3BHE015541R0002
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
