ABB 3BHE013854R0002 Migration-Ready Gate Drive for ACS6000

Overview

ABB 3BHE013854R0002 Migration-Ready Gate Drive for ACS6000: Legacy System Migration and Compatible Upgrade

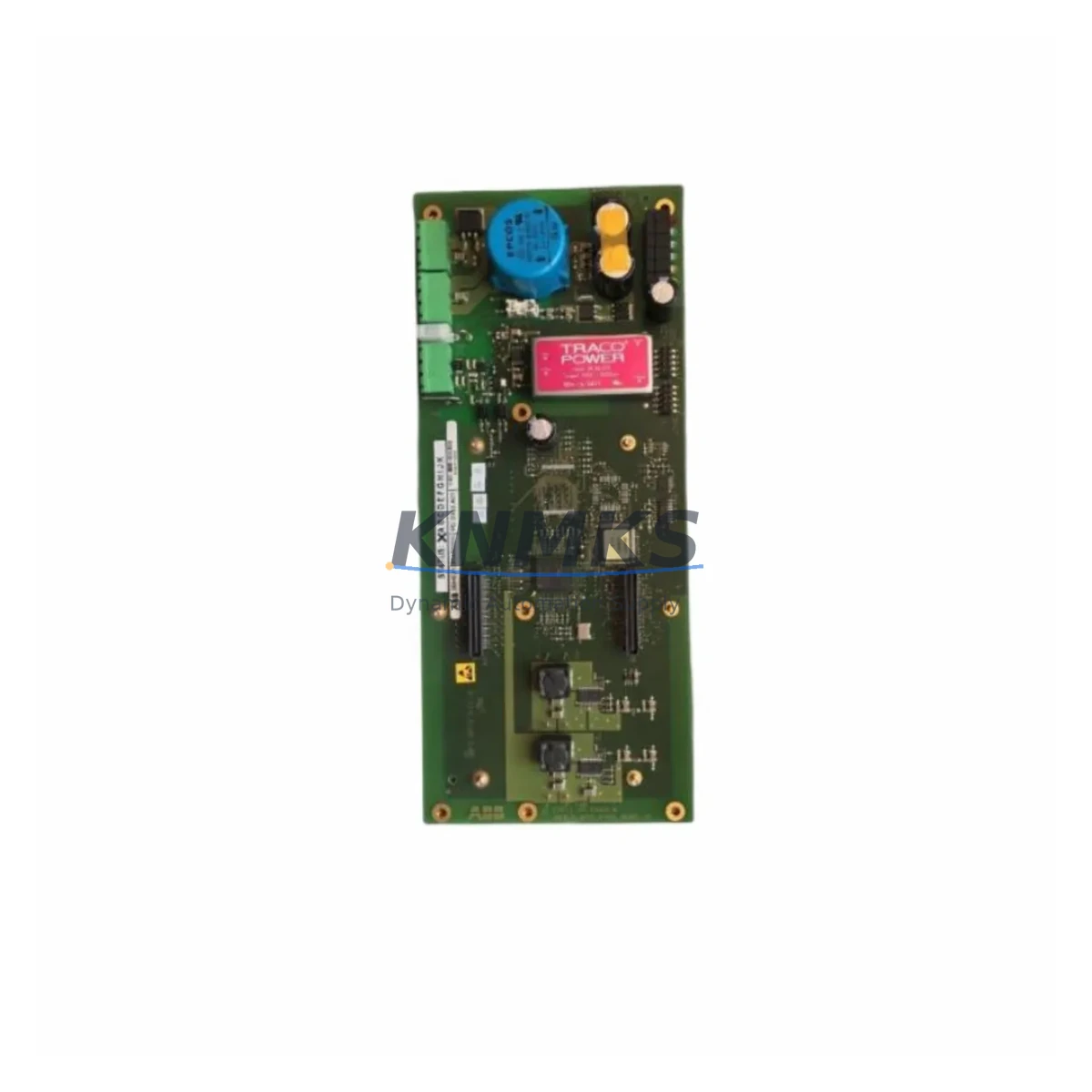

The ABB 3BHE013854R0002 (PDD163 A02) is an IGBT gate drive board engineered for the ACS6000 medium-voltage drive platform. As industrial facilities face the end-of-life of legacy drive systems and the discontinuation of original spare parts, this module provides a verified, migration-ready replacement path that preserves existing control architecture while restoring full drive functionality. Whether you are managing a planned retrofit, responding to an unplanned failure, or extending the operational life of an aging control cabinet, the 3BHE013854R0002 is a direct-fit solution backed by pre-shipment functional testing and a support terms confirmed by quotation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB 3BHE013854R0002 into an existing ACS6000 installation requires systematic pre-retrofit planning. Before removing the failed gate drive board, engineers should back up the full drive parameter set using the ABB DriveWindow or CDP control panel, ensuring that motor control parameters, speed references, and protection thresholds are preserved for restoration after the swap.

The ACS6000 inverter section relies on a coordinated assembly of components. The gate drive board interfaces directly with the IGBT power module stack, and any mismatch in gate signal timing can result in shoot-through faults or incomplete commutation. Prior to installation, verify that the IGBT modules themselves — such as the associated ABB 3BHE009681R0001 or equivalent inverter phase module — are in serviceable condition. Replacing the gate drive board on a degraded IGBT stack will not restore full drive performance and may result in repeat failures.

The ACS6000 control architecture also depends on the DDCS fiber-optic communication chain connecting the AMC (Adaptive Motor Control) board to the inverter section. During retrofit, inspect the fiber-optic cables and connectors for contamination or mechanical damage. The NAMC-11 or NAMC-51 control board, which manages the overall drive control loop, must remain powered and in a known state during the gate drive replacement to avoid parameter corruption.

For facilities upgrading from earlier ACS6000 hardware revisions, confirm that the replacement 3BHE013854R0002 revision level is compatible with the installed firmware. In some multi-drive configurations, the I/O extension modules — such as the NDIO-01 digital I/O adapter — may need to be re-addressed after a drive restart following the gate drive replacement. Similarly, if the installation includes an NPBA-12 PROFIBUS adapter or NETA-21 remote monitoring unit, verify that communication links are re-established and that the HMI display (such as the CDP312R control panel) correctly reflects drive status after commissioning.

Terminal wiring to the gate drive board should be documented photographically before disconnection. Confirm that all signal connectors are fully seated and that locking clips are engaged after installation. Torque specifications for power terminals must be observed to prevent contact resistance issues under load.

Downtime Control During System Migration

Minimizing production downtime during an ACS6000 gate drive replacement requires advance preparation. Before scheduling the maintenance window, ensure that the replacement 3BHE013854R0002 unit has been received, inspected, and confirmed functional through pre-shipment test documentation. Having the replacement module on-site before initiating the shutdown eliminates the risk of extended outages caused by logistics delays.

Prior to de-energizing the drive, perform a full parameter backup and document the current fault history log. This baseline record is essential for post-commissioning comparison and for identifying any pre-existing issues in the drive system that may have contributed to the gate drive failure. After installation, the ACS6000 self-diagnostic routine should be run in full before returning the drive to automatic control mode.

Where process continuity is critical, coordinate the gate drive replacement with the plant control system to ensure that upstream and downstream equipment — including associated PLCs, SCADA systems, and interlocked conveyors or pumps — are placed in a safe hold state before the drive is isolated. This prevents process upsets and protects personnel during the maintenance window. After the drive is returned to service, monitor IGBT junction temperature readings and gate drive fault outputs during the first hours of operation to confirm stable performance before returning to full production load.

All units supplied are pre-tested prior to shipment. In-stock inventory is available for immediate dispatch, supporting rapid response to unplanned failures. support terms confirmed by quotation coverage applies from the date of shipment.

Retrofit Support FAQ

Q: Is the ABB 3BHE013854R0002 a direct replacement for the original unit in my ACS6000?
A: Yes. The 3BHE013854R0002 PDD163 A02 is a direct plug-in replacement for the same part number in the ACS6000 inverter section. No mechanical modification is required. Confirm firmware revision compatibility with your installed ACS6000 software version before installation.

Q: What pre-installation checks are required before fitting the replacement gate drive board?
A: Verify the condition of the IGBT power modules in the inverter stack, inspect fiber-optic DDCS links for contamination, confirm 24 VDC auxiliary supply integrity, and back up all drive parameters. Document terminal wiring before disconnection.

Q: How is the unit tested before shipment?
A: Each 3BHE013854R0002 unit undergoes functional testing prior to dispatch. Test records are available upon request. Units are packaged in anti-static, shock-protected packaging to prevent transit damage.

Q: What support terms and supply support is available?
A: All units are covered by a support terms confirmed by quotation from the date of shipment. In-stock inventory is maintained for immediate dispatch. For volume requirements or urgent orders, contact our technical sales team directly.
