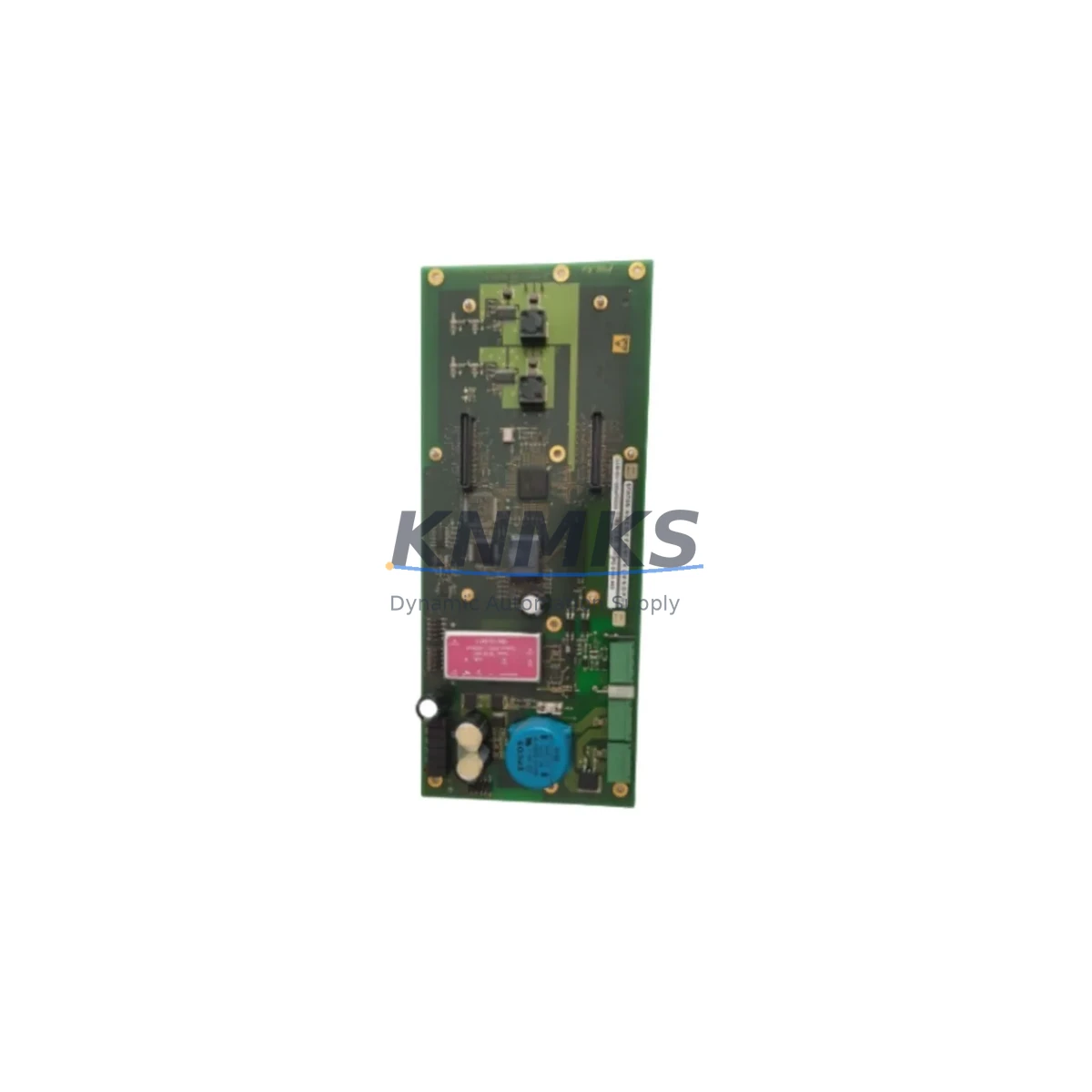

ABB 3BHE013854R0001 PDD163A01 Fail-Safe Power Drive Board

Overview

ABB 3BHE013854R0001 PDD163A01 Fail-Safe Power Drive Board for Industrial Control Reliability

The ABB 3BHE013854R0001 PDD163A01 is an original power drive board engineered for fail-safe operation within ABB’s high-voltage AC drive platforms, including the ACS1000 and ACS6000 series. Designed to meet the demanding requirements of continuous industrial production environments, this board serves as a critical interface between the drive control system and the power switching stage, ensuring precise gate signal delivery, robust surge protection, and stable operation under high electromagnetic interference (EMI), thermal stress, and mechanical vibration.

In critical industrial facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, and continuous process manufacturing — unplanned drive downtime carries severe operational and financial consequences. The PDD163A01 power drive board is a key reliability component: its failure directly impacts motor control continuity, process loop stability, and safety interlock integrity. Maintaining a verified original spare on-site is a fundamental element of any responsible maintenance strategy for HV drive systems.

Every unit supplied by KNMKS undergoes pre-shipment functional testing and visual inspection. All boards are sourced as original ABB components, backed by a support terms confirmed by quotation, and supported by long-term inventory availability for ongoing maintenance programs.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

When replacing the 3BHE013854R0001 PDD163A01 in an ACS1000 or ACS6000 drive cabinet, a thorough inspection of the surrounding power and control architecture is essential to prevent repeat failures and ensure system-wide reliability. Maintenance engineers should simultaneously verify the condition of the ABB SDCS-CON-4 control board, which manages the drive’s closed-loop regulation and communicates directly with the power drive stage. Any degradation in the control board’s signal output can cause premature stress on the replacement PDD163A01.

The ABB AINT-02C optical interface board should also be inspected, as it carries fiber-optic gate signals between the control and power sections — a compromised optical link is a common root cause of power drive board faults. Additionally, the ABB APBU-44C pulse encoder interface unit and associated fiber cables should be checked for continuity and signal integrity before commissioning the replacement board.

On the power supply side, verify the auxiliary 24 VDC SMPS (switched-mode power supply) feeding the drive’s control electronics, as voltage ripple or dropout events are a leading cause of gate drive board instability. Inspect the DC bus capacitor bank for capacitance drift and ESR degradation — a weakened capacitor bank increases voltage transients that directly stress the PDD163A01. Finally, review the main contactor and pre-charge circuit for contact wear, as irregular inrush events during startup can impose abnormal electrical stress on the power drive board during each energization cycle.

Critical Industrial Safety Applications

The ABB 3BHE013854R0001 PDD163A01 is deployed across a wide range of critical industrial sectors where high-voltage drive reliability is non-negotiable:

Petrochemical & Refining: HV drives controlling compressors, pumps, and blowers in hazardous-area classified zones depend on fail-safe power drive boards to maintain process continuity and prevent uncontrolled shutdowns that could trigger safety system activations.

Power Generation & Utilities: In coal, gas, hydro, and renewable power plants, ACS1000/ACS6000 drives manage boiler feed pumps, cooling water systems, and induced draft fans. A failed power drive board in these applications can force load reduction or unit trip events with grid-level consequences.

Mining & Mineral Processing: Conveyor drives, mill drives, and hoisting systems in underground and open-pit mining environments operate under extreme vibration, dust ingress, and thermal cycling — conditions that accelerate wear on drive electronics and make verified original spare boards essential.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on variable-speed pump drives for energy-efficient flow control. Unplanned drive outages in these facilities can disrupt treatment processes and regulatory compliance.

Metallurgy & Steel: Rolling mills, ladle furnaces, and continuous casting lines use HV drives for precise speed and torque control. The PDD163A01 ensures gate signal integrity under the severe EMI generated by high-current induction furnaces and bus systems.

Port & Marine: Ship propulsion systems and port crane drives utilizing ABB ACS6000 platforms require long-term spare parts availability given the remote and mission-critical nature of these installations.

Safety and Quality FAQ

Q1: What support terms is provided with the ABB 3BHE013854R0001 PDD163A01?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. KNMKS provides replacement or repair support within the confirmed support period.

Q2: How is each board tested before shipment?
Every 3BHE013854R0001 PDD163A01 undergoes pre-shipment inspection including visual examination for component damage, solder joint integrity checks, and functional verification where test equipment is applicable. Boards are packaged in anti-static, shock-protected materials to prevent transit damage.

Q3: Is this board compatible with both ACS1000 and ACS6000 drive platforms?
The PDD163A01 designation is associated with ABB’s high-voltage drive power stage architecture used across the ACS1000 and ACS6000 series. Compatibility should be confirmed against your specific drive serial number and hardware revision. KNMKS technical support can assist with cross-referencing your drive’s BOM to confirm fitment before purchase.

Q4: Can KNMKS support long-term or multi-unit procurement for maintenance programs?
Yes. KNMKS maintains inventory for ongoing spare parts programs and can support annual procurement agreements, multi-site supply, and priority allocation for critical infrastructure operators. Contact admin@knmks.com to discuss volume pricing and reserved stock arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE013854R0001 PDD163A01

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB 3BHE013854R0001 PDD163A01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
