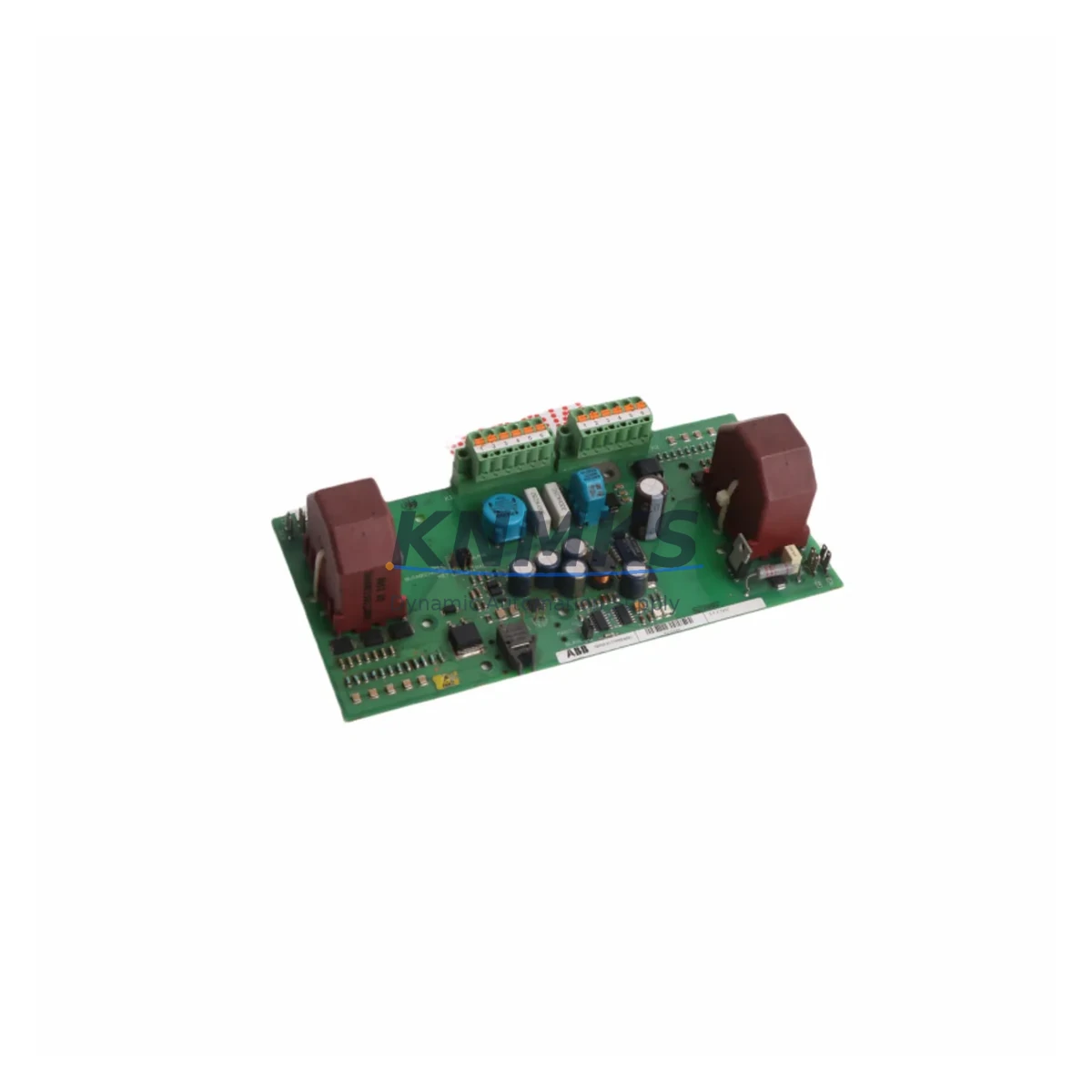

ABB 3BHE013299R0001 LTC743C Migration-Ready DC PSU

Overview

ABB 3BHE013299R0001 LTC743C Migration-Ready DC PSU for Legacy Control Systems

The ABB 3BHE013299R0001 LTC743C is a redundant DC power supply module engineered for the ABB AC800M Distributed Control System (DCS) platform. As legacy AC800M installations approach end-of-support milestones and original spare inventories are depleted, this module serves as the critical power backbone for control cabinet upgrades, panel retrofits, and system life extension programs. Whether you are replacing a failed unit on an active production line or pre-positioning inventory for a planned shutdown, the LTC743C delivers the electrical stability and form-factor compatibility required for seamless integration into existing AC800M racks and enclosures.

Before initiating a replacement, engineers must verify several key parameters: confirm the DC bus voltage rating (typically 24 VDC) and current capacity against the total load of connected I/O modules and communication cards; inspect the backplane connector alignment and terminal block pitch to ensure mechanical compatibility with the existing PM865, PM866, or PM891 controller modules sharing the same rack; and validate that the firmware revision of the replacement unit is consistent with the site’s AC800M software baseline to avoid initialization errors during cold-start commissioning. Where redundant PSU pairs are deployed, both units should ideally be replaced simultaneously to eliminate firmware mismatch risks and ensure synchronized load-sharing behavior.

During cabinet-level upgrades, the 3BHE013299R0001 is frequently installed alongside the ABB SD821 power supply and TB820 Modulebus Modem to maintain Modulebus communication integrity across the rack. In multi-rack configurations, the CI854 PROFIBUS DP interface module and CI857 FOUNDATION Fieldbus HSE module must remain powered continuously during PSU hot-swap procedures to prevent fieldbus segment dropouts. For installations where the AC800M controller interfaces with legacy S800 I/O clusters, confirming that the replacement PSU supports the full current draw of the AI810 analog input module and DO810 digital output module arrays is essential before energizing the upgraded cabinet.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful AC800M power supply retrofit begins with a thorough audit of the existing control cabinet. Document the current PSU slot assignments, verify the total connected load across all installed modules, and cross-reference the backplane revision to confirm mechanical fit. In systems where the ABB TB820 Modulebus Modem is installed in the same rack, the Modulebus segment must remain active during the PSU changeover to prevent loss of I/O communication to downstream S800 clusters. If the site uses a CI854 PROFIBUS DP interface for field device communication, coordinate the PSU replacement with the PROFIBUS master scan cycle to minimize token-passing interruptions.

For control cabinets that also house ABB SD821 or SD822 power supply units in a redundant pair configuration, the replacement sequence should follow the manufacturer’s hot-swap procedure: insert the new 3BHE013299R0001 into the standby slot, confirm LED status indicators show correct initialization, then transfer load before removing the legacy unit. In installations where the AC800M rack shares enclosure space with AI810 analog input modules or DO810 digital output modules, verify that the replacement PSU’s current headroom accommodates the full I/O load plus a 20% safety margin. Address terminal block wiring carefully — confirm wire gauge compatibility and re-torque all connections to specification after installation to prevent intermittent contact faults under vibration.

Where the retrofit scope extends to communication protocol migration — for example, transitioning from legacy Modulebus to PROFIBUS DP or FOUNDATION Fieldbus — the PSU replacement is typically the first step in a phased upgrade that subsequently addresses the CI857 HSE module and associated fieldbus segment reconfiguration. Planning the PSU swap as part of a broader migration roadmap reduces total downtime by consolidating cabinet access events and minimizing the number of planned shutdowns required.

Downtime Control During System Migration

Minimizing unplanned downtime during an AC800M power supply replacement requires pre-staging all replacement components, verifying firmware compatibility offline, and preparing a rollback plan before the maintenance window opens. Begin by downloading and archiving the current AC800M application program and hardware configuration using ABB Control Builder M — this preserves the original logic, I/O mapping, and communication parameters in the event that a configuration restore is required after the PSU swap.

During the replacement window, maintain field control continuity by confirming that any redundant controller pair (e.g., PM865 primary and standby) remains in synchronization throughout the PSU changeover. If the system does not support hot-swap at the PSU level, coordinate with operations to place the affected control loop in manual mode at the DCS operator station before de-energizing the rack. After installing the 3BHE013299R0001, perform a structured commissioning sequence: power-on self-test verification, bus voltage measurement at the backplane test points, I/O module status check via the AC800M diagnostic display, and a full communication link verification across all connected fieldbus segments. Document all measured values against the pre-retrofit baseline to confirm system integrity before returning the loop to automatic control.

For sites with strict change management requirements, the pre-shipment functional test report supplied with each unit provides documented evidence of module performance prior to installation — supporting both internal approval workflows and third-party audit requirements. All units are covered by a support terms confirmed by quotation from the date of shipment, providing assurance throughout the commissioning and initial operating period.

Retrofit Support FAQ

Q1: Is the 3BHE013299R0001 LTC743C a direct drop-in replacement for the original ABB AC800M power supply?
A: Yes, the LTC743C is designed as a form-fit-function replacement for the original AC800M redundant DC PSU slot. Verify the rack backplane revision and confirm the output voltage rating matches your site specification before installation. No hardware modification to the rack or backplane is required for standard replacement scenarios.

Q2: What commissioning steps are required after installing the replacement PSU?
A: After physical installation, perform a power-on self-test and verify the green status LED sequence on the module front panel. Measure DC bus voltage at the backplane test points and confirm it is within the specified tolerance. Check all I/O module status indicators via the AC800M diagnostic interface and verify that all fieldbus communication links (PROFIBUS DP, Modulebus, or FOUNDATION Fieldbus as applicable) have re-established correctly before returning the system to automatic operation.

Q3: Can this unit be used in a redundant PSU pair configuration with a different firmware revision?
A: It is strongly recommended to match firmware revisions across both units in a redundant pair to ensure synchronized load-sharing and consistent fault-detection behavior. If firmware versions differ, consult the ABB AC800M hardware documentation for the supported firmware compatibility matrix before energizing the redundant pair.

Q4: What support terms and pre-shipment testing does KNMKS provide?
A: Every 3BHE013299R0001 LTC743C unit shipped by KNMKS undergoes functional pre-shipment testing to verify output voltage, load regulation, and module initialization. A support terms confirmed by quotation is provided from the date of shipment. In-stock units are available for immediate dispatch to support urgent replacement and planned maintenance schedules globally.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE013299R0001 LTC743C
AC800M Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: ABB 3BHE013299R0001 LTC743C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
