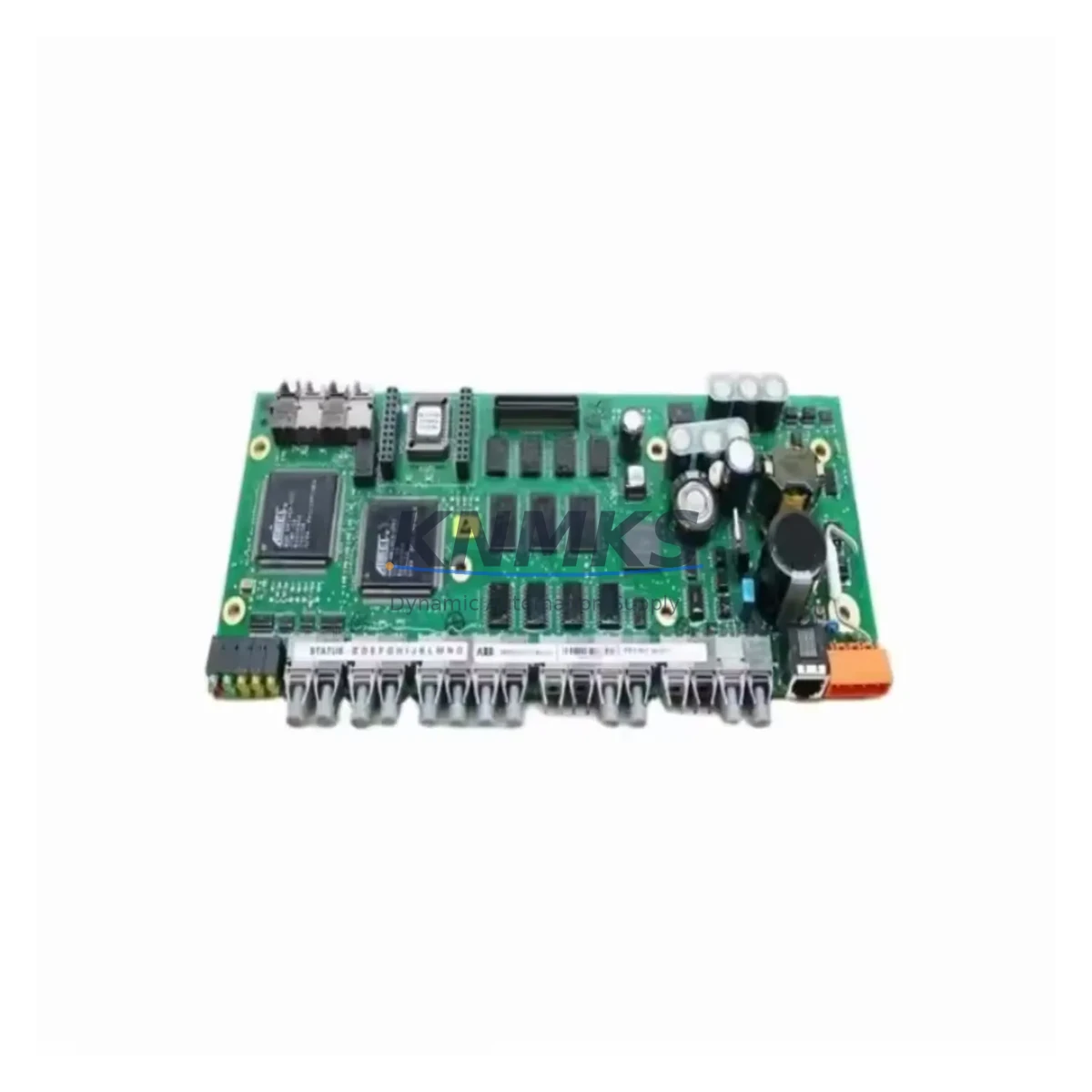

The ABB C902 AE101 3BHE010751R0101 is the core drive control board for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families across pulp and paper, metals, marine, oil and gas, and heavy process industries. As a direct original spare, this board governs the primary control logic, motor flux management, and communication interface between the ACS800 drive and the plant-level automation network. When this board fails or degrades, the entire drive unit becomes inoperative, resulting in unplanned downtime that can cascade across production lines.

Sourced from verified ABB supply channels and subject to pre-shipment functional testing, each 3BHE010751R0101 unit is dispatched with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial use. Global dispatch is available with lead times confirmed at order placement, supporting both emergency replacement and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3BHE010751R0101 control board is rarely an isolated task. Maintenance engineers working on ACS800 drives should treat a control board replacement as an opportunity to audit the full drive cabinet and associated electrical circuit. The AINT-02C or AINT-11C interface board, which manages the DDCS fiber-optic communication link between the control board and the inverter unit, should be inspected for connector integrity and signal continuity — a degraded fiber link can cause erratic drive behavior that mimics control board failure.

The APOW-01C power supply board within the ACS800 cabinet provides the low-voltage DC rails that power the control board logic. Any instability in the +5V or +24V rails — detectable via the drive’s diagnostic LED indicators — should be resolved before installing a replacement 3BHE010751R0101 to avoid premature failure of the new board. Similarly, the IOEC I/O extension modules connected to the drive’s I/O bus should be checked for correct addressing and signal integrity, particularly if the original fault was accompanied by I/O communication alarms.

For sites running ACS800 drives in multi-drive configurations or connected to an ABB AC800M or AC800PEC controller, the RDCO-02C or RDCO-03C DDCS communication option board should be verified for firmware compatibility with the replacement control board revision. Fieldbus adapter modules — such as the RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter — should also be reseated and re-parameterized after a control board swap, as drive parameter sets may need to be reloaded from backup.

Terminal block wiring at the X1 and X2 control terminals should be inspected for loose connections, insulation degradation, and correct torque — particularly on analog reference inputs and digital I/O channels. Fuse integrity on the drive’s internal 24VDC auxiliary circuit should be confirmed before powering up the replacement board. Where signal isolation is required between the drive and external PLC inputs, signal isolators on the analog output channels should be tested for correct scaling.

Site Replacement Workflow

Step 1 — Fault Isolation: Retrieve the ACS800 fault history via the CDP control panel or DriveWindow software. Confirm that fault codes (e.g., FF61, FF6A, or control board-related system faults) point to the control board rather than the inverter module or power supply. Cross-reference with the drive’s event log timestamps to establish fault onset.

Step 2 — Safe Isolation: Isolate the drive from mains supply and allow the DC bus capacitors to fully discharge (minimum 5 minutes after power-off, confirmed by DC bus voltage indicator). Follow site LOTO procedures before opening the drive cabinet.

Step 3 — Parameter Backup: If the drive is still partially functional, upload the full parameter set to the CDP panel memory or DriveWindow PC tool before removing the control board. This preserves motor data, application macros, and fieldbus configuration for rapid recommissioning.

Step 4 — Board Replacement: Remove the faulty 3BHE010751R0101 board by disconnecting all ribbon cables and fiber-optic connectors in sequence. Install the replacement board, reconnect all connectors, and verify seating of the AINT interface board connection.

Step 5 — Recommissioning: Restore the parameter backup to the new board. Verify motor identification run completion, I/O signal mapping, and fieldbus communication status before returning the drive to automatic control. Confirm drive ready status via the control panel before releasing to production.

This workflow minimizes downtime to a single maintenance window and eliminates the risk of parameter loss or misconfiguration that can extend outage duration.

Spare Parts Support FAQ

Q1: Is the 3BHE010751R0101 compatible with all ACS800 frame sizes?
The C902 AE101 control board is designed for the ACS800 standard drive series. Compatibility should be verified against the specific ACS800 frame size and firmware revision installed at your site. Provide your drive’s type designation (found on the rating label) when ordering to confirm direct fit.

Q2: What is included in the support terms confirmed by quotation?
The support terms covers manufacturing defects and functional failures under normal industrial operating conditions for 12 months from the date of dispatch. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental range. Pre-shipment testing documentation is available on request.

Q3: Can you supply the 3BHE010751R0101 for emergency same-week dispatch?
Stock availability and dispatch lead times are confirmed at order placement. Emergency orders are prioritized where stock is available. Contact [email protected] or +86 18359268345 to confirm current stock status and fastest available dispatch option for your site.

Q4: How should the 3BHE010751R0101 be stored as a long-term spare?
Store in original anti-static packaging in a dry, temperature-controlled environment (10°C to 30°C, relative humidity below 75% non-condensing). Avoid storage near strong magnetic fields or in environments with conductive dust. Inspect annually for connector oxidation and re-bag with fresh desiccant if the storage period exceeds 24 months.
