ABB 3BHE009681R0101 Maintenance-Proven Spare for Factory Uptime

Overview

ABB 3BHE009681R0101 Maintenance-Proven Spare for Factory Uptime

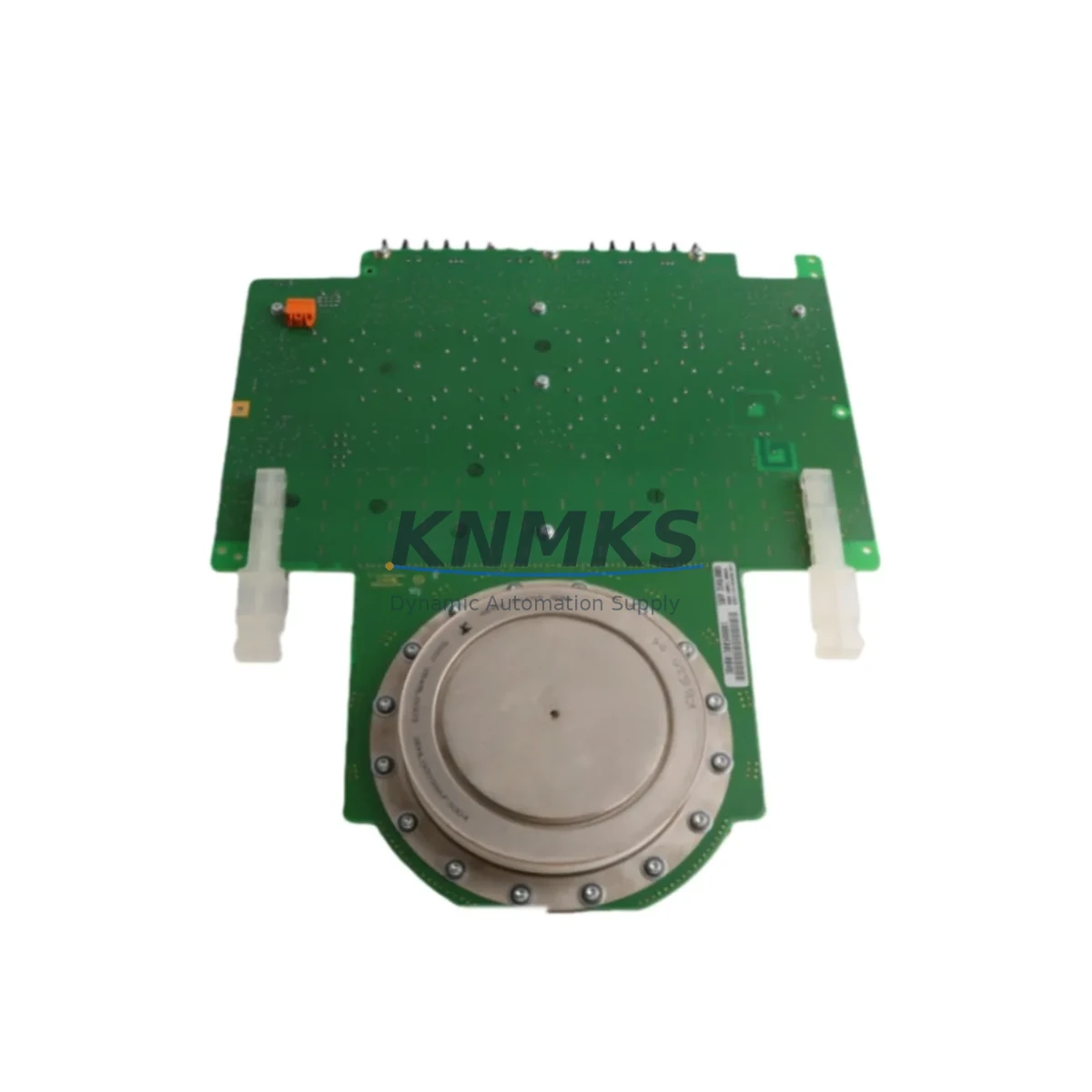

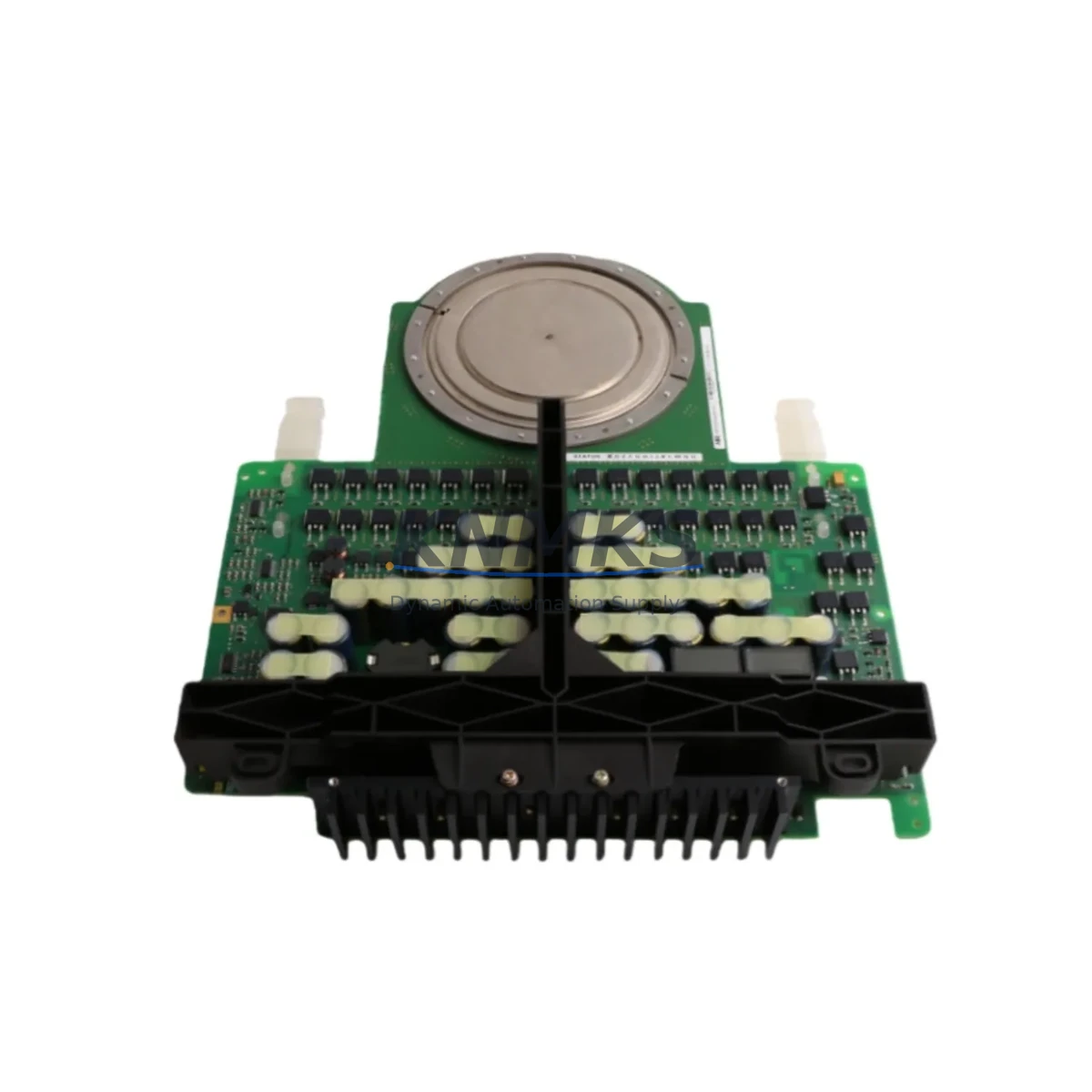

The ABB 3BHE009681R0101 (also referenced as GVC750BE101 and cross-compatible with 3BHB013088R0001) is an IGCT Gate Unit designed for high-power drive systems including the ABB ACS6000 and PCS6000 series. For maintenance engineers managing large-scale industrial drives, this gate unit is a critical component in the power conversion chain — responsible for triggering the Integrated Gate-Commutated Thyristor (IGCT, type 5SHY3545L0010) with precision timing. Any degradation or failure of this gate unit directly impacts drive availability, making it a top-priority spare in any ACS6000 or PCS6000 maintenance program.

At KNMKS, every 3BHE009681R0101 unit is sourced from verified supply channels, pre-shipment tested for gate signal integrity, and backed by a support terms confirmed by quotation. We support maintenance teams and procurement engineers with long-term supply continuity, ensuring this critical spare is available when unplanned downtime cannot be tolerated.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer identifies the 3BHE009681R0101 IGCT Gate Unit as a replacement need — whether during a scheduled annual overhaul, a fault-triggered emergency shutdown, or a routine control cabinet inspection — the replacement workflow should extend beyond the gate unit itself. The ACS6000 and PCS6000 are complex medium-voltage drive platforms, and the gate unit operates within an interdependent electrical ecosystem.

During the same maintenance window, engineers should inspect the fiber optic interface cables that carry gate trigger signals between the control board and the gate unit. Degraded or contaminated fiber connections are a common secondary cause of gate unit faults and are often overlooked during emergency replacements. The ABB SDCS-CON series control boards and the associated AINT interface boards should be checked for firmware version compatibility and any logged fault history that may indicate upstream signal issues.

The DC link capacitor bank and the snubber circuit components within the ACS6000 power module should also be evaluated — capacitor aging can create voltage spikes that stress the IGCT and its gate unit beyond rated parameters. If the drive has experienced repeated overcurrent or overvoltage trips, the AGPS power supply board (which provides auxiliary power to the gate unit) should be tested for output stability before the new 3BHE009681R0101 is installed.

For procurement engineers building a comprehensive spare parts inventory for ACS6000-based production lines, the 3BHE009681R0101 should be stocked alongside the 5SHY3545L0010 IGCT device itself, relevant AGPS auxiliary power supply modules, and the fiber optic patch cables used in the gate signal path. Maintaining at least one cold-standby gate unit per drive system is a widely adopted strategy in cement, mining, oil and gas, and steel industries where ACS6000 drives are common. The PCS6000 wind power converter variant shares significant component overlap, making this spare relevant across both utility and industrial maintenance programs.

During control cabinet inspections, verify that the gate unit mounting hardware is secure, the thermal interface between the gate unit and the IGCT is intact, and that no moisture ingress has occurred in the enclosure. Loose connections at the gate unit terminal block can cause intermittent faults that are difficult to diagnose without a spare unit available for substitution testing.

Site Replacement Workflow

The 3BHE009681R0101 is a direct replacement for the GVC750BE101 and is cross-compatible with the 3BHB013088R0001 reference. Before beginning replacement, isolate the ACS6000 or PCS6000 drive from the MV supply and follow the full discharge and lockout/tagout procedure as specified in the ABB ACS6000 Hardware Manual. Residual DC link voltage must be confirmed at zero before any power stack access.

Remove the faulty gate unit by disconnecting the fiber optic gate signal cable and the auxiliary power connector. Note the orientation and seating of the IGCT device — the 5SHY3545L0010 IGCT should remain in place unless it has also been identified as faulty. Install the new 3BHE009681R0101, reconnect all signal and power interfaces, and verify connector seating before re-energization.

After installation, perform a gate unit self-test using the ABB DriveDebug or equivalent commissioning tool. Confirm that gate trigger signals are within specification and that no fault codes related to the gate unit (typically fault group F-xx in the ACS6000 fault log) are present. Log the replacement in the site maintenance record with the new unit’s serial number and the date of installation to support support terms tracking and future fault analysis.

For sites transitioning from older ACS6000 hardware revisions, the 3BHE009681R0101 maintains backward compatibility with the standard IGCT stack interface, reducing the risk of integration issues during emergency replacements. This compatibility is a key advantage for maintenance teams managing aging drive fleets where original spare availability from OEM channels may be limited.

Spare Parts Support FAQ

Q1: Is the 3BHE009681R0101 compatible with both ACS6000 and PCS6000 systems?
Yes. The 3BHE009681R0101 (GVC750BE101) IGCT Gate Unit is designed for use in ABB ACS6000 medium voltage drives and PCS6000 power converters. It interfaces with the 5SHY3545L0010 IGCT device and is compatible across the standard ACS6000 and PCS6000 power stack configurations. Always verify the hardware revision of your specific drive cabinet against the ABB spare parts list before installation.

Q2: What testing is performed before shipment?
Every 3BHE009681R0101 unit supplied by KNMKS undergoes pre-shipment functional testing to verify gate signal output integrity and auxiliary power input response. Units are inspected for physical condition, connector integrity, and correct labeling before dispatch. A support terms confirmed by quotation is provided from the shipment date, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage long-term spare parts inventory for ACS6000 drives?
For production-critical ACS6000 installations, we recommend maintaining at least one 3BHE009681R0101 gate unit as a cold-standby spare per drive system. Pair this with a stocked 5SHY3545L0010 IGCT and the relevant fiber optic gate cables to cover the most common power stack failure modes. KNMKS supports long-term supply agreements to ensure consistent availability of this part, reducing procurement lead time risk for planned and emergency maintenance events.

Q4: What is the lead time and how do I confirm compatibility before ordering?
Contact KNMKS at admin@knmks.com or +86 18359268345 with your drive serial number and current hardware revision. Our technical team will confirm compatibility, check current stock status, and provide a lead time estimate. For urgent requirements, expedited shipping options are available to minimize drive downtime.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE009681R0101 GVC750BE101 3BHB013088R0001 5SHY3545L0010

Product Family

Other Components

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Component range

Breakers, terminals and cabinet accessories

Common needs

Model, photo and installation requirement

Project support

Maintenance and mixed spare-part inquiry

Inquiry Support

• Mixed automation spare parts inquiry
• Cabinet component and accessory support
• Model identification from photos or labels

What to Send Us

• Brand and exact model number: ABB 3BHE009681R0101 GVC750BE101 3BHB013088R0001 5SHY3545L0010
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
