ABB 3BHE009319R0001 Migration-Ready Drive Board for Legacy Systems

Overview

ABB 3BHE009319R0001 Migration-Ready Drive Board for Legacy Control Systems

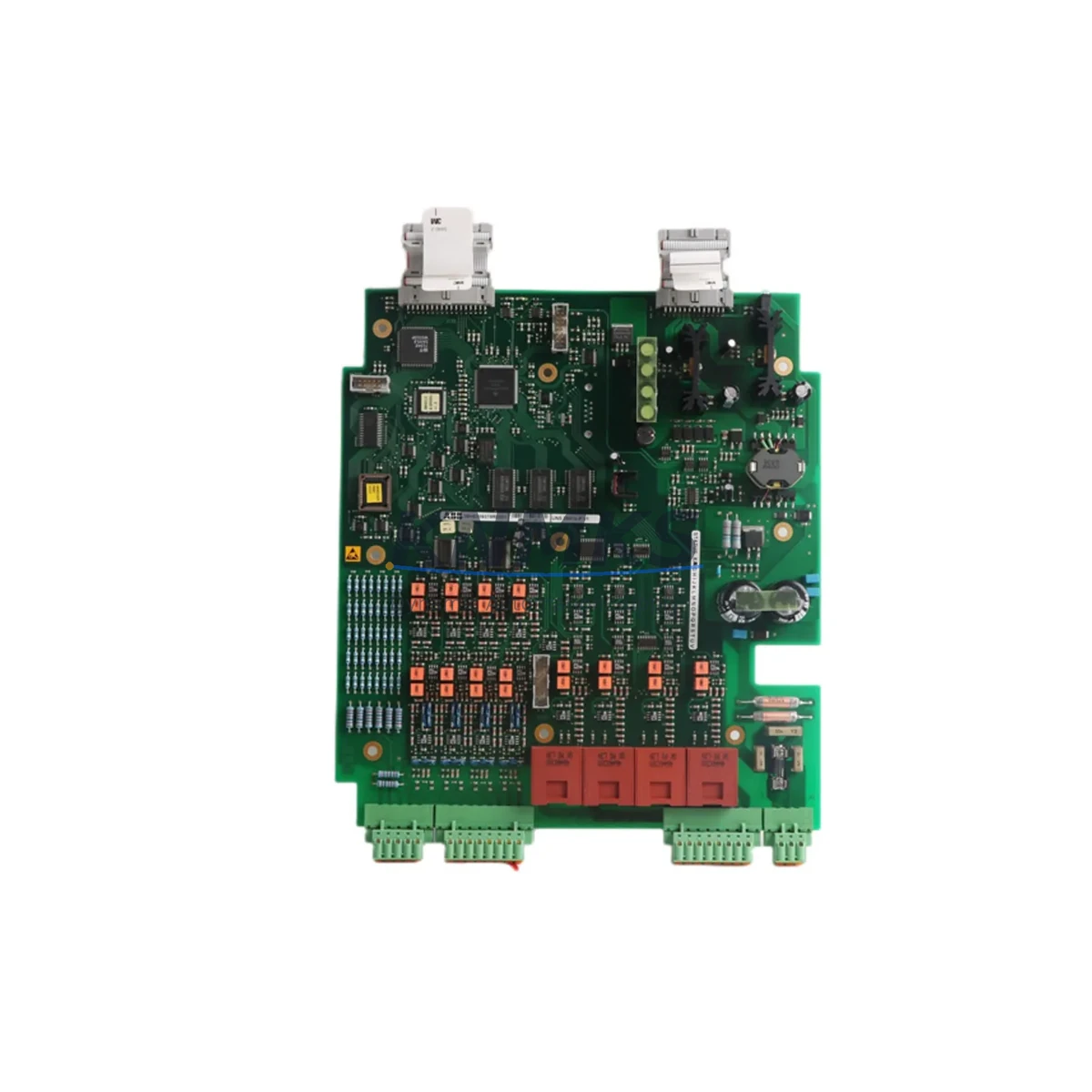

The ABB 3BHE009319R0001 (UNS2881B-P) is a drive control PC board engineered for the ABB ACS800 series variable frequency drive platform. As legacy ACS800 installations age and OEM support windows close, this board has become a critical spare part for facilities managing long-lifecycle automation assets. Whether you are executing a planned retrofit, responding to an unplanned drive failure, or building a strategic spare parts inventory, the 3BHE009319R0001 provides a verified, drop-in-compatible solution that preserves your existing control architecture without requiring a full drive replacement.

Each unit supplied by KNMKS is sourced from controlled channels, functionally tested prior to shipment, and backed by a support terms confirmed by quotation. Our technical team supports pre-sale compatibility verification and post-installation commissioning guidance to minimize downtime and reduce retrofit risk.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 3BHE009319R0001 control board within an operational ACS800 drive requires careful pre-work to protect program logic, preserve parameter sets, and avoid extended production downtime. Before removing the failed board, use ABB DriveStudio or DriveWindow software to perform a full parameter backup. This backup captures motor data, application macros, PID tuning values, and all custom I/O configurations — data that cannot be recovered from the replacement board itself.

In multi-drive cabinet installations, the ACS800 control board communicates with upstream controllers via the DDCS fiber-optic link. Confirm that the fiber connectors on the RDCO-02 or RDCO-03 communication option board are undamaged and properly seated after the board swap. If the installation includes an RINT-5611C or similar pulse encoder interface board, verify that encoder signal routing remains intact and that the encoder cable shield is correctly grounded to the drive chassis.

For drives integrated into a larger control cabinet alongside an ABB AC500 PLC or a third-party DCS, confirm that the fieldbus adapter — such as an RFBA-01 PROFIBUS module or an RCAN-01 CANopen adapter — is correctly re-initialized after the control board replacement. Fieldbus node addresses and baud rate settings stored in the adapter module are typically retained, but communication link status should be verified from the master controller before returning the drive to automatic mode.

In installations where the ACS800 drive feeds a critical process — such as a pump, compressor, fan, or conveyor — coordinate the board replacement with the process control team to ensure that the RMIO I/O terminal block wiring is documented before disconnection. Photograph or sketch the terminal layout, noting analog input scaling, digital input logic levels, and relay output assignments. After reinstalling the replacement 3BHE009319R0001 board, restore parameters from backup, run the motor identification routine if required by the application, and verify all I/O signals against the original control narrative before releasing the drive to production.

If the retrofit scope extends beyond a single board replacement — for example, if the drive enclosure also requires a new APBU-44C branching unit or a replacement AINT-02C inverter control board — KNMKS can source these companion components to support a complete drive restoration without requiring a full cabinet replacement.

Downtime Control During System Migration

Unplanned drive failures in continuous-process environments can result in significant production losses. Having a verified spare 3BHE009319R0001 board on-site is the most effective single measure for reducing mean time to repair (MTTR) in ACS800-based systems. When a spare is available, board-level replacement can typically be completed within two to four hours, compared to days or weeks required for sourcing a replacement unit from the open market after a failure event.

For planned retrofit projects, the recommended approach is to pre-configure the replacement board off-line where possible, load the parameter backup, and stage all tools and documentation before the maintenance window opens. This preparation reduces the active intervention period and limits exposure to process interruption. Where the drive controls a safety-critical load, coordinate with the site safety team to implement appropriate lock-out/tag-out (LOTO) procedures and confirm that the process can be safely held in manual or bypass mode during the replacement interval.

After the board is installed and parameters are restored, perform a controlled no-load test run before reconnecting the mechanical load. Verify speed reference tracking, current limit behavior, and fault relay outputs. Confirm that the HMI faceplate — whether an ACS-CP-C control panel or a remote operator station — displays correct drive status and responds to start/stop commands before returning the system to automatic control. Document the replacement event, including the removed board serial number, replacement board serial number, parameter backup file name, and commissioning test results, for inclusion in the site maintenance record.

Retrofit Support FAQ

Q1: Is the 3BHE009319R0001 a direct replacement for the original UNS2881B-P board in all ACS800 variants?
The 3BHE009319R0001 / UNS2881B-P is the standard control board used across multiple ACS800 frame sizes. Compatibility should be confirmed against your specific drive type code and hardware revision. Contact KNMKS with your drive nameplate data for pre-sale verification before ordering.

Q2: Do I need to re-enter all drive parameters after replacing the control board?
Yes. The replacement board ships without application-specific parameters. A parameter backup taken from the original drive (or from a commissioning record) must be restored after installation. If no backup exists, parameters must be re-entered manually from the original commissioning documentation and a motor ID run performed.

Q3: What pre-shipment testing is performed on the 3BHE009319R0001?
Each board supplied by KNMKS undergoes functional testing prior to dispatch to verify that the board powers up correctly and that key control circuits are operational. A support terms confirmed by quotation is provided from the date of shipment. Boards are packaged in anti-static protective packaging for safe transit.

Q4: What is the typical lead time and do you maintain stock?
KNMKS maintains inventory of the 3BHE009319R0001 to support urgent replacement requirements. Standard orders are dispatched within 1–3 business days. For large-quantity or project-based requirements, contact our sales team to confirm availability and arrange priority allocation.
