ABB 3BHE009017R0102 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3BHE009017R0102 Maintenance-Proven Spare Part for Factory Uptime

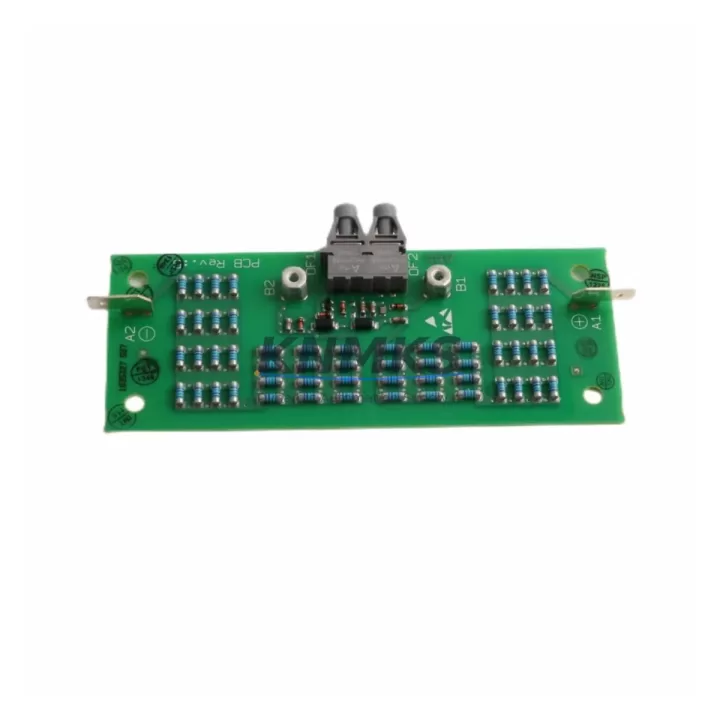

The ABB 3BHE009017R0102 (XVC724BE102) is the original VLSCD drive control board engineered for ABB ACS800 series variable frequency drives. In industrial environments where continuous production is non-negotiable, this board serves as the central intelligence layer governing drive modulation, feedback processing, and fault diagnostics. Sourced from verified supply channels and dispatched only after rigorous pre-shipment electrical testing, this spare part is a cornerstone of any proactive maintenance strategy for ACS800-equipped production lines.

Maintenance engineers managing aging ACS800 installations understand that the VLSCD control board is among the highest-risk single points of failure in the drive stack. When this board degrades — whether from thermal cycling, capacitor aging, or transient voltage events — the result is unplanned downtime that cascades across dependent processes. Stocking the 3BHE009017R0102 as a verified on-shelf spare eliminates the lead-time gap that typically extends emergency shutdowns from hours into days or weeks.

Procurement engineers sourcing this component should confirm the full part number: 3BHE009017R0102 with hardware suffix XVC724BE102. Both identifiers must match to ensure firmware and hardware compatibility with the target drive unit. Mismatched revisions can cause initialization failures or communication faults on the DDCS fiber-optic link between the control board and the inverter module.

This board is conformal coated for protection against humidity, dust, and mild chemical exposure — a critical specification for food processing, chemical plant, and offshore environments. Each unit shipped by KNMKS is individually tested under load simulation conditions before dispatch, and covered by a support terms confirmed by quotation from the date of delivery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3BHE009017R0102 VLSCD board during a scheduled or emergency maintenance window, a disciplined site engineer will not stop at the board itself. The ACS800 drive cabinet contains several interdependent components whose condition directly affects the reliability of the new control board after installation.

Begin with the APOW-01 or APOW-02 power supply board, which provides the 24 VDC rail feeding the VLSCD. A degraded power supply with ripple or voltage sag will stress the replacement board immediately upon startup. Inspect and, if in doubt, replace the PSU board as part of the same maintenance event.

Next, inspect the RDCO-01 or RDCO-02 DDCS fiber-optic communication module. The VLSCD board communicates with the inverter section via this fiber link. Cracked or yellowed fiber connectors, or a faulty RDCO module, will generate communication fault codes (e.g., F-53) that are often misdiagnosed as control board failures. Clean or replace the RDCO module and verify fiber continuity before commissioning the new board.

The AINT-xx inverter control interface board should also be inspected. In multi-drive ACS800 configurations, the AINT board bridges the VLSCD to the IGBT gate driver layer. Thermal damage or dry solder joints on the AINT board can cause intermittent drive trips that persist even after the VLSCD is replaced.

For I/O-intensive applications, verify the condition of any installed RAIO-01 analog I/O extension modules and RDIO-01 digital I/O modules. These plug-in option boards share the control board’s internal bus and can introduce noise or bus conflicts if their connectors are corroded. Similarly, inspect the terminal block wiring on the X1 and X2 control terminal strips — loose or oxidized connections are a common root cause of intermittent speed reference faults.

If the drive is integrated into a fieldbus network, confirm the status of the RPBA-01 PROFIBUS adapter or RCAN-01 CANopen module as applicable. A control board replacement resets the drive’s node address and baud rate parameters to factory defaults; these must be reconfigured before the drive is returned to automatic control.

Finally, check the main DC bus fuses and the charging circuit resistor. A board failure caused by an upstream transient may have also stressed these components. Replacing the VLSCD board without addressing a weakened fuse or a partially failed charging resistor risks a repeat failure within weeks.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the ACS800 drive and apply LOTO (Lockout/Tagout). Wait a minimum of 5 minutes for DC bus capacitors to discharge below 50 VDC. Verify with a calibrated multimeter before opening the drive cabinet.

Step 2 — Parameter Backup: If the drive is still partially functional, upload the full parameter set via DriveWindow or the ACS800 control panel (CDP312R) before removing the VLSCD board. Store the parameter file with the equipment maintenance record.

Step 3 — Board Removal: Disconnect all ribbon cables, fiber connectors, and option module connectors from the existing VLSCD board. Note the orientation and routing of all cables before removal. Remove the board using ESD-safe handling procedures.

Step 4 — Visual Inspection: Inspect the removed board for burn marks, swollen capacitors, cracked traces, or corrosion. Document findings for root cause analysis and support terms records.

Step 5 — New Board Installation: Install the 3BHE009017R0102 replacement board. Reconnect all cables in reverse order. Confirm that the RDCO fiber connectors are fully seated and that option modules are locked into their slots.

Step 6 — Parameter Restore & Commissioning: Power up the drive and restore the saved parameter set. Verify motor data, speed references, I/O assignments, and fieldbus node configuration. Run a no-load test before returning the drive to production.

Step 7 — Documentation: Update the equipment maintenance log with the replacement date, new board serial number, and test results. Register the support terms confirmed by quotation start date with KNMKS.

Spare Parts Support FAQ

Q1: Is the 3BHE009017R0102 compatible with all ACS800 frame sizes?
The VLSCD board is used across multiple ACS800 frame sizes, but compatibility depends on the drive’s hardware generation and software version. Always confirm the full part number including the XVC724BE102 hardware suffix against your drive’s nameplate and existing board label before ordering. KNMKS can assist with cross-referencing if you provide your drive’s serial number.

Q2: What does pre-shipment testing cover?
Each 3BHE009017R0102 unit is powered up and subjected to functional verification of the control logic, communication interfaces, and I/O signal paths before dispatch. Units that fail any test parameter are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: How should this spare part be stored if not immediately installed?
Store the board in its original ESD-protective packaging in a dry environment between 0°C and 40°C with relative humidity below 75% non-condensing. Avoid storage near strong magnetic fields or high-vibration areas. Inspect the board annually if held in long-term stock and replace desiccant packs in the storage container as needed.

Q4: Can KNMKS support long-term supply agreements for this part?
Yes. KNMKS offers long-term supply agreements for the 3BHE009017R0102 and related ACS800 spare components, with contract terms of 12 to 36 months. This is particularly suited for multi-site operators managing fleets of ACS800 drives who require guaranteed availability and price stability. Contact our sales team to discuss volume pricing and scheduled delivery programs.
