ABB 3BHE006373R0101 XVC769AE101 Maintenance-Proven Spare Part for Factory Uptime

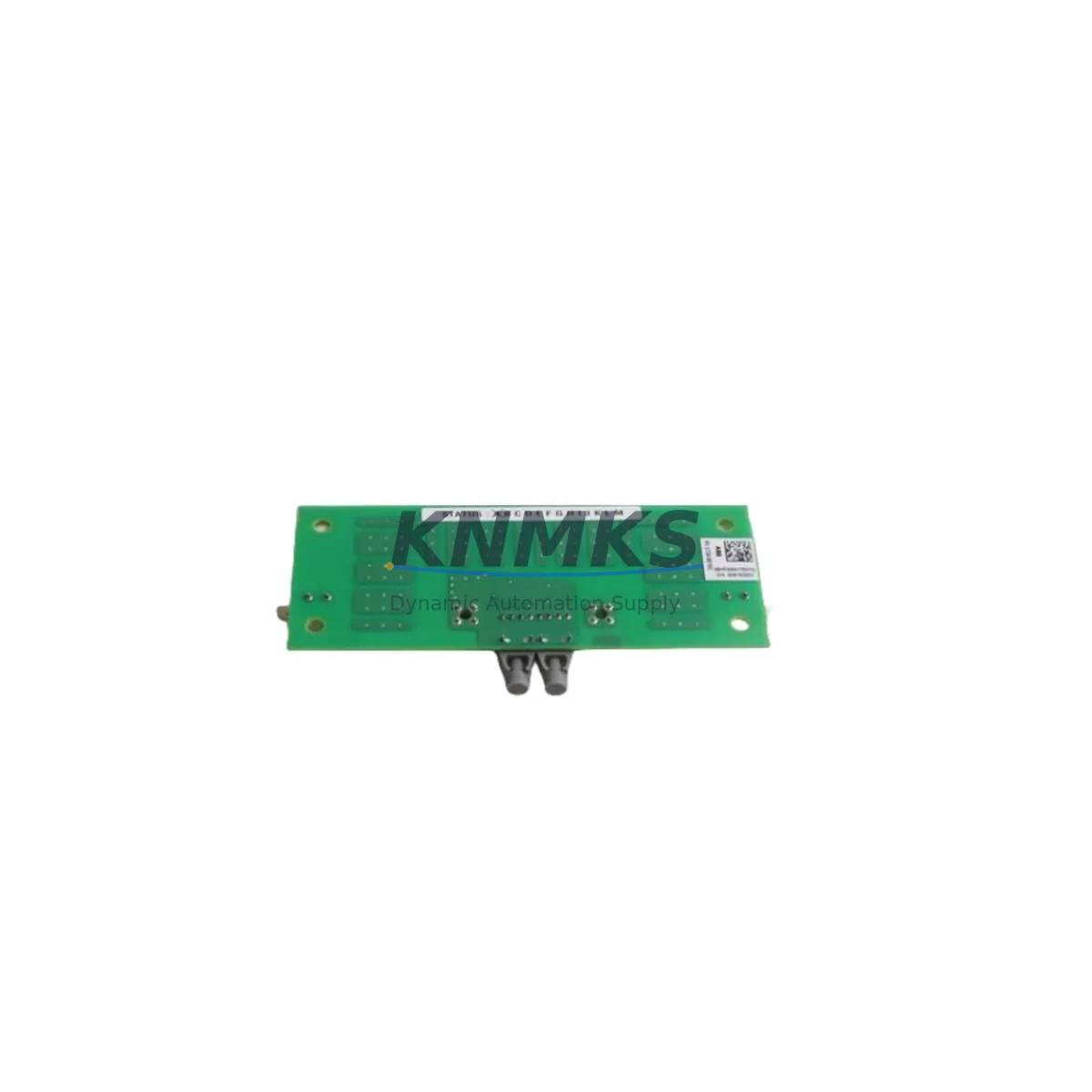

The ABB 3BHE006373R0101 XVC769AE101 is an OEI (Optical/Electrical Interface) Board Module engineered for ABB ACS1000 and ACS6000 medium-voltage variable speed drives. As a critical signal-processing and interface component within the drive control architecture, this board governs optical fiber communication between the control unit and the power electronics stack. Its reliable operation is directly tied to drive availability — making it one of the highest-priority spare parts in any ACS1000 or ACS6000 maintenance inventory.

Sourced from original ABB manufacturing channels and pre-shipment tested against factory electrical specifications, each unit supplied by KNMKS is verified for signal integrity, fiber port continuity, and board-level functionality before dispatch. A support terms confirmed by quotation is included with every shipment, supporting both emergency replacement and planned maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3BHE006373R0101 XVC769AE101 OEI Board in an ACS1000 or ACS6000 drive cabinet, a thorough inspection of adjacent components is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should begin by verifying the integrity of the fiber-optic cables connecting the OEI board to the IGCT gate units and the main control board — damaged or contaminated fiber connectors are a leading cause of recurring communication faults after board replacement.

The NAMC control board (e.g., NAMC-11 or NAMC-51 series) should be inspected for firmware version compatibility and any active fault logs that may indicate upstream signal issues beyond the OEI layer. Simultaneously, the AINT interface board and associated DDCS communication links should be checked for proper termination and signal levels.

Power supply rails feeding the control section — typically the APOW power supply module — must be measured for voltage stability, as fluctuating 24 VDC or 5 VDC rails can cause intermittent OEI board faults that mimic hardware failure. Inspect the AGPS gate power supply for output consistency, particularly if the drive has experienced nuisance trips or gate-level faults prior to the OEI board failure.

For drives integrated into DCS or SCADA environments via PROFIBUS, Modbus, or DDCS fieldbus adapters (such as the NPBA or NIBA series), confirm that communication parameters are correctly restored after board swap. Terminal blocks and I/O wiring within the control cabinet should be re-torqued and inspected for corrosion, especially in high-humidity or chemically aggressive environments. Finally, verify that all fuses and surge protection devices in the control power circuit are intact — a blown control fuse is often overlooked during emergency replacements and can prevent the new board from initializing correctly.

Site Replacement Workflow

The 3BHE006373R0101 XVC769AE101 is a direct replacement for the original OEI board installed in ACS1000 and ACS6000 drives. No firmware re-flashing is required for standard hardware replacement; however, engineers should confirm the drive’s parameter set is backed up via the ACS1000/ACS6000 control panel or DriveWindow software before initiating any board swap.

Replacement procedure: (1) De-energize the drive and follow LOTO procedures. (2) Disconnect all fiber-optic cables from the OEI board, labeling each connection. (3) Remove the board from its backplane slot. (4) Install the new 3BHE006373R0101 XVC769AE101, reconnect fiber cables in the correct sequence. (5) Power up the control section only and verify communication status via the drive’s diagnostic display. (6) Restore full drive operation and confirm fault-free run for a minimum of 30 minutes under load.

This workflow minimizes downtime to under two hours for experienced maintenance teams and eliminates the need for OEM field service in most cases. Keeping one spare unit on-site reduces mean time to repair (MTTR) for ACS1000/ACS6000 fleets to under four hours, supporting production continuity targets in cement, mining, oil & gas, and water treatment applications.

Spare Parts Support FAQ

Q1: Is the 3BHE006373R0101 XVC769AE101 compatible with both ACS1000 and ACS6000 drives?
Yes. The XVC769AE101 OEI board is used across the ACS1000 and ACS6000 medium-voltage drive families. Always confirm the drive’s hardware revision and existing board designation before ordering to ensure slot and firmware compatibility.

Q2: What testing is performed before shipment?
Every unit undergoes pre-shipment electrical and optical signal verification at KNMKS. Tests include fiber port continuity, board power-on self-test, and visual inspection for component damage. A test report is available upon request.

Q3: Can KNMKS support long-term or multi-site spare parts agreements for this part?
Yes. KNMKS offers 12–36 month supply agreements for the 3BHE006373R0101 and related ACS1000/ACS6000 spare parts, including volume pricing, reserved stock allocation, and priority dispatch for emergency orders. Contact admin@knmks.com for a tailored supply plan.

Q4: What is the support terms coverage and what does it include?
All units carry a support terms confirmed by quotation from the date of shipment. Coverage includes defects in materials and workmanship under normal operating conditions. KNMKS provides replacement or documented resolution support for any unit that fails within the confirmed support period, subject to inspection. Support requests are processed within 5 business days.
