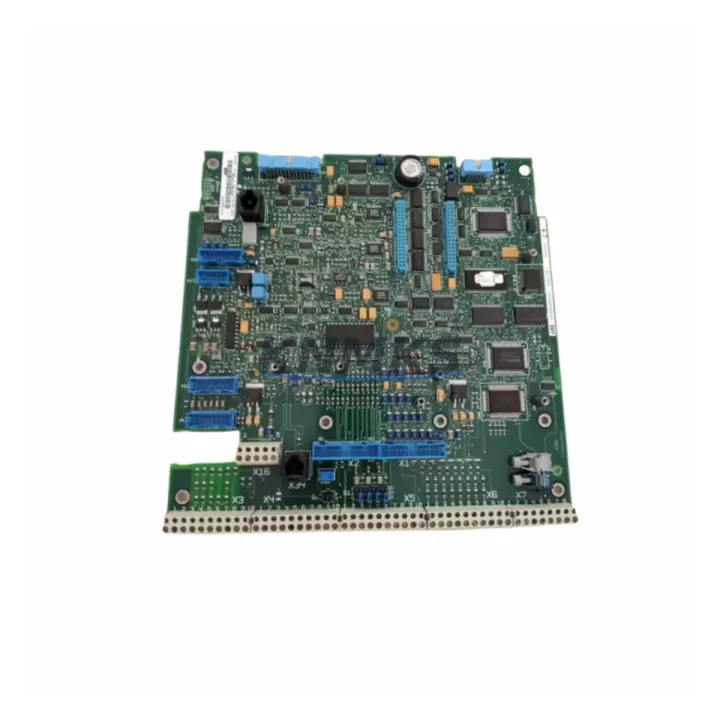

ABB 3BHE004059R0001 Migration-Ready DC Drive Control Board

Overview

ABB 3BHE004059R0001 Migration-Ready DC Drive Control Board: Legacy SDCS System Upgrade & Retrofit

The ABB 3BHE004059R0001 (SDCS-CON-2) is a DC drive control board engineered for the ABB SDCS series of DC drive systems, widely deployed across heavy industry, paper mills, metal processing lines, and marine propulsion applications. As the SDCS platform approaches end-of-life and original spare parts become increasingly scarce, the 3BHE004059R0001 serves as a critical migration-ready replacement for facilities managing legacy drive cabinets and aging automation infrastructure.

This control board governs the core regulation functions of the SDCS DC drive — including armature current control, field excitation management, speed feedback processing, and fault diagnostics. When the original SDCS-CON-2 board fails or becomes unavailable through standard OEM channels, a verified replacement unit must be sourced and validated against the existing drive configuration to avoid extended production downtime.

Our stock of the ABB 3BHE004059R0001 is sourced from controlled supply chains, subject to pre-shipment functional testing, and backed by a support terms confirmed by quotation. Each unit is inspected for board-level integrity, connector condition, and firmware compatibility prior to dispatch.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the SDCS-CON-2 board in an active production environment requires a structured retrofit plan that accounts for the full drive cabinet ecosystem. The 3BHE004059R0001 does not operate in isolation — it interfaces directly with the SDCS-POW-1 or SDCS-POW-2 power board, which handles thyristor firing and AC-to-DC conversion. Before initiating a board swap, engineers should confirm that the power board is free of fault history and that the DC bus capacitors are within specification.

On the I/O side, the SDCS-CON-2 communicates with external PLC systems and HMI panels via the DDCS fiber optic protocol. If the site uses an ABB AC800M controller or a third-party SCADA system for speed reference and torque commands, the communication link parameters — node address, baud rate, and dataset mapping — must be documented and restored after the replacement board is installed. Any mismatch in DDCS node addressing will result in a communication fault and drive trip.

For sites running NDIO digital I/O expansion modules or NAIO analog I/O boards alongside the SDCS-CON-2, the I/O configuration stored in the drive’s parameter set must be backed up using DriveWindow or a compatible parameter tool before the old board is removed. Failure to do so risks losing customized scaling, limit values, and interlock logic that may not be documented in the original commissioning records.

HMI panels connected to the SDCS drive — whether ABB Panel Builder-based operator stations or third-party touchscreens — should be tested for communication continuity after the board swap. In some installations, the HMI reads drive status via the DDCS link, and a firmware version mismatch between the new SDCS-CON-2 and the HMI driver can cause display anomalies or loss of real-time data.

Where the drive cabinet includes an SDCS-FEX-2 field excitation module, engineers must verify that the field current reference signal from the new control board is correctly calibrated. Field weakening curves and excitation ramp rates are stored in the control board’s parameter memory and must be re-entered or restored from backup after installation.

Finally, for sites planning a broader migration from the SDCS platform to a modern ABB DCS880 or DCS550 drive, the 3BHE004059R0001 can serve as an interim replacement to stabilize the existing system while the full migration is planned and budgeted. This approach minimizes unplanned downtime and allows engineering teams to schedule the full drive replacement during a planned maintenance window.

Downtime Control During System Migration

Unplanned drive failures in continuous process industries — pulp and paper, steel rolling, mining conveyors — can result in production losses that far exceed the cost of the replacement part. A structured approach to SDCS-CON-2 replacement minimizes exposure to extended downtime.

The recommended procedure begins with a full parameter backup using DriveWindow or equivalent software while the drive is still operational, if possible. This preserves motor data, speed references, current limits, fault thresholds, and communication settings. If the drive has already failed and the board is non-responsive, the site’s original commissioning documentation becomes the primary reference for parameter restoration.

Prior to physical board removal, the 24 VDC auxiliary supply to the drive cabinet should be isolated and verified de-energized. The SDCS-CON-2 board is secured by a front-panel locking mechanism and connects to the drive backplane via a multi-pin edge connector. Careful extraction is required to avoid damage to the connector pins, which are not field-repairable.

After installing the replacement 3BHE004059R0001, the commissioning sequence should follow the ABB SDCS commissioning guide: power-on self-test, parameter restore, motor identification run (if required), speed reference verification, and a controlled no-load test run before returning the drive to production. This sequence typically requires two to four hours for an experienced drive engineer, assuming no additional faults are present in the power section or motor circuit.

Maintaining a spare SDCS-CON-2 board on-site as a critical spare is strongly recommended for facilities where the SDCS drive is on a critical production path. Given the increasing scarcity of original ABB SDCS spare parts, securing a verified replacement unit in advance is a prudent risk management strategy.

Retrofit Support FAQ

Q1: Is the ABB 3BHE004059R0001 a direct drop-in replacement for the original SDCS-CON-2?
Yes, the 3BHE004059R0001 is the standard part number for the SDCS-CON-2 control board and is designed as a direct replacement within the SDCS drive family. However, firmware version compatibility should be verified against the drive’s software release, and a full parameter restore is required after installation. Minor hardware revisions may exist; contact our technical team with your drive serial number for confirmation.

Q2: What commissioning steps are required after replacing the SDCS-CON-2 board?
After physical installation, the following steps are required: restore parameters from backup (or re-enter manually), verify DDCS communication link and node addressing, calibrate speed reference and analog I/O signals, confirm field excitation settings if an SDCS-FEX-2 is present, and perform a controlled no-load test run. A full motor identification run may be required if motor data was not backed up.

Q3: Do you provide pre-shipment testing and what does the support terms confirmed by quotation cover?
Yes. Every ABB 3BHE004059R0001 unit we supply undergoes functional pre-shipment testing to verify board-level operation. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental contamination. Support requests are supported with technical documentation and replacement dispatch.

Q4: What is the typical lead time and do you maintain stock for emergency replacement?
We maintain multi-region stock of the ABB 3BHE004059R0001 to support emergency replacement requirements. Standard dispatch is within 1–3 business days for in-stock units. For urgent requirements, expedited shipping options are available. Contact our sales team directly for real-time stock confirmation and lead time for your region.
