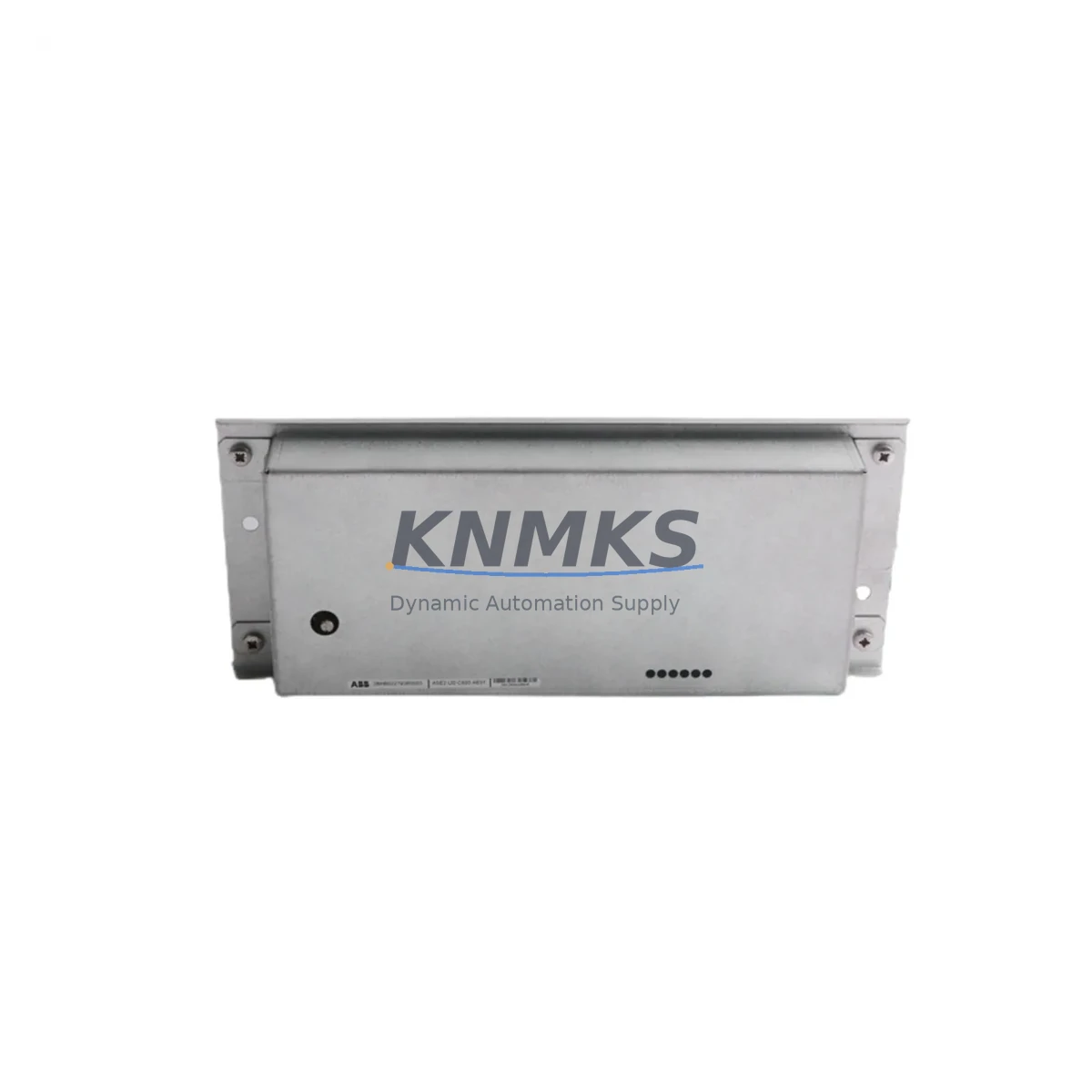

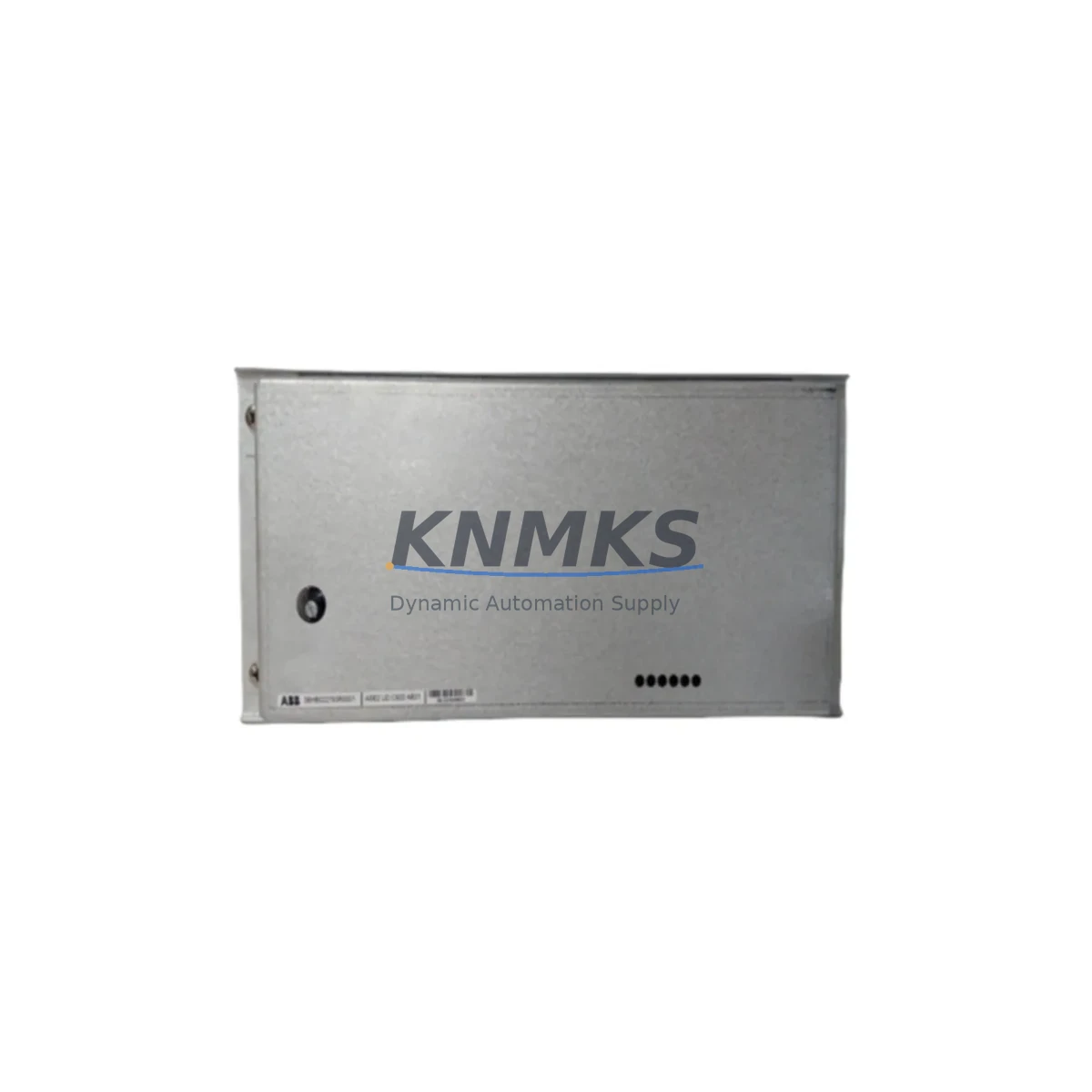

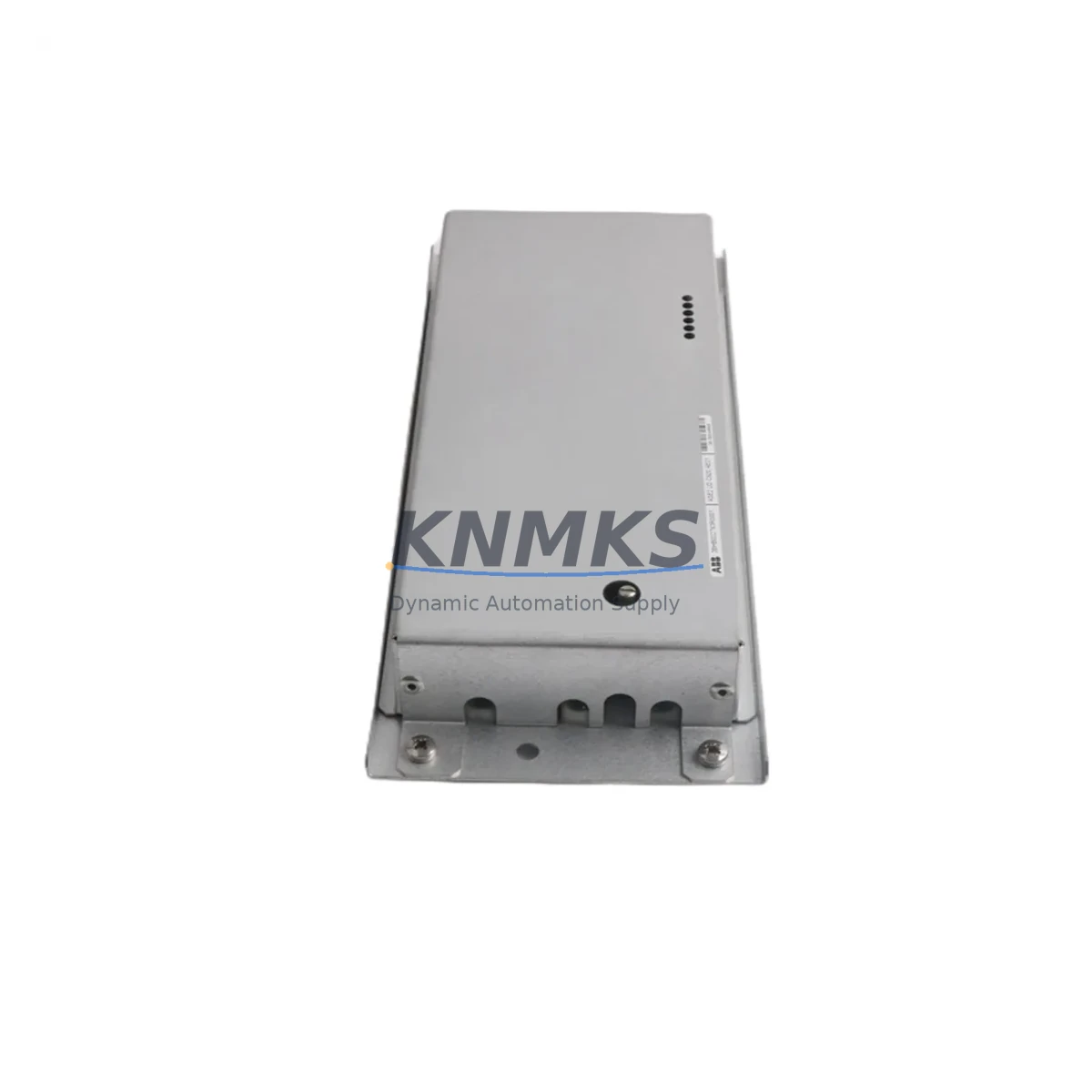

ABB 3BHB022793R0001 Migration-Ready Drive Controller UDC920

Overview

ABB 3BHB022793R0001 Migration-Ready Drive Controller UDC920: Legacy Drive System Upgrade & Retrofit Solution

The ABB 3BHB022793R0001 is the UDC920 ASE2 Universal Drive Controller Board, a migration-ready replacement module engineered for engineers and maintenance teams managing the lifecycle of legacy ABB drive systems. As ABB progressively phases out older drive controller generations across the ACS600, ACS800, and DCS800 platforms, the 3BHB022793R0001 serves as a direct, drop-in compatible successor that preserves existing wiring harnesses, backplane connections, and control logic without requiring a full drive cabinet overhaul.

This controller board is designed for industrial environments where minimizing downtime is critical — including steel mills, paper machines, marine propulsion systems, oil & gas compressor drives, and large-scale HVAC installations. The UDC920 ASE2 architecture supports the DDCS fiber-optic communication protocol native to ABB’s drive ecosystem, ensuring seamless integration with existing AMC (Adaptive Motor Control) boards, RDCO communication option boards, and IOEC I/O extension modules already installed in the control cabinet.

Before initiating a retrofit with the 3BHB022793R0001, maintenance engineers should verify several critical compatibility parameters. Power supply capacity within the drive cabinet must be confirmed — the UDC920 board draws from the internal SMPS (Switched Mode Power Supply) unit, and aging APBU or NPBU power supply boards may require inspection or parallel replacement. Terminal wiring from the existing control board should be documented and photographed prior to removal, as the connector layout on the UDC920 ASE2 is functionally equivalent to predecessor boards but physical pin assignments must be cross-referenced against the drive’s wiring diagram revision.

Backplane interface compatibility is a key checkpoint: the 3BHB022793R0001 is designed for the standard ABB drive backplane used across the UDC9xx series. Engineers should confirm the backplane revision and ensure no mechanical damage to the edge connector before seating the new board. Module addressing — particularly for multi-drive systems using a master-follower configuration — must be re-verified after board replacement, as the drive ID and axis address settings stored in the previous board’s non-volatile memory will not transfer automatically.

Program logic compatibility is another area requiring attention. If the legacy drive was running a customized application macro or a modified standard macro (e.g., ABB’s Standard, Torque Control, or Sequential Control macros), the parameter set should be exported via DriveWindow or DriveStudio before the swap. After installing the 3BHB022793R0001, the parameter file can be re-uploaded, but engineers should validate all speed reference scaling, torque limit settings, and fault response configurations against the original commissioning records. HMI panel connections — whether using the CDP312R control panel or an external operator panel via the RPBA-01 PROFIBUS adapter — should be re-tested for communication link integrity after board replacement.

For systems integrated into a SCADA or DCS environment via PROFIBUS DP, PROFINET, or Modbus RTU, the communication link must be re-established and verified at the fieldbus master level. The RDCO-02 or RDCO-04 DDCS communication option board, if installed, should be inspected for firmware version compatibility with the replacement UDC920 board. Installation space within the drive cabinet should be confirmed — the 3BHB022793R0001 occupies the same form factor as the original UDC920 board, but cable routing and strain relief should be re-checked after installation to prevent vibration-induced connector fatigue in high-cycle industrial environments.

Field commissioning after installation should follow ABB’s standard drive startup sequence: power-on self-test, motor identification run (if motor data has changed), speed reference verification at low speed, and full-load test under controlled conditions. Firmware version on the replacement board should be confirmed against the drive’s software compatibility matrix — in some cases, a firmware update via the MFDT-01 flash memory tool may be required to match the application version previously running on the legacy board.

Every 3BHB022793R0001 unit supplied by KNMKS undergoes pre-shipment functional testing and is backed by a support terms confirmed by quotation covering manufacturing defects and operational failures under normal industrial service conditions. Stock is maintained across regional warehouses to support urgent replacement requirements with short lead times.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 3BHB022793R0001 typically involves coordinating the replacement of several interdependent components within the same drive cabinet or control system. In multi-axis drive systems, the UDC920 ASE2 board works in conjunction with IOEC I/O extension modules that handle analog and digital I/O signals from field instruments — these modules should be inspected for firmware compatibility and terminal integrity during the same maintenance window. The APBU-44C or APBU-12C pulse encoder interface board, if used for speed feedback, must be verified for signal continuity after the controller board swap.

For drives communicating over PROFIBUS DP, the RDCO-02 DDCS communication option board mounted on the UDC920 backplane is a critical dependency — its firmware version and node address configuration must be preserved or re-entered after the replacement. In systems where the drive is supervised by a Siemens S7-300 or S7-400 PLC via PROFIBUS, or by a Honeywell Experion PKS DCS via a gateway module, the fieldbus master configuration should be re-validated after the board swap to confirm the drive’s GSD file and I/O mapping remain consistent.

Where the legacy drive cabinet includes an older ABB NPBA-12 PROFIBUS adapter or an NMBP-01 Modbus Plus adapter, engineers should assess whether these communication option boards are compatible with the replacement UDC920 ASE2 board or whether a parallel upgrade to a current-generation RDCO-04 option board is warranted. Signal isolators on analog reference inputs (4–20 mA speed or torque references) should be tested for drift, as aging isolators can introduce reference errors that are difficult to distinguish from controller board faults during initial commissioning.

In retrofit projects involving older ABB Masterpiece 200/1 or AC800M control systems as the upstream PLC, engineers should confirm that the drive’s DDCS node address and communication cycle time settings are compatible with the controller’s drive communication library version. Programming cables such as the MFDT-01 flash download tool or the USB-to-serial adapter used with DriveStudio should be prepared in advance to support on-site firmware verification and parameter restoration.

Downtime Control During System Migration

Controlling downtime during a UDC920 board replacement requires advance preparation across documentation, spare parts staging, and commissioning procedure verification. The most effective approach is to complete all parameter exports, wiring documentation, and firmware version checks during a planned inspection window before the actual replacement outage — this reduces the active replacement window to the minimum time required for physical board swap, parameter re-upload, and functional verification.

Original program logic stored in the drive’s parameter set is preserved in the exported parameter file and is not affected by the board replacement itself, provided the export is completed before the legacy board is powered down. Engineers should retain a printed copy of the parameter file as a backup in case the digital export cannot be re-uploaded due to firmware version mismatch — in this scenario, manual parameter entry from the printed record via the CDP312R panel is the fallback procedure.

To maintain field control continuity during the replacement window, process engineers should coordinate with the control room to place the affected drive in manual bypass or transfer control to a redundant drive string where the process design permits. For critical single-drive applications with no bypass, the replacement should be scheduled during a planned production shutdown rather than as an emergency repair, to allow adequate time for full commissioning verification including motor identification run and load test.

KNMKS pre-tests each 3BHB022793R0001 unit before shipment to confirm board-level functionality, reducing the risk of receiving a non-functional replacement that would extend the outage. Units are shipped with protective packaging designed to prevent ESD damage and connector contamination during transit and storage.

Retrofit Support FAQ

Q: Is the 3BHB022793R0001 a direct replacement for the original UDC920 board in my ACS800 drive?
A: Yes. The 3BHB022793R0001 (UDC920 ASE2) is designed as a direct replacement for the UDC920 board used in ABB ACS800 and compatible drive platforms. The physical form factor, backplane connector, and DDCS communication interface are equivalent to the original board. Parameter migration via DriveWindow or DriveStudio is required to restore the drive’s application configuration after replacement.

Q: What pre-shipment testing is performed on each unit?
A: Each 3BHB022793R0001 supplied by KNMKS undergoes board-level functional testing before shipment to verify power-on operation and communication interface integrity. Units are covered by a support terms confirmed by quotation from the shipment date against manufacturing defects and operational failures under normal industrial service conditions.

Q: Do I need to update the firmware after installing the replacement board?
A: Firmware version compatibility should be verified against the drive’s software compatibility matrix before installation. In some cases, a firmware update via the MFDT-01 flash memory tool is required to match the application version previously running on the legacy board. KNMKS can advise on firmware version requirements based on your drive’s serial number and software revision.

Q: What is the typical lead time and stock availability?
A: The 3BHB022793R0001 is maintained availability confirmed by RFQ across KNMKS regional warehouses to support urgent replacement requirements. Contact admin@knmks.com or call +86 18359268345 to confirm current stock levels and arrange expedited shipment for critical maintenance situations.
