ABB 3BHB012961R0001 Fail-Safe IGCT Gate Drive for MV Reliability

Overview

ABB 3BHB012961R0001 Fail-Safe IGCT Gate Drive for MV Reliability

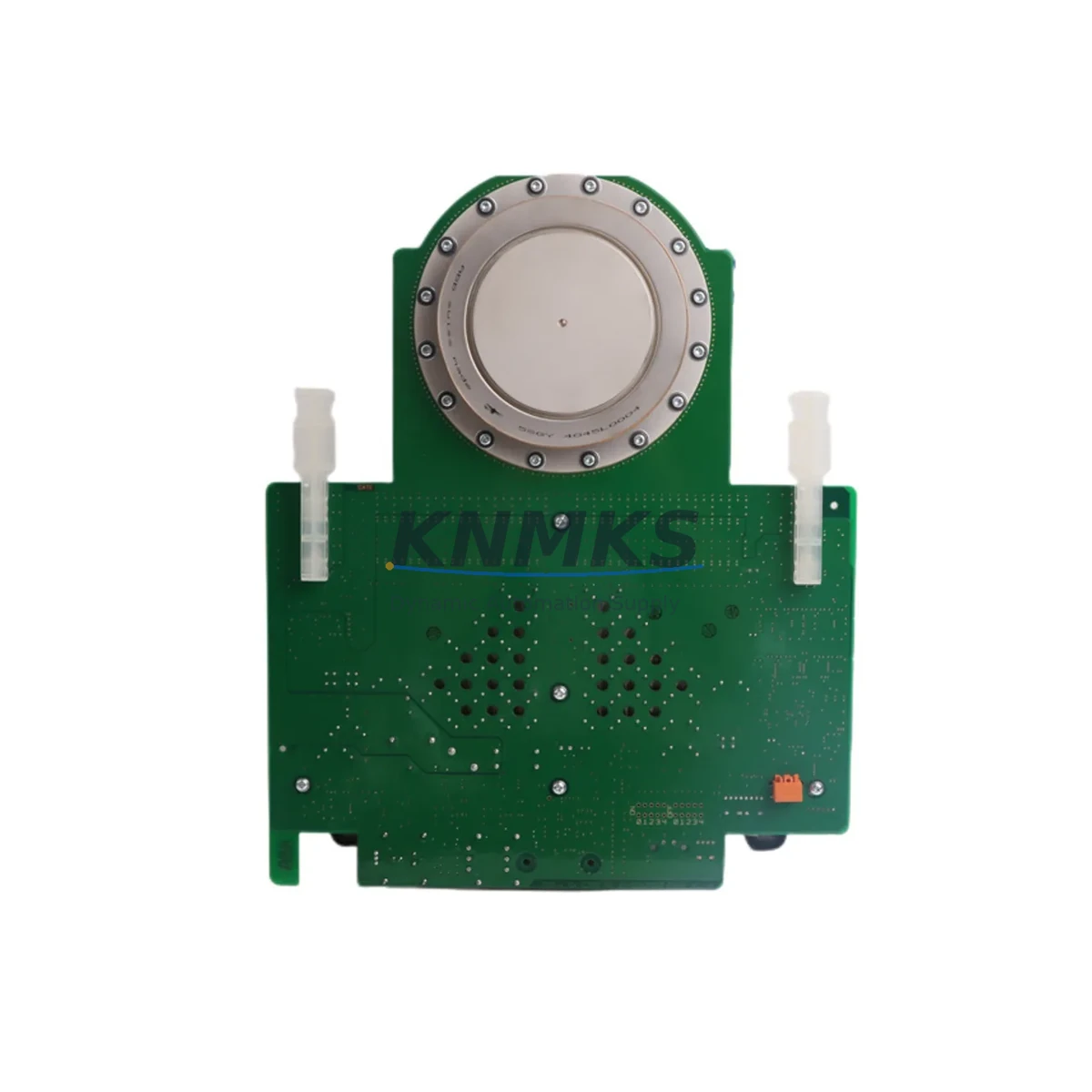

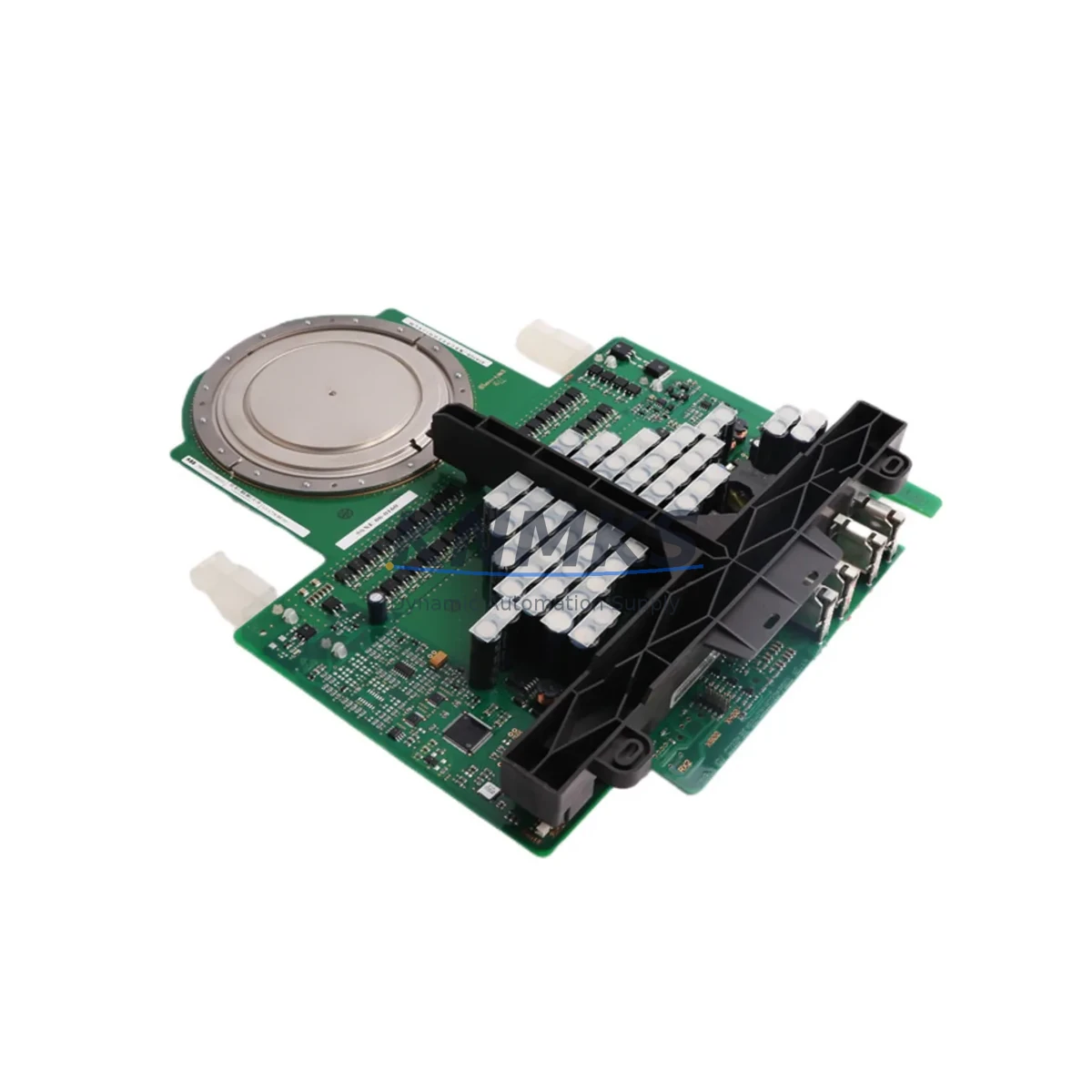

The ABB 3BHB012961R0001 (also catalogued as 5SHX 2645L0002) is a precision-engineered IGCT Gate Drive Module designed for deployment in ABB ACS6000 medium-voltage variable-speed drives. In continuous-process industries — petrochemical, power generation, mining, water treatment, metallurgy, and port logistics — unplanned drive shutdowns translate directly into production loss, safety incidents, and costly emergency maintenance. This gate drive module is the critical interface between the drive controller and the IGCT power semiconductor, and its fail-safe design is fundamental to maintaining control loop integrity under the most demanding field conditions.

Unlike standard gate drive boards, the 3BHB012961R0001 is engineered to sustain reliable switching performance across wide temperature ranges, high-vibration enclosures, and environments with elevated electromagnetic interference. Its robust surge protection circuitry guards against voltage transients that are common in heavy industrial switchgear rooms and motor control centers, preventing gate signal corruption that could otherwise trigger nuisance trips or, worse, uncontrolled IGCT conduction events. Signal drift — a persistent risk in aging or thermally stressed drive cabinets — is minimized through stable reference circuits and tight component tolerances maintained to ABB’s MV drive quality standards.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a properly configured ACS6000 drive cabinet, the 3BHB012961R0001 gate drive module operates as part of a layered protection architecture. The IGCT power semiconductor — such as the ABB 5SHX 2645L0002 IGCT device itself — depends entirely on the gate drive for precise turn-on and turn-off timing. Any degradation in gate signal quality directly increases switching losses and thermal stress on the power stack. For this reason, pairing the gate drive with a verified ABB IGCT snubber capacitor assembly and a calibrated DC link voltage measurement board (such as the ABB SDCS-PIN-48 or equivalent ACS6000 measurement card) is standard practice in high-availability installations.

Power supply stability within the control cabinet is equally critical. The gate drive’s internal logic and isolated gate power circuits require a clean, regulated DC supply. Integrating an ABB NPOW-41C or equivalent 24 VDC auxiliary power supply module with adequate hold-up time ensures that gate drive logic remains powered through brief mains disturbances — preventing spurious IGCT turn-off during voltage dips. For communication integrity between the drive controller and the gate drive interface board, the ABB RDCO-03 or RDCO-04 DDCS fiber optic communication module provides galvanic isolation that eliminates ground loop interference in high-power drive enclosures. In installations where the ACS6000 is part of a broader DCS or safety instrumented system, the ABB AC800M controller with S800 I/O modules provides the supervisory layer that monitors drive health signals and initiates controlled shutdown sequences when gate drive fault codes are detected — avoiding uncontrolled process trips.

Critical Industrial Safety Applications

The 3BHB012961R0001 is deployed across the most demanding continuous-process and safety-critical industrial sectors:

Petrochemical and Refinery: In compressor trains and large pump drives operating in Zone 2 classified areas, gate drive reliability is a process safety requirement. A gate drive failure in a high-pressure compressor drive can trigger emergency shutdown system activation, with significant restart costs and potential flare events. The fail-safe isolation design of this module supports SIL-rated drive architectures.

Power Generation and Transmission: Hydro, thermal, and wind power plants use ACS6000 drives for variable-speed pump-turbine control and auxiliary systems. Continuous operation demands that gate drive modules maintain switching accuracy across seasonal temperature extremes and the high-vibration environment of turbine halls.

Mining and Mineral Processing: SAG mill drives, conveyor systems, and slurry pump drives in underground and open-pit mining operate in high-dust, high-humidity, and high-vibration conditions. The conformal-coated PCB construction of the 3BHB012961R0001 provides the particulate and moisture resistance required for reliable operation in these environments.

Water and Wastewater Treatment: Large centrifugal pump drives in municipal water infrastructure require uninterrupted operation. Gate drive module failures in this context can disrupt water supply to large populations. Stocking verified replacement modules with support terms confirmed by quotation coverage is standard practice for utility operators.

Metallurgy and Steel: Rolling mill main drives and furnace fan drives operate under extreme thermal cycling and electromagnetic noise from arc furnaces and induction heating systems. The EMI-hardened design of this gate drive module supports reliable operation in these high-interference environments.

Port and Marine: Ship propulsion drives and port crane drives require gate drive modules that can withstand salt-air humidity, vibration from vessel motion, and the power quality disturbances common in shore-power connections.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 3BHB012961R0001?
The support terms confirmed by quotation cover functional failure of the gate drive module under normal operating conditions from the date of shipment. This includes gate signal output failure, internal power supply faults, and communication interface defects. Support requests are supported with replacement dispatch and failure analysis reporting.

Q2: What pre-shipment testing is performed on this module?
Each 3BHB012961R0001 unit undergoes functional verification prior to dispatch, including gate signal output testing, power supply rail verification, and visual inspection for PCB integrity and connector condition. Units are shipped in ESD-safe packaging with desiccant to prevent moisture ingress during transit.

Q3: Is this module compatible with all ACS6000 drive variants?
The 3BHB012961R0001 is designed for use with ABB ACS6000 medium-voltage drives equipped with 5SHX 2645L0002 IGCT devices. Compatibility with specific drive configurations should be verified against the ACS6000 hardware manual and the drive’s bill of materials. Our technical team can assist with cross-referencing your drive serial number and firmware version.

Q4: Can long-term supply and replacement support be arranged?
Yes. We maintain stock of the 3BHB012961R0001 and related ACS6000 spare parts to support planned maintenance programs and emergency replacement requirements. Long-term supply agreements with defined lead times and pricing are available for operators with multiple ACS6000 installations or extended maintenance contracts.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHB012961R0001 5SHX 2645L0002

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB 3BHB012961R0001 5SHX 2645L0002
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
