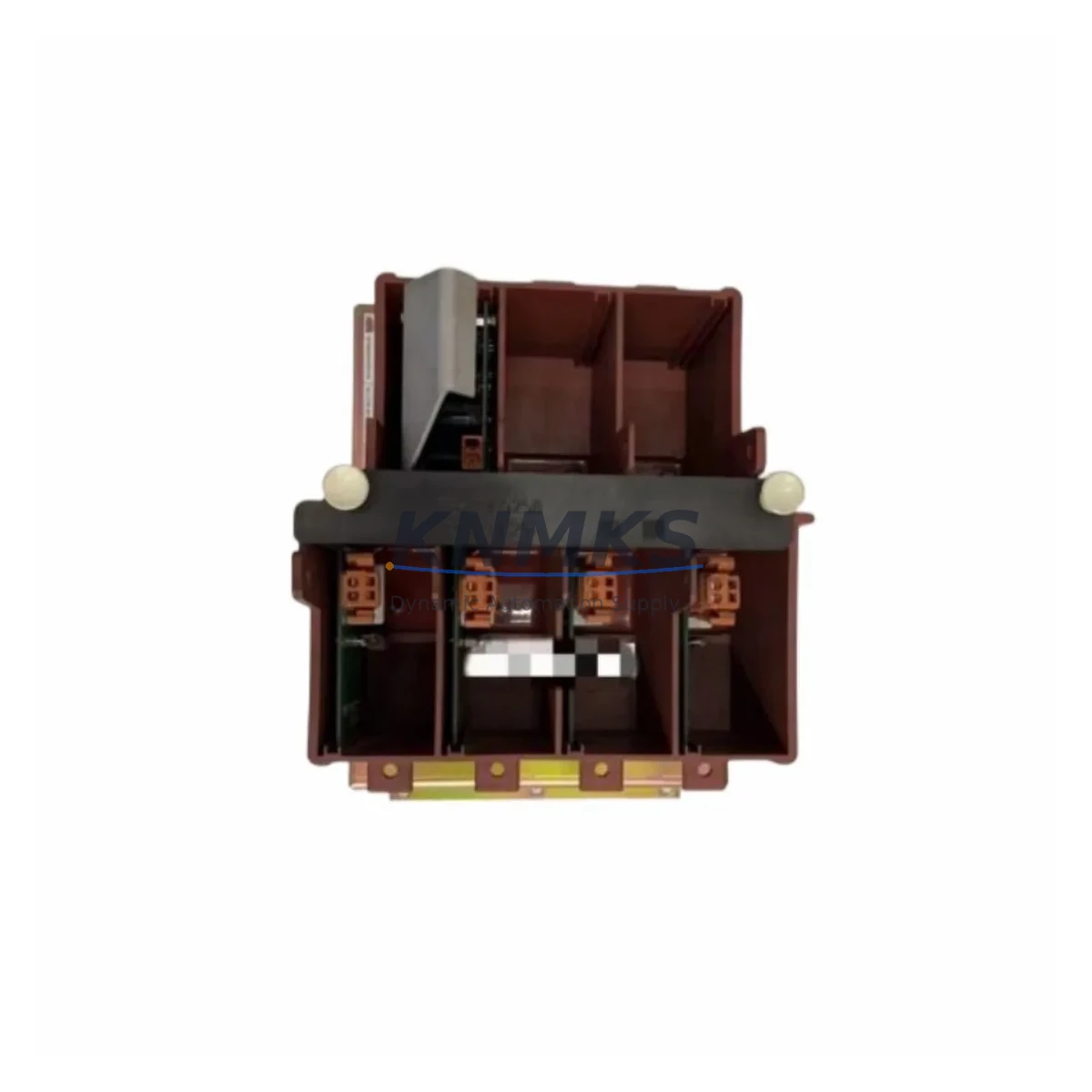

ABB 3BHB005243R0105 KUC755 AE105 Maintenance-Proven Spare Part for Factory Uptime

The ABB 3BHB005243R0105 KUC755 AE105 is a genuine control board designed for ABB ACS800 series variable frequency drives. In industrial facilities where drive availability directly determines production throughput, maintaining a verified spare of this board is a fundamental element of any proactive maintenance strategy. Whether you are managing a paper mill, a water treatment plant, a steel processing line, or a chemical process facility, the ACS800 platform is widely deployed in critical motor control applications — and the KUC755 AE105 board sits at the heart of its control architecture.

This board governs the core control logic of the ACS800 drive, handling signal processing, I/O coordination, and communication with the drive’s power stage. When this component fails, the drive goes offline immediately, and without a ready spare, the resulting downtime can extend from hours to days depending on supply chain lead times. Stocking the 3BHB005243R0105 KUC755 AE105 as a shelf spare eliminates that risk entirely.

Each unit supplied by KNMKS is sourced from verified channels, functionally tested prior to dispatch, and covered by a support terms confirmed by quotation. We support maintenance engineers and procurement teams across manufacturing, utilities, and process industries with reliable, fast-turnaround spare parts fulfillment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules a planned inspection or responds to an ACS800 drive fault, the 3BHB005243R0105 KUC755 AE105 board is rarely the only component that warrants attention. A thorough site assessment should include the following associated components to ensure the drive returns to full operational status and remains stable after the repair.

The AINT-02C or AINT-14C inverter control interface board works in close coordination with the KUC755 AE105 and should be inspected for signs of thermal stress or connector corrosion whenever the control board is replaced. Similarly, the APOW-01C power supply board provides the internal 24 VDC logic rail that feeds the control section — a degraded APOW-01C can cause intermittent faults that mimic control board failure, so verifying its output voltage stability is a critical diagnostic step.

For drives using fieldbus communication, the RDCO-02C or RDCO-04C DDCS communication module should be checked for firmware compatibility and physical connector integrity after any control board swap. If the ACS800 is integrated into a DCS or SCADA system via Profibus or DeviceNet, the corresponding RPBA-01 or RDNA-01 fieldbus adapter should also be verified for correct addressing and signal continuity.

On the power side, inspect the drive input fuses and the DC bus capacitor bank condition as part of any corrective maintenance event. Capacitor degradation is a common root cause of recurring drive faults and is often overlooked when attention is focused on the control board. If the drive cabinet includes an EMC input filter or line reactor, confirm that these components are intact and correctly rated for the connected motor load.

For facilities running older ACS800 installations, the RMIO-11C or RMIO-12C motor control board is another component worth including in the annual spare parts review. These boards handle the motor feedback and encoder interface functions and are subject to wear in high-cycle applications. Maintaining a spare alongside the 3BHB005243R0105 KUC755 AE105 provides comprehensive coverage for the ACS800 control section and significantly reduces the risk of extended downtime during a fault event.

Site Replacement Workflow

Replacing the ABB 3BHB005243R0105 KUC755 AE105 on-site is a structured process that, when followed correctly, minimizes drive downtime and eliminates the risk of configuration loss or compatibility issues.

Step 1 — Fault Isolation: Before opening the drive cabinet, confirm the fault code displayed on the ACS800 panel (CDP-312R or similar) and cross-reference it with the drive’s fault history log. Control board faults typically present as F-0001 (overcurrent), F-0002 (DC overvoltage), or communication loss alarms. Document the active parameter set and macro configuration using the drive’s parameter backup function or an external tool such as the ABB DriveWindow software.

Step 2 — Safe Isolation: Isolate the drive from the main supply and allow the DC bus to discharge fully (minimum 5 minutes after power-off, verify with a calibrated DC voltmeter). Follow your site’s lockout/tagout procedure before opening the control section.

Step 3 — Board Removal and Inspection: Remove the faulty KUC755 AE105 board by releasing the retaining clips and disconnecting the ribbon and signal connectors. Inspect the connector pins and the backplane socket for contamination, corrosion, or mechanical damage before installing the replacement.

Step 4 — Installation and Parameter Restore: Install the 3BHB005243R0105 KUC755 AE105 replacement board, reconnect all cables, and restore the parameter set from backup. Verify that the drive firmware version is compatible with the replacement board revision. If a firmware update is required, perform it before returning the drive to service.

Step 5 — Commissioning Check: Power up the drive in local control mode and verify that all I/O signals, analog references, and fieldbus communication are functioning correctly before transferring control back to the DCS or PLC. Log the replacement in the site maintenance record and update the spare parts inventory accordingly.

This workflow applies equally to emergency corrective replacements and planned preventive maintenance events. For legacy ACS800 installations where the original board revision is no longer available, KNMKS can advise on compatible replacement options and cross-reference part numbers to ensure system continuity.

Spare Parts Support FAQ

Q1: Is the 3BHB005243R0105 KUC755 AE105 compatible with all ACS800 drive variants?
The KUC755 AE105 board is designed for the ABB ACS800 series. Compatibility depends on the specific drive frame size and firmware revision. KNMKS recommends confirming the drive’s full nameplate data and existing board revision before ordering. Our technical team can assist with cross-referencing if you provide the drive serial number or full model code.

Q2: What testing is performed before shipment?
Every 3BHB005243R0105 KUC755 AE105 unit is functionally tested prior to dispatch. Testing covers power-on initialization, I/O signal verification, and communication interface checks. A test report is available upon request. All units are packed in anti-static protective packaging with foam cushioning to prevent transit damage.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental contamination beyond the component’s rated specifications. Support requests are processed with a replacement-first policy to minimize your downtime.

Q4: Can KNMKS support long-term supply for ACS800 spare parts?
Yes. KNMKS maintains ongoing stock of ACS800 control section components including the 3BHB005243R0105 KUC755 AE105 and related boards. For facilities managing large ACS800 fleets or planning multi-year maintenance contracts, we offer framework supply agreements with reserved stock allocation and priority dispatch. Contact our team to discuss your site’s specific requirements.
