ABB 3BHB004027R0101 Spare Part for ACS800 Factory Uptime – Model GV C700 AE01 3BHB004027R0101

Overview

ABB 3BHB004027R0101 Spare Part for ACS800 Factory Uptime

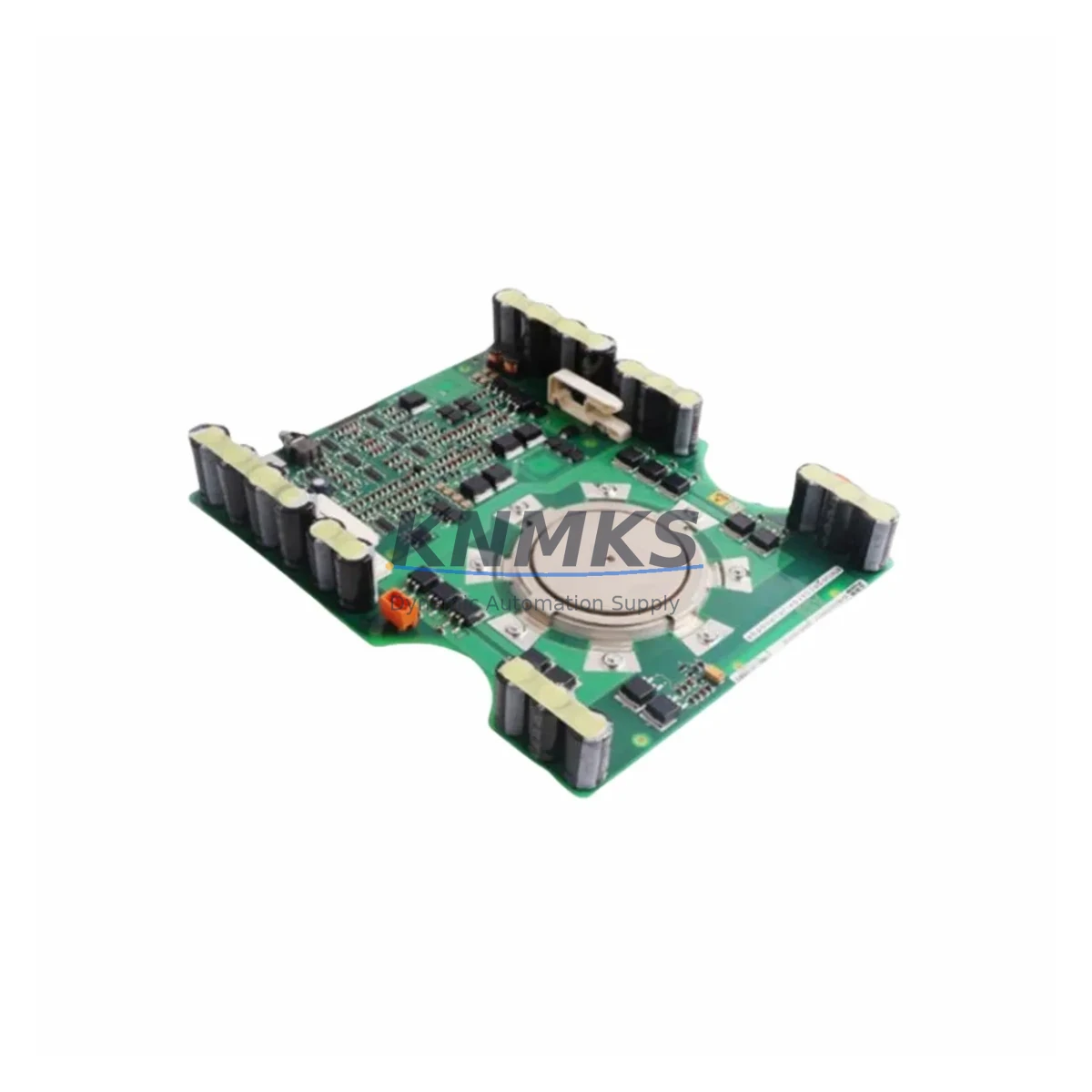

The ABB 3BHB004027R0101 (GV C700 AE01) is a drive control board engineered for the ACS800 series of industrial AC drives — one of ABB’s most widely deployed variable frequency drive platforms across pulp and paper, metals, oil and gas, marine, and heavy process industries. As a core control intelligence component, this board governs speed reference processing, torque control loops, I/O signal management, and drive-to-system communication. When this board fails or degrades, the entire drive becomes inoperable, causing unplanned production stoppages that can cost thousands per hour in lost output.

Sourcing a verified original 3BHB004027R0101 spare is the single most effective action a maintenance team can take to reduce mean time to repair (MTTR) on ACS800-equipped production lines. Our stock is sourced from authorized channels, subjected to pre-shipment functional testing, and backed by a support terms confirmed by quotation — giving procurement engineers the confidence to hold this part as a critical shelf spare without risk of obsolescence-driven write-off.

Whether you are managing a planned annual shutdown, responding to an emergency drive fault, or building a multi-site spare parts inventory for aging ACS800 installations, the 3BHB004027R0101 represents a high-priority line item. Its compatibility spans multiple ACS800 cabinet configurations, and its role in the drive’s control architecture means no workaround or bypass is possible — replacement is the only path to restoration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A drive control board failure rarely occurs in isolation. When the 3BHB004027R0101 is flagged for replacement — whether through a fault code, thermal event, or routine condition monitoring — maintenance engineers should treat the intervention as an opportunity to inspect the full ACS800 drive assembly. The AINT (Auxiliary Interface Board) and APOW (Auxiliary Power Supply Board) within the same cabinet are frequent co-failure components; both should be checked for capacitor bulge, solder joint integrity, and supply rail voltages before the drive is returned to service.

The RDCO-03 or RDCO-04 communication option module, if installed, should be verified for firmware compatibility with the replacement control board. In multi-drive configurations using the DDCS fiber optic link, the fiber connectors and DDCS master board should be inspected for contamination or signal degradation. Similarly, the IOEC I/O extension modules connected to the ACS800’s I/O bus should be tested for correct signal mapping after the board swap, as address conflicts can cause intermittent faults post-replacement.

On the power side, the drive’s DC bus capacitor bank condition should be assessed — particularly in drives that have been in service for more than five years. The charging circuit and pre-charge resistors are wear items that can mask underlying control board issues. The main contactor and input fuses (typically gG or aR class, rated to the drive’s input current) should be inspected and replaced if showing signs of contact erosion or thermal discoloration. A faulty input fuse or contactor can cause repeated control board stress through voltage transients.

For sites running ACS800 drives in crane, hoist, or winder applications, the encoder interface board (RTAC or RTAC-03) and the pulse encoder cable shielding should be verified — encoder signal noise is a known cause of spurious control board fault trips. Holding a spare 3BHB004027R0101 alongside a spare AINT board and a set of input fuses covers the majority of emergency repair scenarios for ACS800 installations.

Site Replacement Workflow

Step 1 — Fault Isolation: Record all active and historical fault codes from the ACS800 panel (CDP or DriveWindow). Document the fault history before powering down — this data is lost on some firmware versions after a control board swap.

Step 2 — Safe Isolation: Isolate the drive from mains supply and allow the DC bus to discharge fully (minimum 5 minutes after power-off, verify with a calibrated DC voltmeter at the DC bus terminals). Do not rely on the drive’s internal discharge indicator alone.

Step 3 — Board Removal: Photograph the existing wiring and fiber connections before disconnection. The 3BHB004027R0101 is typically secured with M3 or M4 fasteners and connected via board-to-board connectors and ribbon cables. Handle with ESD precautions throughout.

Step 4 — Parameter Backup: If the original board is still partially functional, use DriveWindow or the CDP panel to export the parameter set. If not, restore from the site’s parameter backup file — maintaining an up-to-date parameter backup is a critical maintenance practice for all ACS800 installations.

Step 5 — Replacement & Commissioning: Install the 3BHB004027R0101, restore parameters, verify I/O signal mapping, and perform a no-load test run before returning the drive to full production load. Check for fault codes F-0001 through F-0009 (hardware faults) on first power-up.

Step 6 — Documentation: Update the site maintenance log with the replacement date, part serial number, and post-commissioning test results. This supports support requests and future fault trend analysis.

Spare Parts Support FAQ

Q: Is the 3BHB004027R0101 compatible with all ACS800 variants?
A: The 3BHB004027R0101 (GV C700 AE01) is designed for specific ACS800 cabinet configurations. Compatibility depends on the drive’s power rating, firmware version, and installed option modules. We recommend confirming your drive’s full type code before ordering. Our technical team can assist with compatibility verification based on your nameplate data.

Q: What does pre-shipment testing cover?
A: Each 3BHB004027R0101 unit undergoes functional verification prior to dispatch, including power-up checks, communication interface testing, and I/O signal validation where applicable. This ensures the board is operational before it reaches your site, reducing the risk of a failed repair attempt during a critical outage.

Q: How should I store this spare part if not immediately needed?
A: Store in the original anti-static packaging in a dry, temperature-controlled environment (typically 0–40°C, <95% RH non-condensing). Avoid proximity to strong magnetic fields or high-vibration areas. Inspect annually for any signs of corrosion on connector pins. Properly stored, the board has a shelf life consistent with the support terms confirmed by quotation period from date of dispatch.

Q: What is the long-term supply outlook for this part?
A: The ACS800 series is a mature platform and original spare availability is finite. We maintain multi-region stock to support emergency and planned procurement. For sites with multiple ACS800 drives, we recommend a proactive inventory strategy — holding at least one 3BHB004027R0101 per site reduces exposure to lead time risk as OEM availability tightens. Contact our team for volume pricing and long-term supply agreements.
