ABB 3BHB004027R0101 Spare Part for ACS800 Factory Uptime – Model 3BHB004027R0101 C700 AE01 5SXE05-015

Overview

ABB 3BHB004027R0101 Spare Part for ACS800 Factory Uptime

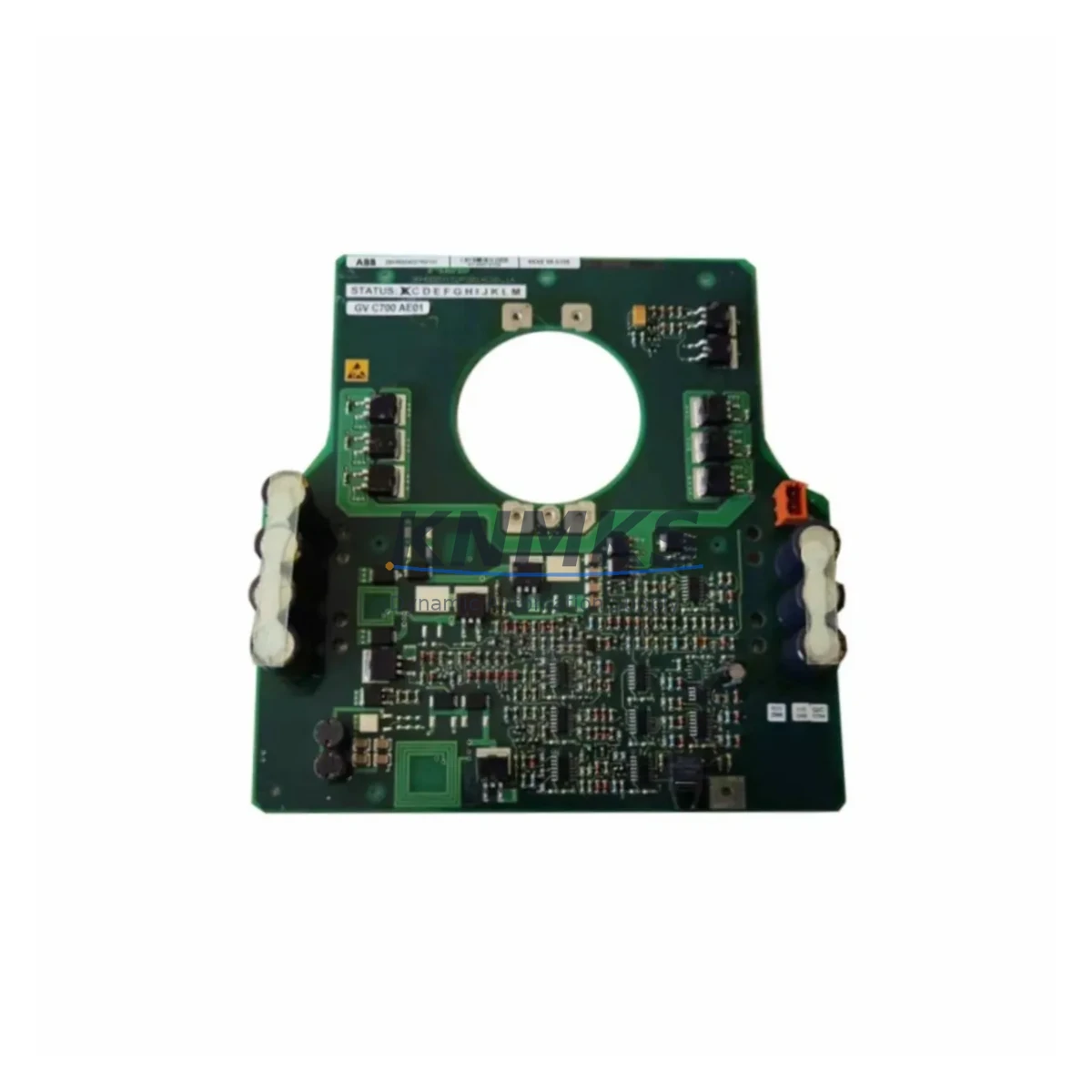

The ABB 3BHB004027R0101 (C700 AE01 / 5SXE05-015) is a gate driver board engineered for the ACS800 series variable frequency drive platform — one of ABB’s most widely deployed industrial drive families across pulp and paper, metals, marine, oil and gas, and heavy process industries. As a critical power electronics interface between the control logic and the IGBT power modules, this board governs switching signals, monitors fault states, and protects the drive from overcurrent and short-circuit events. When this component degrades or fails, the entire drive becomes inoperable, resulting in unplanned downtime that can cost thousands of dollars per hour in lost production.

Sourced as an original ABB spare, the 3BHB004027R0101 is held in multi-region stock and dispatched globally with full pre-shipment electrical testing and a support terms confirmed by quotation. Whether you are responding to an emergency fault, executing a planned annual overhaul, or building a resilient spare parts inventory for a fleet of ACS800 drives, this board is available for immediate fulfillment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The gate driver board does not operate in isolation. During any ACS800 maintenance event — whether a scheduled annual inspection or an emergency fault response — maintenance engineers should treat the 3BHB004027R0101 replacement as part of a broader system review. The IGBT power modules (such as the 5SNA0400J650100 or equivalent frame-matched IGBT stack) share the same switching bus and are subject to the same thermal and electrical stress cycles. If the gate driver has failed due to an IGBT desaturation event, the power semiconductors themselves must be evaluated before the drive is re-energized.

The 24 VDC auxiliary power supply feeding the ACS800 control section — often an APBU-44C or APBU-12C branching unit in multi-drive configurations — should be verified for output stability and ripple. A degraded auxiliary supply is a common upstream cause of gate driver instability and spurious fault trips. Similarly, the RDCU-02C or RDCU-12C drive control unit, which communicates setpoints and fault data to the gate driver layer, should be inspected for firmware integrity and communication link health.

On the I/O and signal side, the RAIO-01 analog I/O extension module and RDIO-01 digital I/O module connected to the ACS800 should be checked for correct signal levels and wiring continuity. Loose or corroded terminal connections on the X1 and X2 control wiring blocks are a frequent source of nuisance faults that are misdiagnosed as gate driver failures. The NETA-21 remote monitoring adapter, if installed, provides historical fault log data that can help distinguish a genuine gate driver failure from a transient signal fault.

For sites running ACS800 drives in a common DC bus topology, the BAMU-01 bus adapter module and associated DC fuses (typically NH-type or equivalent high-speed semiconductor fuses) must be inspected. A blown DC bus fuse upstream of the drive will present symptoms identical to a gate driver failure. Procurement engineers building annual spare parts kits for ACS800 fleets should include the 3BHB004027R0101 alongside a matched IGBT module, a set of DC bus fuses, and a spare RDCU control unit to cover the most statistically probable failure modes in a single procurement cycle.

Site Replacement Workflow

Step 1 — Fault Isolation: Record all active and historical fault codes from the ACS800 panel (CDP-312R or DriveWindow). Fault codes F-0022 through F-0030 indicate gate driver or IGBT layer faults. Cross-reference with the drive’s fault history log to determine whether the fault is recurring or a single event.

Step 2 — Safe Isolation: Isolate the drive from mains supply and engage the DC bus discharge procedure per ABB ACS800 Hardware Manual (3AFE64527592). Verify DC bus voltage is below 50 V using a calibrated meter before opening the drive cabinet. Do not rely solely on the drive’s internal discharge indicator.

Step 3 — Board Removal: Disconnect the gate driver ribbon cables and fiber optic links (where applicable) before unbolting the board. Note the orientation and routing of all fiber optic cables — incorrect reconnection will cause immediate re-fault on power-up.

Step 4 — Visual Inspection: Before installing the replacement 3BHB004027R0101, inspect the IGBT module gate terminals and emitter sense connections for signs of arcing, carbonization, or mechanical damage. If damage is present, replace the IGBT module before proceeding.

Step 5 — Installation and Verification: Install the replacement board, reconnect all cables in correct sequence, and perform a no-load power-up test. Verify that the drive completes its self-test sequence without fault. Run the drive at minimum speed under no load before returning to production.

Step 6 — Documentation: Record the replacement in the site maintenance log with the new board serial number, installation date, and technician sign-off. Update the spare parts inventory to trigger reorder of a replacement 3BHB004027R0101 for the next event.

Spare Parts Support FAQ

Q1: Is the 3BHB004027R0101 compatible with all ACS800 drive frame sizes?
The 3BHB004027R0101 with variant code C700 AE01 / 5SXE05-015 is designed for specific ACS800 frame sizes and power ratings. Compatibility must be confirmed against the drive’s nameplate and the ABB spare parts BOM for your specific drive serial number. Contact our technical team with your drive serial number for a confirmed cross-reference before ordering.

Q2: What pre-shipment testing is performed on this board?
Every 3BHB004027R0101 dispatched from our stock undergoes gate signal output verification, isolation resistance testing between gate and emitter circuits, and a functional power-on test. A test report is available upon request. The board is shipped with ESD-protective packaging and a support terms confirmed by quotation from the date of shipment.

Q3: Can this board replace the original if my ACS800 has been upgraded with newer firmware?
The gate driver board operates at the hardware level and is not firmware-dependent in the same way as the RDCU control unit. However, if your ACS800 has undergone a major hardware revision (e.g., R-frame upgrade), confirm the board revision level matches your drive’s hardware generation. Our team can assist with revision-level cross-referencing.

Q4: What is your long-term supply commitment for ACS800 spare parts?
We maintain multi-region stock of ACS800 critical spares including gate driver boards, IGBT modules, control units, and auxiliary power supplies. For customers managing fleets of ACS800 drives, we offer annual supply agreements with reserved stock allocation to eliminate lead-time risk for planned maintenance cycles. Contact [email protected] to discuss a tailored supply arrangement.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHB004027R0101 C700 AE01 5SXE05-015
S800 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB 3BHB004027R0101 C700 AE01 5SXE05-015
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
