ABB 3BHB003230R0101 Fail-Safe Gate Drive for Industrial Control

Overview

ABB 3BHB003230R0101 Fail-Safe Gate Drive for Industrial Control Reliability

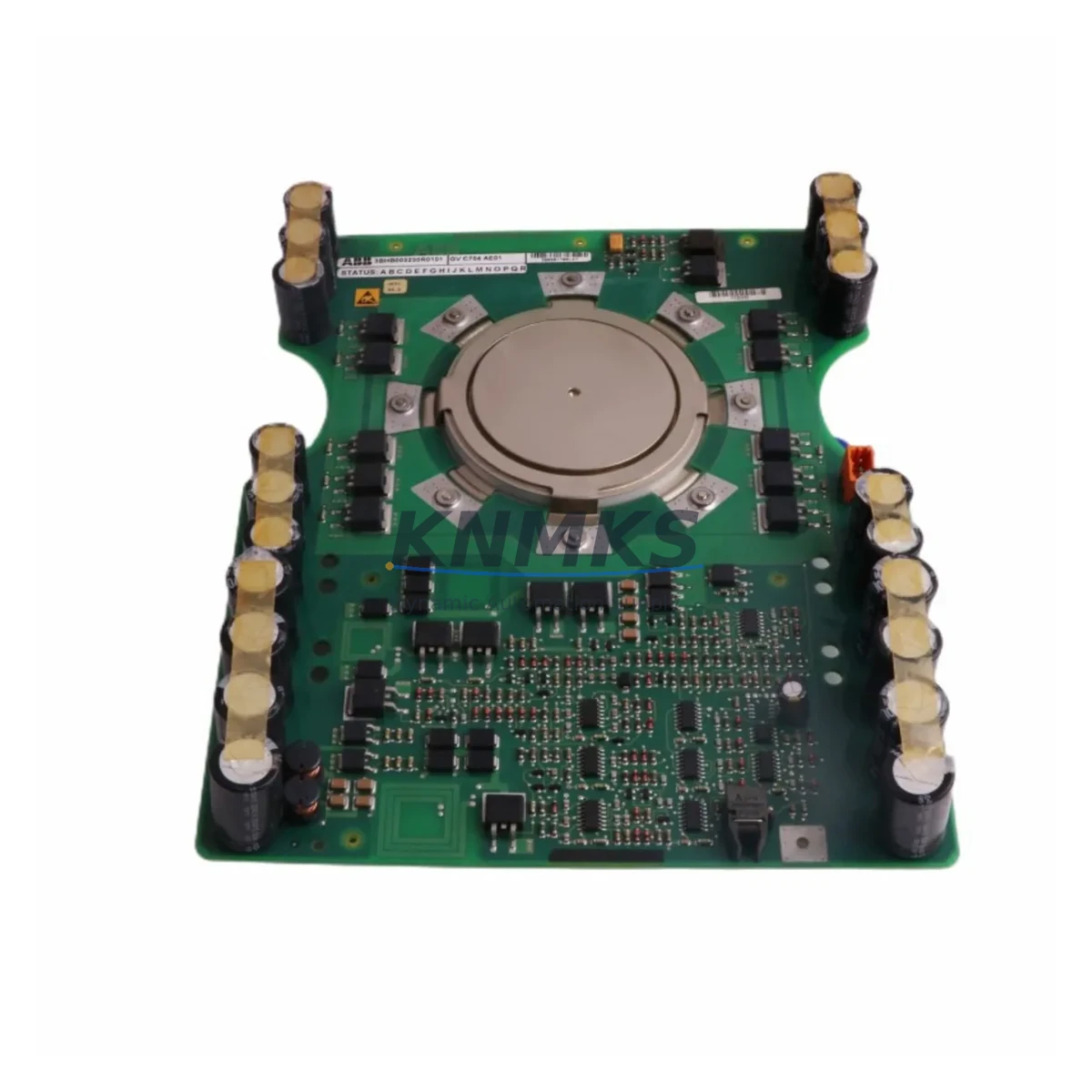

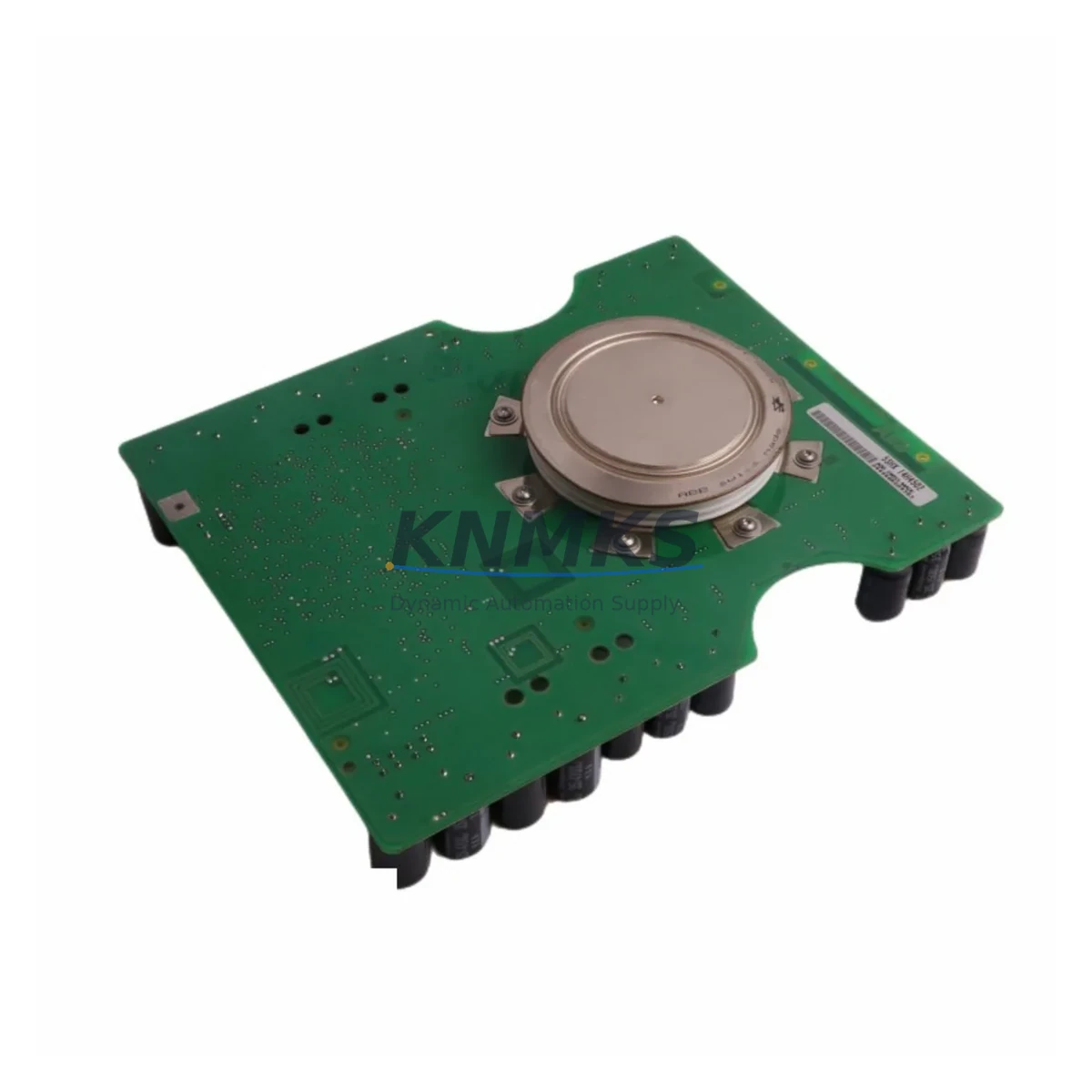

The ABB 3BHB003230R0101 is an IGCT Gate Drive Power Interface Board engineered for the ACS6000 medium voltage AC drive platform. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, and continuous process manufacturing — this board delivers the fail-safe gate triggering performance that high-power drive systems require. With robust surge protection, high electromagnetic interference (EMI) immunity, and a thermally stable design, the 3BHB003230R0101 is a critical component for maintaining uninterrupted control in applications where downtime carries significant operational and safety consequences.

In medium voltage drive cabinets running ACS6000 systems, the gate drive power interface board serves as the bridge between the control logic and the IGCT thyristor stack. Any degradation in gate signal integrity — whether caused by voltage transients, thermal stress, moisture ingress, or vibration — can result in misfiring, overcurrent faults, or uncontrolled drive shutdown. The 3BHB003230R0101 is built to resist these failure modes, providing consistent gate pulse delivery even under fluctuating DC bus conditions and high-frequency switching noise environments.

For facilities operating legacy ACS6000 installations, sourcing a verified replacement 3BHB003230R0101 is often the fastest path to restoring drive availability without committing to a full drive replacement. Each unit shipped from our inventory undergoes pre-delivery functional testing to confirm gate signal output, power supply regulation, and interface connector integrity before dispatch.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Maintaining the integrity of a medium voltage drive cabinet requires more than a single reliable component — it demands a coordinated protection strategy across the entire power and control chain. In ACS6000 installations, the 3BHB003230R0101 gate drive board works in close coordination with the IGCT thyristor modules it triggers. A degraded gate drive signal reaching the IGCT stack can cause asymmetric firing, leading to current imbalance and potential thyristor failure. Replacing the gate drive board proactively — or immediately upon fault indication — prevents cascading damage to the more costly IGCT assemblies.

Beyond the gate drive itself, the stability of the ACS6000 control power supply unit directly affects gate pulse timing. Voltage ripple or dropout on the auxiliary power rail feeding the 3BHB003230R0101 can introduce timing jitter that manifests as drive instability or nuisance tripping. Ensuring the control power supply module is within specification is a recommended parallel check during any gate drive replacement procedure.

In cabinets exposed to high dust concentrations or humidity — common in cement plants, paper mills, and coastal industrial facilities — the ACS6000 cooling fan assemblies and air filter units play a critical role in keeping the gate drive board within its thermal operating window. Blocked airflow accelerates component aging on the power interface board and increases the risk of thermal-induced gate signal drift.

For facilities with multiple ACS6000 drives in parallel or in multi-drive configurations, the fiber optic communication boards used for inter-drive coordination should also be verified during a gate drive replacement event. A fault on one drive’s gate interface can propagate control anomalies to adjacent drives if the fiber optic links are not properly isolated during the maintenance window. Additionally, the ACS6000 I/O extension modules connected to the main control board should be checked for any latched fault states that may have been triggered by the original gate drive failure event.

Where the drive cabinet interfaces with a DCS or SCADA system via Profibus or Modbus, the communication adapter module should be confirmed as fault-free before returning the drive to automatic control mode. This prevents the control system from issuing run commands before the drive has completed its internal self-check sequence following board replacement.

Critical Industrial Safety Applications

The 3BHB003230R0101 is deployed across a wide range of critical industrial sectors where medium voltage drive reliability is non-negotiable. In petrochemical and refinery applications, ACS6000 drives control large compressors, pumps, and extruder motors that operate continuously in hazardous area classifications. A gate drive failure in these environments does not merely cause production loss — it can trigger safety interlock sequences that require controlled shutdown of entire process trains, with restart procedures that may take hours or days.

In power generation facilities — including thermal power plants and hydroelectric stations — ACS6000 drives are used for boiler feed pump control, induced draft fan regulation, and auxiliary system management. The fail-safe gate triggering provided by the 3BHB003230R0101 ensures that speed control remains stable even during grid disturbances, preventing the drive from contributing to plant-level electrical instability.

Mining operations rely on ACS6000 drives for conveyor systems, hoists, and grinding mill motors. In these environments, the gate drive board must withstand high levels of mechanical vibration, conductive dust, and wide ambient temperature swings. The 3BHB003230R0101’s robust construction makes it well-suited for these conditions, and maintaining a verified spare in the site’s critical spares inventory is standard practice for mine electrical teams.

Water treatment and desalination plants use medium voltage drives for large pump stations where flow continuity is directly linked to public health infrastructure. Port and shipyard applications similarly depend on ACS6000 systems for crane drives and vessel loading equipment, where a drive fault during cargo operations carries both safety and commercial consequences. In all of these sectors, the availability of a tested, in-stock 3BHB003230R0101 replacement board is a key element of the site’s maintenance risk management plan.

Safety and Quality FAQ

Q: Does the 3BHB003230R0101 come with a support terms?
A: Yes. Every 3BHB003230R0101 shipped from our inventory is covered by a support terms confirmed by quotation from the date of delivery. This covers manufacturing defects and functional failures under normal operating conditions. Our support terms support includes technical assistance for installation verification and fault diagnosis.

Q: What pre-shipment testing is performed on each unit?
A: Each board undergoes functional testing prior to dispatch, including verification of gate signal output integrity, auxiliary power supply regulation, and connector interface condition. Units that do not meet specification are not shipped. A test report is available upon request for critical applications.

Q: Is the 3BHB003230R0101 compatible with all ACS6000 configurations?
A: The 3BHB003230R0101 is designed for use within the ACS6000 medium voltage drive platform. Compatibility depends on the specific drive rating, IGCT stack configuration, and firmware version installed in the target drive. We recommend confirming the existing board’s part number and revision marking before ordering. Our technical team can assist with compatibility verification if you provide your drive’s nameplate data and existing board markings.

Q: How quickly can a replacement board be shipped, and do you maintain ongoing stock?
A: We maintain inventory of the 3BHB003230R0101 to support urgent replacement requirements. Standard lead time for in-stock units is 1–3 business days for international shipments, with expedited options available for critical downtime situations. Long-term supply continuity is a priority for our industrial spare parts program, and we actively source and qualify replacement stock to support customers with ongoing ACS6000 fleets.
