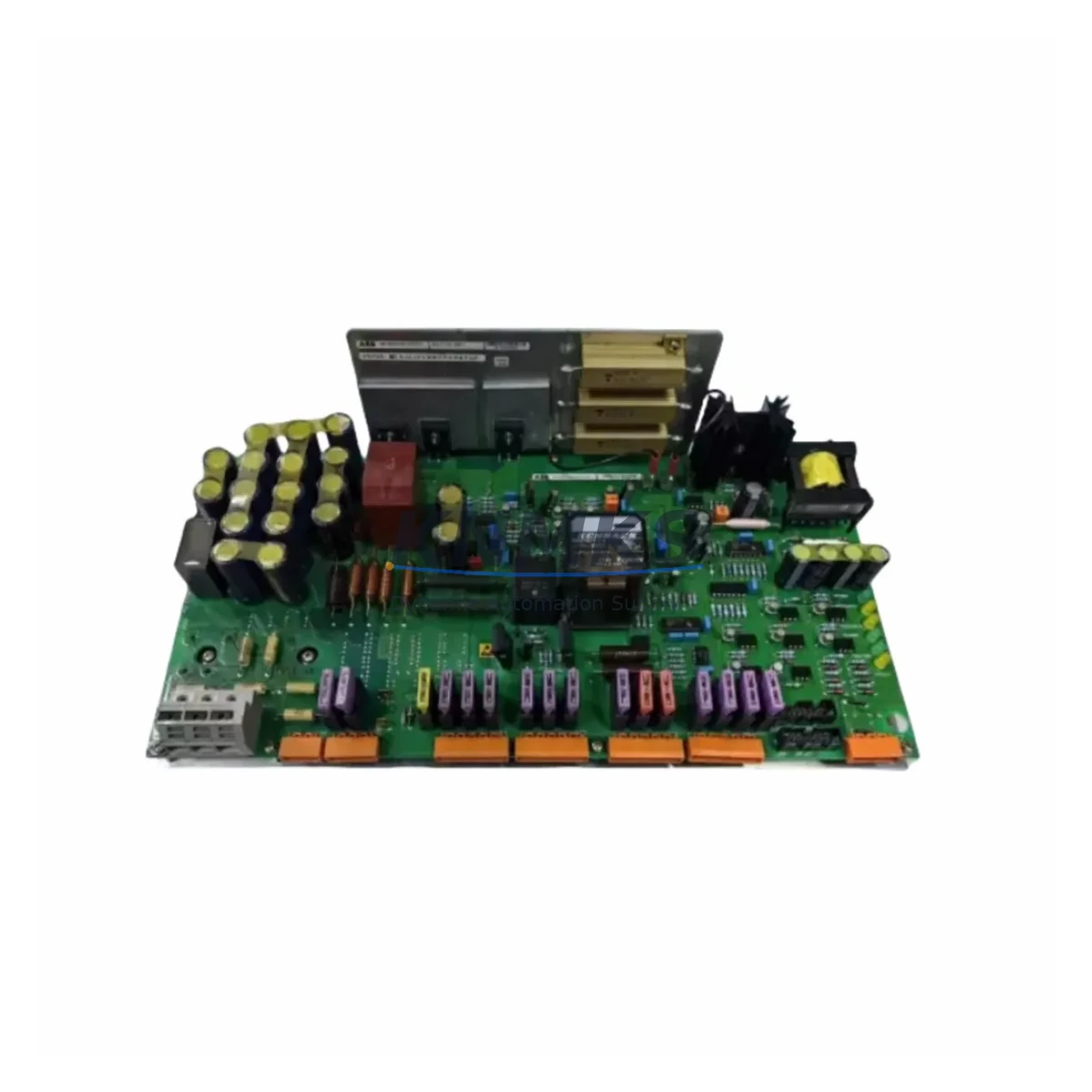

ABB 3BHB000652R0101 KU-C720 Spare for ACS800 Uptime: Maintenance-Proven Inverter Power Board for Continuous Factory Operation

The ABB 3BHB000652R0101 KU-C720 is a critical inverter power board designed for the ACS800 series variable speed drives — one of ABB’s most widely deployed drive platforms across heavy industry, process automation, and utility applications. When this board fails, the consequences are immediate: unplanned downtime, production loss, and costly emergency procurement. Stocking a verified replacement is the single most effective strategy maintenance engineers can deploy to protect line continuity.

This unit is sourced as an original ABB spare, subject to pre-shipment functional testing and visual inspection before dispatch. It is supplied with a support terms confirmed by quotation, ensuring your maintenance team has documented coverage from the moment the part arrives on site. Whether you are managing a single ACS800 cabinet or a fleet of drives across multiple production lines, the 3BHB000652R0101 KU-C720 is a board that belongs in your critical spare inventory.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3BHB000652R0101 KU-C720 in an ACS800 drive is rarely an isolated event. Experienced maintenance engineers treat a power board failure as a signal to audit the entire drive cabinet and associated electrical circuit. Before returning the drive to service, the following components should be inspected or replaced as part of a structured maintenance sweep:

The AINT-02C or AINT-11C auxiliary interface board (also ABB ACS800 series) handles communication between the control section and the power stage — a degraded interface board can cause recurring faults even after a power board swap. Similarly, the RDCU-02C drive control unit manages the core logic and parameter memory; if the drive experienced a hard fault or overvoltage event, the RDCU should be checked for fault history and firmware integrity.

On the power supply side, inspect the APOW-01C power supply board for output voltage stability. A failing auxiliary power supply is a common root cause of intermittent power board faults and is frequently overlooked during reactive maintenance. The DC bus capacitor bank should also be assessed for capacitance degradation, especially in drives with more than five years of continuous service.

For I/O and signal integrity, verify the AIMA-01 I/O extension module and any installed RDIO-01 digital I/O modules for correct signal levels and terminal integrity. Loose or corroded terminal blocks on the control wiring side can introduce noise that mimics power board faults. If the drive is integrated into a fieldbus network, the RPBA-01 PROFIBUS adapter or equivalent communication module should be confirmed operational after the board replacement.

Finally, check the drive’s cooling fan assembly and thermal sensors. Overtemperature events are a leading cause of power board degradation in ACS800 drives, and a fan that is running below rated speed will shorten the service life of any replacement board. Fuse integrity on the input side of the drive cabinet should also be verified before energizing.

Site Replacement Workflow

Step 1 — Isolation and lockout: De-energize the ACS800 drive and apply LOTO (lockout/tagout) per site safety procedures. Allow the DC bus to fully discharge (minimum 5 minutes after power-off; verify with a calibrated voltmeter before opening the cabinet).

Step 2 — Fault log retrieval: Before removing the board, connect a laptop or panel HMI to retrieve the full fault history from the RDCU drive control unit. Document fault codes, timestamps, and any parameter deviations. This data is essential for root cause analysis and for confirming the replacement resolves the underlying issue.

Step 3 — Board removal: Photograph all connector positions and cable routing before disconnection. Remove the KU-C720 board by releasing the retaining hardware and disconnecting all ribbon cables and power connectors in sequence. Handle the board by its edges to avoid ESD damage.

Step 4 — Inspection and comparison: Compare the removed board with the replacement 3BHB000652R0101 unit. Confirm part number, revision marking, and connector layout match. Inspect the removed board for visible damage: burnt components, cracked solder joints, swollen capacitors, or arc marks.

Step 5 — Installation: Install the replacement KU-C720 board, reconnect all cables in reverse order, and verify all connectors are fully seated. Restore the cabinet and perform a pre-energization checklist: input fuses intact, cooling fan operational, control wiring secure.

Step 6 — Commissioning: Energize the drive and monitor for fault codes during the first startup. Verify output frequency, current, and voltage against pre-fault baseline values. Run the drive at low load for a minimum of 15 minutes before returning to full production speed.

Step 7 — Documentation: Update the maintenance log with the replacement date, part number, and post-commissioning test results. Schedule a follow-up inspection at 30 days to confirm stable operation.

Spare Parts Support FAQ

Q1: Is the 3BHB000652R0101 KU-C720 compatible with all ACS800 drive variants?
The KU-C720 power board is designed for specific ACS800 drive frame sizes and power ratings. Compatibility depends on the exact ACS800 model number and hardware revision of your drive. Before ordering, confirm your drive’s full type code (found on the nameplate inside the cabinet door) and cross-reference with ABB’s ACS800 hardware manual or contact our technical team for verification. We support compatibility confirmation prior to shipment.

Q2: What pre-shipment testing is performed on this board?
Every 3BHB000652R0101 KU-C720 unit undergoes functional testing and visual inspection before dispatch. Testing covers power-on verification, gate drive signal integrity, and board-level continuity checks. A test report is available upon request. The board is shipped in anti-static packaging with physical protection to prevent transit damage.

Q3: What does the support terms confirmed by quotation cover, and how is a support terms claim handled?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events beyond the drive’s rated input, or physical mishandling. To initiate a support terms claim, contact [email protected] with your order reference, fault description, and photos of the installed board. Replacement or repair is processed within agreed lead times.

Q4: Can you support long-term or blanket orders for ACS800 spare parts?
Yes. For maintenance teams managing multiple ACS800 drives or planning annual shutdown stock, we support blanket purchase orders, reserved stock arrangements, and scheduled delivery programs. Long-term supply agreements help eliminate emergency procurement risk and ensure parts availability during planned outages. Contact our sales team to discuss volume pricing and stock reservation options.
