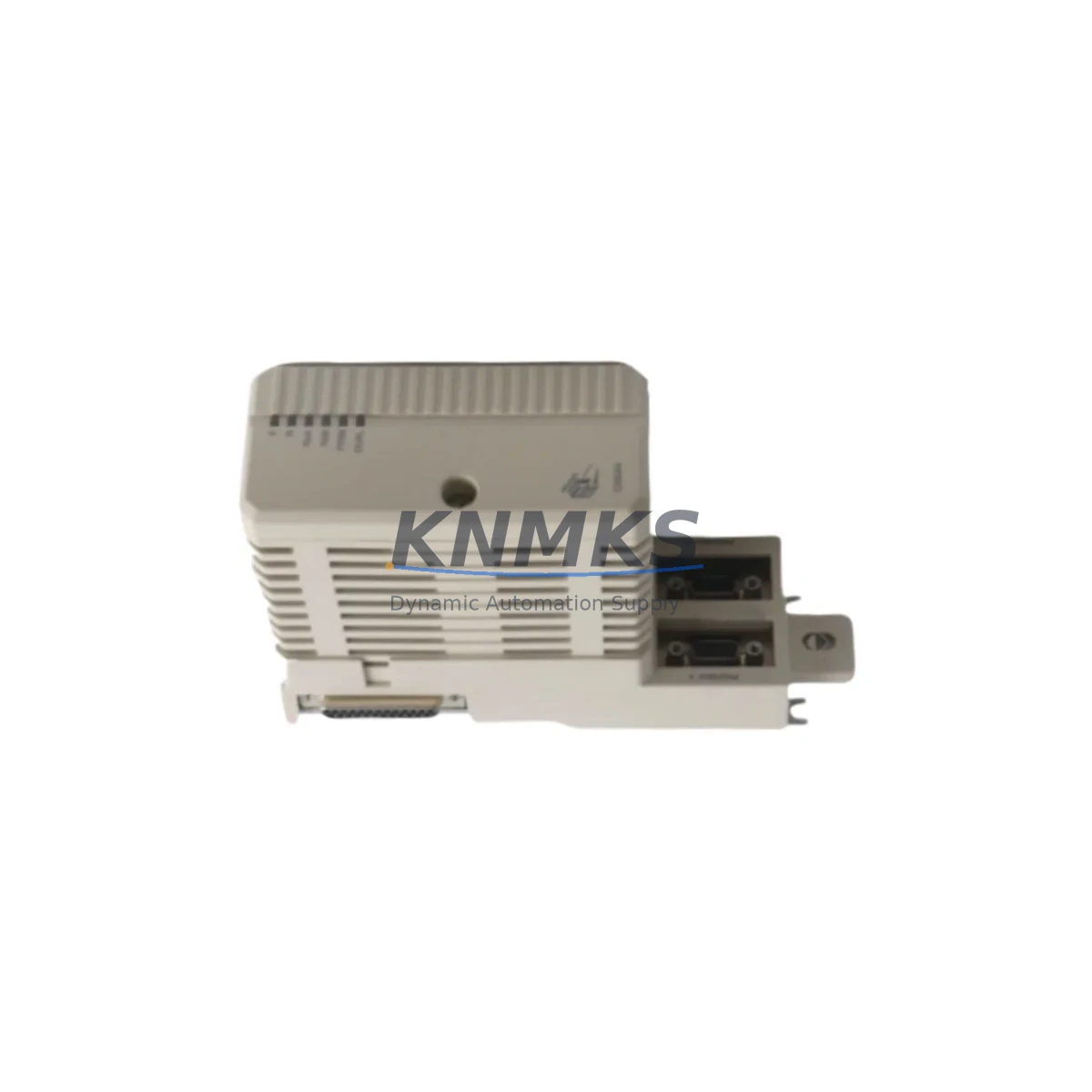

ABB 3BDH000395R0001 Migration-Ready PROFIBUS DP Module

Overview

ABB 3BDH000395R0001 Migration-Ready PROFIBUS DP Module for Legacy Control Systems

The ABB 3BDH000395R0001 is a PROFIBUS DP master communication module engineered for the AC 800M controller platform, serving as a verified drop-in replacement for the discontinued CI854AK01. As legacy DCS installations built around ABB’s Advant and Symphony Plus architectures reach end-of-support milestones, the 3BDH000395R0001 provides a direct migration path that preserves existing PROFIBUS DP network topology, field device addressing, and GSD file configurations without requiring a full system redesign.

For maintenance engineers managing aging control cabinets, the 3BDH000395R0001 slots directly into the S800 I/O backplane and communicates with the PM861A or PM864A process controller modules via the internal ModuleBus. This means that existing I/O channel assignments, function block libraries, and Control Builder M project files remain intact during the swap. The module supports PROFIBUS DP-V0 and DP-V1 services, enabling continued operation with field instruments, variable frequency drives, and remote I/O stations already deployed on the network — including devices from third-party vendors integrated under the original plant design.

When planning a retrofit around the 3BDH000395R0001, engineers must verify several critical parameters before committing to a cutover window. Power budget on the S800 baseunit must accommodate the module’s 24 VDC supply draw alongside co-installed modules such as the AI810 analog input module or DI810 digital input module sharing the same rack segment. Terminal wiring on the PROFIBUS connector — particularly the A/B line polarity, bus termination resistor placement, and cable shielding continuity — must be confirmed against the original CI854AK01 installation drawings to avoid signal reflection issues on longer bus segments.

Backplane slot addressing is another area requiring careful pre-migration audit. The AC 800M controller assigns module positions based on physical slot sequence; if the 3BDH000395R0001 is installed in a different slot than the original CI854AK01, the hardware configuration in Control Builder M must be updated to reflect the new position before downloading to the controller. Failure to align slot addressing will result in a hardware mismatch fault and prevent the PROFIBUS master from initializing its slave table.

Communication link integrity should be validated using a PROFIBUS diagnostic tool or the built-in diagnostics available through the AC 800M’s OPC DA/UA server interface. Engineers should confirm that all slave devices respond within the configured watchdog timeout and that the GSD-defined I/O map matches the process variable assignments in the application program. Where the plant uses an ABB System 800xA HMI, the associated aspect objects and graphic faceplates referencing PROFIBUS slave data should be verified for correct tag binding after the module replacement, as address offsets can shift if the slave configuration was modified during the migration preparation phase.

Firmware version compatibility is a frequently overlooked step. The 3BDH000395R0001 requires a minimum AC 800M firmware baseline to support its full DP-V1 acyclic service capability. Sites running older PM861 firmware versions should schedule a firmware update as part of the migration plan, coordinating with the control system backup and restore procedure to protect the existing application program. The firmware update itself can typically be performed online without a full process shutdown, reducing the overall migration window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the 3BDH000395R0001 typically involves coordinating several interdependent components within the same control cabinet or rack assembly. The S800 I/O baseunit hosting the module must have sufficient available slots; in dense configurations where AI810, AO810, DI810, and DO810 I/O modules already occupy most positions, engineers may need to evaluate whether a secondary baseunit expansion is required before the PROFIBUS master can be physically installed.

The AC 800M PM864A process controller, which manages the ModuleBus communication to the 3BDH000395R0001, should be confirmed as running a compatible firmware version and have adequate CPU load headroom to handle the additional PROFIBUS master task cycle. In plants where the PM864A is already managing multiple communication modules — such as a CI853 PROFIBUS DP slave module for inter-controller communication or a CI860 IEC 61850 module for substation integration — the task execution load should be reviewed in Control Builder M’s task monitor before adding the new master configuration.

For sites where the original PROFIBUS segment includes a mix of ABB S800 remote I/O stations and third-party field devices, the GSD files for all slave devices should be archived and re-imported into the new Control Builder M hardware configuration to ensure the I/O map is correctly reconstructed. The TK212A programming cable or USB-to-serial adapter used for local controller access during commissioning should be prepared in advance, along with a verified backup of the current application program stored on a separate medium independent of the controller’s internal flash.

Signal isolators installed between the PROFIBUS segment and any intrinsically safe field instruments in hazardous areas must be checked for compatibility with the DP-V1 acyclic read/write services that the 3BDH000395R0001 supports, as some older isolator models only pass DP-V0 cyclic data and will silently drop acyclic service requests, causing diagnostic gaps in the HMI.

Downtime Control During System Migration

Minimizing process interruption during a PROFIBUS master replacement requires a structured pre-cutover preparation phase. Before the maintenance window opens, engineers should export the full hardware configuration from Control Builder M, document all PROFIBUS slave addresses and their associated process variable tags, and capture a screenshot or export of the current diagnostic status from the System 800xA Operations workplace to establish a baseline for post-migration verification.

The physical swap of the CI854AK01 for the 3BDH000395R0001 can be performed with the AC 800M controller in run mode if the plant’s safety procedures permit hot-swap operations on the S800 backplane. However, the PROFIBUS master function will be interrupted during the module exchange, causing all connected slave devices to enter their configured fail-safe states. Field operators should be briefed on expected alarm conditions during this window, and any interlock logic dependent on PROFIBUS-sourced signals should be temporarily bypassed or placed in manual mode according to the plant’s management of change procedure.

After physical installation, the updated Control Builder M configuration referencing the 3BDH000395R0001 hardware object should be downloaded to the controller in a full download with application restart, followed by an immediate verification of the PROFIBUS diagnostic view to confirm all slaves have re-established communication. The System 800xA HMI should be checked for correct process value display on all faceplates associated with PROFIBUS-sourced tags before releasing the plant back to automatic control. Total cutover time for a well-prepared migration is typically 30 to 90 minutes, depending on the number of slaves and the complexity of the application program.

Retrofit Support FAQ

Q: Is the 3BDH000395R0001 a direct replacement for the CI854AK01 without any hardware modification?
A: Yes. The 3BDH000395R0001 is mechanically and electrically compatible with the same S800 backplane slot used by the CI854AK01. The existing PROFIBUS cable and 9-pin D-Sub connector can be reused. The only required change is updating the hardware object in the Control Builder M project to reference the new module type and re-downloading the configuration to the AC 800M controller.

Q: What commissioning steps are required after installing the 3BDH000395R0001?
A: After physical installation and configuration download, verify that the PROFIBUS master status LED indicates normal operation, confirm all slave devices appear in the diagnostic view with no communication errors, and validate process variable values against field instrument readings. If DP-V1 acyclic services are used for device parameterization, test at least one read/write cycle to a representative slave device before returning the system to automatic mode.

Q: Does the 3BDH000395R0001 ship pre-tested and ready for installation?
A: Yes. Each unit undergoes functional verification prior to shipment, including PROFIBUS communication initialization and backplane interface testing. Units are shipped with protective packaging to prevent ESD damage. All modules are covered by a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability?
A: The 3BDH000395R0001 is maintained in regional warehouse stock to support urgent maintenance requirements. Standard orders ship within 2–5 business days. For projects requiring multiple units or blanket stock arrangements to cover planned maintenance cycles, contact our sales team to discuss allocation and lead-time commitments.
